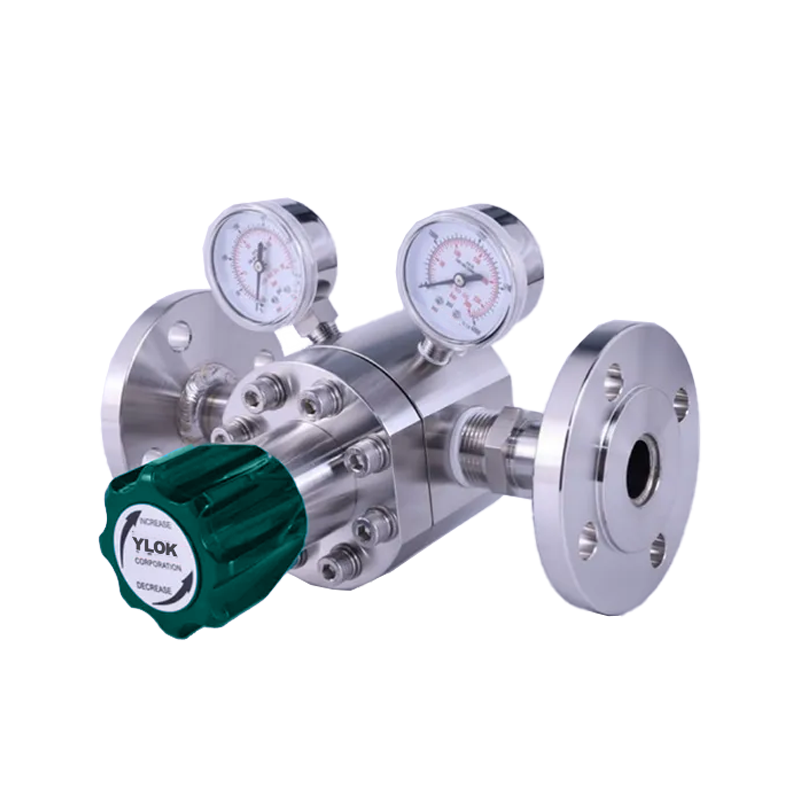

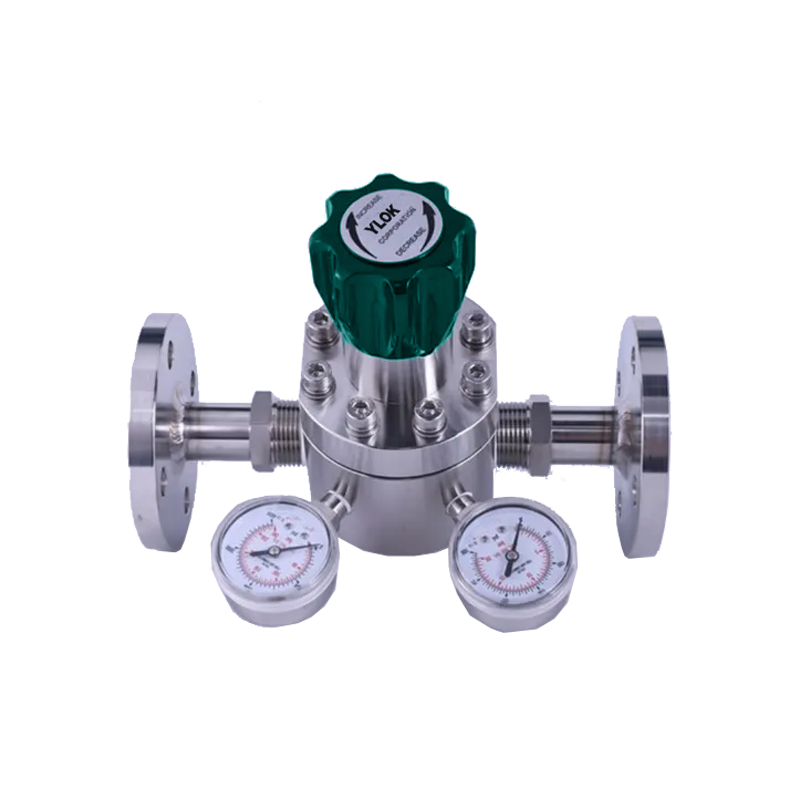

High-Pressure Liquid Pressure Regulator
High-Pressure Liquid Pressure Regulator: Definition & Technical Parameters
1. Definition of High-Pressure Liquid Pressure Regulator
The high-pressure liquid pressure regulator adopts a piston-type pressure reducing structure and features stable outlet pressure. It is suitable for liquids, tap water, gases, and steam, and applicable in laboratories, process control systems, liquid manifolds, and liquid pipelines of testing equipment.
2. Technical Parameters
Parameter Name | Specifications |
|---|---|
Type | Piston-type pressure reducing structure |
Maximum Inlet Pressure | 6000 psig, 3000 psig |
Outlet Pressure | 0~100 psig, 0~250 psig, 0~500 psig, 0~1500 psig, 0~3000 psig |
Material | Valve Body: SS316L |
Upper Cover: PTFE, PCTFE | |
Diaphragm: SS316L | |
Valve Stem: SS316L | |
Valve Body Thread | 3/4"NPT(F) |
Operating Temperature | -30℃ - +73℃ (Customizable for other temperatures) |
Flow Parameter (Cv) | 1.8 |
