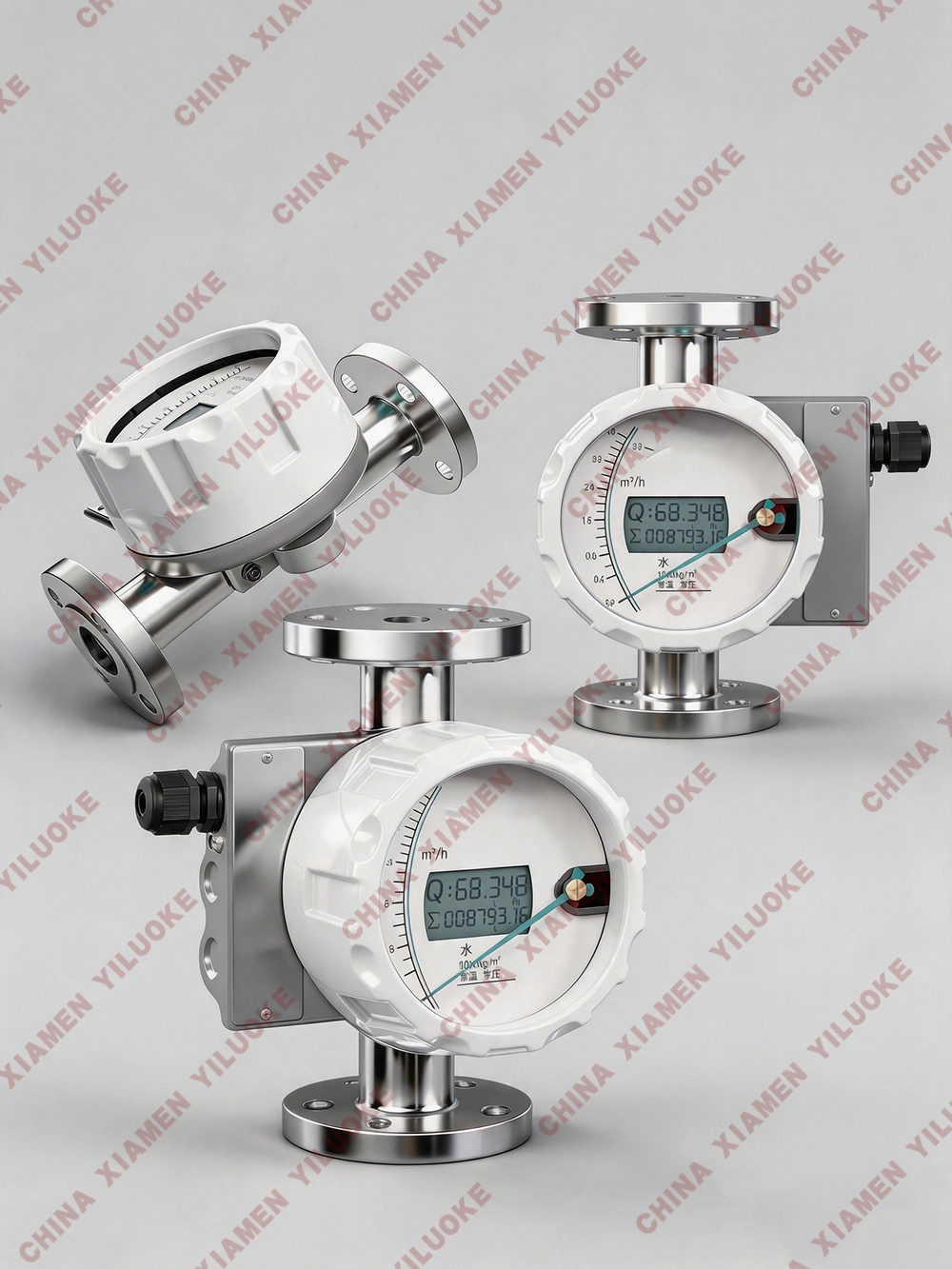

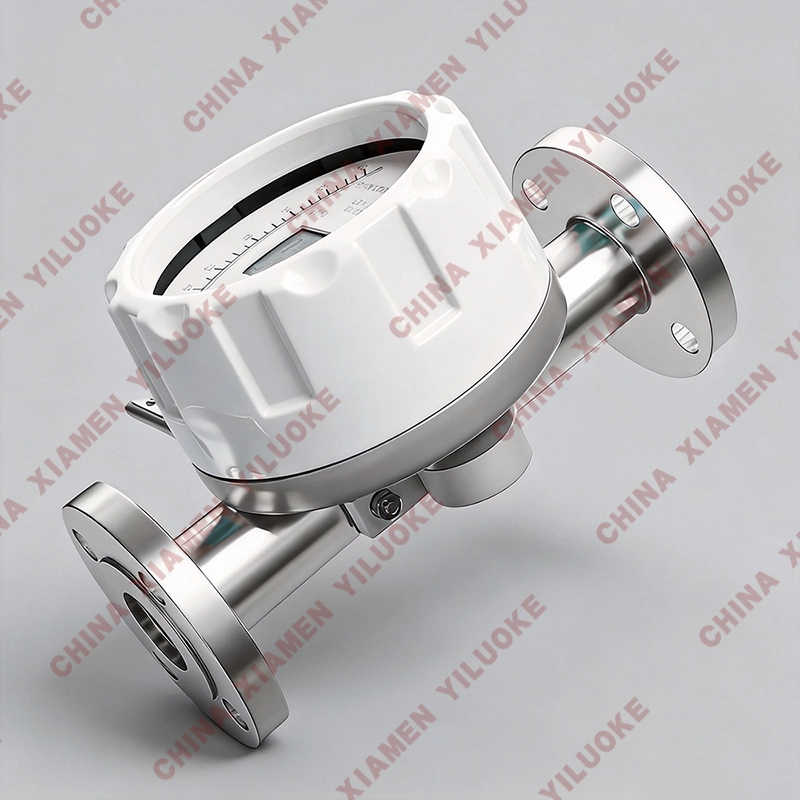

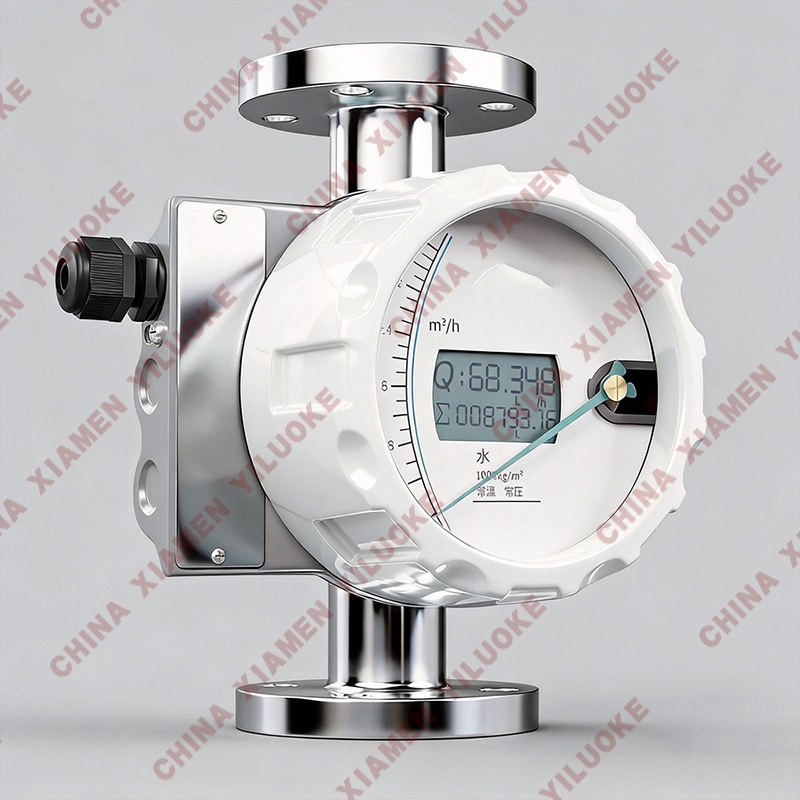

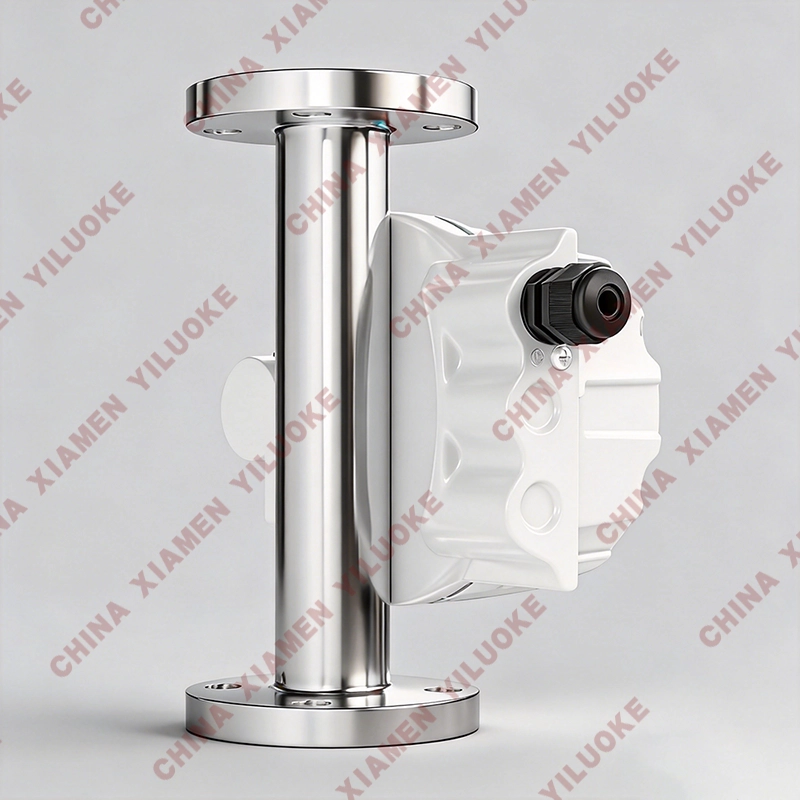

Full Metal Variable Area Flow Meter
Product Overview
Full metal variable area flow meter features simple structure, reliable operation, wide application range, accurate measurement and easy installation. High temperature and high pressure resistant full metal variable area flow meters include standard type and anti-corrosion type. Both types are available as local indicator type and electric remote transmission type . The sensor material of standard version is 1Cr18Ni9Ti; anti-corrosion version adopts 1Cr18Ni9Ti lined with PTFE.
If the measured medium contains ferromagnetic particles, a magnetic filter shall be installed at the inlet of the full metal variable area flow meter, and the filter material shall be consistent with the matched flowmeter.
Product Features
Full metal variable area flow meter includes local display type and intelligent remote transmission type. The intelligent remote transmission model adopts high-performance microprocessor chip, multi-channel signal output and advanced data memory with data backup and recovery function to ensure data security.
According to different measuring tube structures, LZ series full metal variable area flow meters are divided into Model 50, 51, 52 and 53. Different measuring tube configurations can be selected to meet diverse customer requirements, with optimized maintenance and cleaning performance.
Low requirement for upstream and downstream straight pipe sections; wide turndown ratio of 10:1. Measuring range: Water (20℃): 1 ~ 200000 L/h; Air (20℃, 0.1013MPa): 0.03 ~ 4000 m³/h.
Sensitive single-shaft indication, non-contact magnetic coupling transmission.
Optional power supply modes: two-wire system, battery power supply and AC power supply.
Suitable for high temperature, high pressure and strongly corrosive media.
Technical Parameters
Measuring Range Water (20℃): 1 ~ 200000 L/h Air (20℃, 0.1013MPa): 0.03 ~ 4000 m³/h Refer to flow range chart, customized ranges available.
Turndown Ratio: Standard 10:1 Accuracy Class: Standard 1.5
Pressure Rating Standard Type: DN15~DN50: 4.0MPa; DN80~DN200: 1.6MPa Special Type: DN15~DN50: 25MPa; DN80~DN200: 16MPa Jacket pressure rating: 1.6MPa Special versions require technical confirmation before order placement.
Pressure Loss: 7kPa ~ 70kPa Medium Temperature Standard: -80℃ ~ +200℃; PTFE lining: 0℃ ~ 85℃ High Temperature Version: Max. 400℃
Medium Viscosity DN15: <5mPa.s (F15.1-F15.3); <30mPa.s (F15.4-F15.8) DN25: <250mPa.s DN50~DN150: <300mPa.s
Ambient Temperature LCD type: -30℃ ~ +85℃ Pointer type: -40℃ ~ +120℃
Connection Type Standard: DIN2501 flange Special: Customized standard flange or thread
Cable Entry: M20×1.5
Power Supply Standard: 24VDC two-wire 4\20mA (10.8VDC \ 36VDC) AC Version: 85~265VAC, 50Hz Battery Version: 3.6V, 4AH Ni-MH battery
Alarm Output: Upper / lower limit instantaneous flow alarm Standard: Open collector output (Max.100mA@30VDC, internal resistance 100Ω) Special: Relay output (Max.5A@250VAC contact capacity)
Pulse Output: Totalized pulse output, minimum interval 50ms
LCD Display Instantaneous flow display range: 0 ~ 50000 Total flow display range: 0 ~ 99999999
Protection Class: IP65 Explosion-proof Mark: Flameproof Ex db IIC T6 Gb
