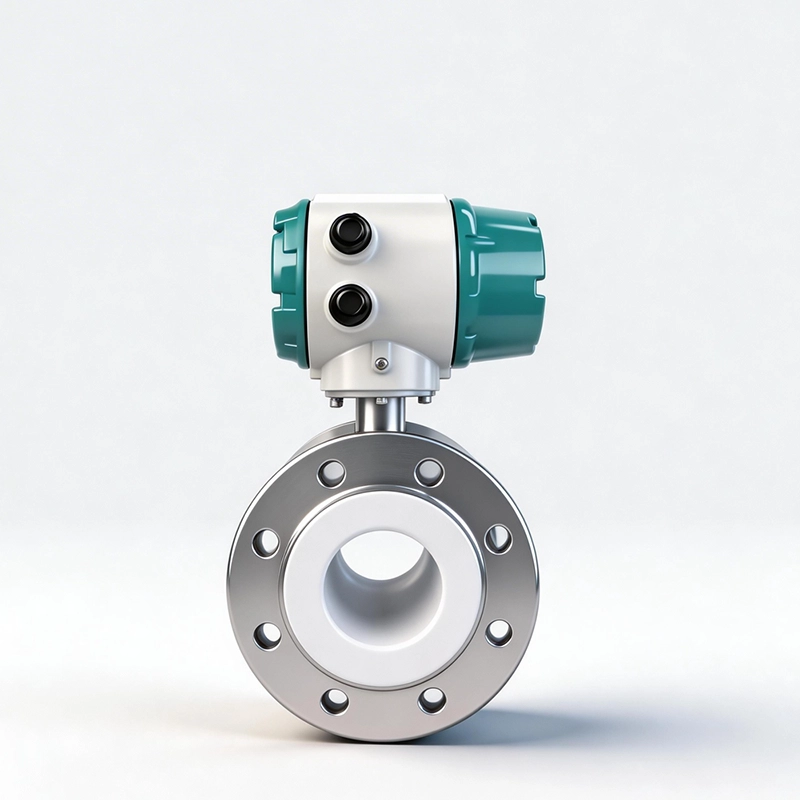

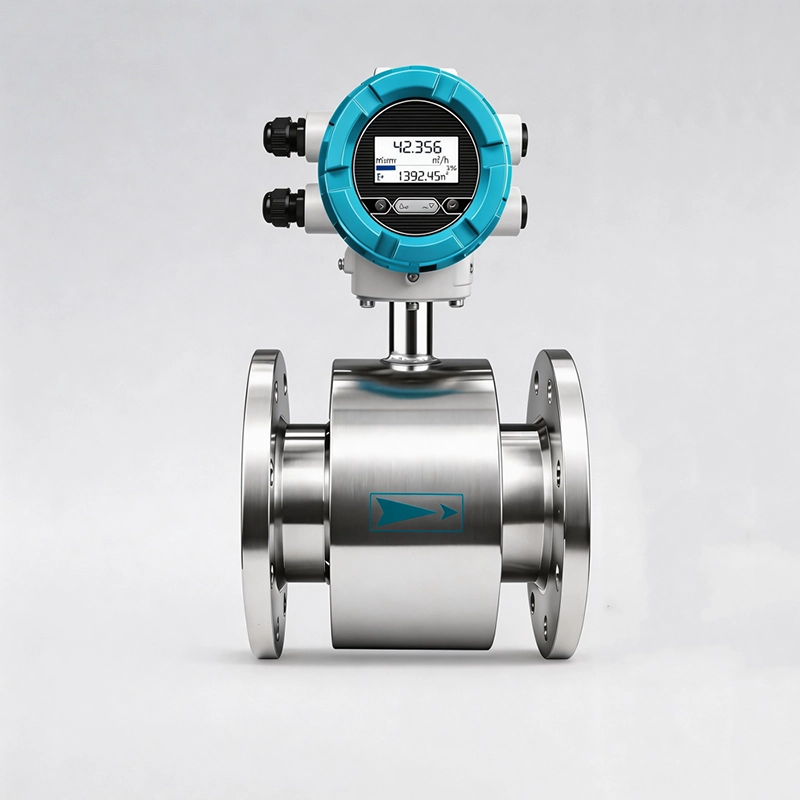

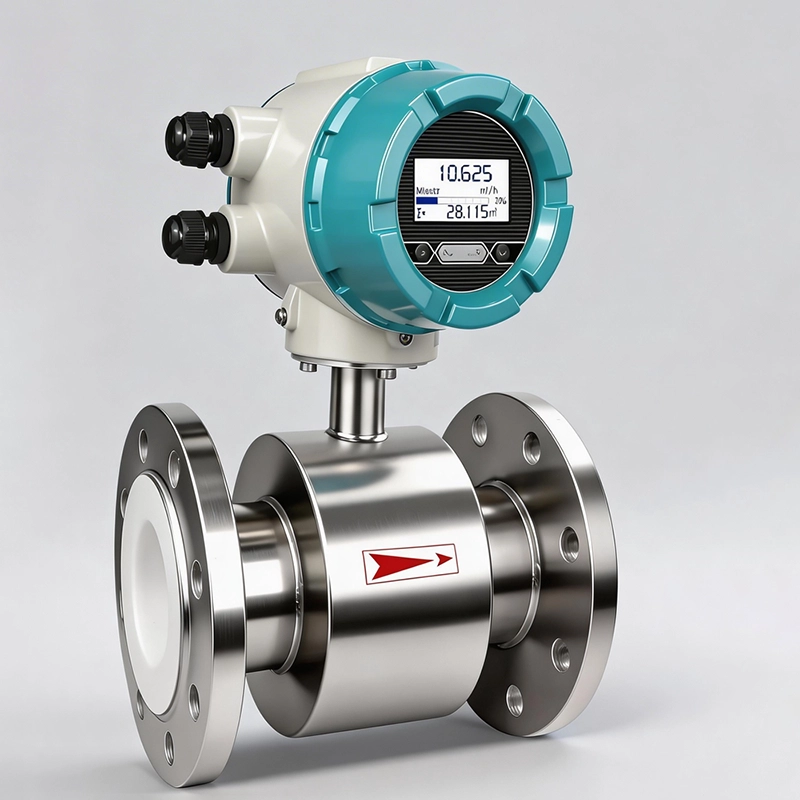

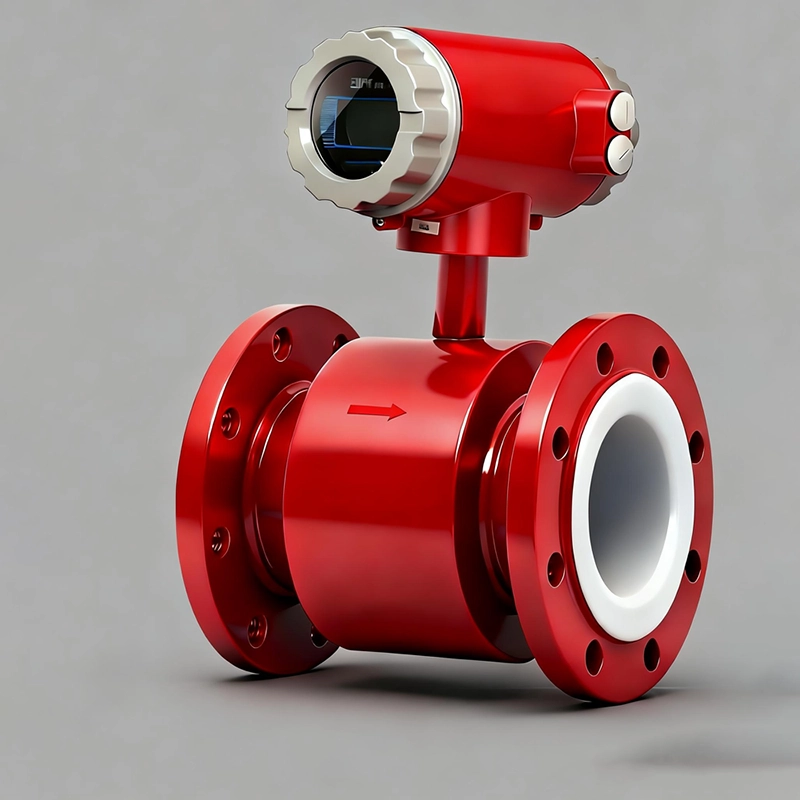

The PTFE lined electromagnetic flowmeter measures flow rate based on Faraday's Law of Electromagnetic Induction. This product is mainly used to measure volumetric flow of conductive media. It adopts 304 stainless steel body, PTFE lining and 316L electrodes, featuring low pressure loss and wide measurable flow range. The ratio of maximum flow to minimum flow is generally above 20:1.

Application Fields

The PTFE lined flowmeter supports a wide range of industrial pipe sizes from DN10 to DN2000. The output signal has linear relation with measured flow with high accuracy. It can measure fluid flow of acid, alkali, salt solution, water, sewage, corrosive liquid, mud, ore slurry, pulp and other media with conductivity ≥5μs/cm. It is widely used for flow measurement in chemical industry, metallurgy, textile, papermaking, environmental protection, food industry, domestic sewage, industrial wastewater, cooling water, waterworks, municipal administration, water conservancy construction, river dredging, building water supply metering and other fields.

Technical Parameters

1. Accuracy Class: ±0.5％, ±1％
2. Liner Material: Polyurethane, Neoprene rubber, PTFE, etc.
3. Electrode Material: 316L, Hastelloy alloy, Titanium, Platinum-Iridium alloy, etc.
4. Connection Type: Wafer flange, Flange connection, etc.
5. Medium Temperature: 0℃～70℃, 0℃～130℃ (0℃～180℃)
6. Nominal Pressure: 1.0MPa～32MPa
7. Protection Class: IP65, IP68
This intelligent electromagnetic flowmeter is developed by our company adopting advanced domestic and foreign technology. The input impedance of the converter reaches up to 10¹⁵ ohms, common-mode rejection ratio is better than 100db, and suppression capacity against external interference and 50Hz/60Hz interference exceeds 90db. It can measure fluid media with lower conductivity. The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure for stable and reliable magnetic field. It greatly reduces overall size and realizes miniaturized design.
8. Explosion-proof Mark: ExdⅡBT4
9. Equipped with three totalizers inside, which can display forward total flow, reverse total flow and net flow respectively. Built-in non-volatile clock can record 16 power failure events.
10. Digital communication signal outputs including RS485, RS232, Hart and Modbus.
11. Self-check and self-diagnosis function.

Product Advantages

1. The converter adopts 16-bit high-performance microprocessor with 2×16 LCD display, convenient parameter setting and reliable programming.
2. Bidirectional measurement system. Three built-in totalizers can display forward flow, reverse flow and net flow respectively.
3. Multiple output options: current signal, pulse signal, digital communication, HART, RS485 protocol.
4. Suitable for large-diameter pipelines DN300—1400mm.
5. Multiple optional materials for sensor body and electrodes.
6. Compact and lightweight, easy for transportation and installation; maintenance and disassembly can be realized without stopping flow.

Liner Material Selection Table

Electrode Material Selection Table

Note: Medium types are diverse, and corrosion is affected by complex factors such as temperature, concentration and flow velocity. This table is for reference only. Users shall make selection according to actual working conditions. Corrosion tests such as coupon test are recommended if necessary.

Nominal Diameter & Flow Range Table
