Swing Check Valve

Short Description:

Product Name: DIN Swing Check Valve
Valve Category: Non-return Valve (NRV)
Brand: Yiluoke
Technical Data: DN15-DN1000
Made In: China
Supplier: Xiamen Yiluoke Import and Export Trading Co., Ltd

Product Detail

A Swing Check Valve is equipped with a disc that rotates around a hinge or shaft. The disc rotates away from the valve seat to allow forward fluid flow; when the fluid stops flowing, the disc rotates back to the valve seat position to prevent backflow. The weight of the disc and fluid backflow affect the shut-off characteristics of the Swing Check Valve.

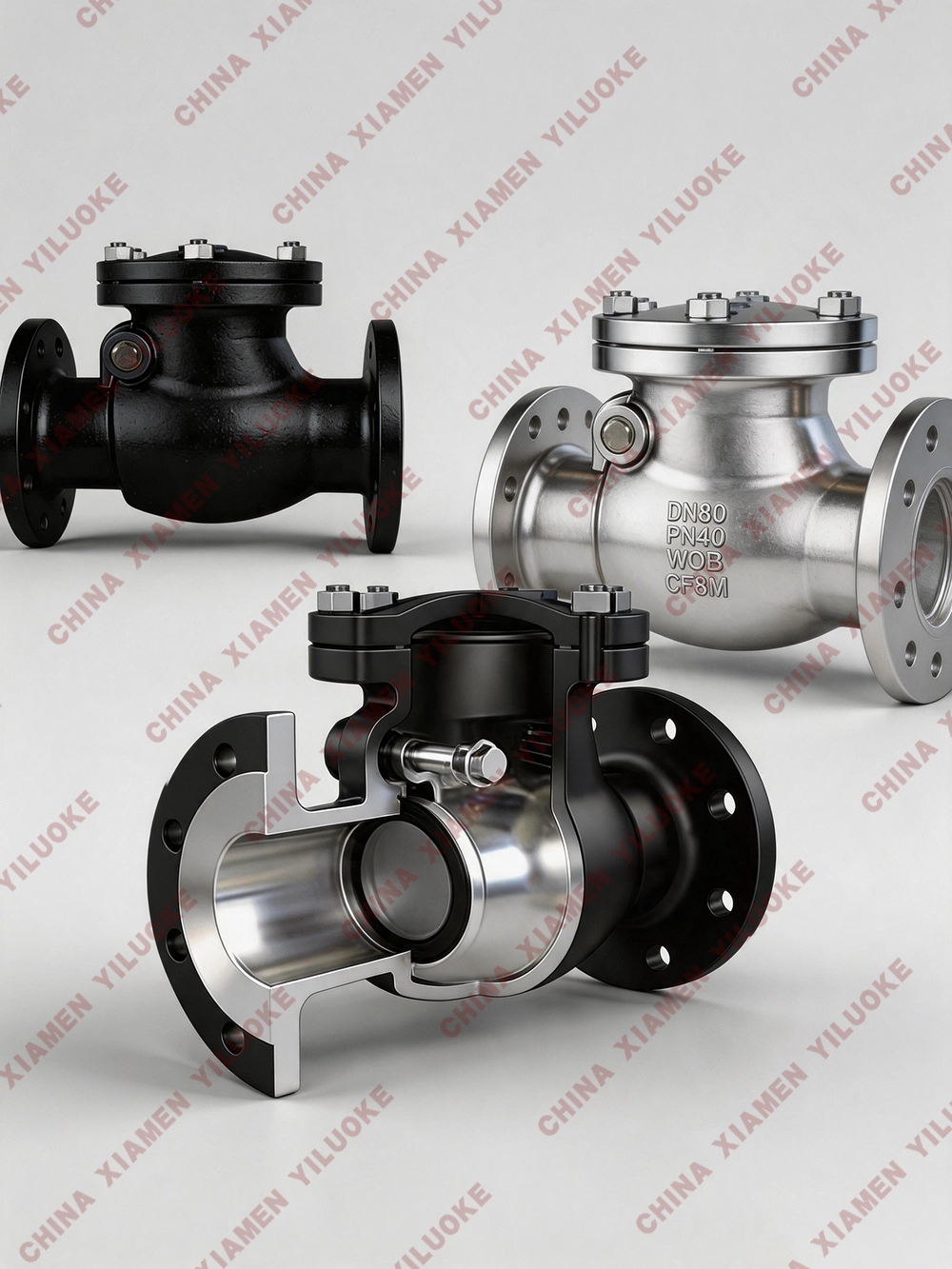

Swing Check Valves

Product Features

Compact and reasonable product structure, reliable sealing, and excellent performance;
Small volume and light weight;
Wide application range;
Fast disc closing and sensitive action;
Small closing impact force, not easy to generate water hammer phenomenon;
Unobstructed flow channel and low fluid resistance.

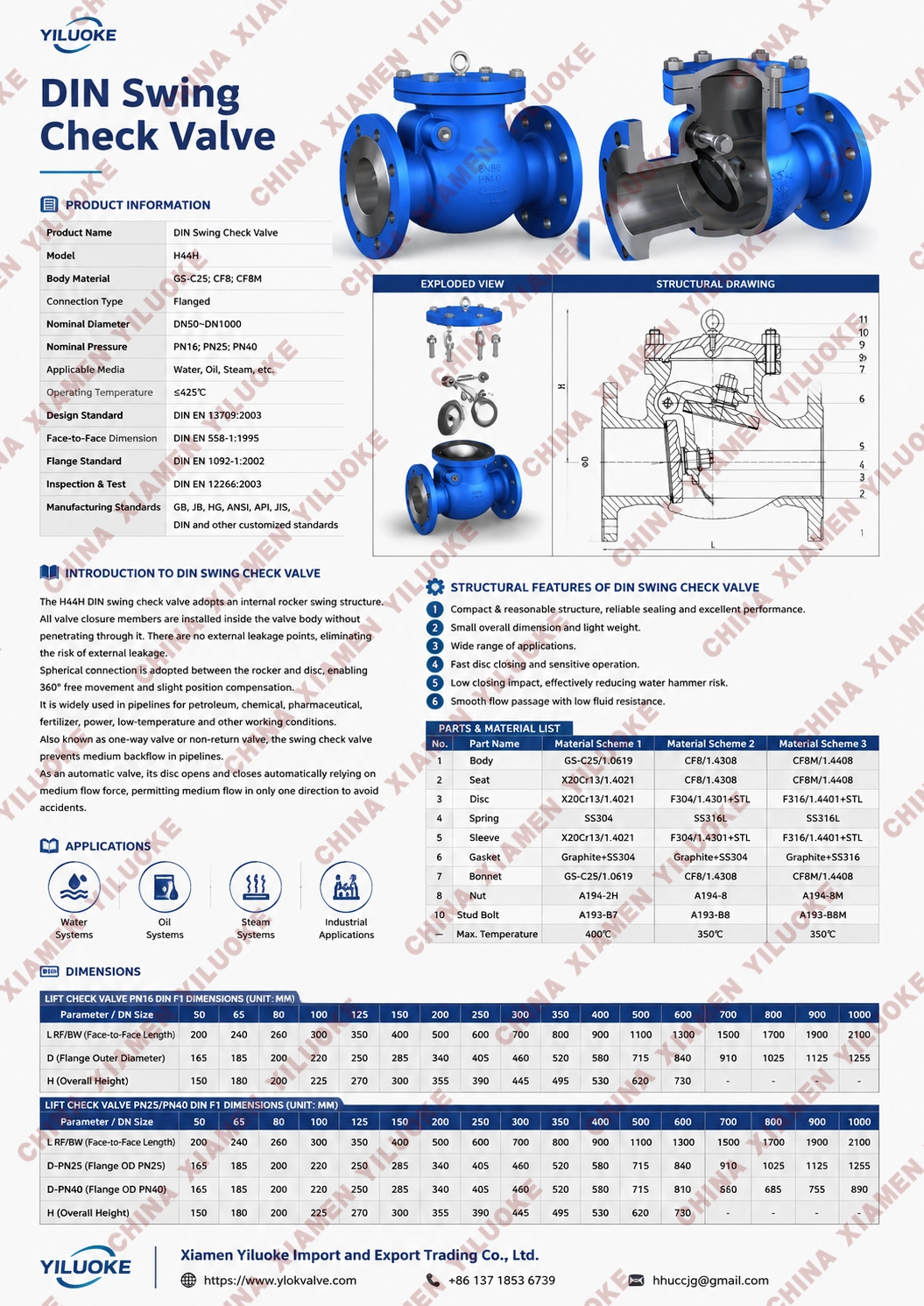

Data Sheet of Swing Check Valves

Design Specifications

Design Standards	EN13709, EN14341
Structure Length	EN558-1, ASME B16.10, GB/T 12221
Connection Standards	EN1092, ASME B16.5, ASME B16.25, GB/T 9113, JB/T 79, HG/T 20592
Pressure Test Standards	EN12266, API 598, GB/T 13927, GB/T 26480, JB/T 9092

Performance Parameters

Main Body Material	Carbon steel, stainless steel, alloy steel
Nominal Diameter	DN15～DN400
Pressure Range	PN10～PN63
Operating Temperature	-196℃～+450℃
Application Scope	Suitable for pipelines in various working conditions such as petroleum, chemical industry, pharmaceutical, chemical fertilizer, power industry, and low temperature.

Application Fields

Swing check valves are applicable to pipelines under various working conditions in petroleum, chemical, pharmaceutical, fertilizer, power and other industries with nominal pressure PN1.6~16.0MPa and operating temperature -196~600℃, to prevent medium backflow.

Performance Specification

Nominal Pressure PN	Normal Temperature Test Pressure (MPa)		Operating Temperature	Applicable Medium
	Shell Test	Sealing Test
1.6	2.4	1.76	-196～600℃	Water, oil products, steam, etc.
2.5	3.75	2.75
4.0	6.0	4.4
6.4	9.6	7.04
10.0	15.0	11.0
16.0	24.0	17.6
25.0	37.5	27.5

Main Parts Material

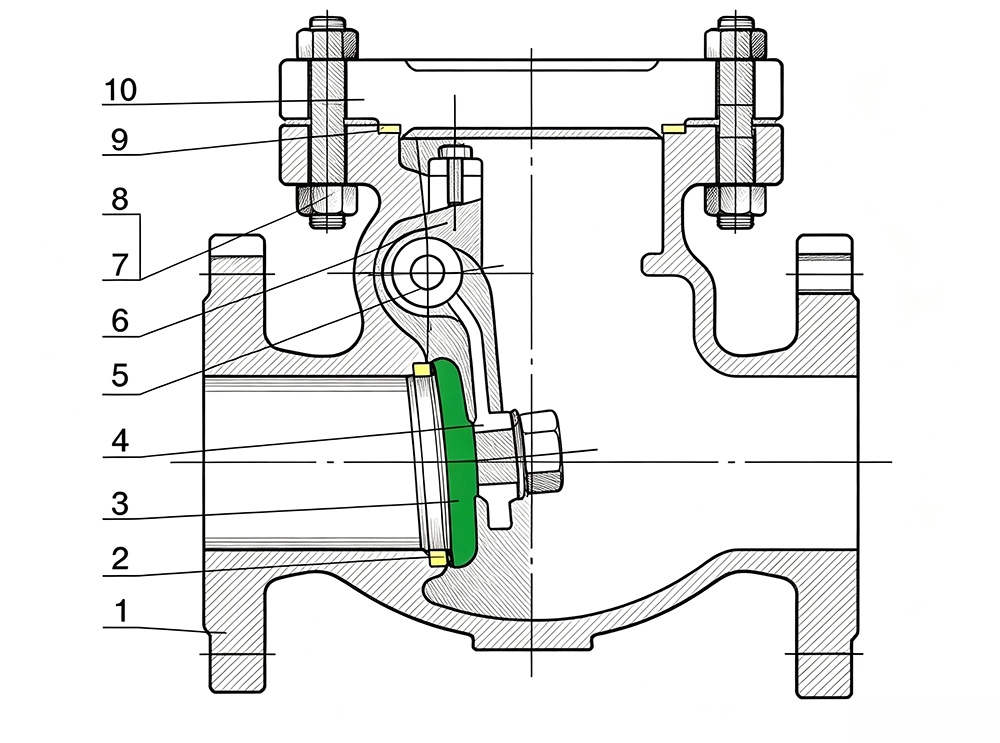

Structure and Principle of Swing Check Valve

No.	Part Name	Material
1	Valve Body	WCB, WC1, WC6, WC9, C5, CF8, CF8M, CF3, CF3M
2	Valve Seat	25, 1Cr13, 2Cr13, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 20Cr1Mo1V, 25Cr2MoV
3	Disc	WCB, WC1, WC6, WC9, C5, CF8, CF8M, CF3, CF3M
4	Swing Lever	WCB, WC1, WC6, WC9, C5, CF8, CF8M, CF3, CF3M
5	Hinge Pin	1Cr13, 2Cr13, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti
6	Connecting Bracket	WCB, WC1, WC6, WC9, C5, CF8, CF8M, CF3, CF3M
7	Stud Bolt	35CrMoA, 25Cr2MoV, 0Cr18Ni9, 0Cr17Ni12Mo2
8	Hex Nut	45, 35CrMoA, 25Cr2MoV, 0Cr18Ni9, 0Cr17Ni12Mo2
9	Gasket	Flexible graphite + stainless steel
10	Bonnet	WCB, WC1, WC6, WC9, C5, CF8, CF8M, CF3, CF3M

Overall Dimensions & Weight

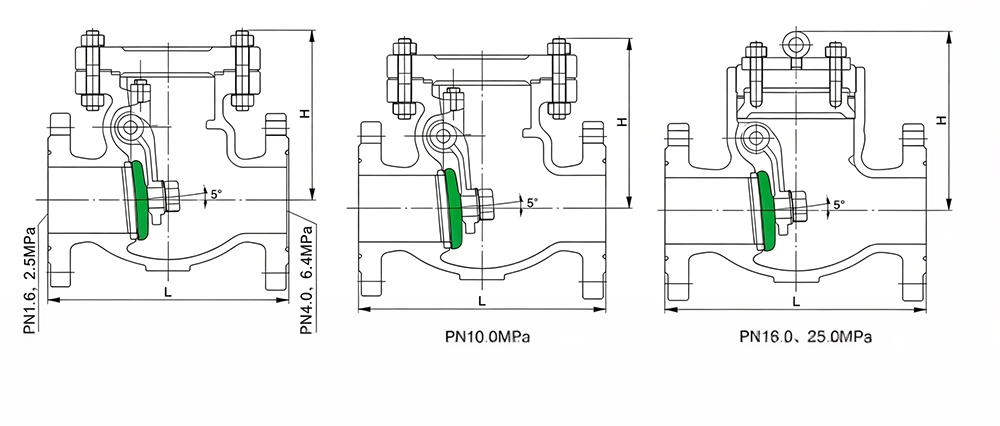

Dimensions of Swing Check Valve

PN	DN	L	H	Weight(kg)	PN	DN	L	H	Weight(kg)	PN	DN	L	H	Weight(kg)
1.6	50	230	165	23	2.5	50	230	180	25	10.0	50	300	195	43
	65	290	180	28		65	290	195	32		65	340	213	52
	80	310	190	35		80	310	195	35		80	380	240	75
	100	350	208	40		100	350	220	55		100	430	270	112
	150	480	270	81		150	480	273	104		150	550	365	220
	200	600	295	96		200	600	352	138		200	650	425	345
	250	730	337	175		250	730	413	198		250	775	486	475
	300	850	386	265		300	850	432	388		PN16.0
	350	980	430	364		350	980	455	390	16.0	50	300	255	52
	400	1100	475	495		400	1100	562	498		65	340	285	62
	500	1250	565	590		500	1250	620	643		80	380	324	113
PN	DN	L	H	Weight(kg)	PN	DN	L	H	Weight(kg)		100	430	359	165
4.0	50	230	180	27	6.4	50	300	195	32		150	550	433	270
	65	290	195	33		65	340	213	45		200	650	478	324
	80	310	195	37		80	380	213	50		250	775	520	375
	100	350	220	56		100	430	240	75	PN25.0
	150	480	273	105		150	550	302	158	25.0	50	368	315	65
	200	600	352	140		200	650	362	220		65	419	348	79
	250	730	413	200		250	775	410	346		80	470	386	95
	300	850	432	392		300	900	468	476		100	546	410	172
	350	980	455	396		350	1025	520	630		150	705	565	275
	400	1100	562	502		400	1150	572	886		200	832	620	325
	500	1250	620	645		500	1400	625	1030
