Brass Solenoid Valves
Brass Solenoid Valves: Product Overview & Technical Parameters

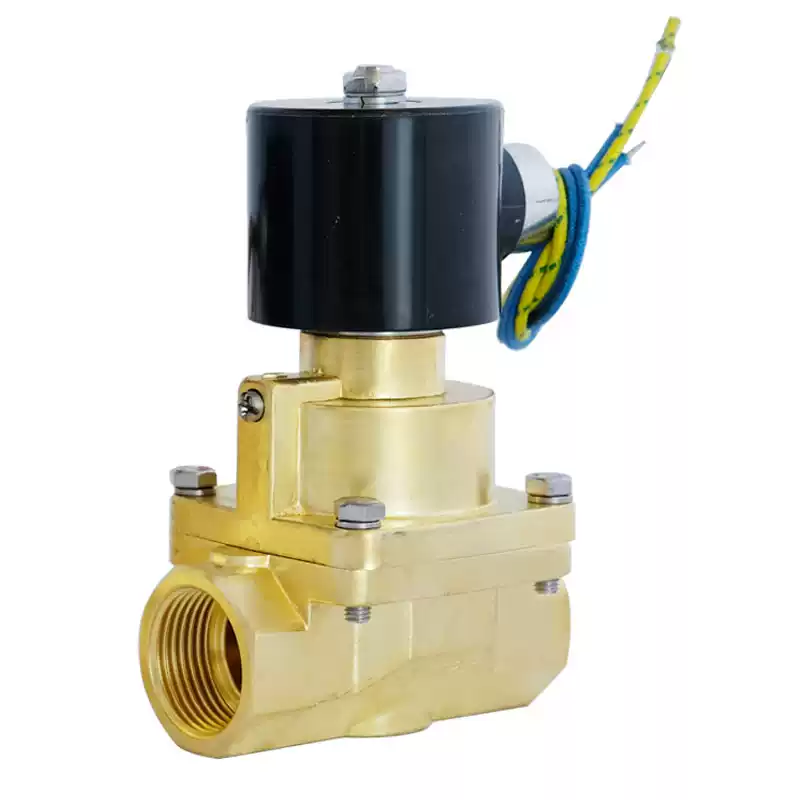

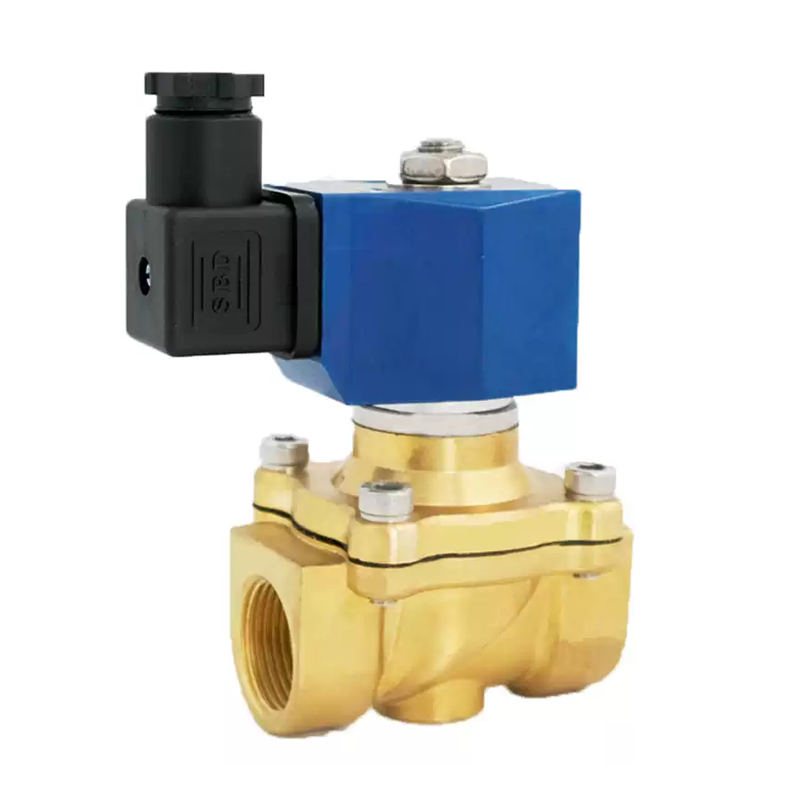

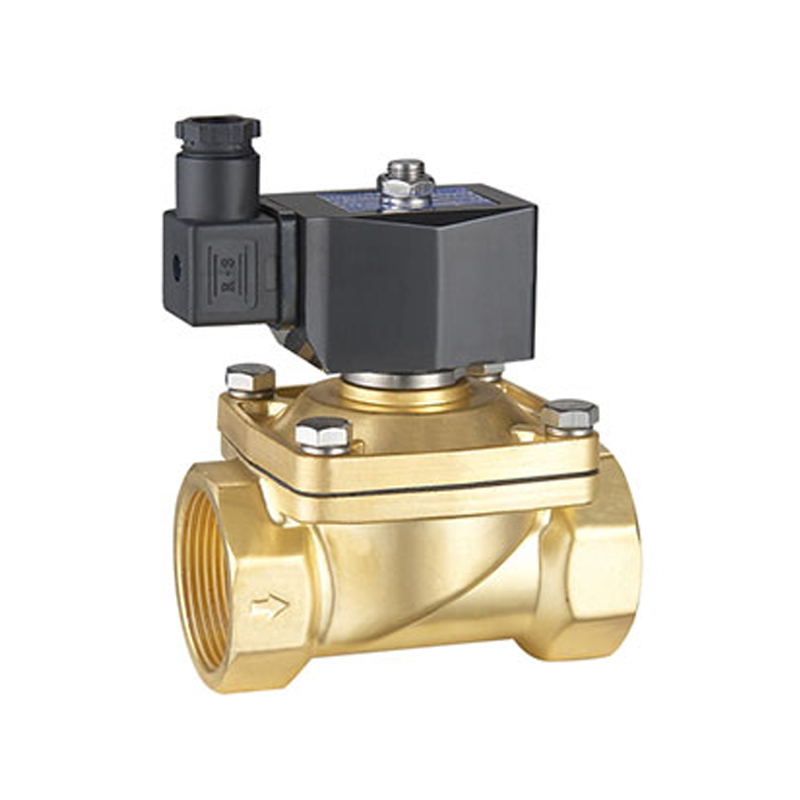

Product Overview of Brass Solenoid Valves
Brass solenoid valves are mainly used for the automatic control of pipelines carrying water, air, coal gas, diesel oil, etc.
They are supporting products and applied in automatic control systems of related industries such as: solar energy equipment, medical devices, food machinery, agricultural machinery, analytical instruments, sulfur analyzers, water dispensers, cleaning equipment, packaging machinery, filling equipment, military equipment, textile printing and dyeing, HVAC, generator sets, environmental protection water treatment, industrial kilns, boiler burners, welding and cutting, etc.
Technical Parameters of Brass Solenoid Valves
Parameter Category | Specifications |
|---|---|
Nominal Diameter | DN4~50mm |
Connection Method | G thread, NPT thread, flanged |
Operating Principle | Step-by-step direct-acting type |
Valve Body Material | Brass, stainless steel 304, customizable stainless steel 316 (-R) |
Sealing Material | Nitrile Butadiene Rubber (NBR); Fluoroelastomer (FKM); Other materials available upon consultation |
Applicable Medium | Liquids, gases, oils, etc. |
Medium Temperature | 1. -20℃~80℃; 2. -20℃~150℃; Other temperatures available upon consultation |
Operating Environment Temperature | Standard type: -20℃~60℃ |
Installation Method | Horizontal installation (coil vertically upward); Other installation methods available upon consultation |
Protection Level | Iron case type: IP54; Plastic-sealed type: IP65; Encapsulated explosion-proof type: IP65; Flameproof type: BT4, IP54 |
Note: Special working condition requirements can also be designed and manufactured according to the customer's actual situation.
