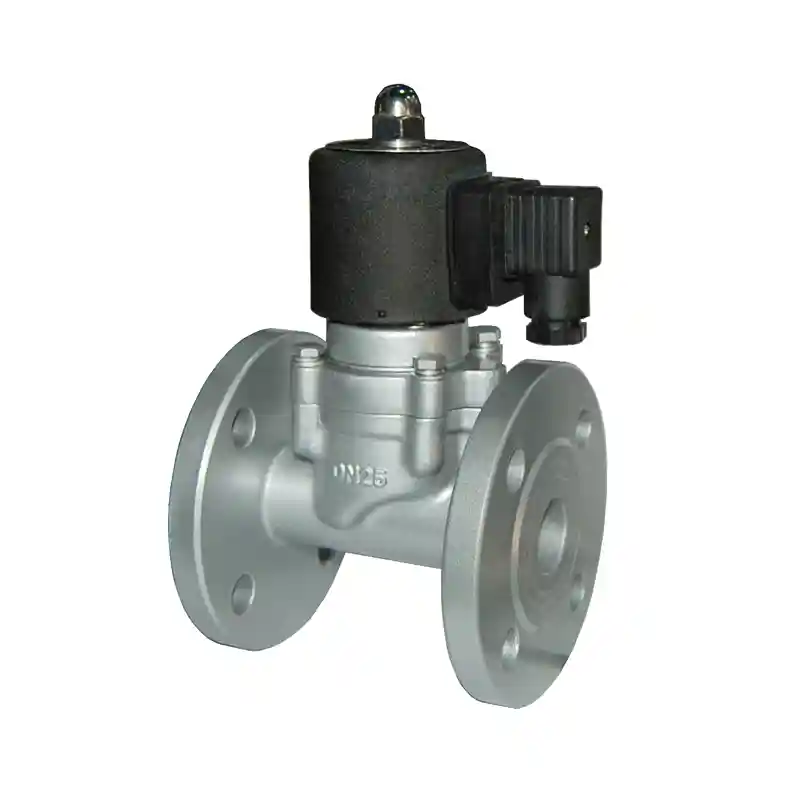

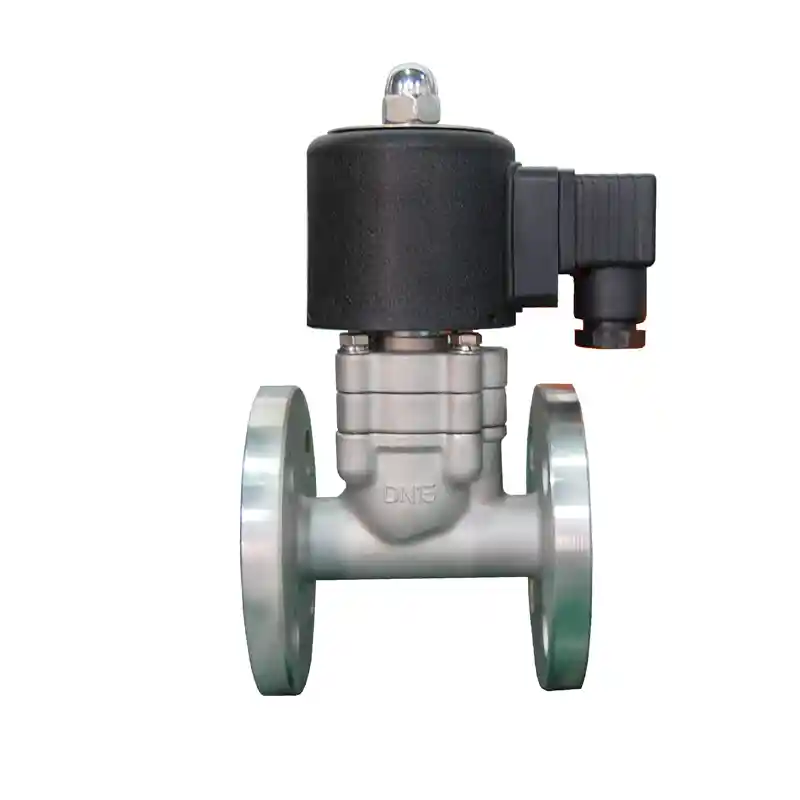

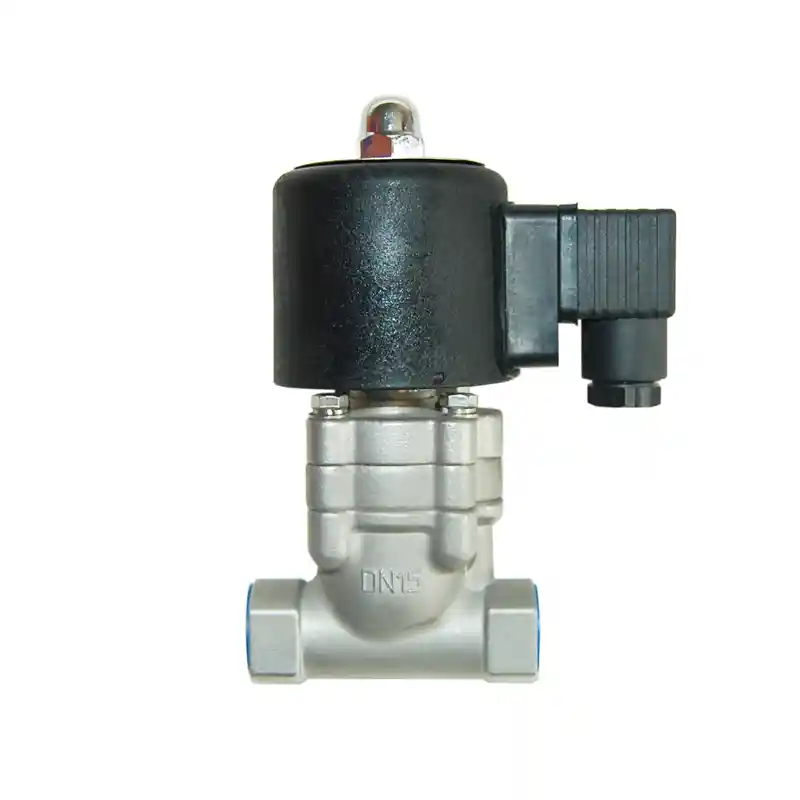

Liquid Solenoid Valves
Product Overview of Liquid Solenoid Valves
Liquid solenoid valves refer to solenoid valves using water or other liquids as the working medium. They can automatically or remotely control the on-off of pipelines carrying working media such as water, oil, and various liquids. Widely applied in industries including petroleum, chemical engineering, chemical fertilizers, metallurgy, electric power, environmental protection, water supply and drainage, heating, and fire protection systems.
Key Features of Liquid Solenoid Valves
Patented technology
Piston-type structure for stable performance
Excellent sealing performance
Technical Parameters of Liquid Solenoid Valves
Parameter Category | Specifications |
|---|---|
Control Mode | Normally Closed (NC), Normally Open (NO) |
International Standard Voltage | AC (380, 220, 110, 24) V; DC (220, 110, 24, 12) V |
Circulating Fluid Medium | Water, oil, high/low temperature liquids, etc. |
Circulating Fluid Temperature | <+350℃ |
Circulating Fluid Pressure | 42MPa |
Valve Body Material | Cast steel (WCB), stainless steel (304, 316, 316L) |
Connection Method | Threaded (internal thread, external thread), flanged, male-female flange |
