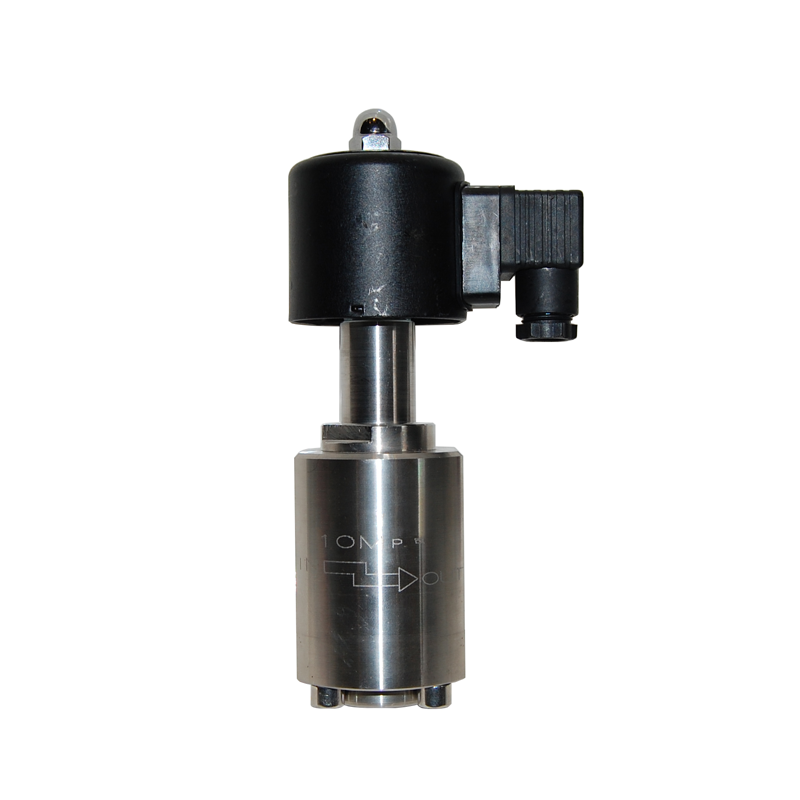

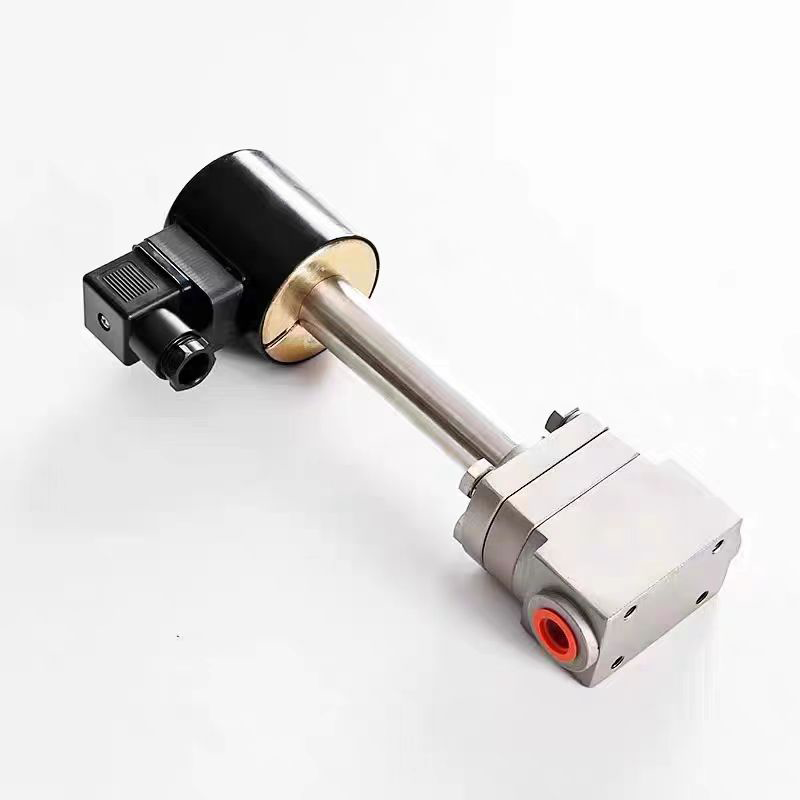

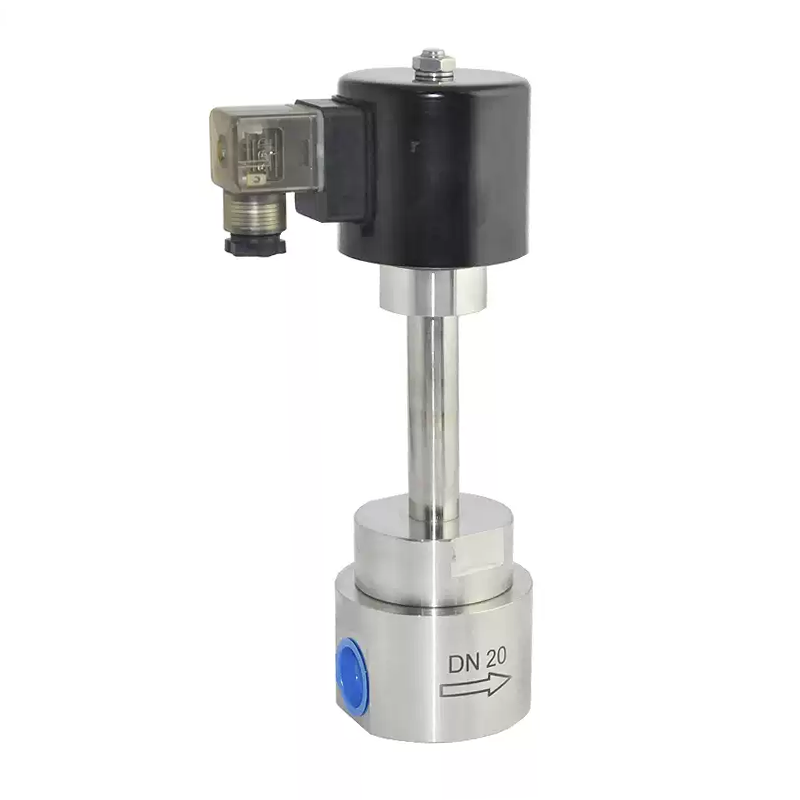

Cryogenic and High-Pressure Solenoid Valves
Cryogenic and High-Pressure Solenoid Valves: Product Overview, Parameters & Application Fields
1. Product Overview
Cryogenic and high-pressure solenoid valves are suitable for working conditions with a medium temperature ranging from -196℃ to 60℃. They are generally used in cryogenic systems such as liquid helium, liquid hydrogen, liquefied natural gas (LNG), and air separation. The applicable media include cryogenic fluids like liquid helium, liquid hydrogen, LNG, liquid nitrogen, and liquid oxygen.
2. Technical Parameters
Parameter Name | Specifications |
|---|---|
Nominal Diameter | DN15～DN300 (1/8"～12") |
Operation Mode | Pilot type, direct-acting type, zero-differential-pressure type |
Control Mode | Normally Open (NO), Normally Closed (NC) |
International Standard Voltage | AC (380, 220, 110, 24) V; DC (220, 110, 24, 12) V |
Circulating Fluid Medium | Refrigerants, liquid nitrogen, liquid oxygen, liquid argon, carbon dioxide, etc. |
Circulating Fluid Temperature | -196℃ |
Circulating Fluid Pressure | 42MPa |
Valve Body Material | Stainless steel (304, 316, 316L) |
Connection Method | Threaded, flanged, welded |
3. Application Fields
LNG Storage and Transportation: Controls the feeding and discharging of liquefied natural gas (-162℃, 25MPa).
Aerospace Propulsion: Rocket liquid hydrogen/liquid oxygen fuel valves (-253℃, 360MPa).
Medical and Scientific Research: Liquid nitrogen freezing equipment (-196℃, 10MPa).
Chemical Reactions: Control of cryogenic chemical reaction fluids.
