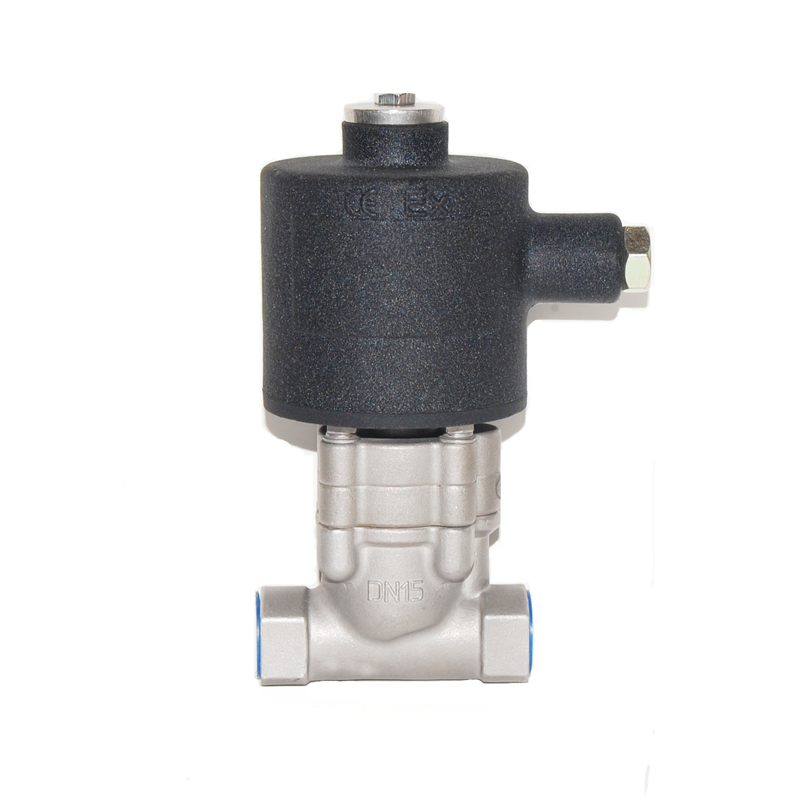

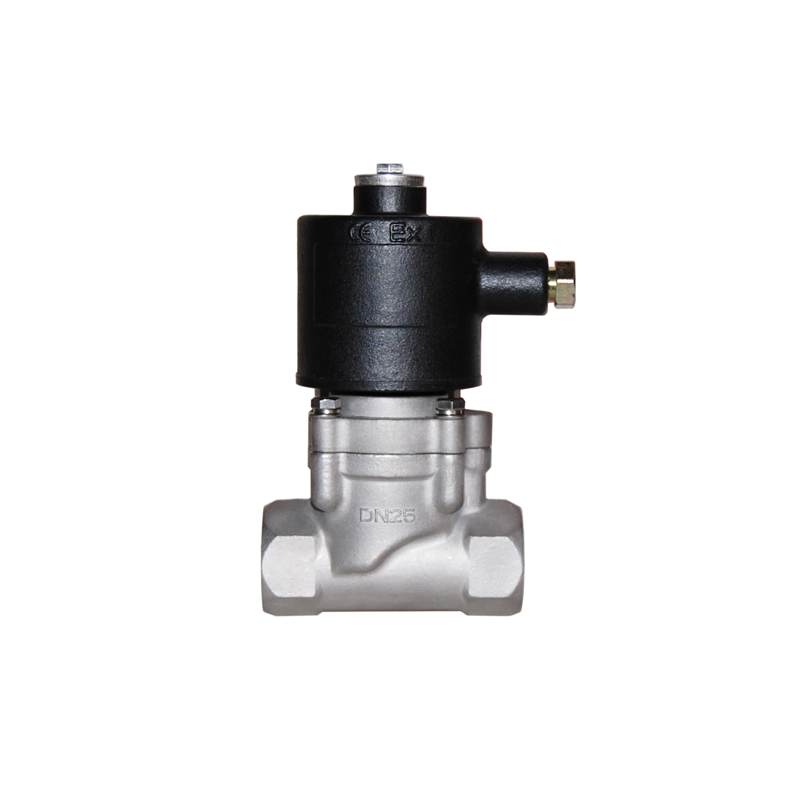

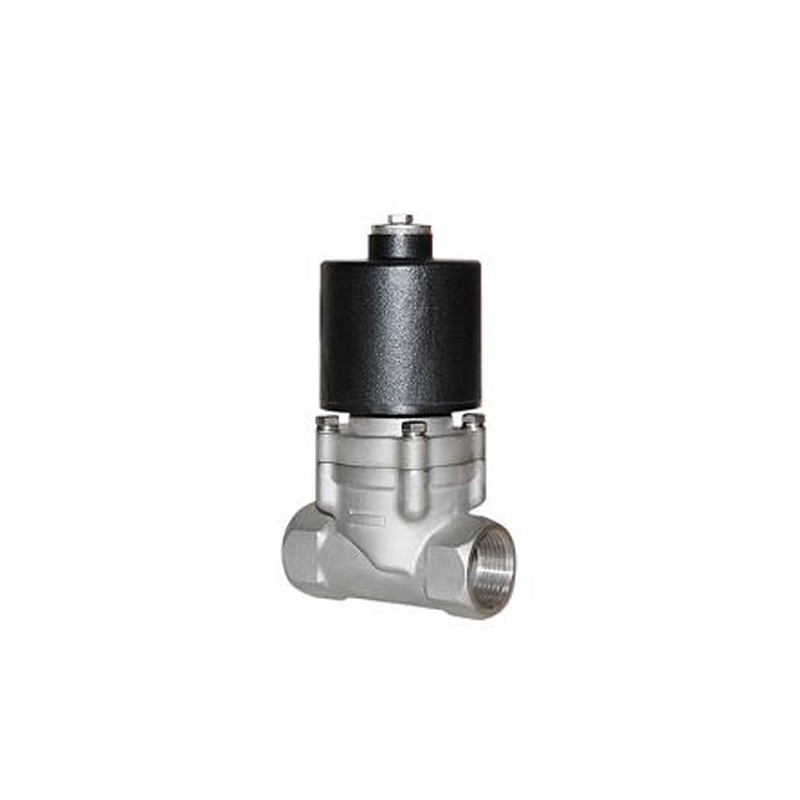

Oil Solenoid Valves
Oil Solenoid Valves: Product Overview, Features & Technical Parameters
Product Overview of Oil Solenoid Valves
Oil solenoid valves are designed to control the on-off of oil-based media such as oil, petroleum, crude oil, diesel oil, hydraulic oil, heat transfer oil, and lubricating oil. Generally made of brass or stainless steel, they feature explosion-proof, high-pressure resistant, high-temperature resistant, and corrosion-resistant properties.
Product Features of Oil Solenoid Valves
Reliable coil operation with fast response speed.
Customized coil, resistant to burnout.
All valve cores are stainless steel piston-type; piston rings will not be jammed by impurities in the medium.
The coil activates the valve core and pulls the piston simultaneously, enabling normal operation even under zero pressure.
Wide versatility, high sensitivity, strong tightness, and long service life.
Technical Parameters of Oil Solenoid Valves
Parameter Category | Specifications |
|---|---|
Operation Mode | Direct-acting type, pilot type, step-by-step direct-acting type |
Operating Environment Temperature | -30—+80℃; -50—+100℃ |
Coil Operating Temperature | <+50℃, <+85℃ |
Control Mode | Normally Closed (NC), Normally Open (NO) |
International Standard Voltage | AC (380, 220, 110, 24) V; DC (220, 110, 24, 12) V |
Circulating Fluid Medium | Gasoline, diesel oil, kerosene, heat transfer oil, etc. |
Circulating Fluid Temperature | ≤600℃ |
Circulating Fluid Pressure | 0-42MPa |
Valve Body Material | Stainless steel (304, 316, 316L), cast steel |
Connection Method | Threaded (internal thread, external thread), flanged, welded, clamped, union |
