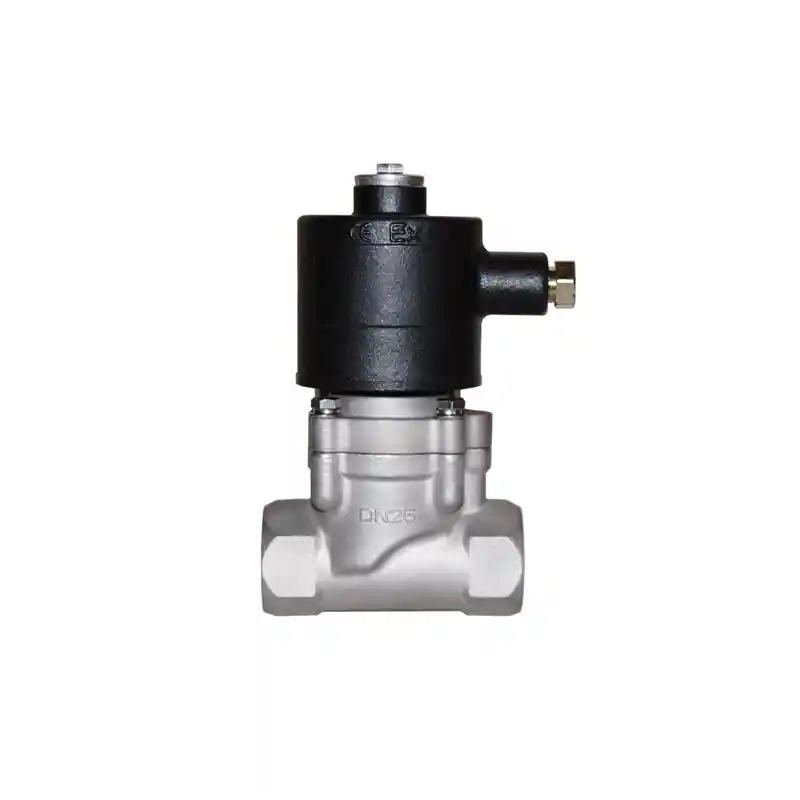

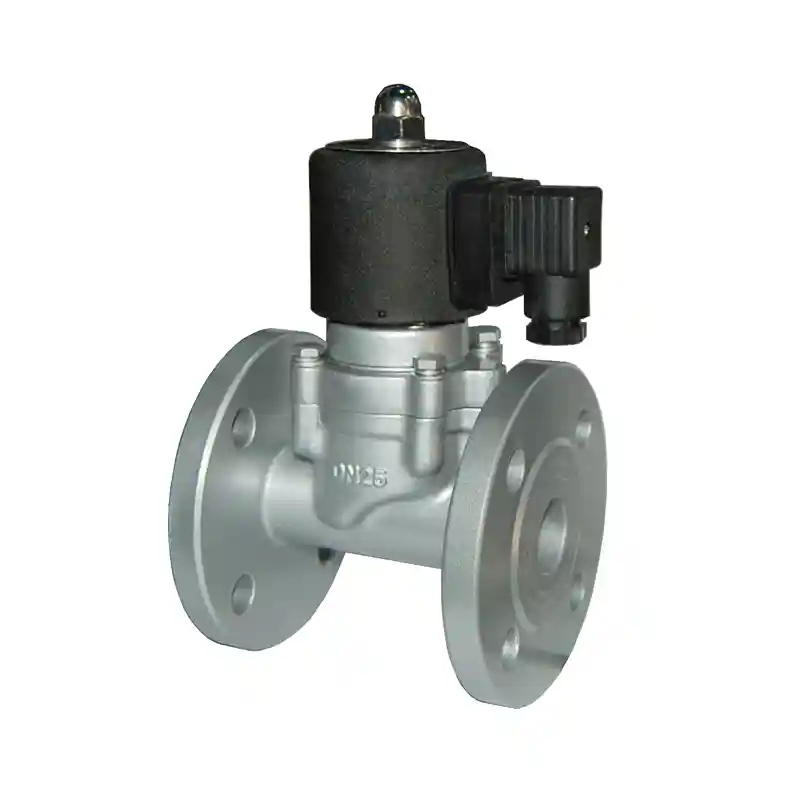

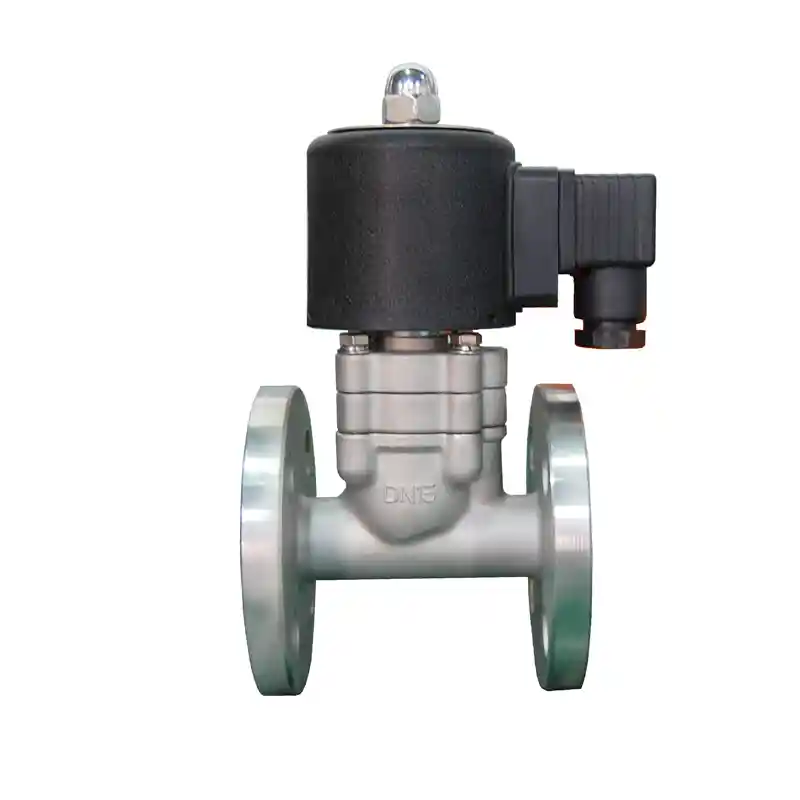

Product Overview of Waterproof Solenoid Valves

Waterproof solenoid valves consist of a waterproof coil, a movable iron core, and a valve body. The upper end of the valve stem of the valve disc (matching the valve seat inside the valve body) is integrated with the lower end of the movable iron core. These solenoid valves adopt gold-plated waterproof plugs, solving problems such as poor contact caused by humidity in the past. They feature large flow rate, long service life, low failure rate, resistance to clogging, strong adaptability to the working medium, and stable and reliable performance, ensuring the normal operation of water supply and drainage systems, fountain equipment, petrochemical equipment, irrigation equipment, etc. Imported waterproof solenoid valves are widely used in the control of various fountains (such as musical fountains, running fountains, jumping fountains, sprinklers, water feature art) as well as underwater pipelines and pipelines in humid environments. They are suitable for underwater use in rivers, lakes, seas, artificial pools, and other underwater environments.

Key Features

• Unique design and elegant appearance; the valve core is made of stainless steel with a piston-type structure.

• Fast response speed; specialized coil with waterproof design, resistant to burnout.

• Still sensitive in action even after long-term inactivity and restart.

• Service life of over 1 million cycles (note: technical parameter specifies 500,000 cycles, subject to actual parameter standard).

• Can be installed at a depth of 500 meters underwater.

Technical Parameters
