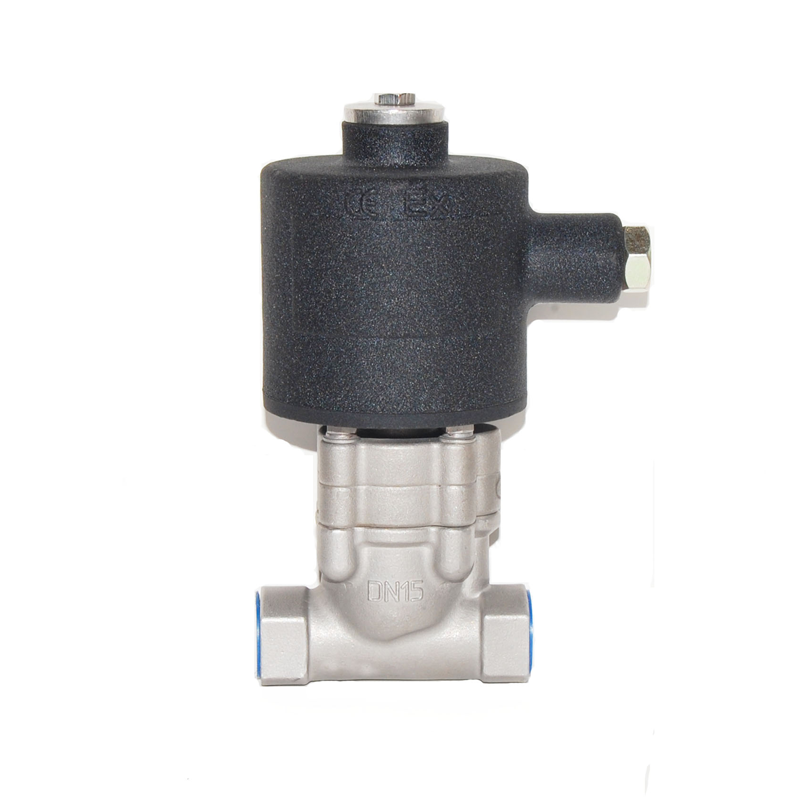

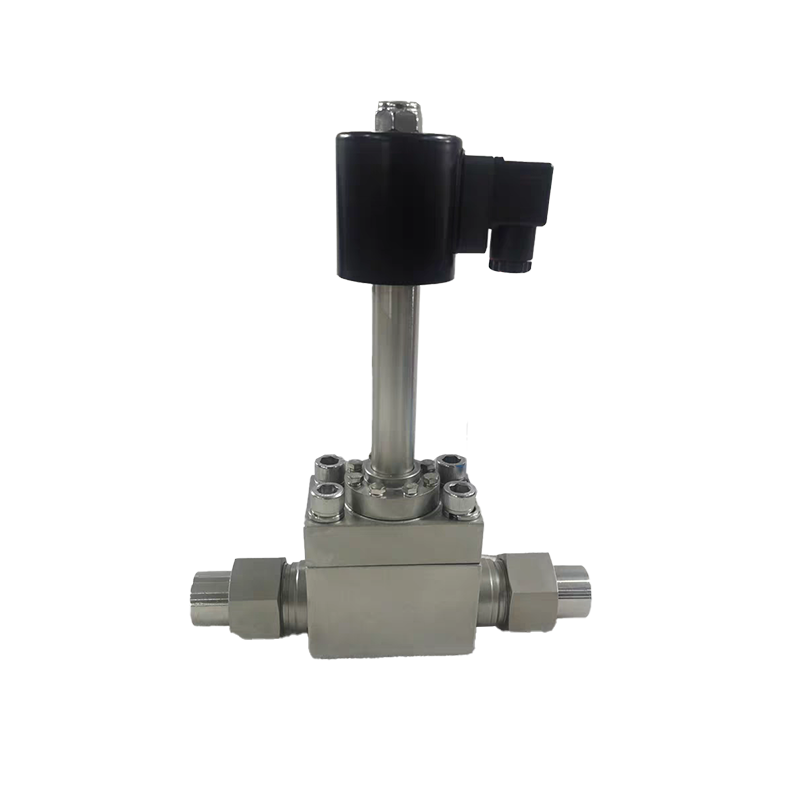

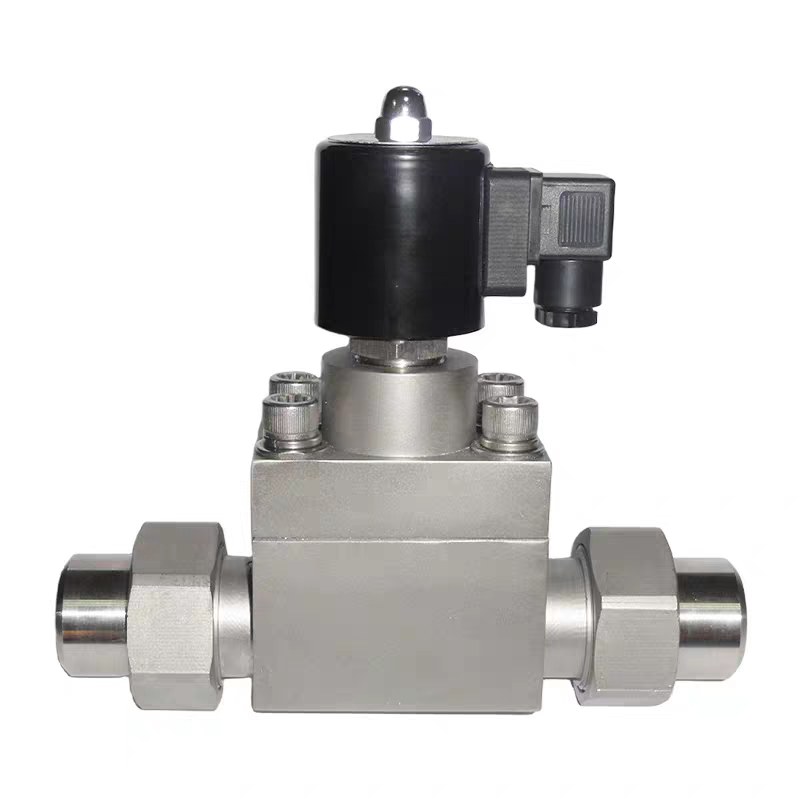

Product Overview Of Welded Solenoid Valves

Welded solenoid valves refer to solenoid valves adopting loose sleeve welding or other welding methods for connection. They are mainly used for the on-off control of fluids such as water, gases, and oil, and are applicable for automatic control systems.

Key Features

• Excellent valve sealing performance.

• Can be directly connected to steel pipes.

Applicable Medium

Water, air, steam, oil, non-corrosive neutral gases and liquids.

Technical Parameters Of Welded Solenoid Valves

• Switch Type: Normally Closed (NC) (Closed when de-energized, Open when energized); Normally Open (NO) type

• Medium Temperature: -196℃～＋600℃

• Operating Environment Temperature: -40℃～＋120℃

• Valve Body Material: 304/CF8 stainless steel and magnetically conductive stainless steel

• Welded Pipe/Nut Material: 304 stainless steel

• Connection Type: Detachable welded type

• Flow Direction: One-way flow

• Medium Viscosity: ≤50cst (corrected for duplicate parameter)

• Electrical Connection: Terminal box (DIN43650)

• Rated Voltage: Alternating Current (AC), Direct Current (DC)

Installation Instructions

Horizontal installation with the coil facing upward.
