Pneumatic Angle Seat Valve: Features & Import Selection Recommendations

For the external pilot pneumatic angle seat valve, there is a self-adjusting sealing gland between the overflow port and the slider. Compared with ordinary globe valves, the angle seat structure of the valve body can achieve a larger flow rate. Pneumatic angle seat valves are designed based on the characteristics of no flow resistance, no water hammer, and large flow rate. They are widely used in industrial fields such as food, beverage, textile, printing and dyeing, pharmaceutical, chemical, and machinery manufacturing.

When selecting imported pneumatic angle seat valves, engineers from Yiluok Valves provide the following 7 recommendations:

1. Fluid medium type, medium temperature, inlet pressure, and pressure difference between inlet and outlet;

2. Select the specification of the pneumatic actuator according to the pressure of the compressed air used for control;

3. Action type: Single-acting normally closed, double-acting free state, double-acting normally closed;

4. Select the matching solenoid valve specification according to the action type: 2-position 3-way, 2-position 5-way, DC24V, AC220V;

5. Select the connection method according to needs. The main connection methods include flange, internal thread, quick-installation, and welding; internal thread is generally commonly used, such as G-thread and NPT-thread angle seat valves commonly available in the market; while quick-installation clamp connection is selected for food hygiene grade applications;

6. Select the valve body material of the globe valve. Common materials are stainless steel 304, 316, and 316L;

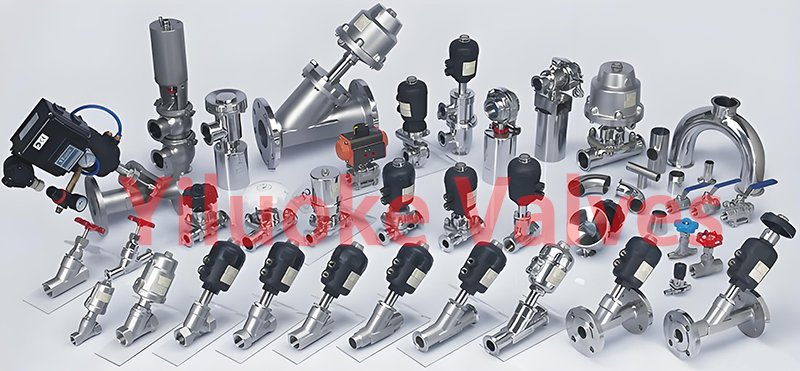

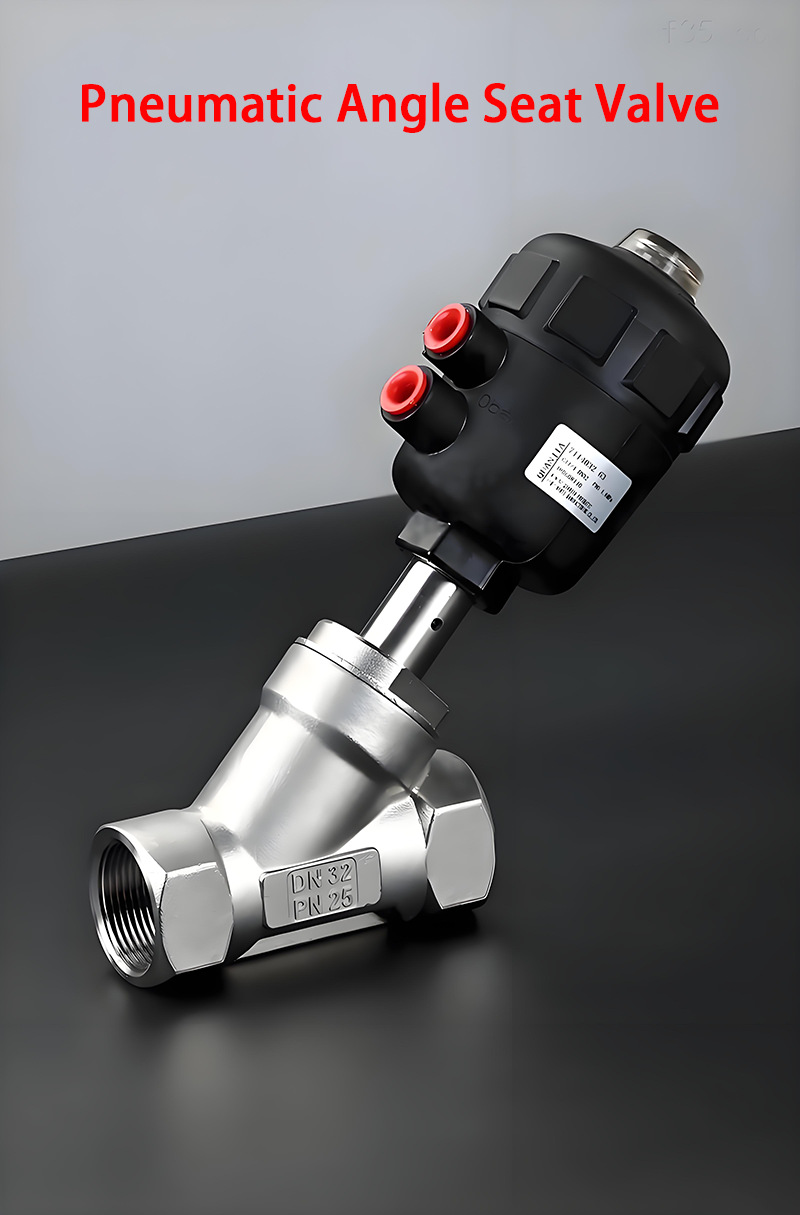

7. Select the actuator material of the pneumatic angle seat valve; the main types are plastic head and stainless steel head. The stainless steel head is more durable and high-temperature resistant, but the price is also higher. For example, the commonly used stainless steel head pneumatic angle seat valve is about 20% more expensive than the plastic head angle seat valve.
