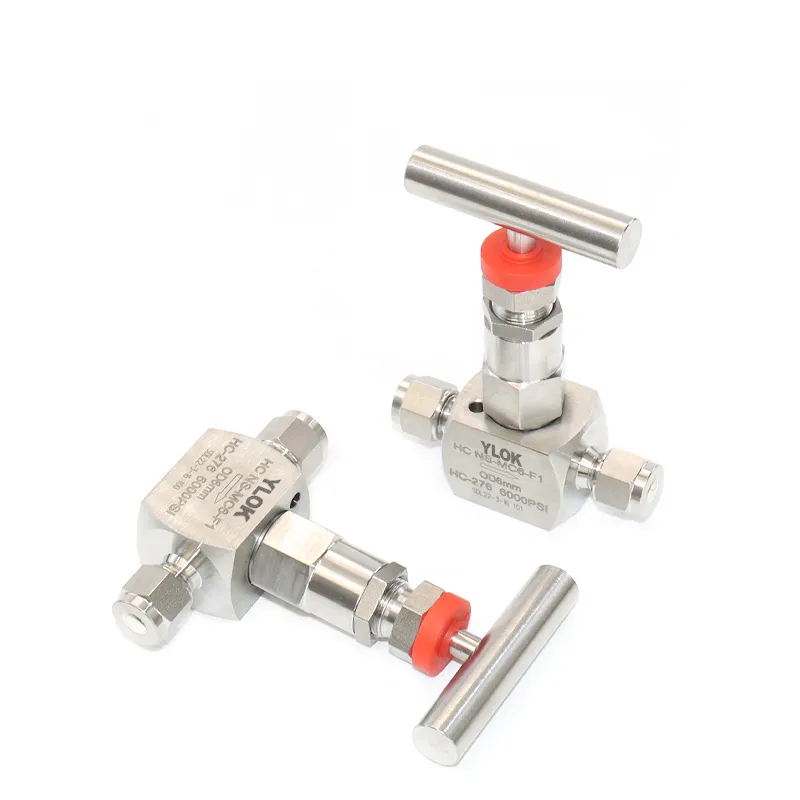

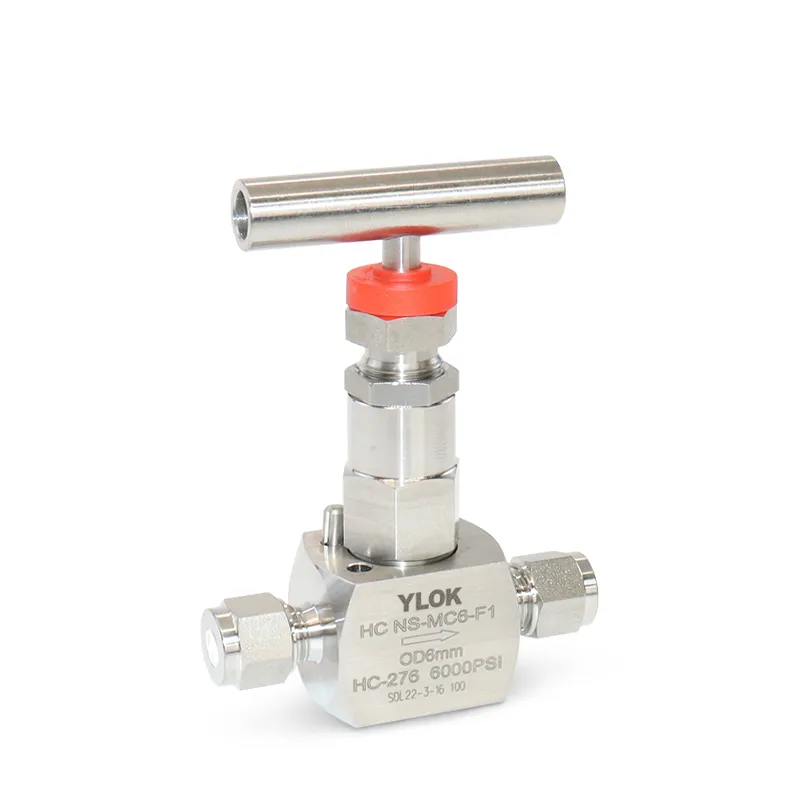

Ferrule Needle Valve Product Introduction

Structural Definition of Ferrule Needle Valve

The ferrule needle valve boasts core advantages including easy installation and disassembly, secure and stable connection, high pressure resistance, and excellent long-term sealing performance. As a precision fluid control valve with an optimized connection structure, it is widely used in key industrial scenarios such as power stations, oil fields, chemical processing equipment, and instrument measurement pipelines.

It also serves as a critical and indispensable component in instrument measurement pipeline systems, providing reliable flow control and shut-off for small-flow high-pressure fluid transmission, adapting to harsh industrial working conditions with stable performance.

Technical Parameters of Ferrule Needle Valve

Basic Product Parameters

Parameter	Details
Product Name	Forged Ferrule Needle Valve
Product Model	NF/NHF
Valve Body Material	316 stainless steel, titanium, Hastelloy, Monel alloy, etc.
Connection Method	Ferrule
Nominal Diameter	1/8"~1", 6mm~28mm
Flow Bore	2.0mm, 4.4mm, 6.4mm, 9.5mm
Connection Size	1/8"-3/4"
Sealing Surface Material	Consistent with the material of the valve body and valve tip
Valve Stem Options	V-type, regulating type, soft valve tip
Flow Pattern	Straight-through type, angle type
Suitable Media	Water, gas, etc.

Applicable Temperature & Operating Pressure

Category	Specifications
Applicable Temperature (By Packing)	PTFE Packing: -54℃~232℃ (-65℉~450℉)PEEK Packing: -54℃~260℃ (-65℉~500℉)Graphite Packing: -54℃~649℃ (-65℉~1200℉)
Operating Pressure (By Series)	NF Series: ＜414bar (6000psi)NHF Series: ＜689bar (10000psi)

Structural Features of Ferrule Needle Valve

Standard Flow Design: Complies with the "low inlet, high outlet" industrial design standard for all flow patterns, ensuring smooth fluid flow and stable operation.
Adjustable & Backsealing Structure: Equipped with an adjustable pin; the valve stem has a professional backsealing function, and the sealing packing operates in a pressure-free state, reducing wear and extending service life.
High-Strength Body Material: Manufactured from cold-drawn stainless steel or forged stainless steel, featuring excellent high temperature resistance, high pressure resistance and fluid erosion resistance, with a pressure resistance range of 1000 to 10000 PSI.
Anti-Scratch Sealing Design: The valve core (with Stellite alloy overlay welding) and valve stem are formed by precision rolling. When the handle is turned until the valve core contacts the valve seat, the valve core stops rotating with the stem and moves straight downward only.
Extended Service Life: No rotational friction occurs between the valve core and the valve seat, effectively preventing scratching of the precision sealing surface, reducing component wear and greatly extending the overall service life of the valve.
