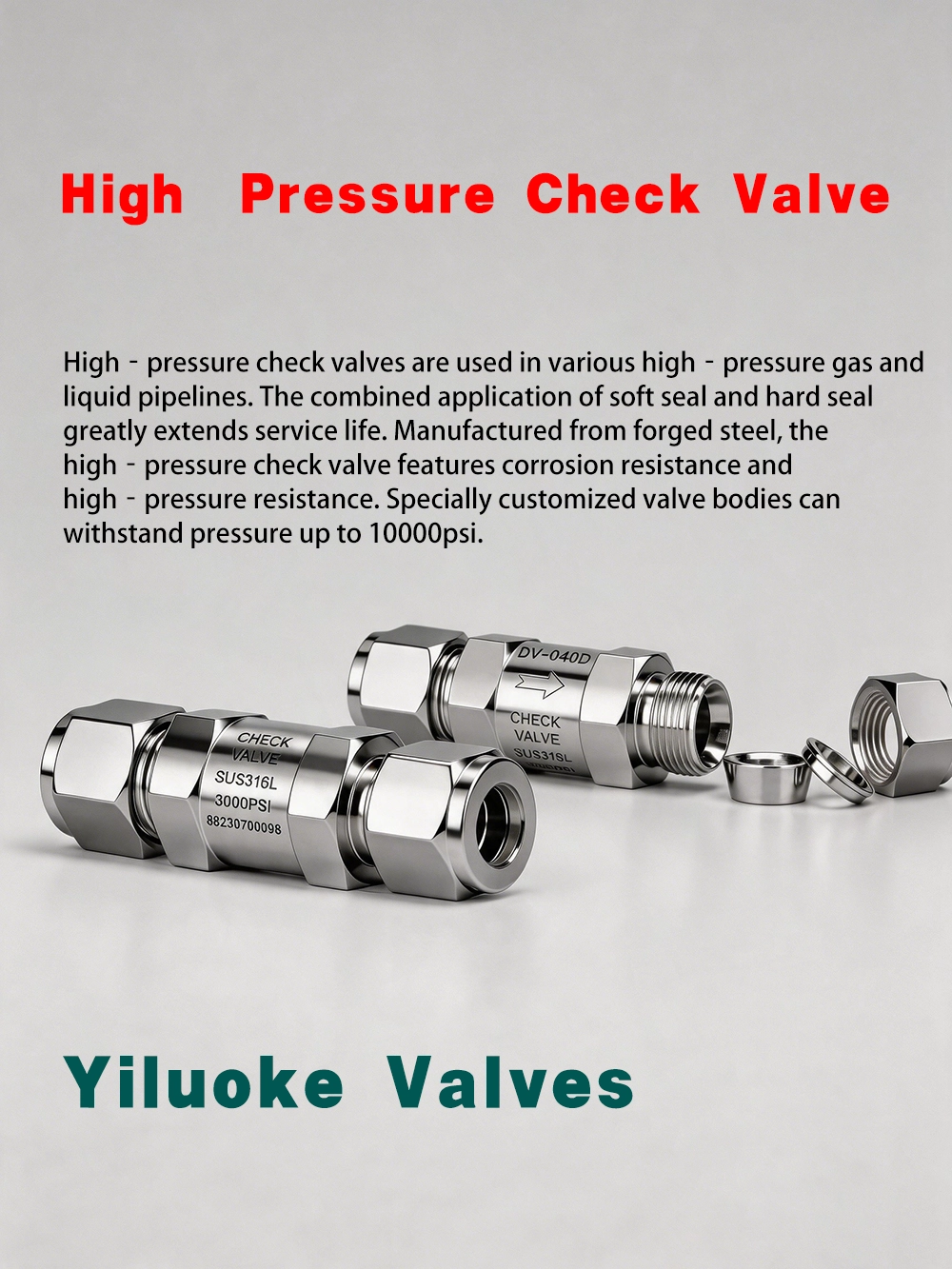

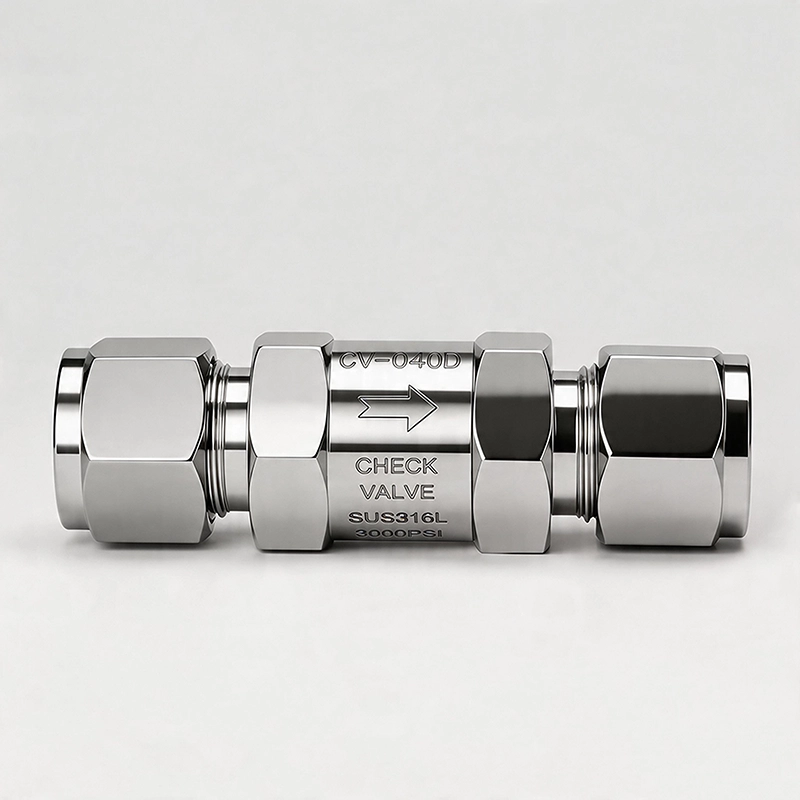

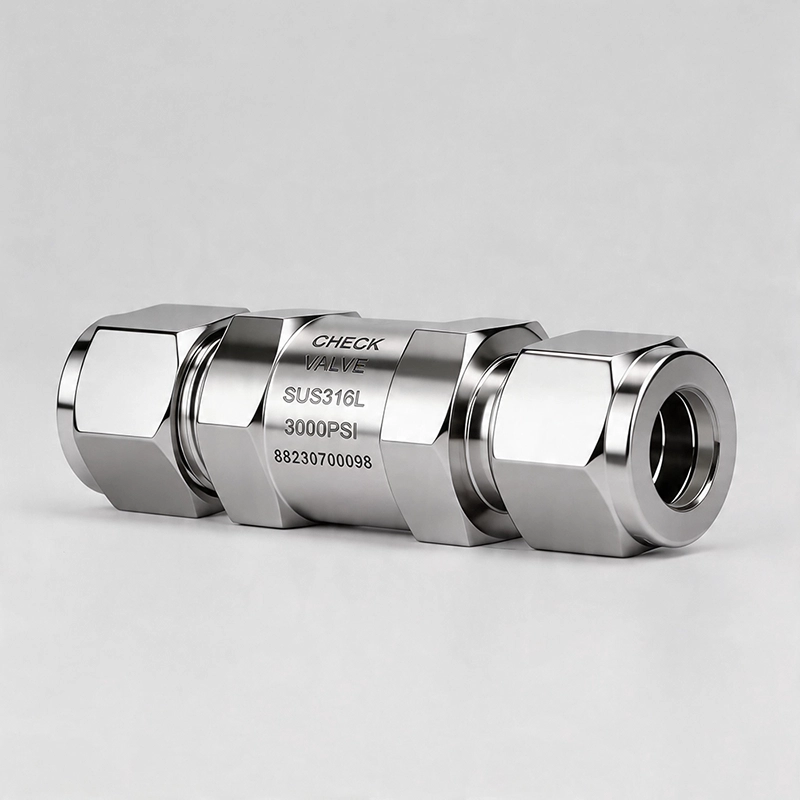

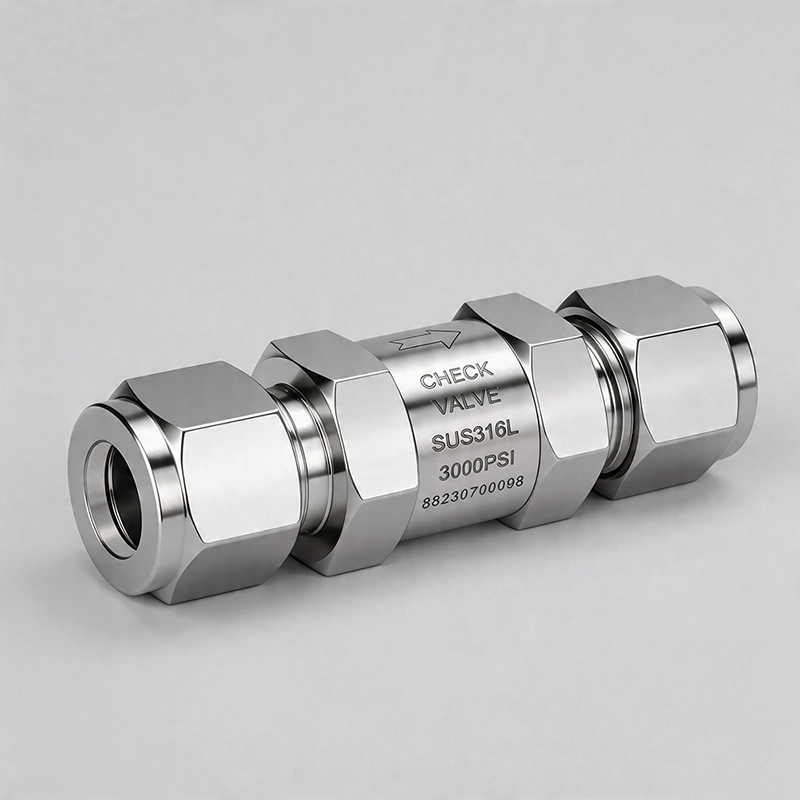

High‑pressure check valves are used in various high‑pressure gas and liquid pipelines. The combined application of soft seal and hard seal greatly extends service life. Manufactured from forged steel, the high‑pressure check valve features corrosion resistance and high‑pressure resistance. Specially customized valve bodies can withstand pressure up to 10000psi.

Working Principle

The high‑pressure check valve controls one‑way fluid flow through its internal poppet or spring mechanism. When fluid pressure acts on the valve inlet end, the poppet is pushed open to allow fluid to pass through. When reverse fluid pressure occurs, the poppet closes under the force of the spring or reverse pressure to prevent fluid backflow.

Structural Features

1. Built‑in low‑pressure spring allows installation in any direction.

2. Light‑weighted poppet with damping ring near the seat for quieter cushioning operation.

3. Low‑pressure opening and closing, flexible actuation, low flow resistance and no medium accumulation.

4. Built‑in O‑ring for low‑pressure soft sealing and medium‑high pressure hard sealing.

5. Small‑batch customization is available according to user requirements.

6. Each valve undergoes sealing test with 7MPa nitrogen before delivery. 5% of products are tested with nitrogen and water pressure at 1.5 times the rated working pressure.

Product Application

Prevent Backflow: The core function of high‑pressure check valves is to prevent fluid backflow in the system and protect equipment such as pumps and compressors from reverse‑pressure damage.

Maintain System Pressure: In multi‑pipeline systems, check valves avoid pressure loss and keep stable system pressure.

Automatic Opening & Closing: The valve opens and closes automatically relying on fluid pressure difference without external power source.

Technical Parameters

Application Fields

Hydraulic System: High‑pressure check valves prevent oil return and maintain system pressure in hydraulic circuits, widely used for hydraulic pumps, motors and hydraulic cylinders.

Oil & Gas Industry: Applied in pipelines and compression systems to avoid backflow and protect equipment from excessive reverse pressure.

Water Conservancy & Power System: Prevent reverse flow of water in water flow and power cooling systems to avoid equipment damage.

Compressed Air System: Check valves stop air backflow to protect compressors and air tanks.

Chemical & Food Processing: High‑pressure check valves control flow of various chemical liquids or food‑grade liquids to guarantee process safety and fluid quality.
