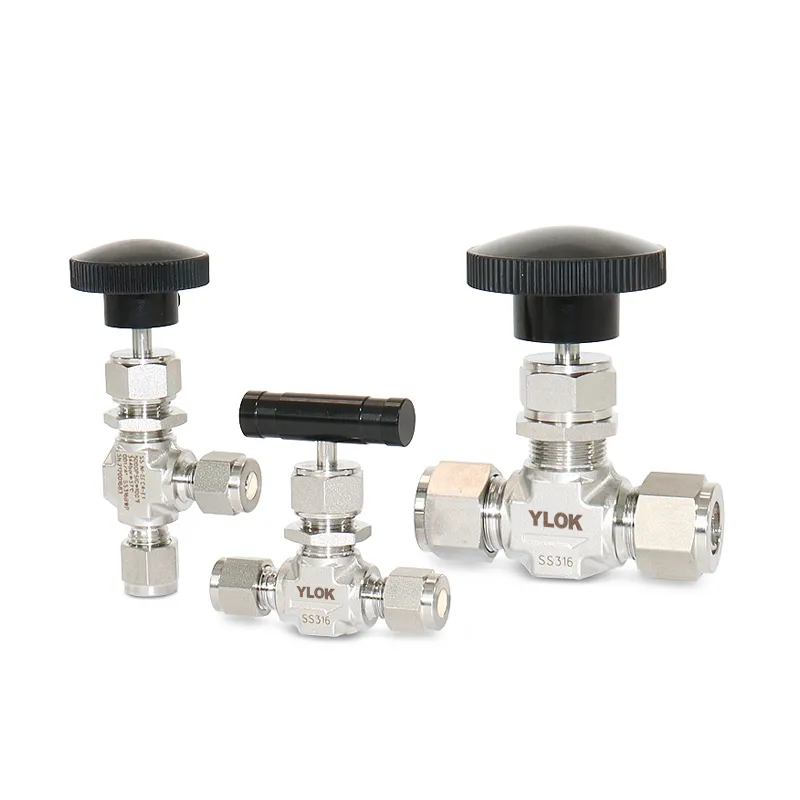

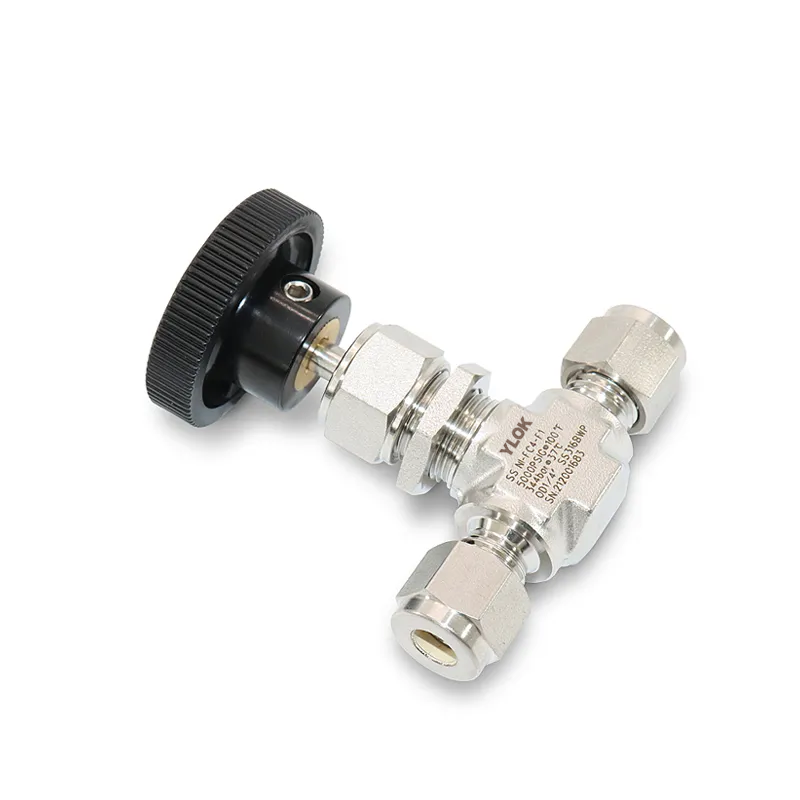

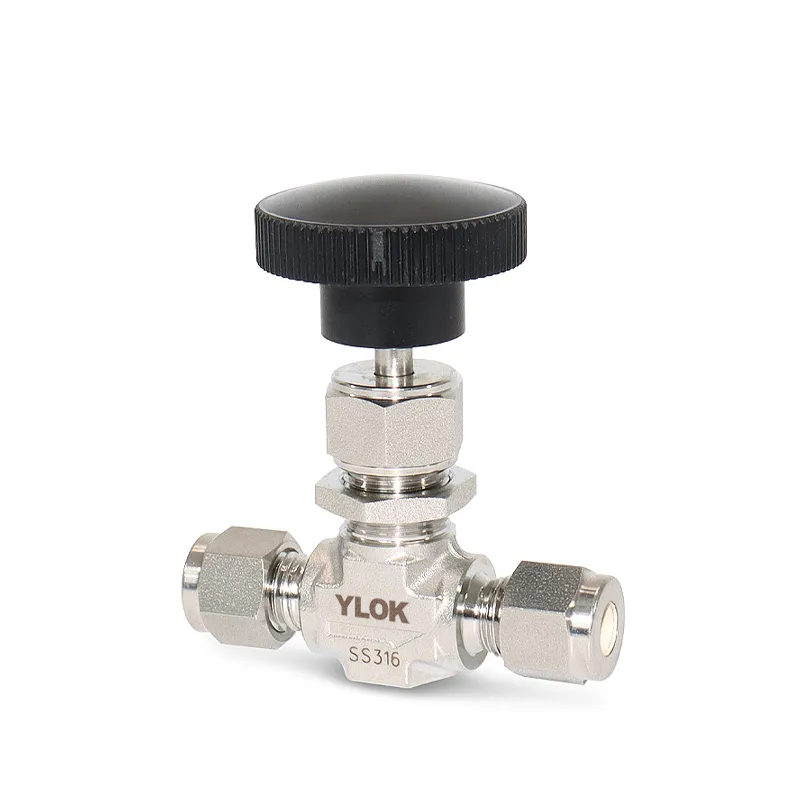

Definition of High-Pressure Hydrogen Needle Valve

High-Pressure Hydrogen Needle Valves are manufactured in accordance with the highest quality standards, enabling high safety and a long service life even when used under extremely harsh operating conditions. These valves can be applied to both gaseous and liquid media, and can be opened and/or closed within 4½ turns.

Structural Features of High-Pressure Hydrogen Needle Valve

• Allow flow in all directions, with an innovative design that reduces vibration, eliminating the need for external clamps to secure the valve stem.

• Equipped with pressure relief holes, and the markings on the valve allow for traceability at any time.

• Included a collar + gland nut with a cone and threads, specifically designed for hydrogen service.

• Specially selected materials suitable for high-strength operating environments and prevent hydrogen embrittlement.

Technical Parameters of High-Pressure Hydrogen Needle Valve
