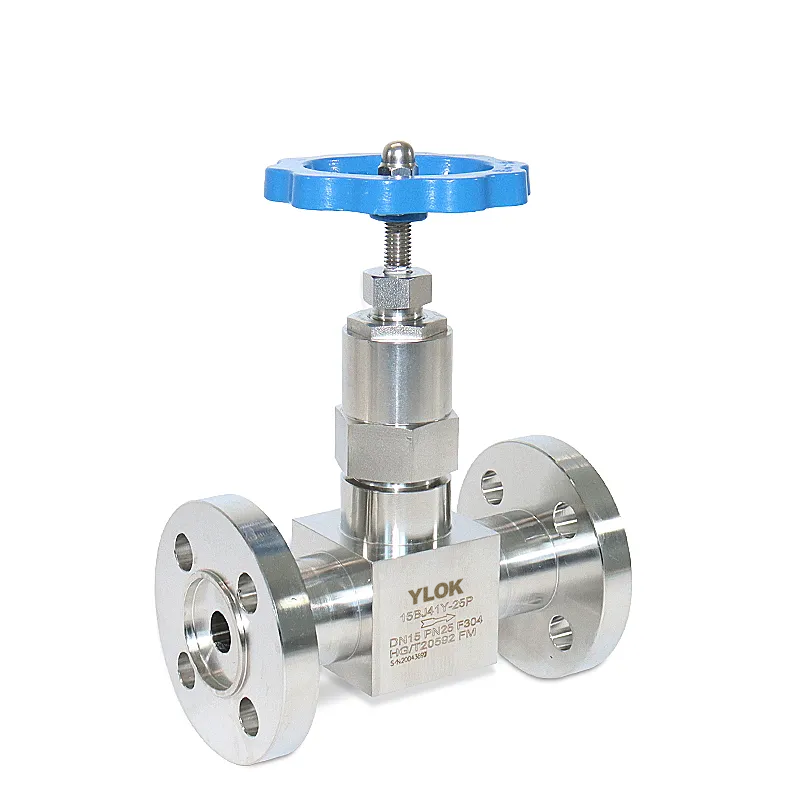

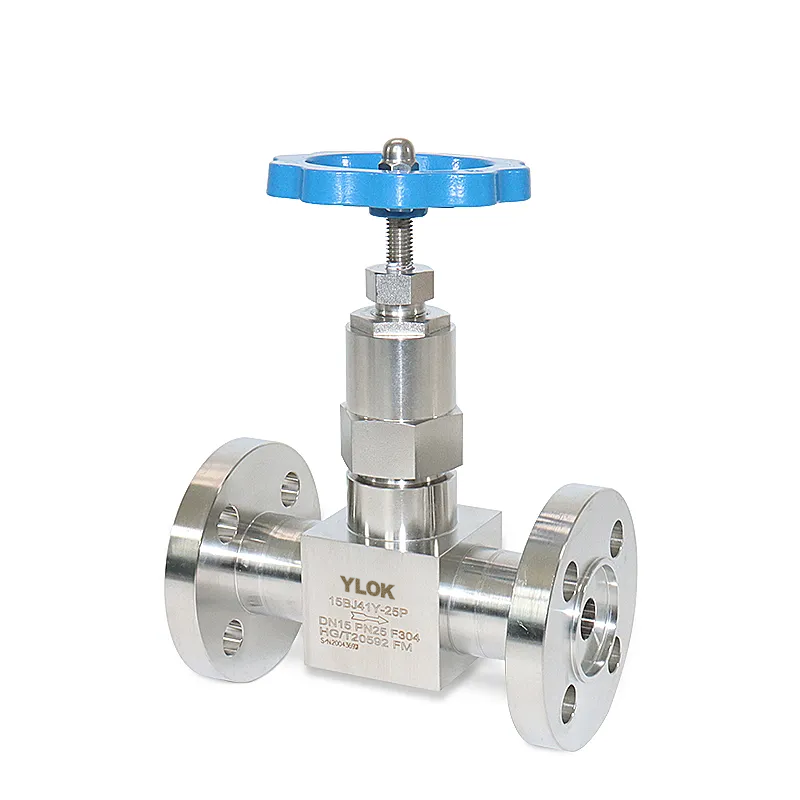

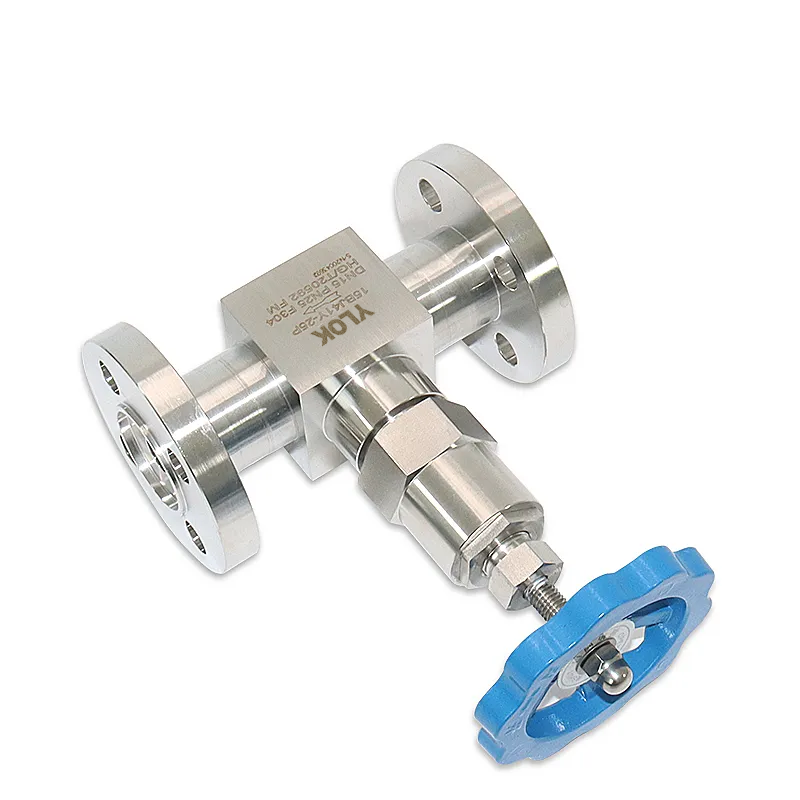

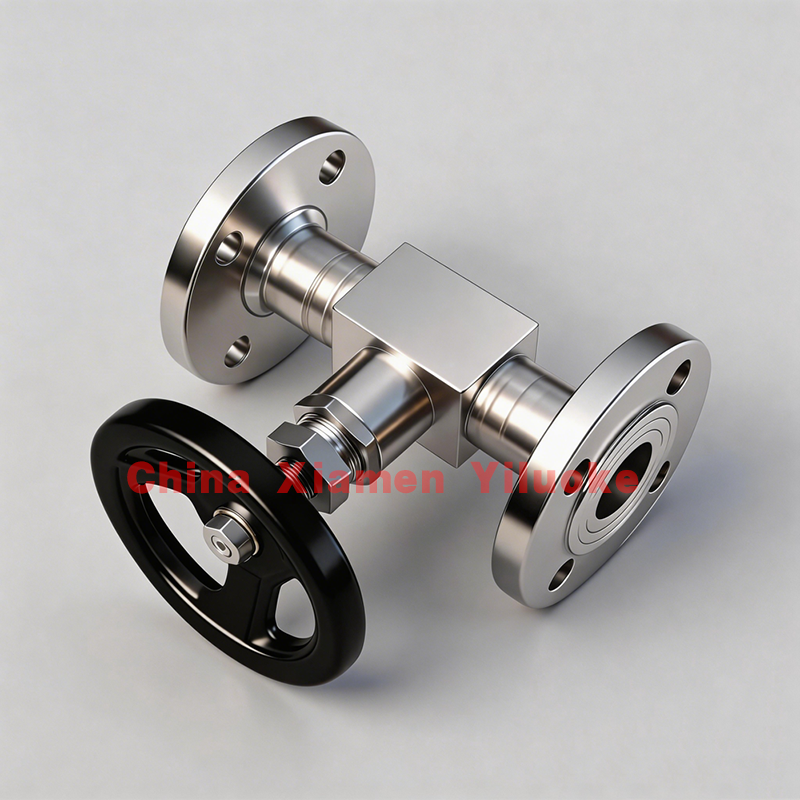

Flanged Needle Valve Product Introduction

Definition of Flanged Needle Valve

A flanged needle valve features a fully forged valve body structure, adopting flange connection as its standard connection form and conical disc as the core sealing structure. The change of the valve seat port area is directly proportional to the disc stroke, ensuring linear and precise flow adjustment performance.

With a relatively short opening and closing stroke of the valve stem and a highly reliable shut-off function, this valve is not only suitable for medium cut-off but also ideal for accurate flow regulation. It is compatible with various media including water, liquids, steam and oil products, and is widely used in instrumentation and measurement pipeline systems in chemical, power, metallurgical and other key industrial fields.

Product Characteristics of Flanged Needle Valve

• Precise Flow Control: Adopts a professional needle-shaped valve core design, supporting fine and stepless flow rate adjustment, perfectly suitable for working occasions with strict flow control requirements.

• Outstanding Sealing Performance: The valve seat and valve core are manufactured with high-quality alloy materials, and the sealing surfaces are processed by precision machining technology, ensuring zero medium leakage even under long-term high-pressure working conditions.

• High Pressure Resistance: The whole valve body is forged from high-strength special materials, which can effectively withstand the impact and erosion of high-pressure fluids, guaranteeing stable and reliable equipment operation.

• Convenient Installation & Maintenance: Uses standardized flange connection, enabling quick and firm connection with supporting pipeline equipment, greatly shortening installation time and reducing overall construction and maintenance costs.

Application Fields of Flanged Needle Valve

Flanged needle valves have broad application prospects and are widely used in petrochemical, electric power, pharmaceutical and other important industrial fields:

• Petrochemical Industry: Its excellent precise flow control performance ensures the stability and continuity of process flows in petrochemical production lines, meeting strict process control standards.

• Pharmaceutical Industry: The reliable zero-leakage sealing performance fully meets the high cleanliness and non-pollution requirements of pharmaceutical production pipelines, adapting to special medium transmission needs.

• Power & Metallurgy Industry: Applied to high-pressure medium transmission and regulation in power plant auxiliary systems and metallurgical production pipelines, with stable performance under harsh working conditions.
