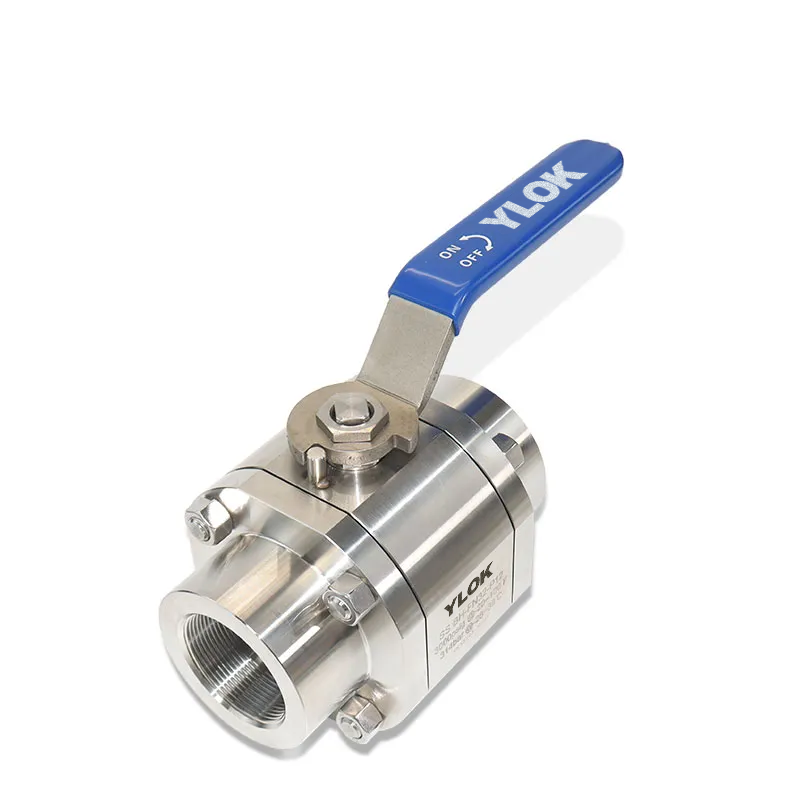

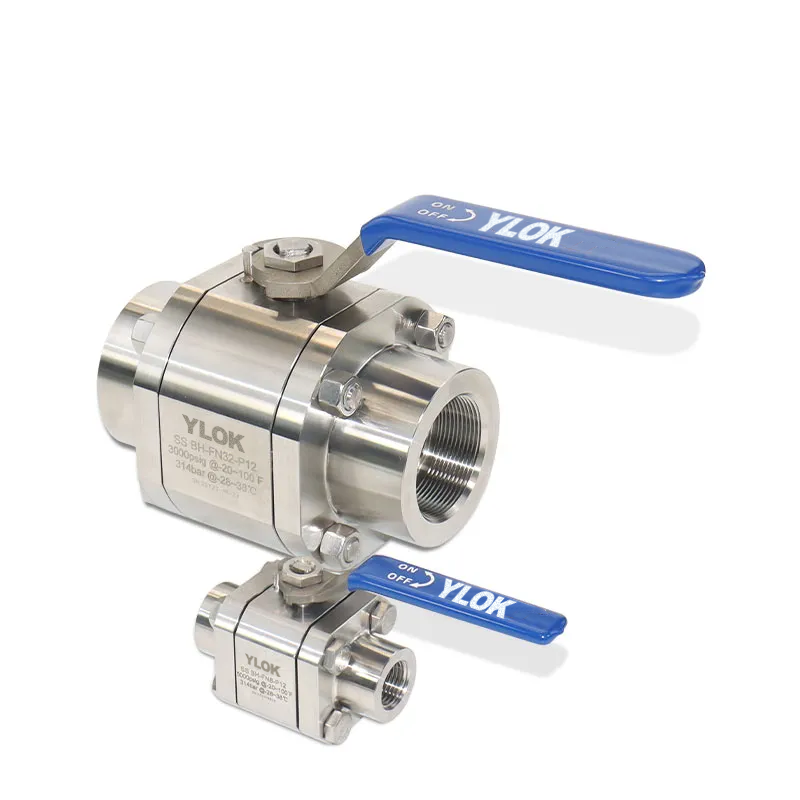

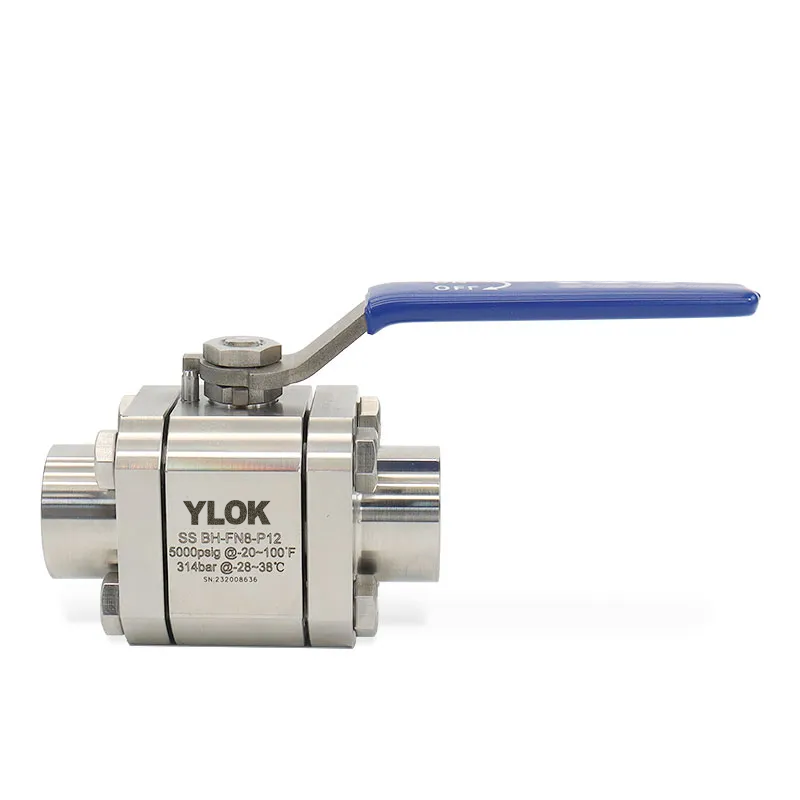

Forged High-Pressure Ball Valve: Definition, Fire-Resistant Function, Parameters & Features

1. Definition

All components of the forged high-pressure ball valve are forged parts. The soft sealing ring is embedded in the steel ring, and the steel seat is also machined with a sealing surface. O-rings are installed on both the radial and back sides of the steel seat to ensure no medium leakage. The valve stem adopts a bottom-mounted design, and a thrust bearing is installed at the shoulder to reduce the operating torque.

2. Fire-Resistant Function

Once the soft seal is burned out, the medium pressure pushes the ball against the steel seat, which can achieve the fire-resistant function. This structural design, combined with the all-forged components and multi-position O-ring sealing, ensures sealing reliability even in case of accidental fire, avoiding medium leakage and ensuring system safety.

3. Technical Parameters

Parameter Category	Specifications
Operating Pressure	1.0Mpa-42.0Mpa
Operating Temperature	-46℃～+550℃
Actuation Method	Manual, Worm Gear, Pneumatic, Electric, etc.
Connection Method	Flange, Welding, Butt Welding, Socket Welding, etc.
Manufacturing Standards	Chinese Standards (GB, JB, HG); American Standards (API, ANSI); British Standard (BS); Japanese Standards (JIS, JPI), etc.
Valve Body Material	Cast Steel, Carbon Steel, Forged Steel, A105, F11, F22, Stainless Steel (304, 304L, 316, 316L), Chrome-Molybdenum Steel, Low-Temperature Steel, Titanium Alloy Steel, etc.

4. Product Features

Full-bore design: Features low fluid resistance, ensuring smooth fluid flow.
Three-body structure: Easy to assemble and disassemble, facilitating on-site maintenance and component replacement.
Built-in fire-resistant structure: Ensures sealing reliability in case of accidental fire, and the sealing surface is not easily eroded by the medium.
Bottom-mounted valve stem: Cooperated with packing structure, preventing the valve stem from falling off; compact volume saves installation space.
Low opening/closing force: Equipped with thrust bearing to reduce operating torque, enabling easy and labor-saving operation.
