High-Pressure Flange Filter: Definition, Parameters, Advantages & Application Fields

1. Definition of High-Pressure Flange Filter

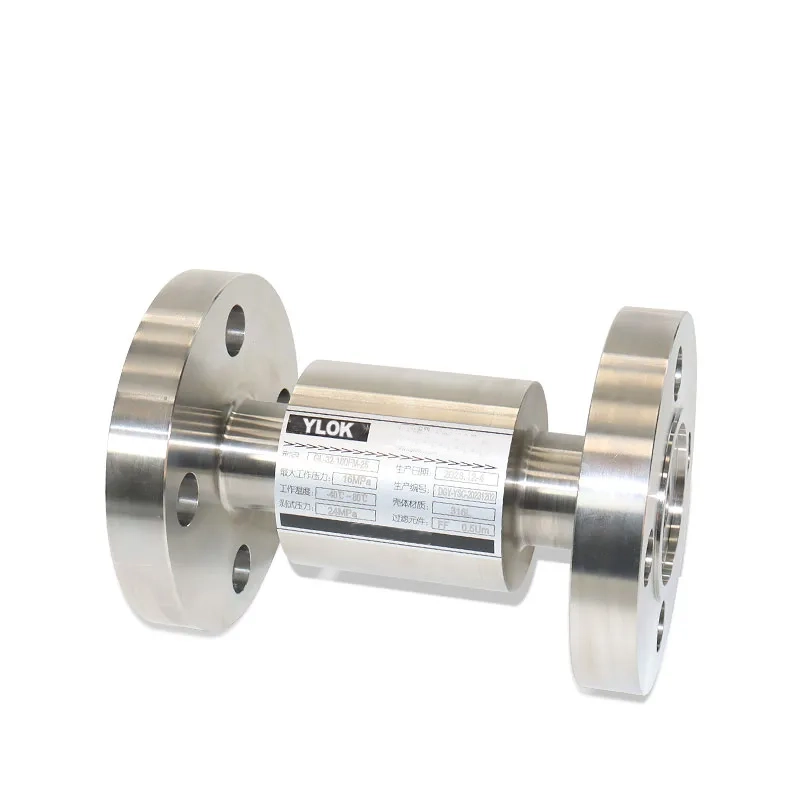

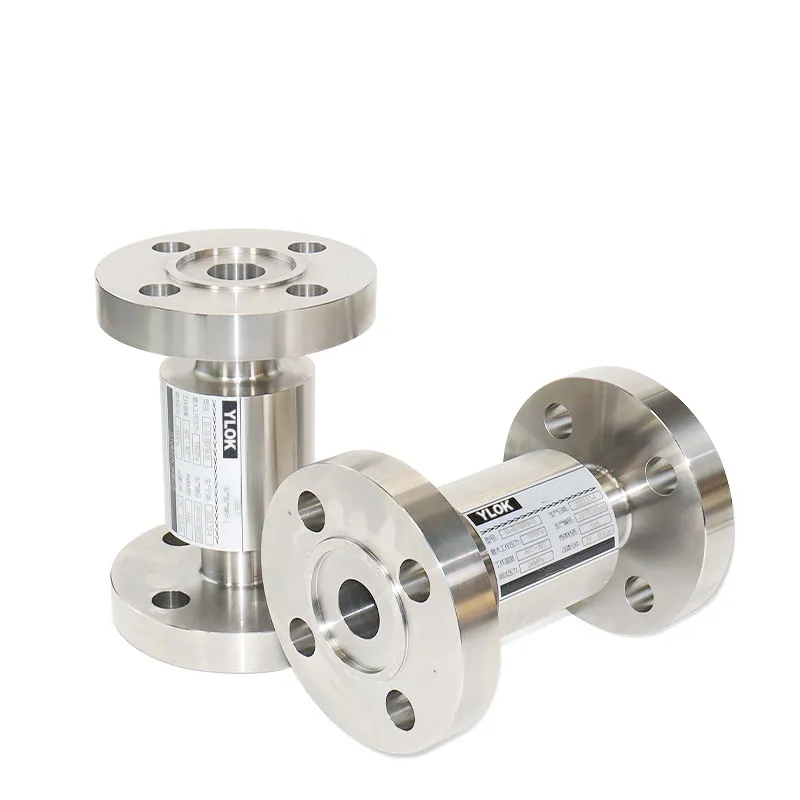

The high-pressure flange filter adopts stainless steel as the material for the valve body and filter screen, uses F4 for sealing, and is manufactured by forging. It is resistant to high pressure and ensures that all equipment and pipelines are protected from blockage and damage caused by impurities, rust, welding slag, etc. in the pipelines, thus avoiding maintenance costs and production losses. It is suitable for system pipelines carrying steam, air, nitrogen, argon, water, oil products, various gases, etc., and protects various equipment such as measuring instruments, pumps, valves, and steam traps.

2. Technical Parameters of High-Pressure Flange Filter

• Connection Type: Flange

• Working Pressure: Up to 16MPa (160bar)

• Working Temperature: -40℃ to +80℃ (-40℉ to +176℉)

• Product Material: 304, 316 (L) and other special materials

• Caliber: 1/2”, 3/4”, 1”, 1.5”, 2”

3. Product Advantages of High-Pressure Flange Filter

• Suitable for CNG (Compressed Natural Gas) and NGV (Natural Gas Vehicle) systems

• Can filter fine particulate contaminants in pipelines

• Applicable to both gas and liquid media

• Filter Element Material: 316 stainless steel

• Filter Element Type: Sintered type or pleated mesh type

4. Application Fields of High-Pressure Flange Filter

• Industrial Manufacturing: Chemical industry, oil and natural gas, semiconductors, metal processing

• Energy and Environmental Protection: Waste gas treatment, natural gas transportation

• Life Sciences: Laboratory gas filtration, medical equipment, pharmaceutical production

• Food and Beverage: Nitrogen/carbon dioxide purification (for packaging and preservation)

• Aerospace: Airborne gas systems, propellant filtration

• Research Fields: Precision gas analysis in university laboratories and research institutions
