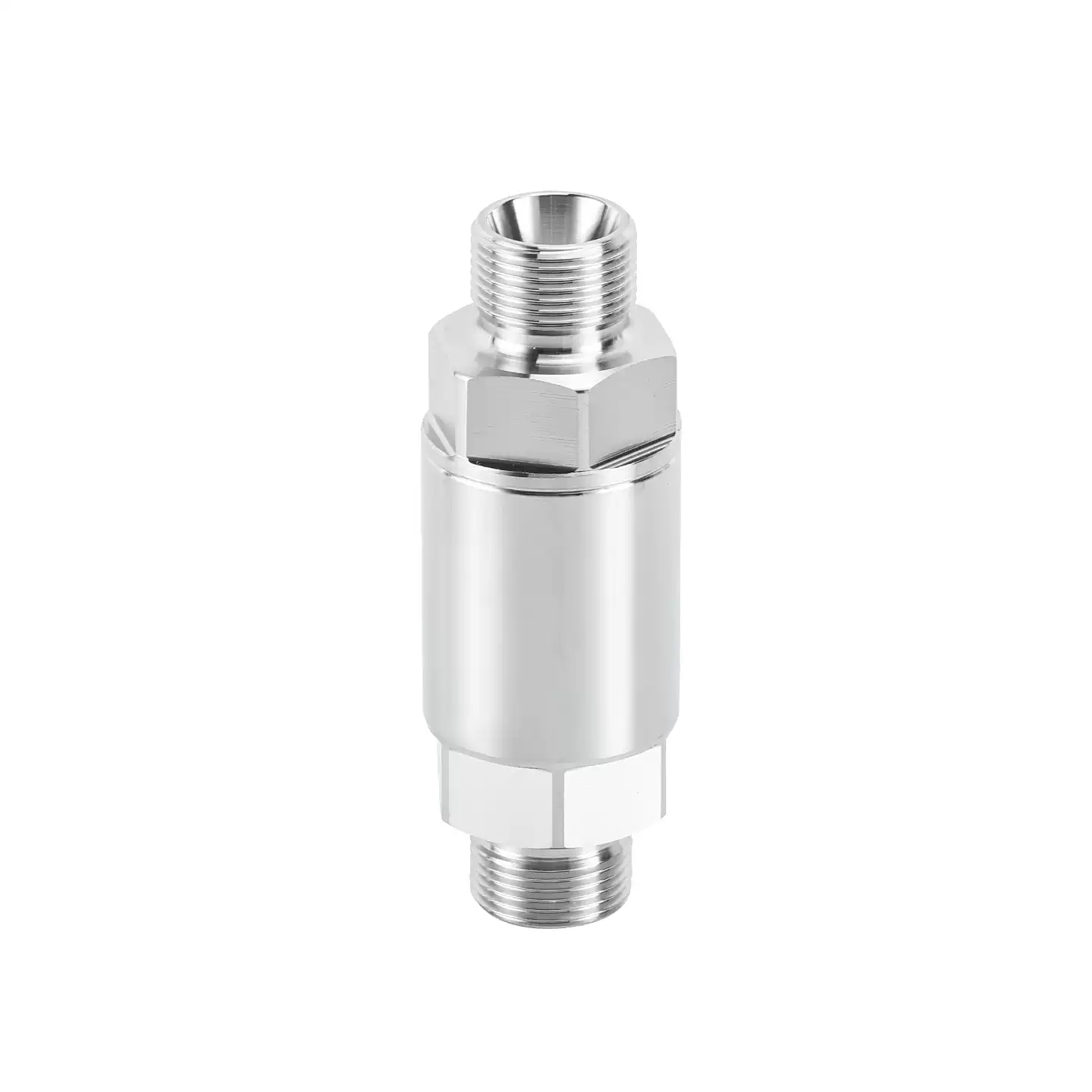

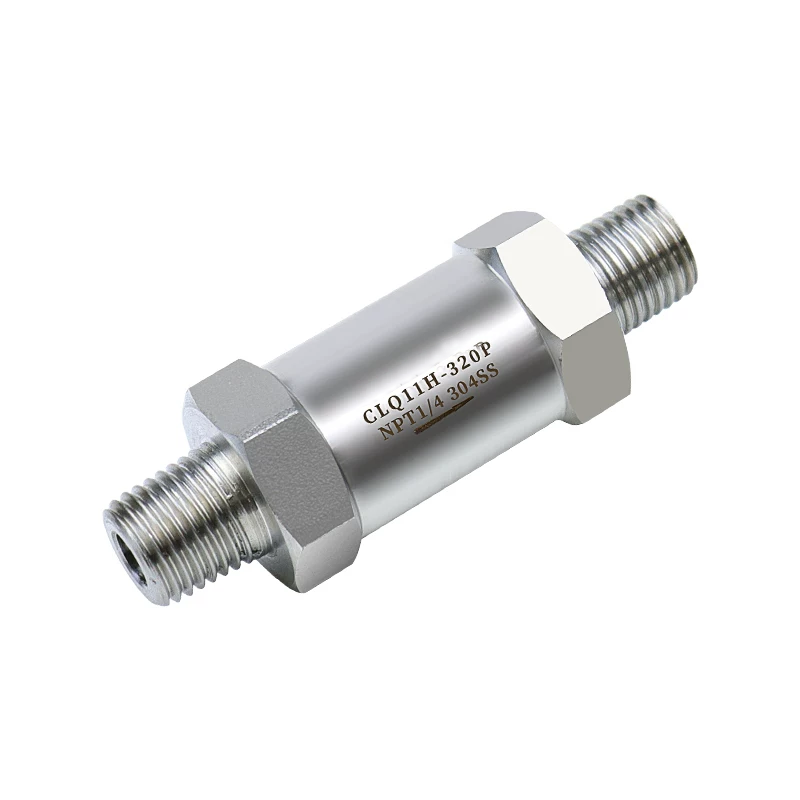

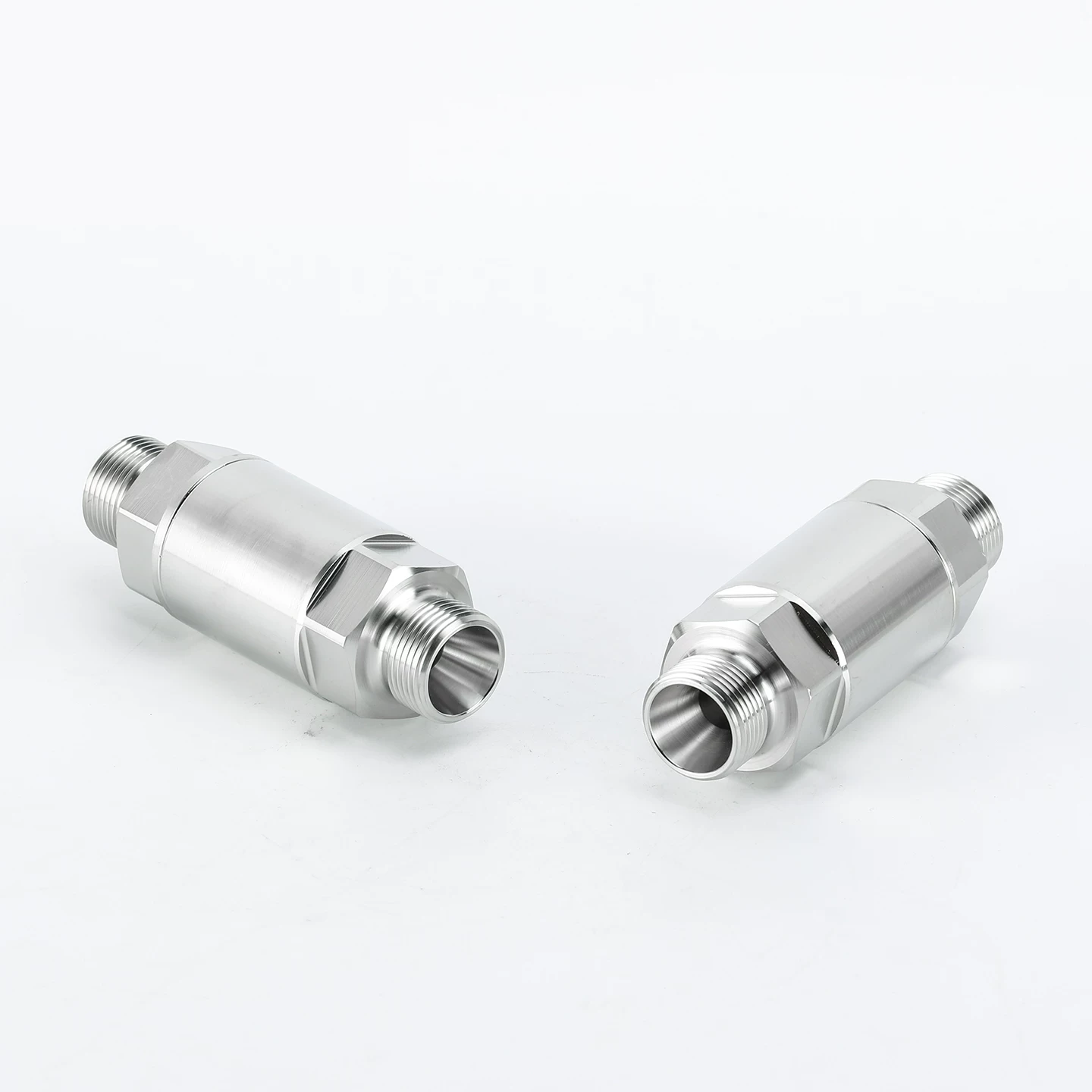

High Pressure Male Thread Filters
High pressure male thread filters are designed for gases or liquids at 6000psi or 10000psi, using male thread connections. Filtration accuracy can be customized according to customer requirements. The filter element is made of 316L stainless steel through multi-layer sintering, featuring higher filtration precision, stronger corrosion resistance and easier repeated cleaning. It is especially suitable for various high-precision gas pipelines.
Technical Parameters
Item | Specification |
|---|---|
Material | Carbon Steel, Stainless Steel 304, 316, 316L |
Filter Element Options (based on medium) | Sintered stainless steel, mesh type, copper core, aluminum core, fiber, etc. |
Size | 1/4" to 2" |
Tubing | Φ6mm～Φ58mm |
Connection | Male Thread |
Nominal Diameter | DN5～DN50 |
Working Temperature | -196℃~550℃ |
Applicable Media | LNG (-196℃～+80℃), other mixed liquids, oil, water, gas and other non-corrosive or corrosive media |
