Definition

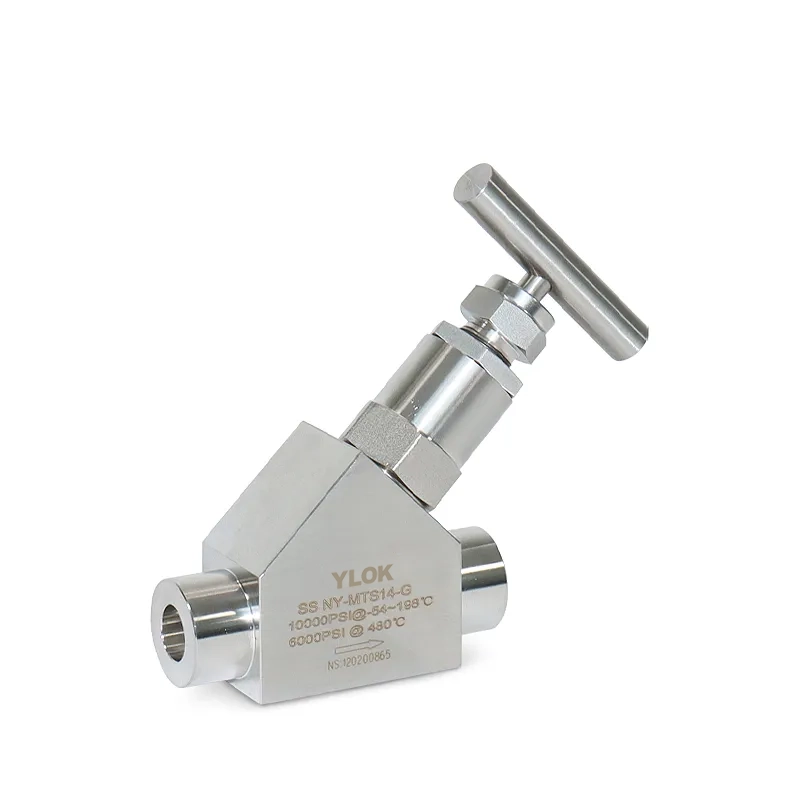

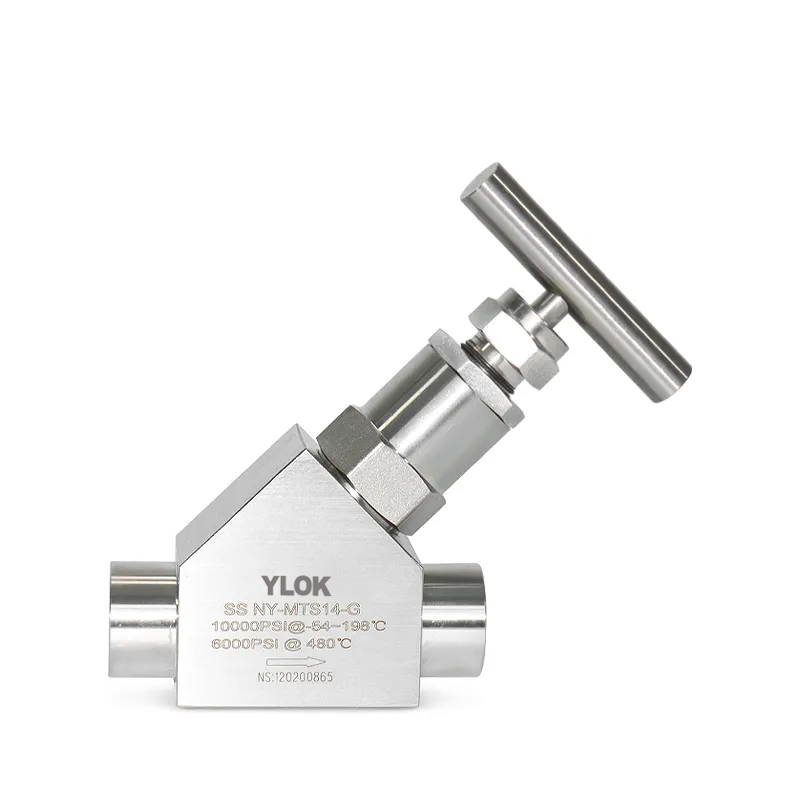

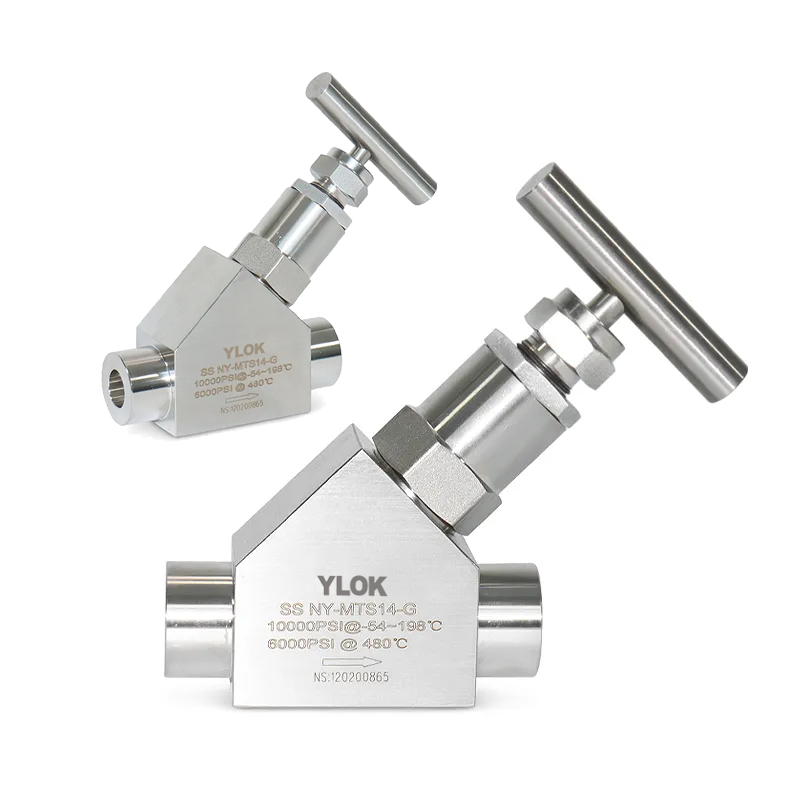

Y-type high pressure needle globe valve is designed for high temperature and high pressure applications, achieving maximum flow capacity and minimum leakage. It is available in cast (standard) and forged (optional) configurations.

Structural Features

• Optimized flow path minimizes flow direction changes and pressure drop

• Robust valve body design reduces body deformation and leakage

• Split construction minimizes body stress, extending service life of the body and hardfacing

• Precise disc alignment via seat ring reduces leakage between disc and seat

• Certified to ISO 158748-1, 2500 pressure class, CO3 durability class (2500 mechanical cycles) for fugitive emissions

• API 624 certified for fugitive emissions

Technical Parameters

Applications

• Chemicals: general (organic & inorganic), petrochemical, specialty chemicals (fine & consumer grade)

• Oil & Gas: downstream processing

• Power: combined cycle, conventional steam, geothermal, nuclear power
