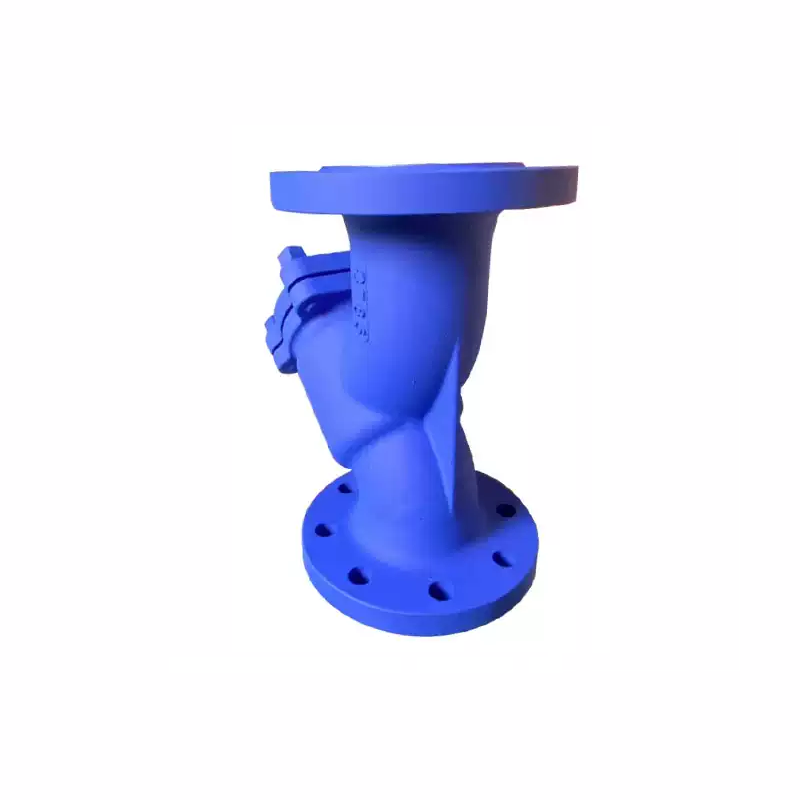

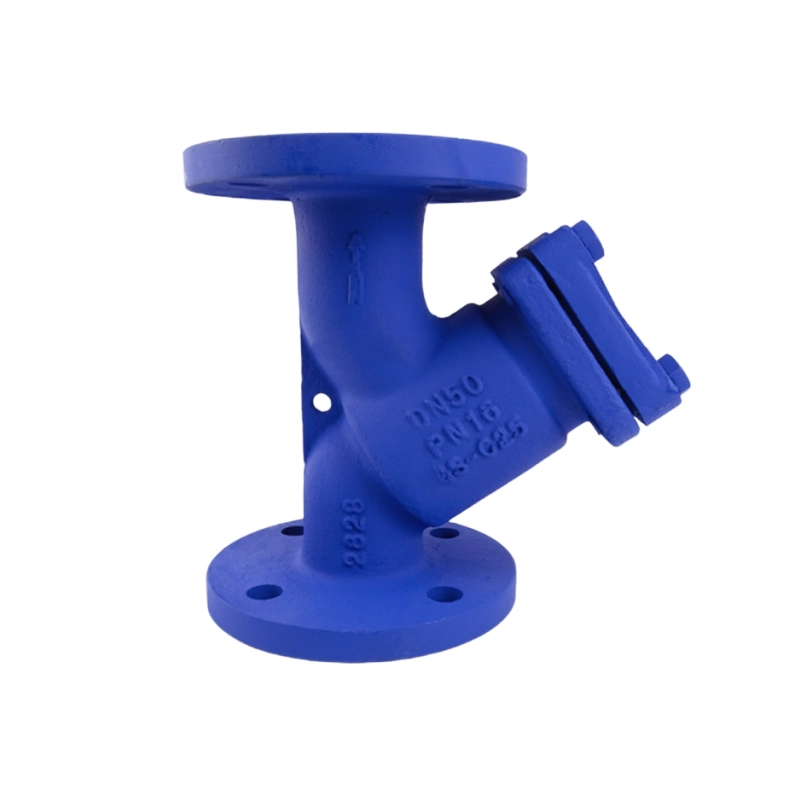

DIN Standard Y-Strainer
The DIN Standard Y-Strainer is a pipeline accessory manufactured in accordance with DIN standards. Its external dimensions, materials, pressure and temperature ratings, and flange drilling all comply with German standards. Its design and manufacture are in accordance with DIN3356, face-to-face dimensions follow DIN3202, connecting flanges are selected from DIN2543-2551, and inspection and testing are carried out in accordance with DIN3230. This product is an indispensable device installed in pipeline systems to protect German standard pumps, valves and other fluid control components.
Structural Features
High-quality filter screen design;
Design with blowdown plug;
Design Specifications
Design Standard: ETM, EN13709
Face-to-Face Dimension: EN558-1, ASME B16.10, GB/T 12221
Connection Standard: EN1092, ASME B16.5, ASME B16.25, GB/T 9113, JB/T 79, HG/T 20592
Pressure Test: EN12266, API 598, GB/T 13927, GB/T 26480, JB/T 9092
Performance Parameters
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Nominal Diameter: DN15～DN400
Pressure Range: PN10～PN63
Operating Temperature: -196℃～+450℃
Application Scope
Suitable for pipelines in various working conditions such as petroleum, chemical industry, pharmaceutical, chemical fertilizer, power industry, and low temperature.
