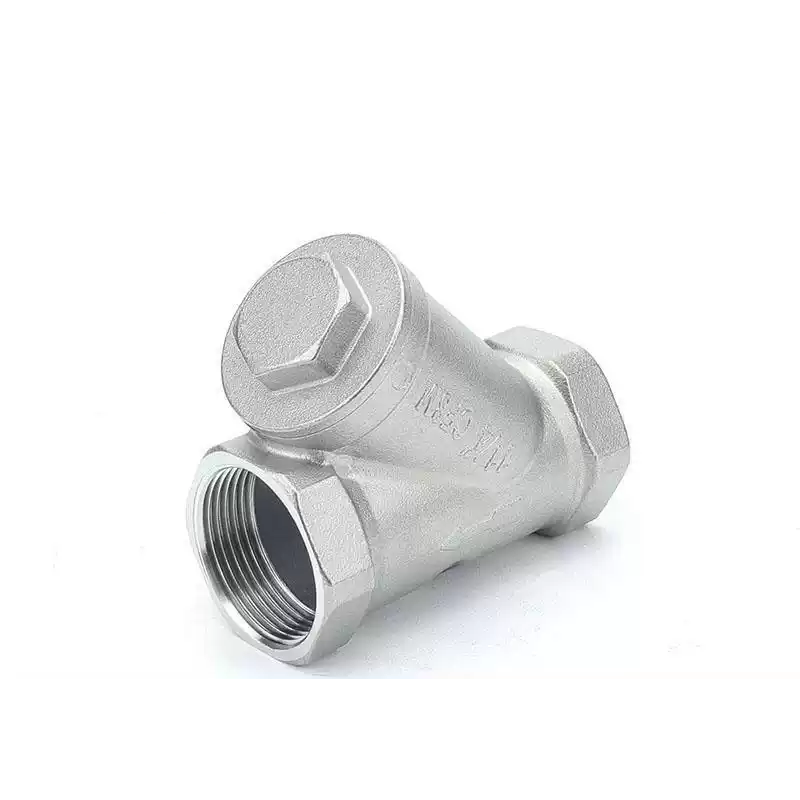

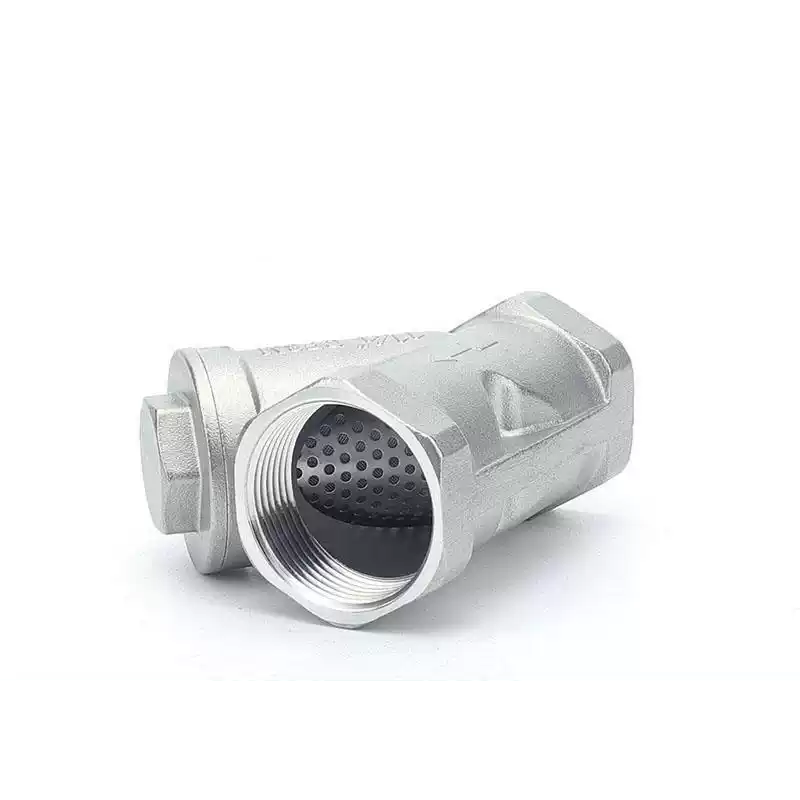

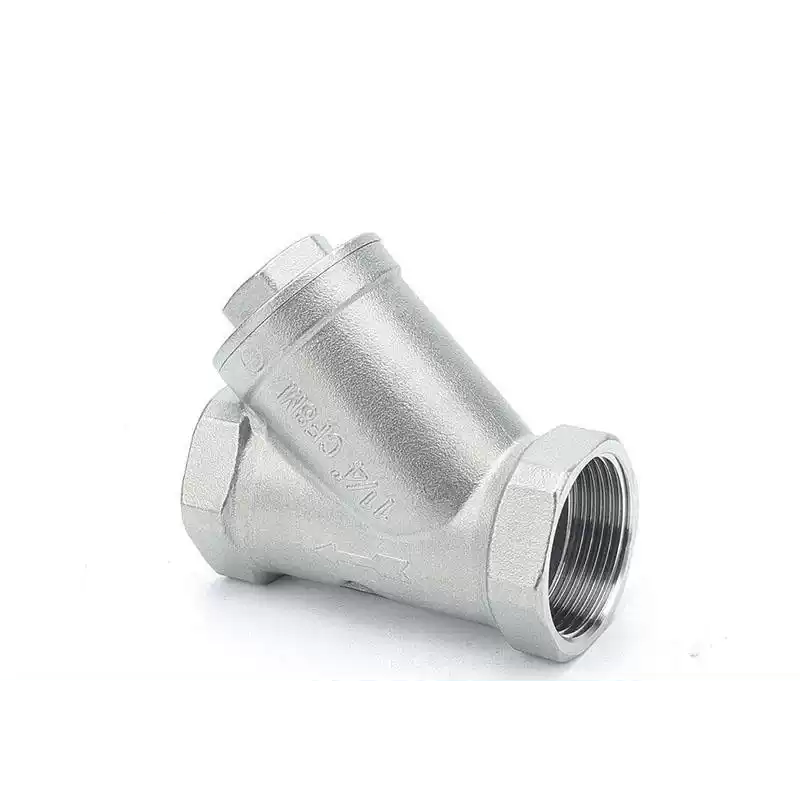

The Female Threaded Y Strainer is installed on all equipment and pipelines to protect them from blockage and damage caused by impurities, rust, welding debris, etc. in the pipelines, thereby avoiding maintenance costs and production losses. It is suitable for system pipelines such as steam, air, water, and oil products, and protects various equipment such as measuring instruments, pumps, valves, and steam traps.

Features of Female Threaded Y Strainer

• Strong pollution resistance and convenient sewage discharge; large flow area and small pressure loss; simple structure and small volume.

• Filter screen materials include austenitic 304, 316, and 316L.

• Connection Types: Threaded, Socket Weld.

Main Technical Parameters of Female Threaded Y Strainer

• Shell Material: Carbon Steel, Brass, Stainless Steel

• Filter Frame and Screen Material: Stainless Steel

• Sealing Material: Flexible Graphite, Polytetrafluoroethylene (PTFE)

• Operating Temperature (℃): -30~180℃

• Connection Types: Threaded, Socket Weld

• Nominal Pressure (MPa): 0.6~5.0 (150Lb~600Lb)

• Filtration Precision (mesh/in): 10~300
