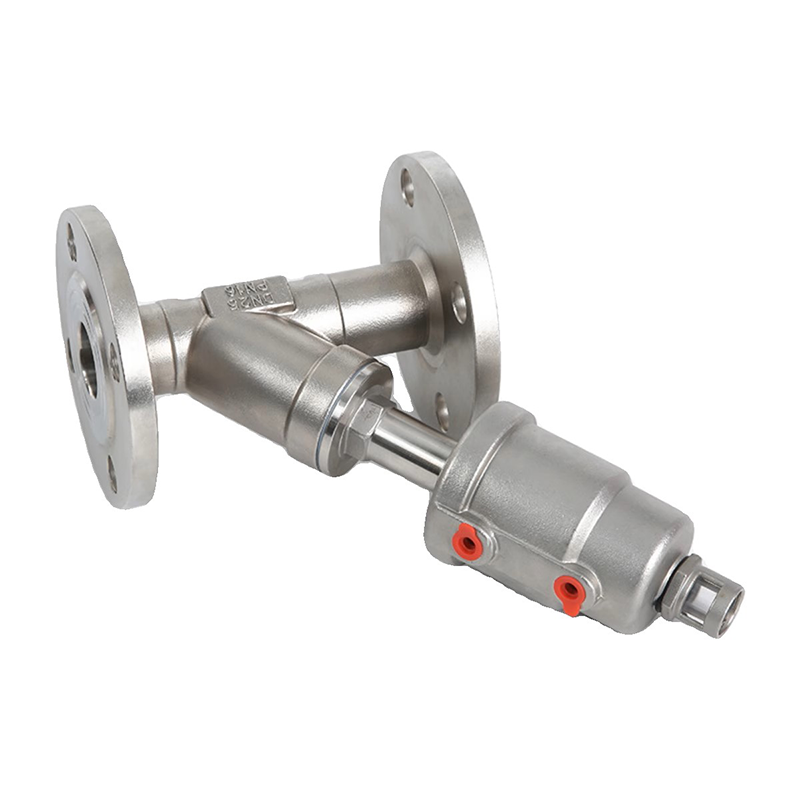

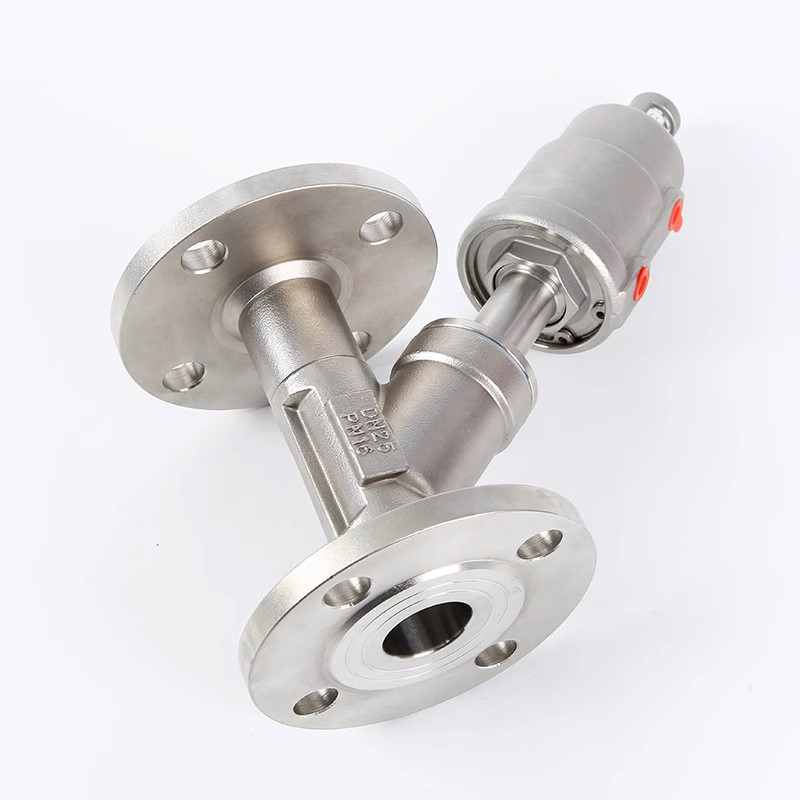

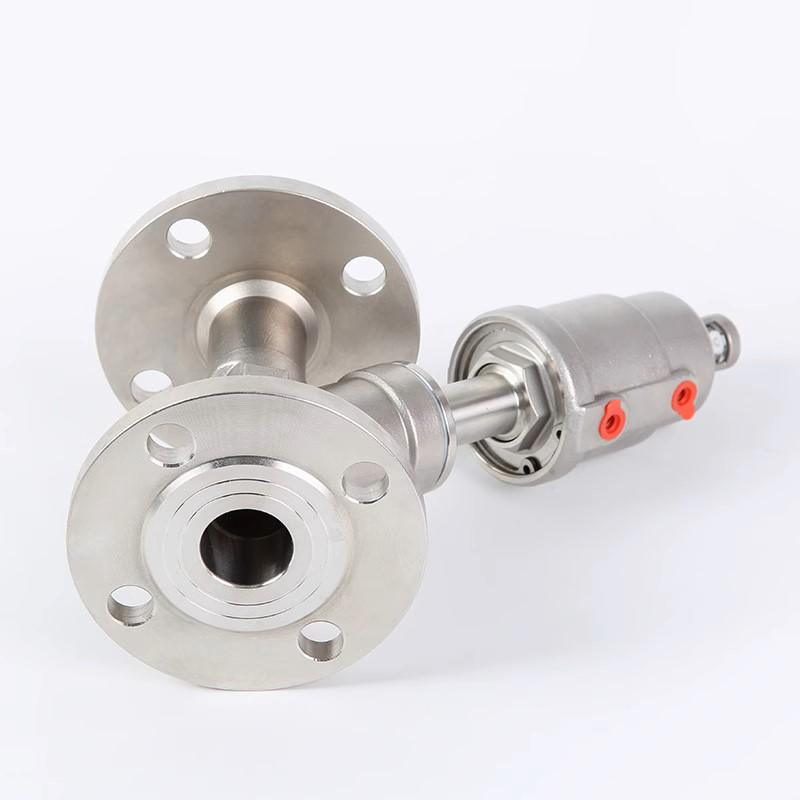

Flanged Pneumatic Angle Seat Valve - Overview, Technical Parameters & Features

When the flanged pneumatic angle seat valve is in the non-working state, it is normally closed (open) due to the action of the spring force. When the actuator piston is acted upon by compressed gas, the valve opens (closes). The double-acting type controls the opening and closing of the valve by compressed gas. Angle seat valves are mainly used in beer and beverage filling equipment, pharmaceutical and medical equipment, printing and dyeing textiles, chemical industry, gas industry, high-temperature sterilization, foaming machinery, and water/sewage treatment.

Technical Parameters of Flanged Pneumatic Angle Seat Valve

1. Nominal Diameter: DN10-DN100

2. Pipeline Pressure: Max 1.6MPa (232psi)

3. Control Pressure: 0.3-0.8MPa (43.5-116psi)

4. Control Medium: Neutral gas or air

5. Valve Body Material: CF8M, CF8

6. Cylinder Material: Plastic

7. Applicable Media: Water, alcohol, oil, fuel, neutral gas or liquid, organic solvent, acid and alkali solution

8. Medium Temperature: -10℃-180℃, 25℃-220℃

9. Ambient Temperature: -10℃-80℃

10. Control Mode: Single-acting normally closed, single-acting normally open, double-acting normally closed, double-acting free state

Features of Flanged Pneumatic Angle Seat Valve

1. Large flow rate, low flow resistance, and no water hammer.

2. Y-type design, increasing flow rate by 30%.

3. Ultra-long service life.

4. Valve stem with automatic correction, self-lubrication, and maintenance-free.

5. Cylinder can be rotated 360°.
