Pneumatic Angle Seat Valve with Magnetic Inductive Switch - Features & Performance

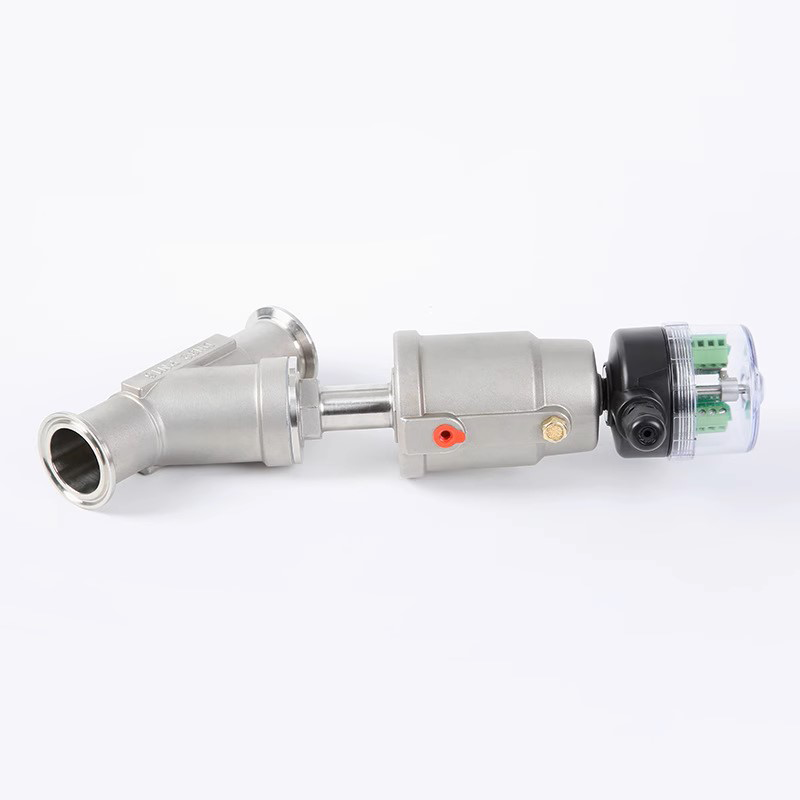

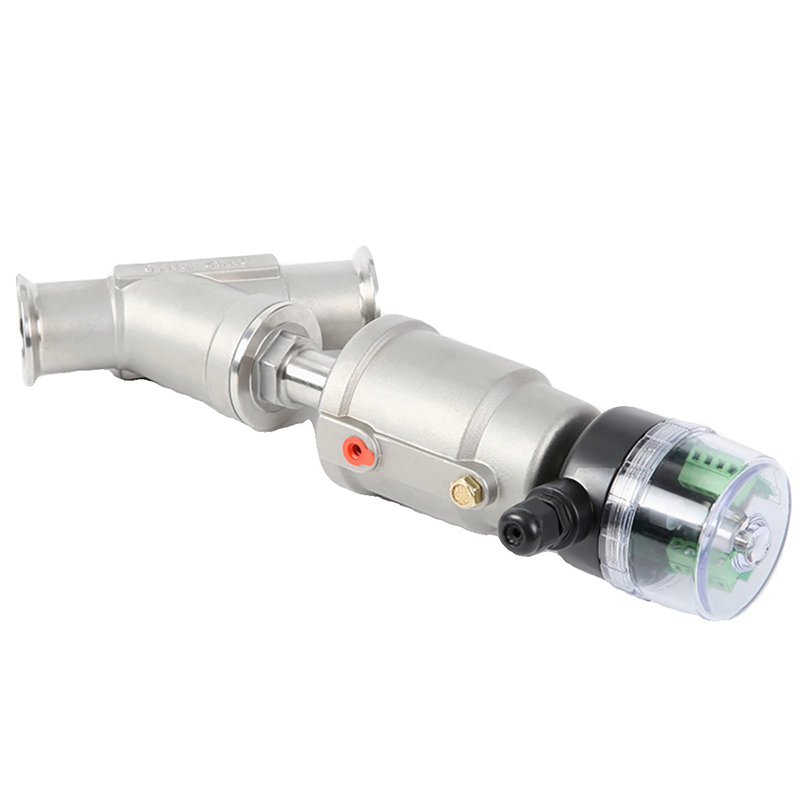

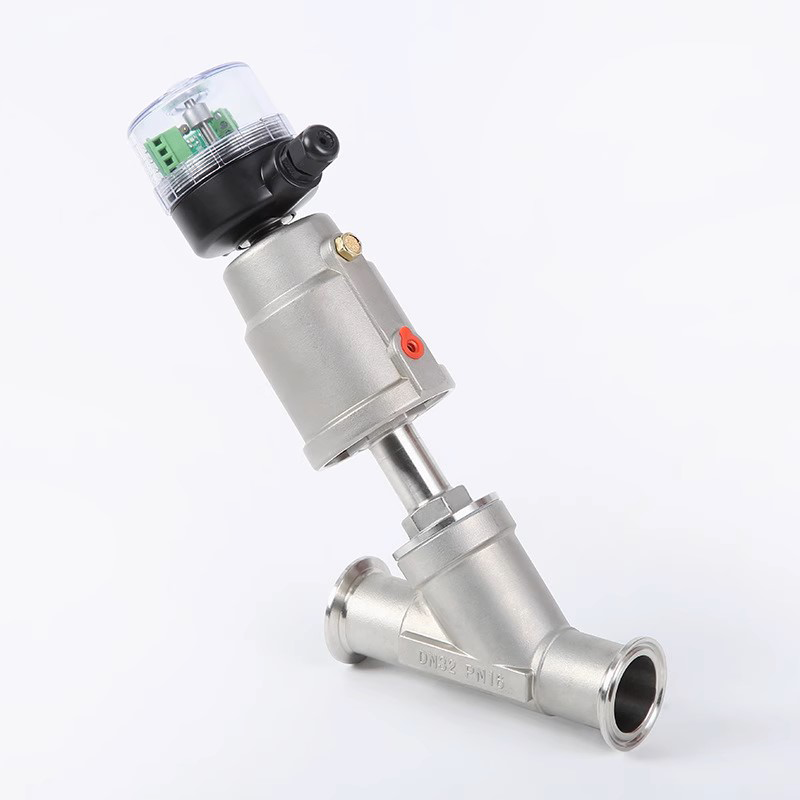

The pneumatic angle seat valve with magnetic inductive switch is composed of a new type of pneumatic actuator and an angle seat valve body. The magnetic inductive switch series is applicable to angle seat valves of all calibers, used to detect the opening and closing state of the valve and feed back the valve opening and closing signal.

Product Features of Pneumatic Angle Seat Valve with Magnetic Inductive Switch

1. Visual Position Indication: Can be connected with a limit switch or an emergency manual device;

2. Easy Installation: The pneumatic head can be rotated 360 degrees. One or two limit switches can be easily installed;

3. Advanced Pneumatic Controller: Thickened engineering plastic shell, safe and reliable; low-wear piston structure with large capacity and low air consumption. Internal components are self-lubricating and maintenance-free;

4. Multiple Control Modes: Normally open, normally closed, double-acting;

5. Smaller Pneumatic Actuator Required: When fluid flows in from above the valve stem, a smaller control head can be selected;

6. Easy Connection: MAMUR standard connection, embedded metal joint;

7. Long-Life Guide Rod: Wedge-shaped Teflon (PTFE) seal on the valve stem to avoid the introduction of dirt. Self-lubricating and maintenance-free. The valve stem is specially treated to ensure optimal fixation and automatic position correction;

8. No Water Hammer Effect: When fluid flows in from below the valve stem, water hammer (water impact force) is absorbed;

9. Advanced Valve Body Structure: The flow rate is 30% higher than that of ordinary angle seats, with smaller volume and better fluid flow pattern. SS304, SS316 valve body, Teflon seal, high temperature resistance, corrosion resistance, service life up to 7 million times.

Product Performance of Pneumatic Angle Seat Valve with Magnetic Inductive Switch

1. Type: Double-acting reciprocating type, spring return type;

2. Nominal Diameter: DN10-DN100;

3. Nominal Pressure: PN1.6MPa ～ PN2.5MPa;

4. Valve Body Material: CF8M/CF8 (SS316, SS304);

5. Sealing Material: Polytetrafluoroethylene (PTFE);

6. Applicable Media: Water, neutral gases and liquids, alcohol, oil, organic solvents, water vapor, weak acid and weak alkali solutions;

7. Medium Temperature: PTFE: -20℃～180℃; High temperature: -20℃~300℃; FPM: -10℃～100℃;

8. Ambient Temperature: -10℃-+80℃;

9. Control Mode: Single-acting normally closed, single-acting normally open, double-acting normally closed, double-acting free state;

10. Connection Mode: Internal thread, flange, quick-install, welding;

11. Air Supply Pressure: Double-acting: 3-8bar / Single-acting: 4-8bar;

12. Actuator Housing: Polyamide, stainless steel;

13. Valve Position Signal: Positioner: 4～20mA / Position Transmitter: Full open and full close signals.
