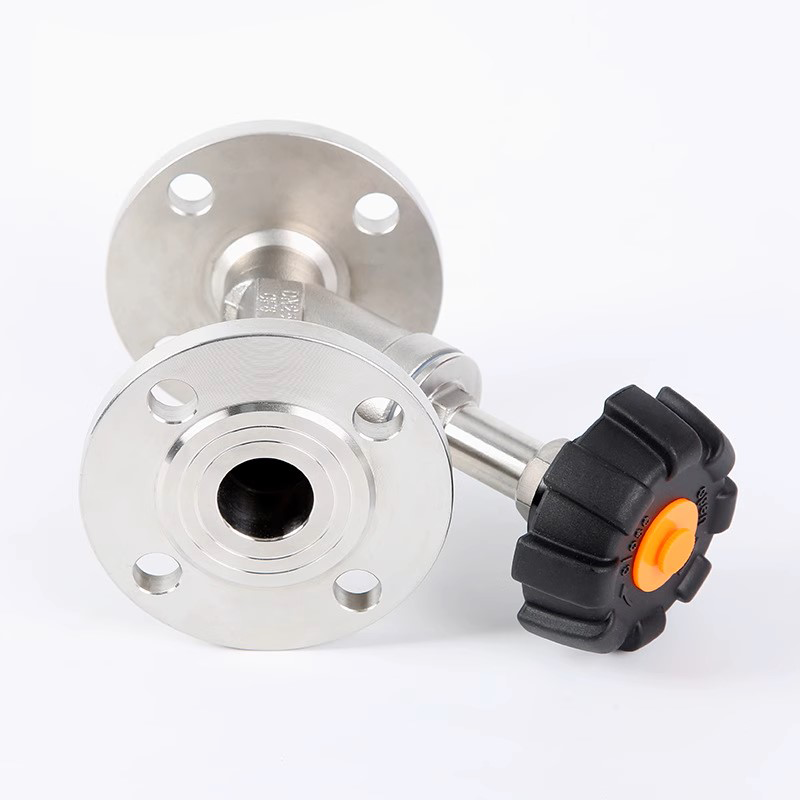

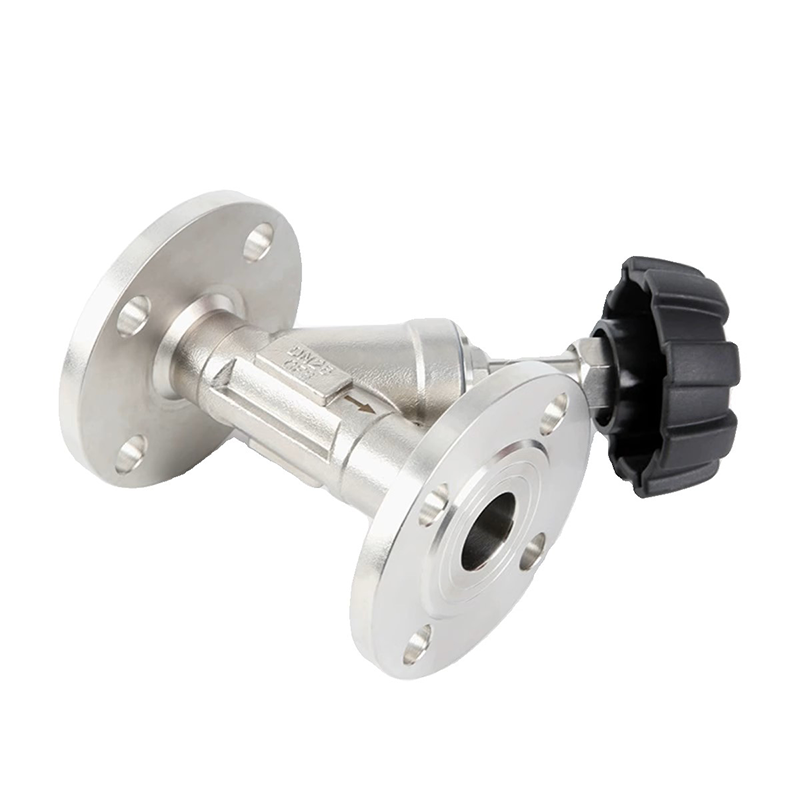

Flanged Manual Angle Seat Valve - Features & Technical Parameters

The flanged manual angle seat valve is characterized by large flow rate, low flow resistance, rich selection, accurate control, stable and reliable action, simple installation, fast and flexible response time, long service life, zero leakage, and convenient accessory installation. It is suitable for the needs of different medium working conditions such as air, water, and steam.

Technical Parameters of Flanged Manual Angle Seat Valve

• Nominal Diameter of Interface: DN8-DN100 (1/4"-4")

• Connection Mode: Threaded, Welded, Quick-install, Flanged; Consult for customization of other modes.

• Valve Body: CF8, CF8M, SS316L, 2205

• Valve Seat Seal: PTFE, RPTFE, PEEK

• Valve Stem Seal: PTFE, FKM, RPTFE

• Nominal Pressure (Working Pressure): 0-16bar (0-232Psi); Vacuum as low as -0.9bar is optional.

• Ambient Temperature: -10°C - 80°C

• Applicable Media: Water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvent, acid and alkali solution, etc.

• Medium Temperature: -10°C - 180°C (PTFE normal temperature type); 25°C - 220°C (RPTFE high temperature type)

• Maximum Viscosity: 600cst (mm²/s)

• Valve Leakage Class: DIN EN 12266 Class A

Features of Flanged Manual Angle Seat Valve

• Compact structure and high flow capacity;

• Simple and quick commissioning;

• Good regulating characteristics;

• Can be installed in any position (upward, horizontal or inclined);

• Adopts lower sealing structure, easy to clean and reduce residue;

• A flow regulating cone can be added at the valve core to realize manual flow regulation.
