Welded Pneumatic Angle Seat Valve - Overview, Technical Parameters & Selection Guide

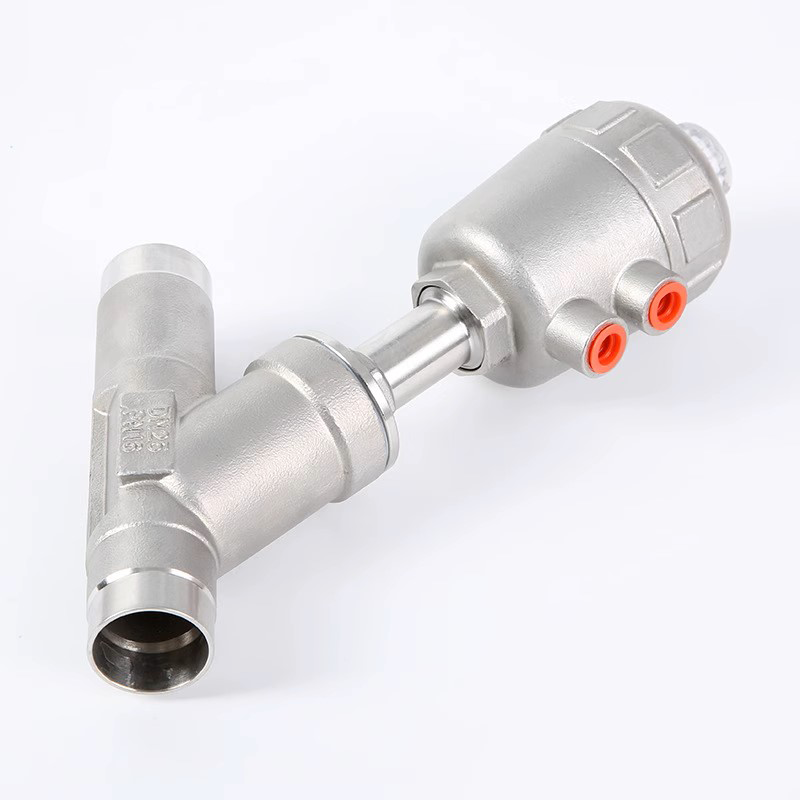

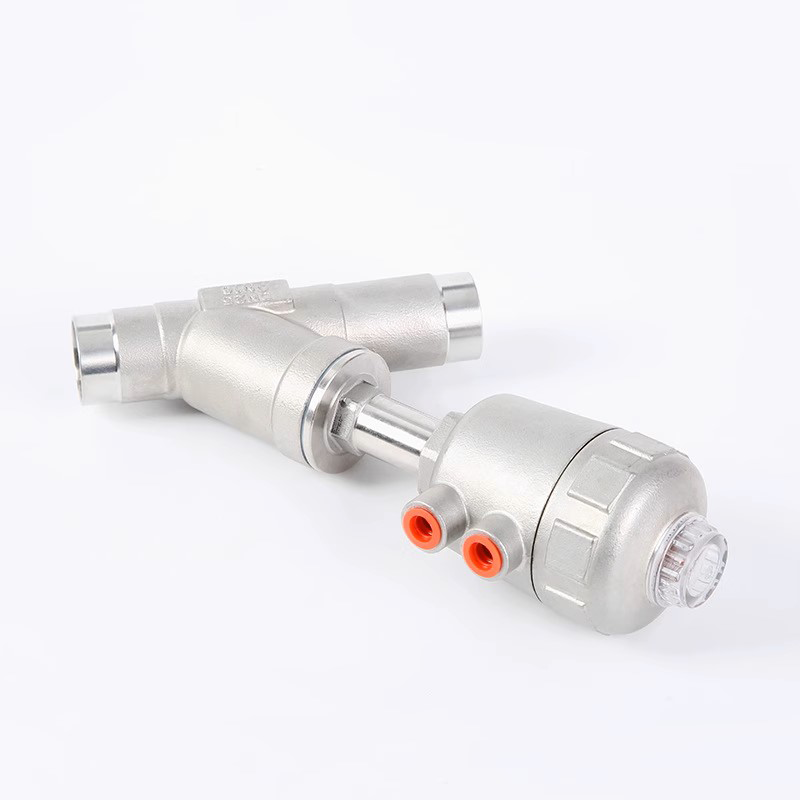

The welded pneumatic angle seat valve is composed of a welded angle seat valve and a pneumatic actuator. It is normally closed (NC) in single-acting type by default, and normally open (NO) type is optional. A suitable sealing seat (Polytetrafluoroethylene PTFE, Para-polybenzene PPL) should be selected according to the pipeline medium and medium temperature. The valve can be combined with a solenoid valve to form an on-off type pneumatic angle seat valve, or with a valve positioner to form an analog control regulating type pneumatic angle seat valve.

Technical Parameters of Welded Pneumatic Angle Seat Valve

1. Nominal Diameter: DN10-100mm

2. Nominal Pressure: PN16 (If higher pressure is required, please specify when ordering)

3. Valve Body Material: Stainless steel (304, 316, 316L, etc.) series

4. Sealing Material: PTFE seal, PPL (Para-polybenzene) seal, etc.

5. Applicable Temperature: T1: -20-150℃; T2: -29-250℃; Other temperatures can be customized

6. Connection Mode: Threaded type, Welded type, Quick-install type, Flanged type

7. Cylinder Options: Plastic actuator (P1), Stainless steel actuator (P2), Stainless steel actuator (P3), Gemü-type actuator (P4)

8. Control Air Pressure: 0.3~0.8MPa

9. Action Mode: Single-acting normally closed (FC), Single-acting normally open (FO), Double-acting

10. Control Mode: On-off type, Regulating type, Intelligent type, Bus type

Selection Guide

1. Control Function: Normally open

2. Applicable Ambient Temperature for PPS Actuator Housing: 5~130℃

3. Actuator: Double-acting actuator without return spring

4. Connection Mode: Quick-install, Flange

5. Position Feedback: Electronic position feedback

6. Manual Operation: Manual emergency switch
