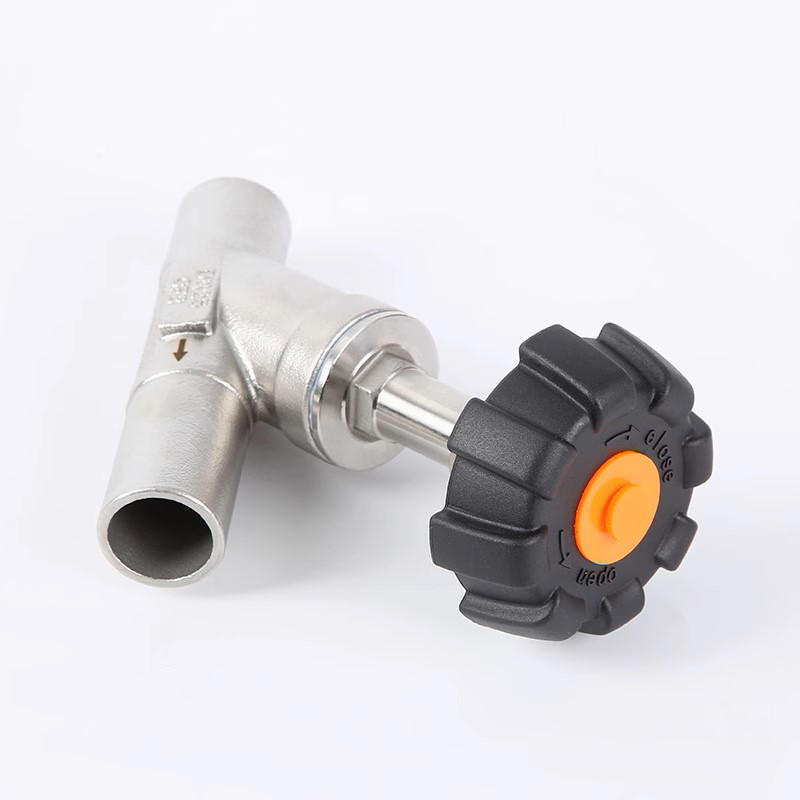

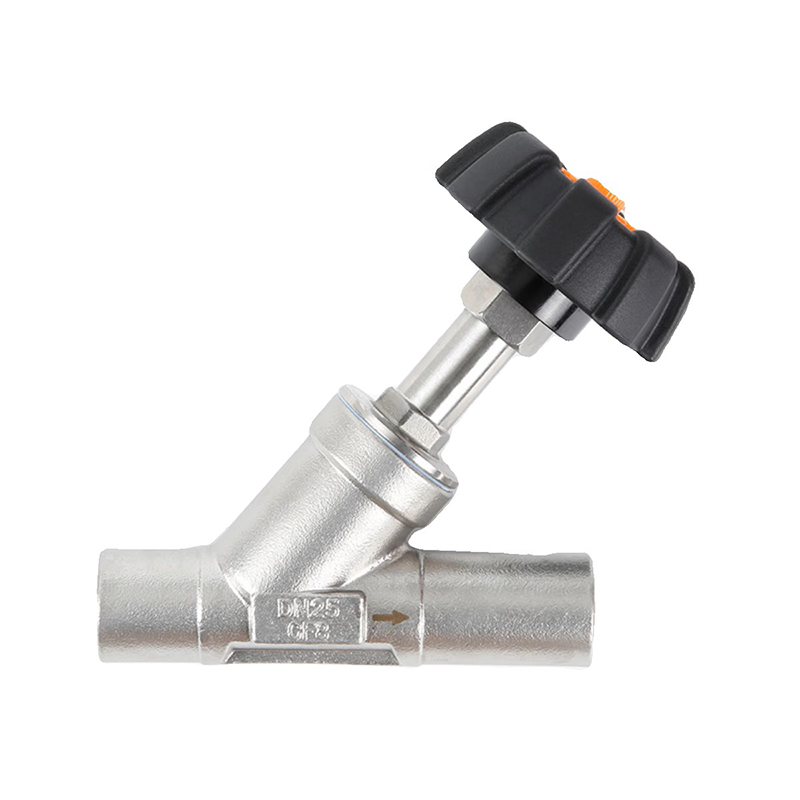

Welded Manual Angle Seat Valve - Overview & Technical Parameters

The welded manual angle seat valve is a type of valve that uses manual control for opening, closing or regulation, and the valve body is of angle valve type.

Technical Parameters of Welded Manual Angle Seat Valve

• Pipeline Pressure: 0-1.6Mpa

• Valve Body Material: CF8M/CF8

• Valve Core Seal: PTFE

• Valve Body Caliber: DN10-DN65

• Applicable Media: Water, alcohol, oils, fuel, steam, neutral gases or liquids, organic solvents, weak acid or weak base solutions

• Medium Temperature: -10℃ — +180℃

• Medium Viscosity: 600mm²/s

• Connection Mode: Threaded type, welded type, flanged type, quick-install type
