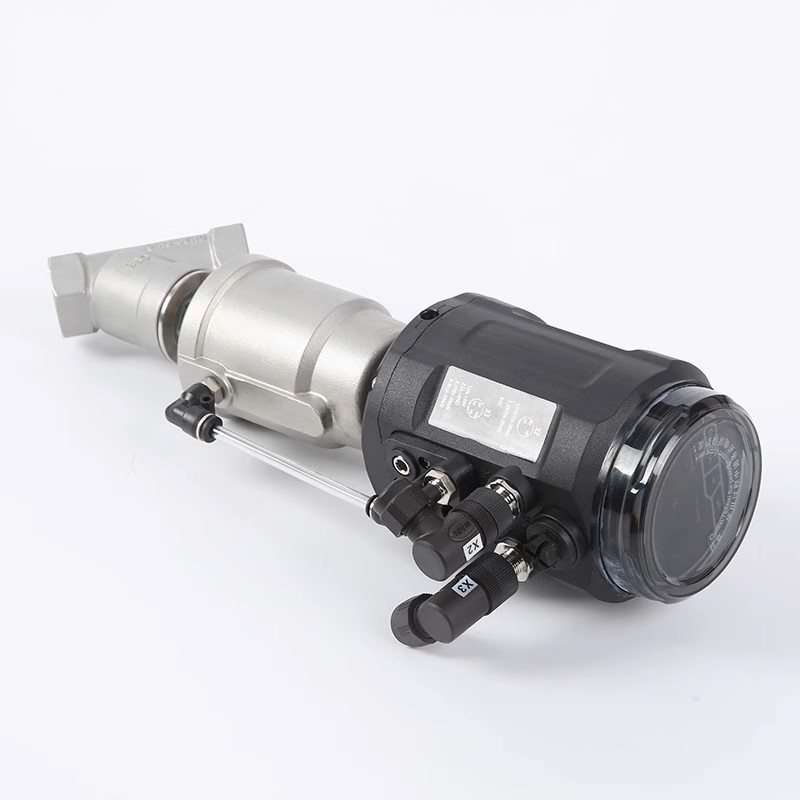

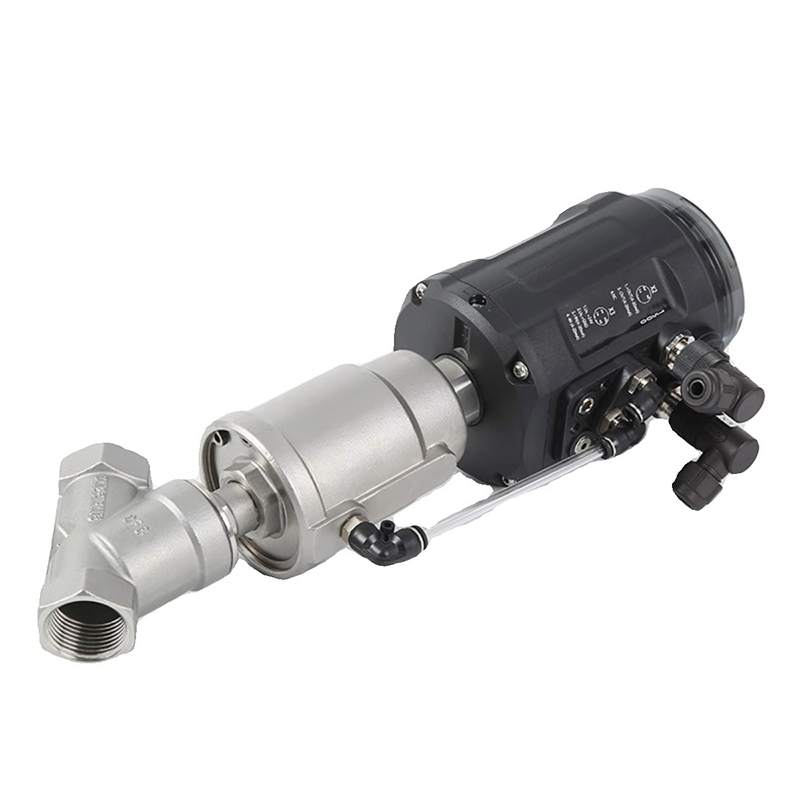

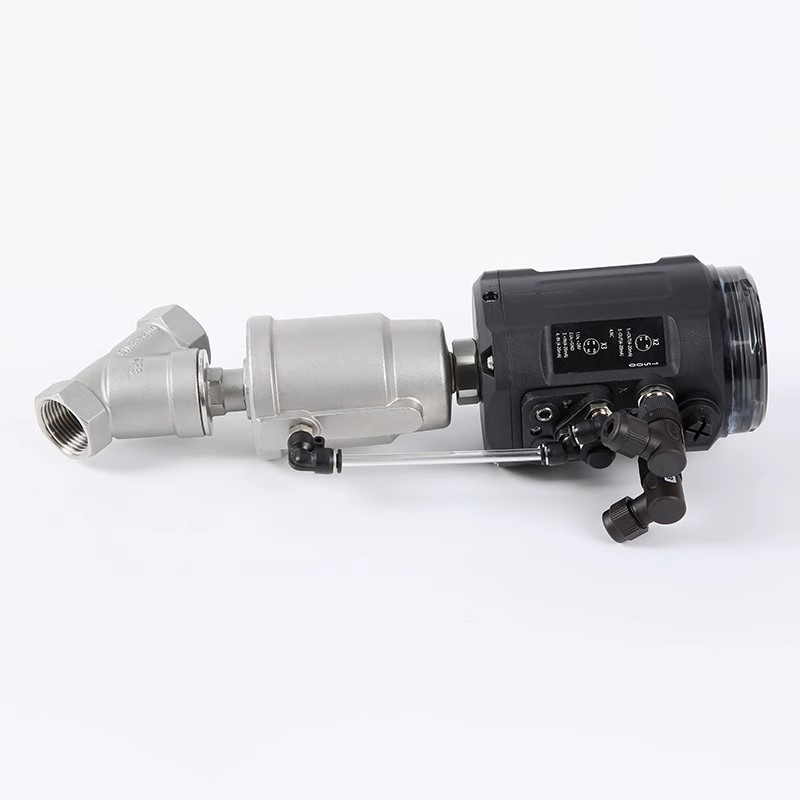

Pneumatic Angle Seat Valve with Control Unit - Product Overview

The pneumatic angle seat valve with control unit can save space while maintaining flow rate. It adopts a guided angle seat valve operated by a single-acting pneumatic actuator with spring safety protection, featuring a compact shape and structure. Equipped with soft sealing function, it is not affected by the direction of medium flow. It can be used for both cutting-off and flow regulation purposes. The pneumatic angle seat valve with control unit is widely applied in textile printing and dyeing machinery, food and beverage machinery, etc. It is characterized by frequent starting in a short time, sensitive response and accurate action.

Structural Features

• Service Life: Longer service life than similar competing products under the same medium conditions.

• Easy Installation: The air hole interface can be installed at any position within 360 degrees.

• Position Display: Equipped with valve open or closed position display.

• Angle Seat Structure: The valve body adopts an angle seat structure, which can achieve large flow rate (especially compared with ordinary globe valves), with compact structure and fast response.

Main Performance Parameters

• Pneumatic Actuator: Double-acting, single-acting air-open type, single-acting air-closed type

• Cylinder Material: Polyurethane (PA), Stainless Steel

• Nominal Diameter: DN15-DN100

• Nominal Pressure: 1.6Mpa, 2.5MPa

• Applicable Temperature: PTFE: -30℃～180℃, F46: -30℃~220℃ (Actuator must be stainless steel)

• Connection Mode: Threaded, Welded, Flange, Clamp, Quick-install

• Design Standard: GB, ANSI, DIN, ISO

• Valve Body Material: 304, 316, 316L

• Valve Core Material: 304, 316, 316L

• Valve Seat Material: PTFE, F46

• Signal Input: 1-5V, 0-10V, 4-20MA

• Applicable Media: Water, Steam, Air, Grease, etc.

• Optional Accessories: Solenoid Valve, Limit Switch, Electric Positioner, etc.
