Pneumatic Angle Seat Valve with Solenoid Valve - Features, Working Principle & Technical Parameters

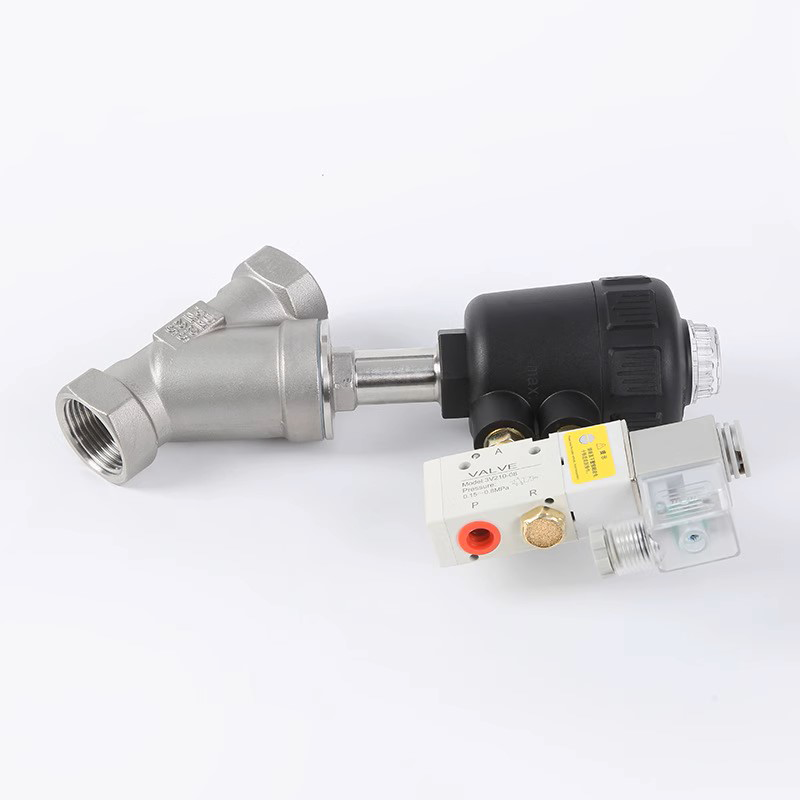

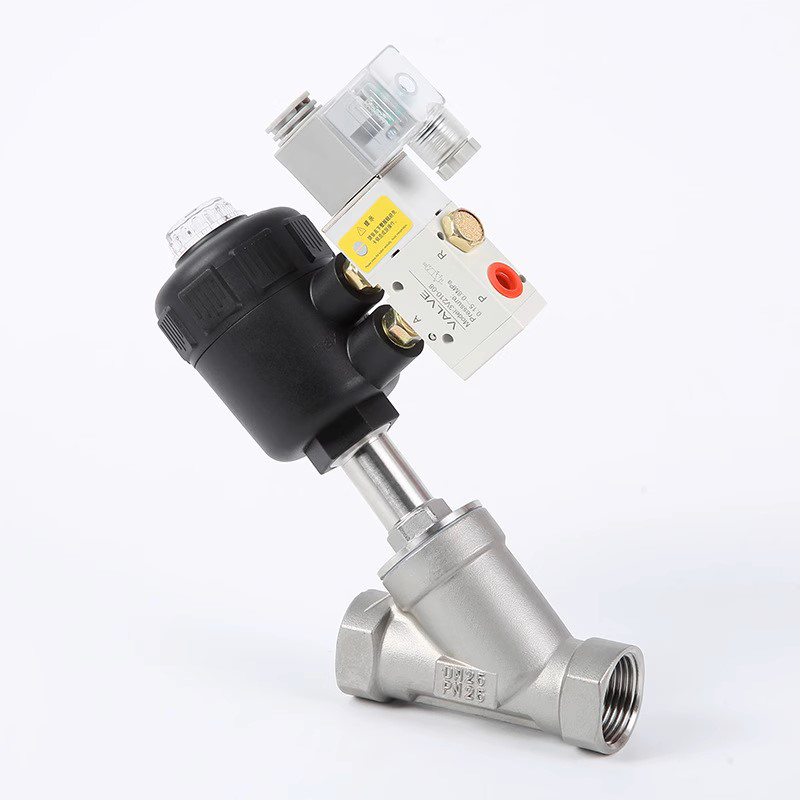

Pneumatic angle seat valve with solenoid valve is mainly composed of a new type of pneumatic actuator, solenoid valve and angle seat valve body. It is widely used in beer production, textile printing and dyeing & bleaching, pharmaceutical and medical equipment, food processing, rubber machinery, organic and inorganic chemical industry, cleaning, disinfection and high-temperature sterilization, water treatment and other industries. It is suitable for media including water, liquid, neutral gas, steam, slightly corrosive gas and liquid. Compared with solenoid valves and other valves, it has the characteristics of economical investment, safe use, maintenance-free operation and long service life.

Structural Features

1. Reliable Control: The pneumatic angle seat valve with solenoid valve function can control the opening and closing of the valve through electrical signals to realize remote control and automatic control.

2. Fast Response: The solenoid valve can quickly respond to electrical signals to achieve rapid valve operation, suitable for occasions requiring rapid regulation and switching of fluid flow.

3. High Sealing Performance: The angle seat valve has a compact structural design and excellent sealing performance, which can effectively prevent medium leakage.

4. Corrosion Resistance: Imported pneumatic angle seat valves with solenoid valve are usually made of corrosion-resistant materials, suitable for the control of corrosive media.

Working Principle

1. Pneumatic Control

The opening and closing of the angle seat valve is controlled by the air pressure signal provided by the air source. When the air pressure signal arrives, the air source drives the piston or diaphragm to move through the pneumatic control unit, making the valve core separate from or contact with the valve seat, so as to control the on-off of the medium.

2. Electromagnetic Control

The pneumatic angle seat valve with solenoid valve function controls the on-off state of the solenoid valve through electrical signals. When an electrical signal is input, the solenoid valve controls the on-off of the air source, thereby controlling the opening and closing of the angle seat valve.

Applicable to angle seat valves of all calibers, and can be connected with 2/5 way or 2/3 way solenoid valves.

Technical Parameters of Pneumatic Actuator

• Working Fluid: Air (filtered by 40μm filter element)

• Interface: G1/8"

• Working Power Supply: 24V DC or 220V AC

• Working Pressure: 0.15-0.8MPa

• Working Temperature: -5℃～+50℃

• Protection Grade: IP65
