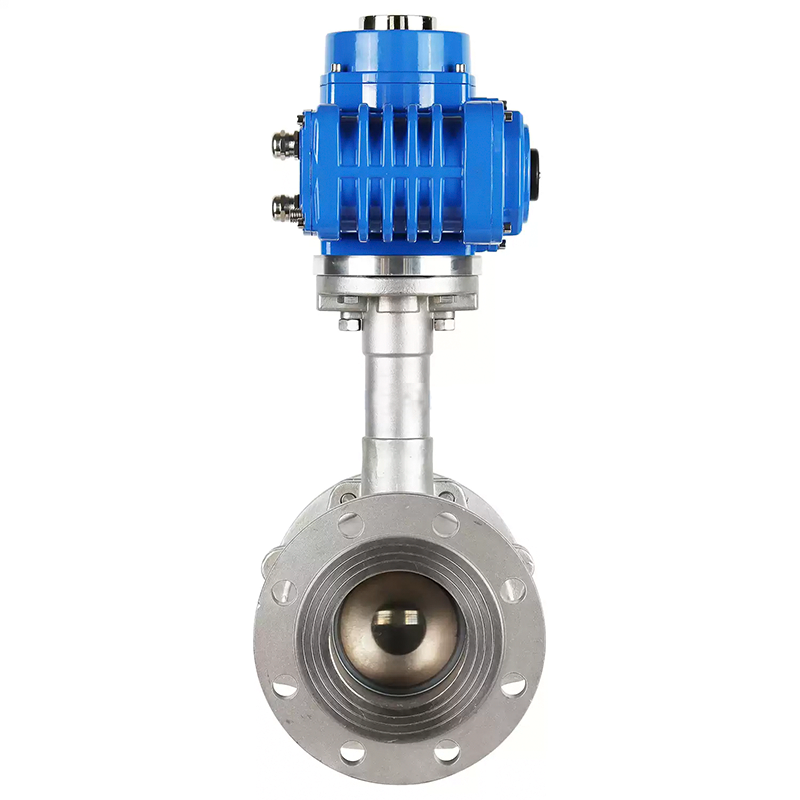

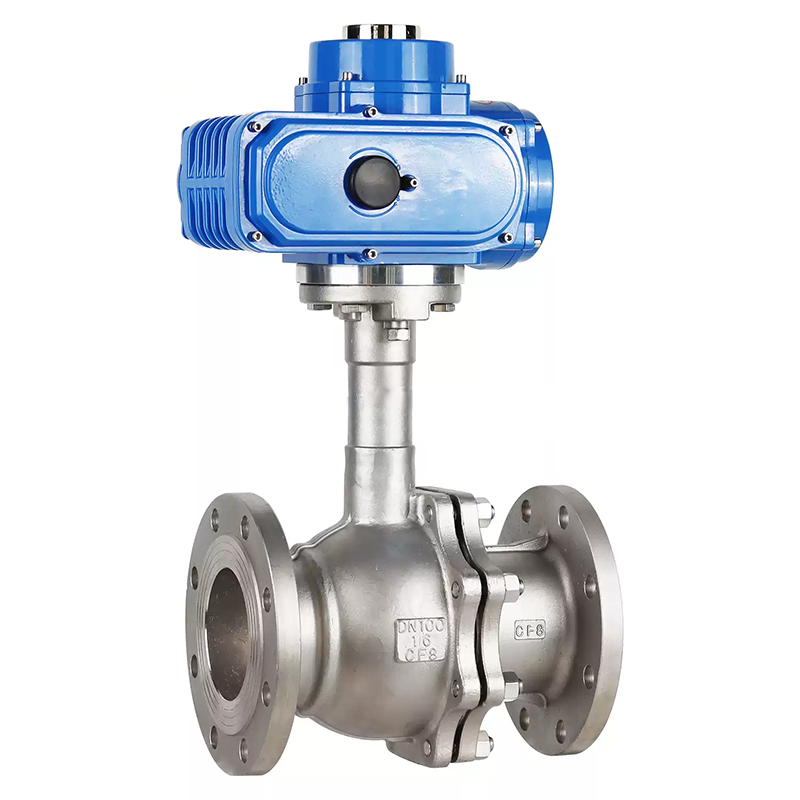

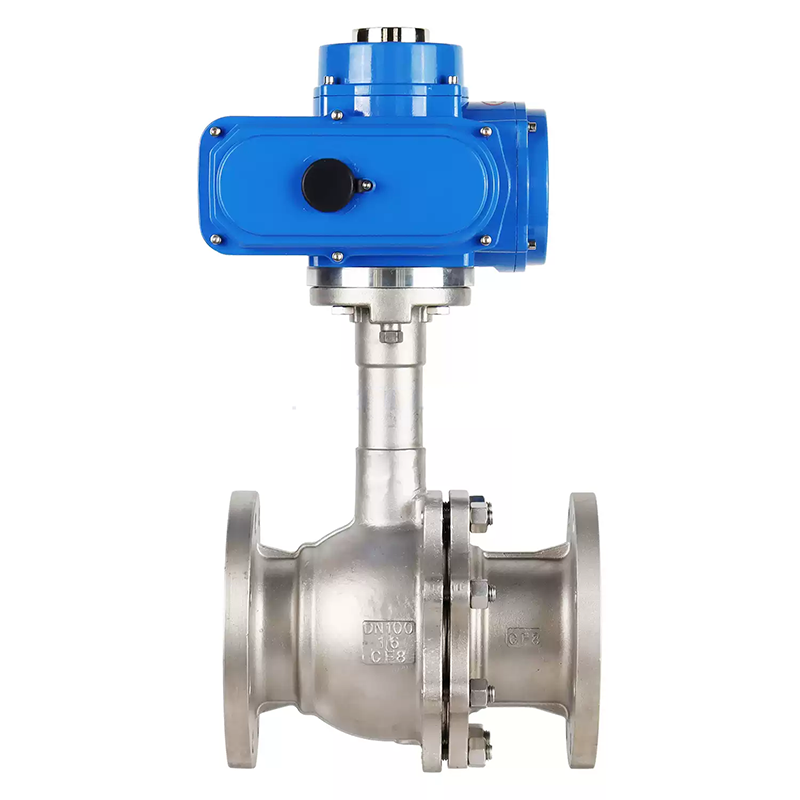

Cryogenic Electric Actuated Ball Valves: Overview & Technical Parameters

The Cryogenic Electric Actuated Ball Valve consists of a 304 stainless steel forged valve body and an explosion-proof quarter-turn actuator. It is suitable for the management systems of cryogenic liquid storage and transportation equipment, featuring flexible opening and closing and reliable sealing. It can also be used in management systems of other cryogenic and deep-cooling media. The actuator of the explosion-proof cryogenic electric actuated ball valve is a fully enclosed squirrel-cage motor, which has the advantages of small volume and large torque. The insulation class is Class F, and it is equipped with a built-in overheat protection switch to prevent motor damage. It is also equipped with a handwheel device; the design of the handwheel ensures safety, reliability and labor saving. In the event of power failure, turning the handwheel allows manual adjustment of the opening degree of the cryogenic electric actuated ball valve, and it automatically resets when power is restored.

Technical Parameters

• Product Name: Cryogenic Electric Actuated Ball Valve

• Valve Body Material: Stainless Steel

• Connection Method: Thread/Flange/Socket Weld/Butt Weld

• Nominal Diameter: DN15~DN200

• Actuation Mode: Electric Actuated

• Applicable Media: Gases and liquids such as LNG, LO2, LN2, LAr, CO2, etc.

• Applicable Temperature: -196℃～+80℃

• Nominal Pressure: 4.0MPa

• Actuator Type: Compact Explosion-Proof Type, OHQ Explosion-Proof Type

• Control Mode: On-Off Type, Regulation Type

• Power Supply Voltage: 110VAC; 220VAC; 380VAC; 50/60Hz

• Input Signal: 4-20mADC or 1~5VDC

• Output Signal: 4-20mADC

• Protection Class: IP65; IP67; IP68

• Explosion-Proof Class: Exd II BT4; Exd II CT6

• Ambient Temperature: -25℃~55℃

• Ambient Humidity: 10~90%RH

• Stroke: 90°~120°/±10°

• Action Time: 7s-120s

• Insulation Resistance: 100MΩ (500VDC)

• Motor Protection: Overheat Protector (Auto-Recovery Type)

• Manual Control: Removable Wrench/Handwheel

• Torque Range: 7N.m-2000N.m

• Manufacturing Standards: National Standard GB / Ministry of Machinery Industry Standard JB / Ministry of Chemical Industry Standard HG / American Standard ANSI/API / Japanese Standard JIS / German Standard DIN / Customization according to other standards
