Cryogenic Pneumatic Ball Valves: Overview & Technical Parameters

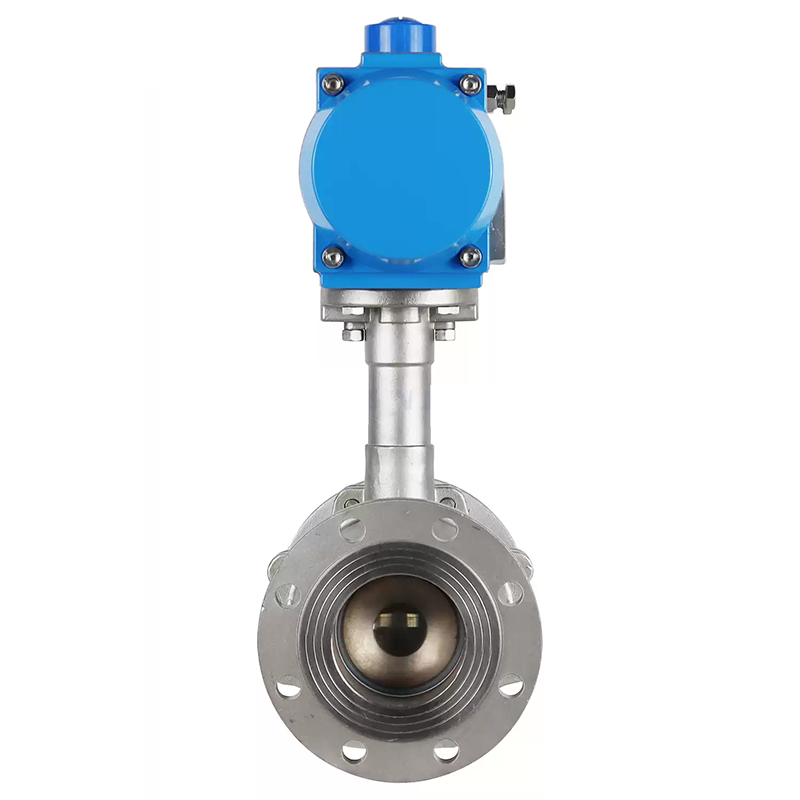

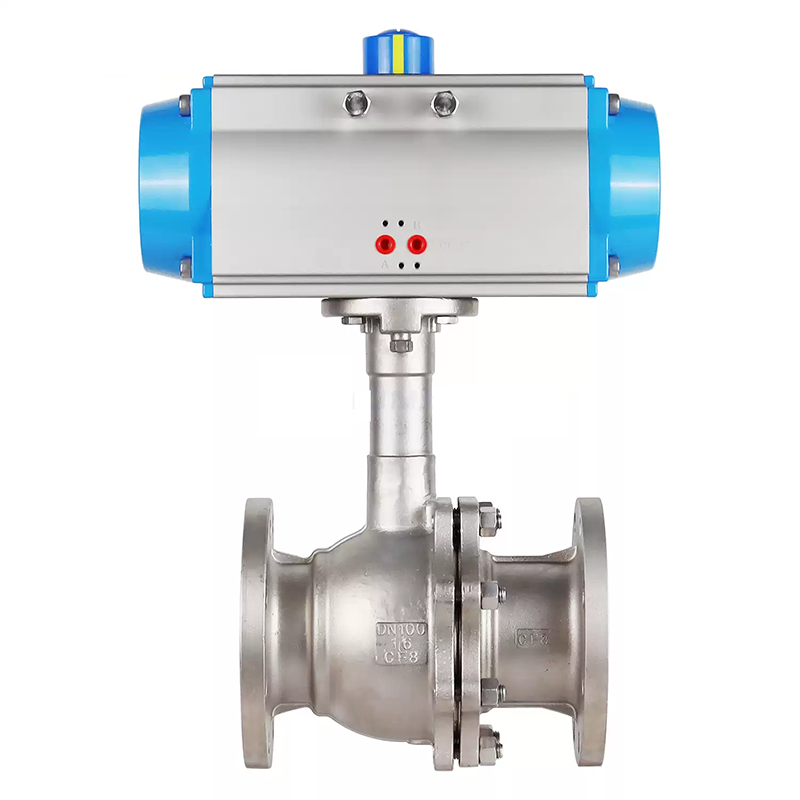

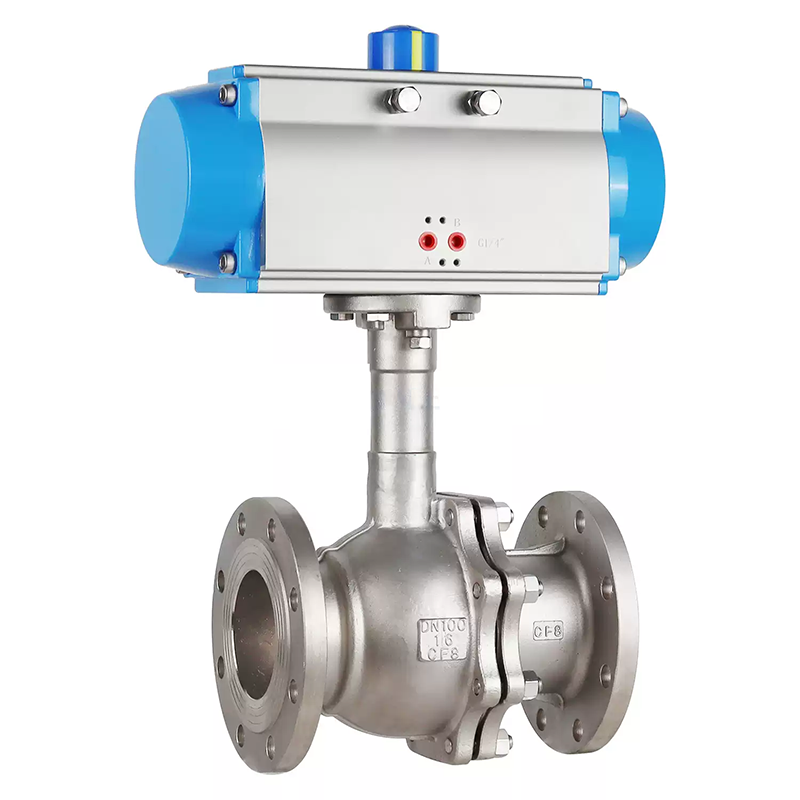

The Cryogenic Pneumatic Ball Valve consists of a Forged Steel Extended Shaft Cryogenic Ball Valve and a Pneumatic Actuator. It drives the piston of the actuator to rotate left and right through an air supply pressure of 0.4~0.7MPa to realize opening and closing actions. An explosion-proof solenoid valve, signal feedback (limit switch), air filter regulator, and handwheel device can be added to achieve integrated automatic control.

Technical Parameters

• Product Name: Cryogenic Pneumatic Ball Valve

• Valve Body Material: 304 Stainless Steel

• Connection Method: Thread/Flange/Socket Weld/Butt Weld

• Applicable Pressure: 4.0MPa

• Nominal Diameter: DN15~DN200

• Actuation Mode: Pneumatic

• Applicable Media: Gases and liquids such as LNG, LO2, LN2, LAr, CO2, etc.

• Applicable Temperature: -196℃～+80℃

• Actuator Type: AT Pneumatic Actuator

• Action Mode: Double-Acting (Air-Open/Air-Close), Single-Acting (Spring Return)

• Control Mode: On-Off Two-Position Control, 4-20mA Analog Control

• Air Supply Pressure: Double-Acting 3-8bar; Single-Acting 4-8bar

• Operating Medium: Air

• Connection Dimension: ISO5211

• Air Supply Interface: Complies with NAMUR Standard

• Manufacturing Standards: National Standard GB / Ministry of Machinery Industry Standard JB / Ministry of Chemical Industry Standard HG / American Standard ANSI/API / Japanese Standard JIS / German Standard DIN / Customization according to other standards
