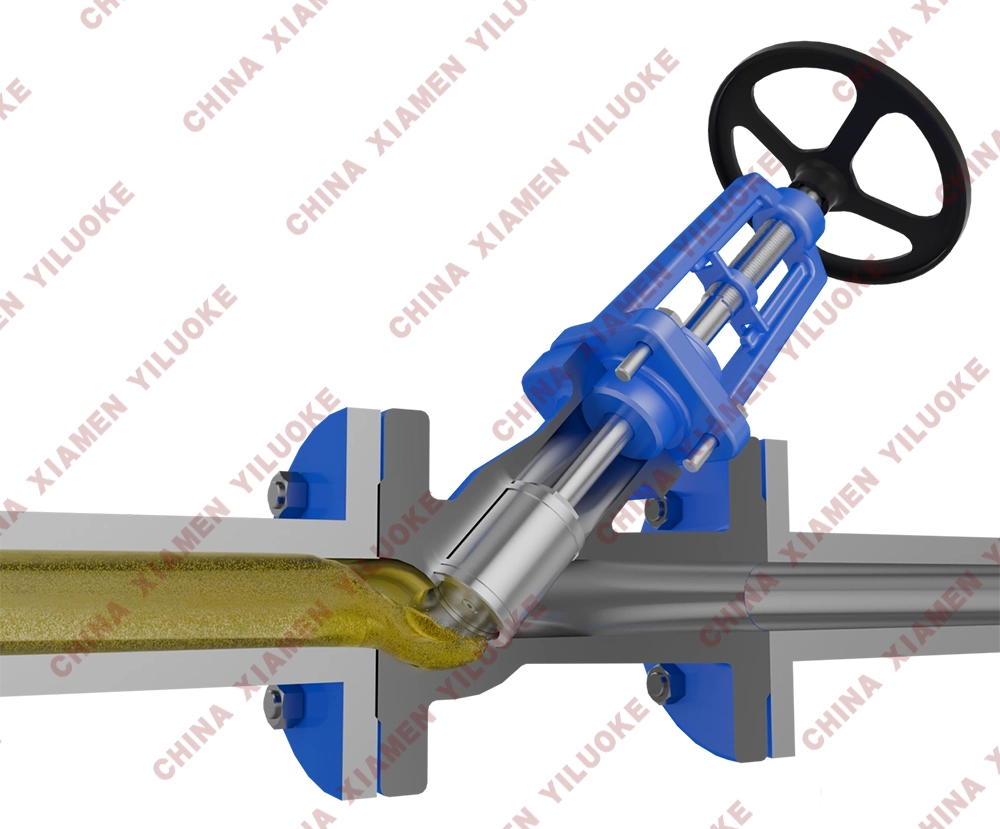

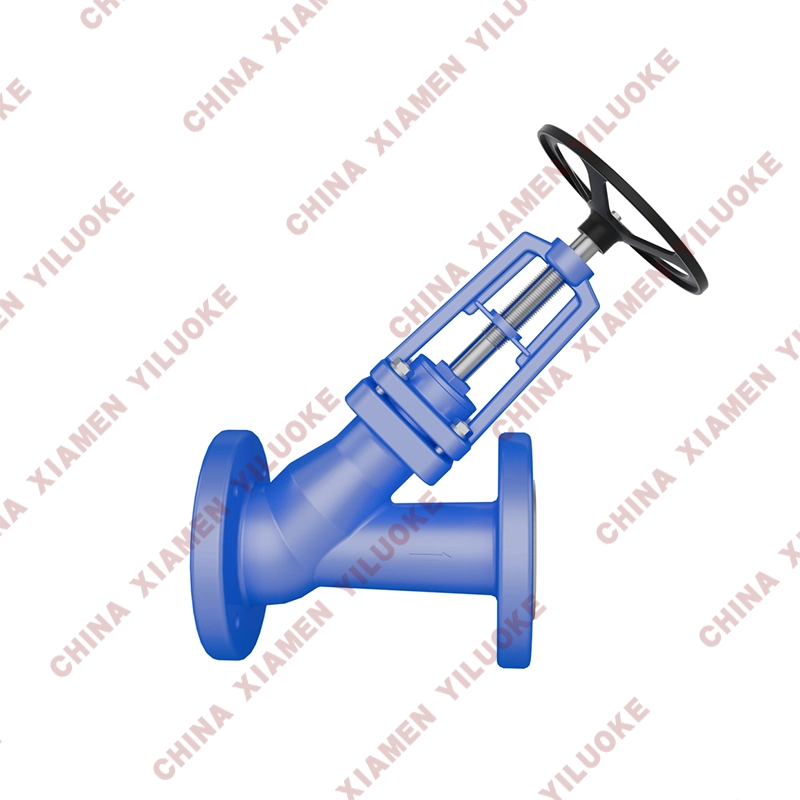

Y-type globe valve is a straight-way globe valve. Its stem forms an angle with the flow passage, and the seat sealing surface is angled relative to the inlet and outlet channels. The straight-way design enables fluid to flow with nearly no flow direction change, delivering relatively low flow resistance among all globe valves. It is widely used in petrochemical, metallurgy, chemical, power plant and other industries.

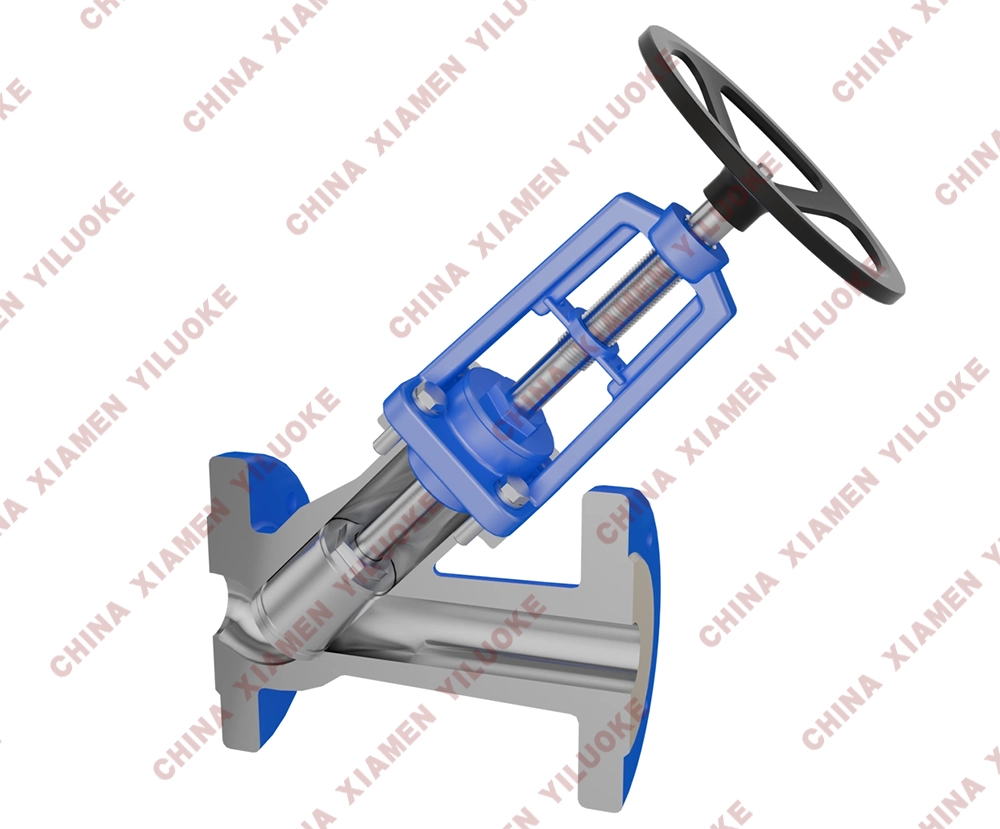

The flow channel of the Y-type globe valve is inclined to the main flow path. Compared with conventional globe valves, it causes less disturbance to fluid flow, resulting in correspondingly lower pressure loss across the valve.

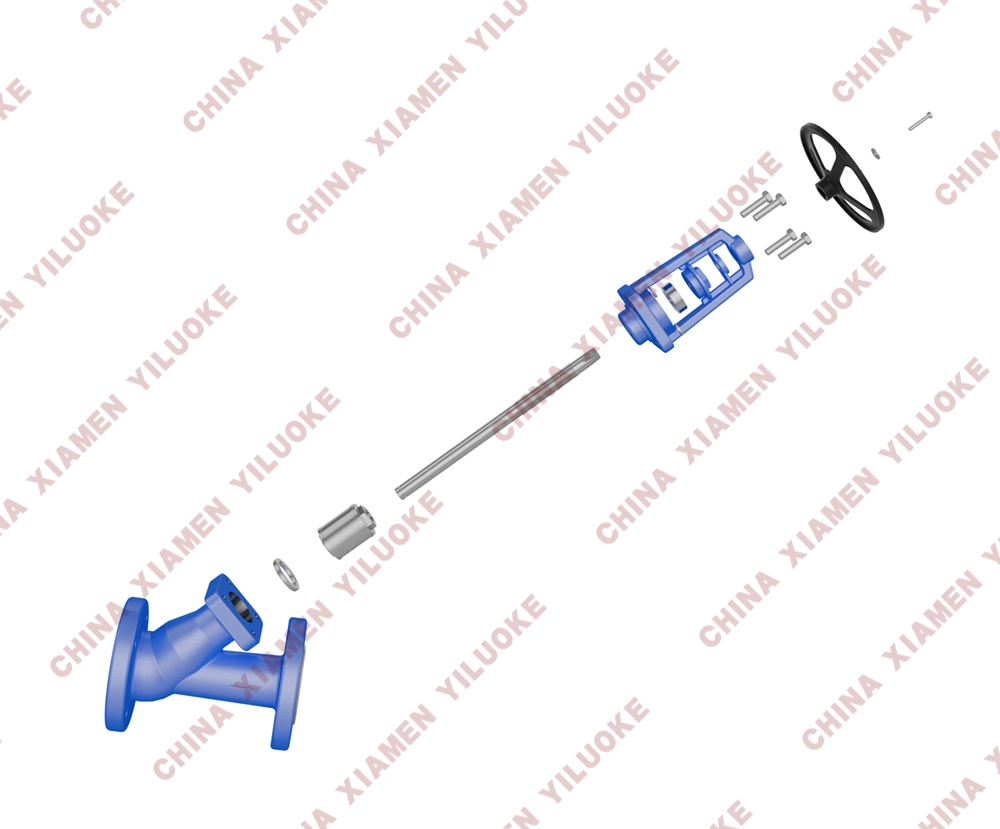

Features

1. Y-shaped straight-way valve body with low flow resistance and minimal erosion on valve components.

2. Optional conical disc design delivers excellent regulating performance and low flow resistance.

3. Line contact sealing pair ensures reliable tightness.

4. Wear-resistant coating can be applied on the inner cavity of valve body and disc surface.

Technical Parameters

Brand: Xiamen Yiluoke
Product Name: DIN Standard Y-Type Globe Valve
Model: J1-B4-H-16-C
Body Material: GS-C25 / 1.0619; 1.4581
Connection Type: Flanged
Working Pressure: PN16 / PN25 / PN40
Nominal Diameter: DN15 ~ DN300
Operation Mode: Manual
Application Scenarios: Thermal oil systems, steam systems, cold & hot water systems, etc.
Working Temperature: -40℃ ~ 420℃
Design Standard: DIN 3356
Face-to-Face Dimension: DIN 3202
Flange Standard: DIN 2501; DIN 2547; DIN 2526 FORM E; BW to DIN 3239
Test Standard: DIN 3352 Part 1; DIN 3230 Part 3

Application

This valve is installed on pipelines of petroleum, chemical and other industries for flow shut-off or regulation.

Execution Standards

Design & Manufacture: GB/T12235
Connecting Flange: GB/T9113
Face-to-Face Length: GB/T12221
Test & Inspection: GB/T26480
