High-Pressure Back Pressure Regulator: Definition, Features, Materials & Technical Parameters

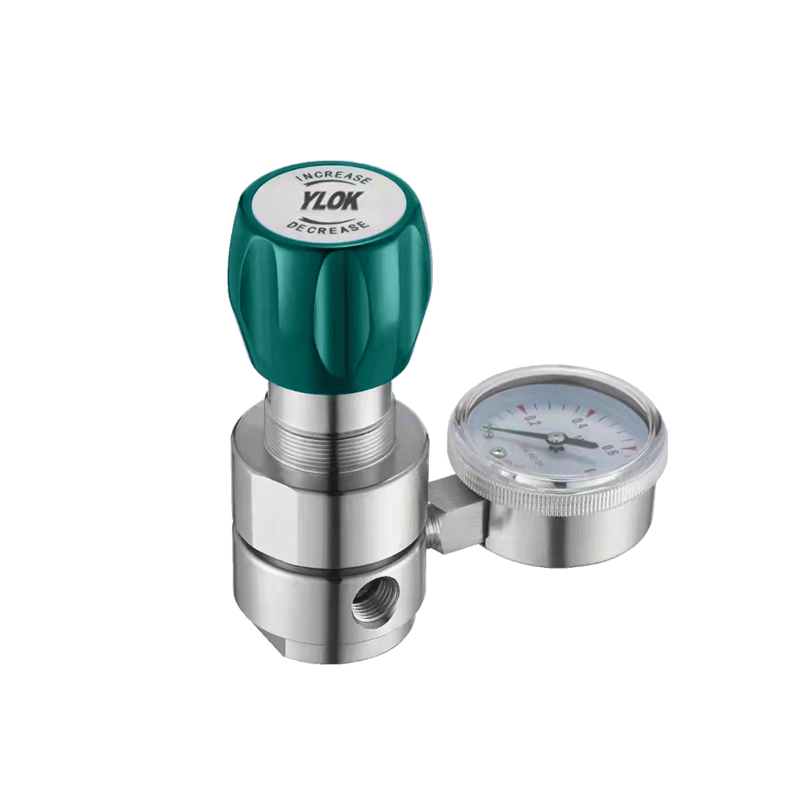

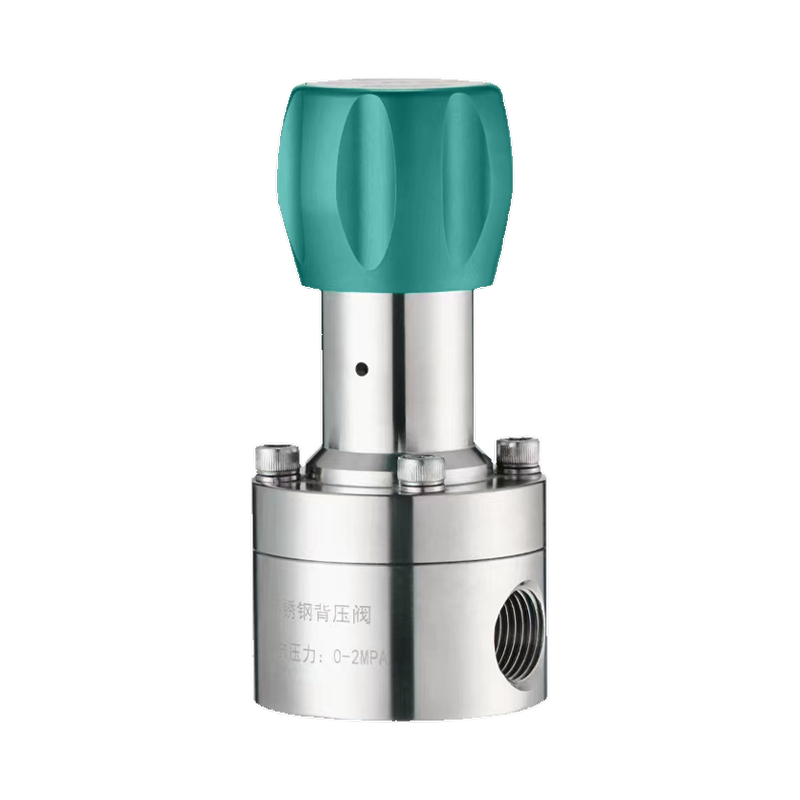

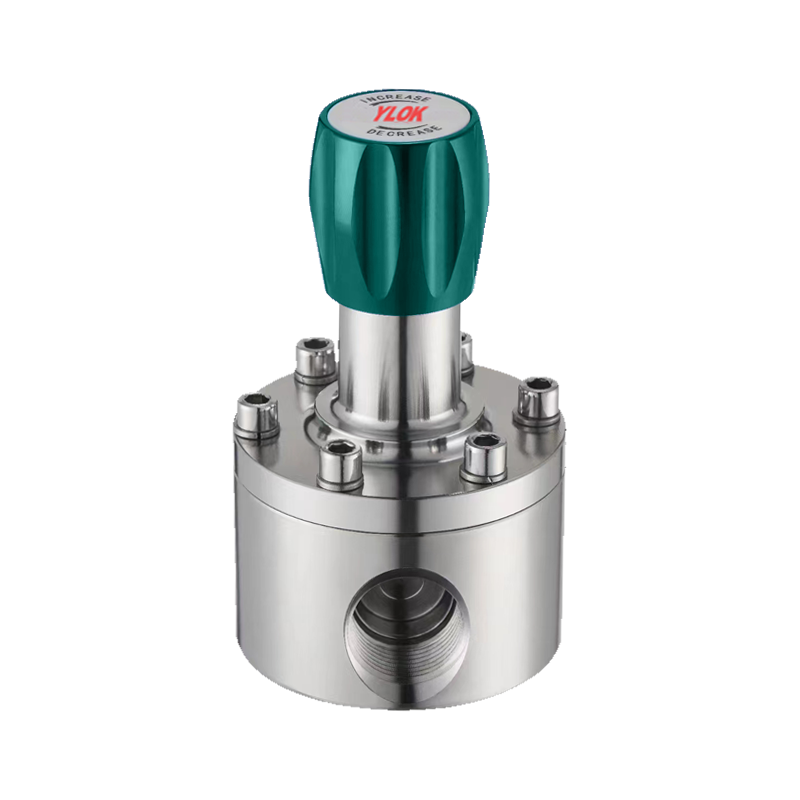

Definition of High-Pressure Back Pressure Regulator

The high-pressure back pressure regulator adopts a piston-type pressure reducing structure. It is used to regulate upstream pressure, features precise pressure control, and is suitable for specialty gases and corrosive gases.

Structural Features of High-Pressure Back Pressure Regulator

• Safe and precise piston-type structure

• Valve body thread: 1/4"NPT(F)

• Five different control pressure ranges available

• Provides low-torque pressure setting

• Sensitive element design ensures precise pressure control

• Available for panel-mounted or wall-mounted installation

Material of Main Components of High-Pressure Back Pressure Regulator

• Valve body: SS316L

• Upper cover: SS304

• Gasket: PCTFE

• O-ring: Viton

Technical Parameters of High-Pressure Back Pressure Regulator
