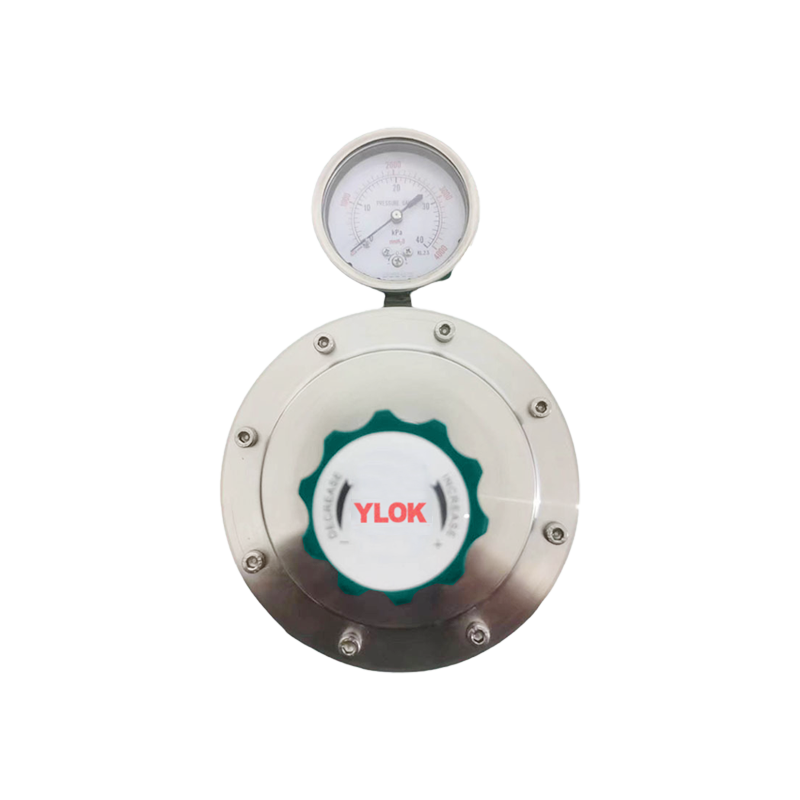

Micro-Pressure Back-Pressure Regulators

Definition

Micro-Pressure Back-Pressure Regulator adopts rubber diaphragm pressure transmission,Micro-Pressure Back-Pressure Regulator is specifically designed for micro-pressure application requirements, and features stable output pressure. It is mainly applied to medium-flow gas systems and liquids (with structures suitable for liquids).

Design Features

Single-stage pressure reduction structure
Hard seal between the body and the diaphragm
Body thread: Inlet and outlet gas ports 1/2" NPT (F); pressure gauge and safety valve ports 1/4" NPT (F)
Built-in filter screen
Panel-mounted or wall-mounted installation available

Technical Parameters

Parameter Category	Specifications
Adjustment Pressure	0～2, 0～5, 0～10, 0～25, 0～50, 0～100 KPa
Safety Test Pressure	1.5 times the maximum input pressure
Operating Temperature	-40°F to +446°F (-40℃ to +230℃)
Internal Leakage Rate	2×10⁻⁸ atm cc/sec He
Cv Value	1.1
