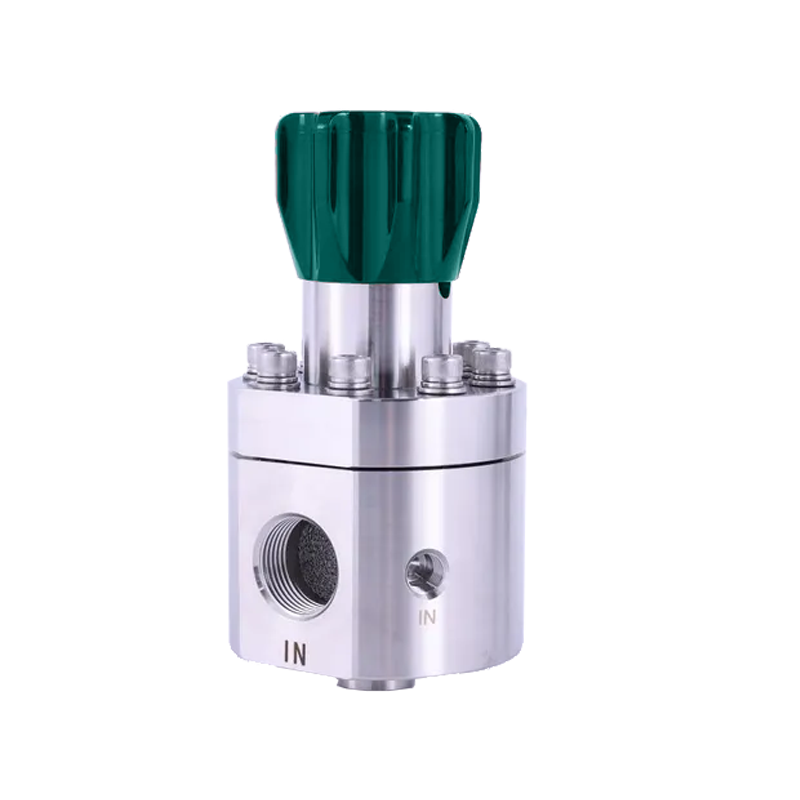

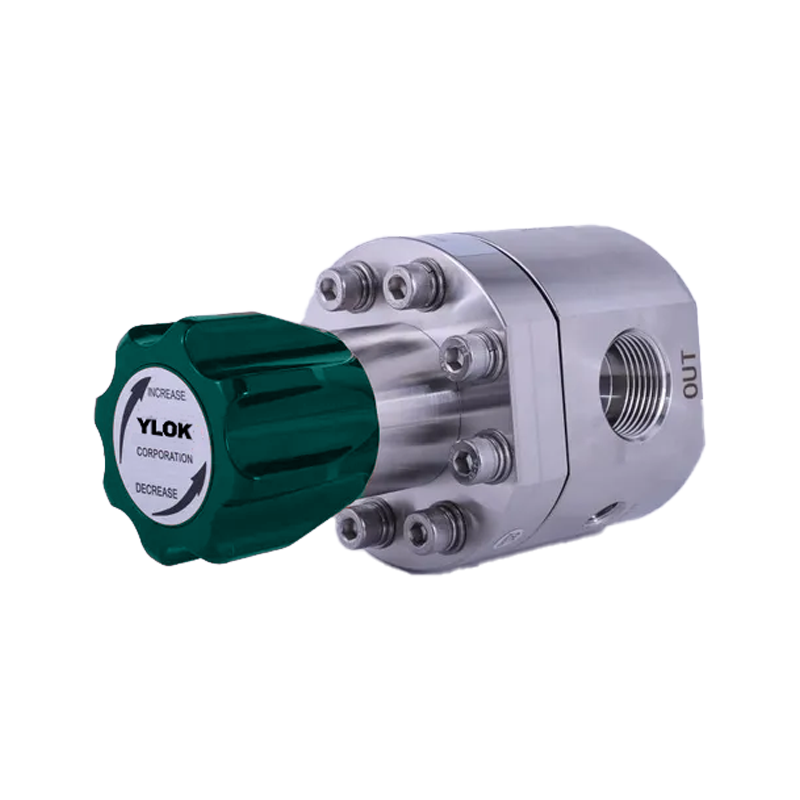

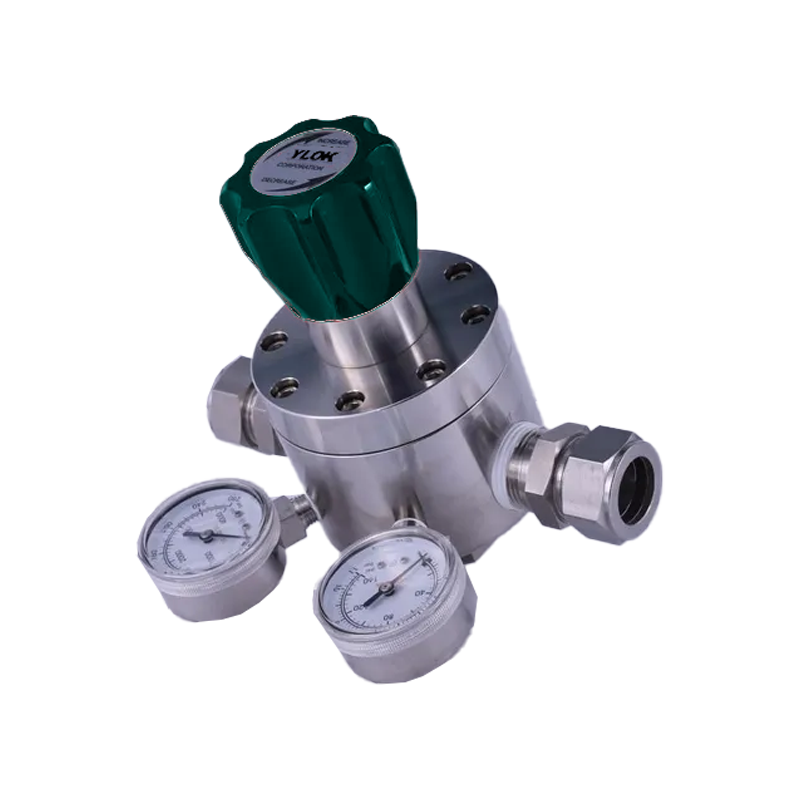

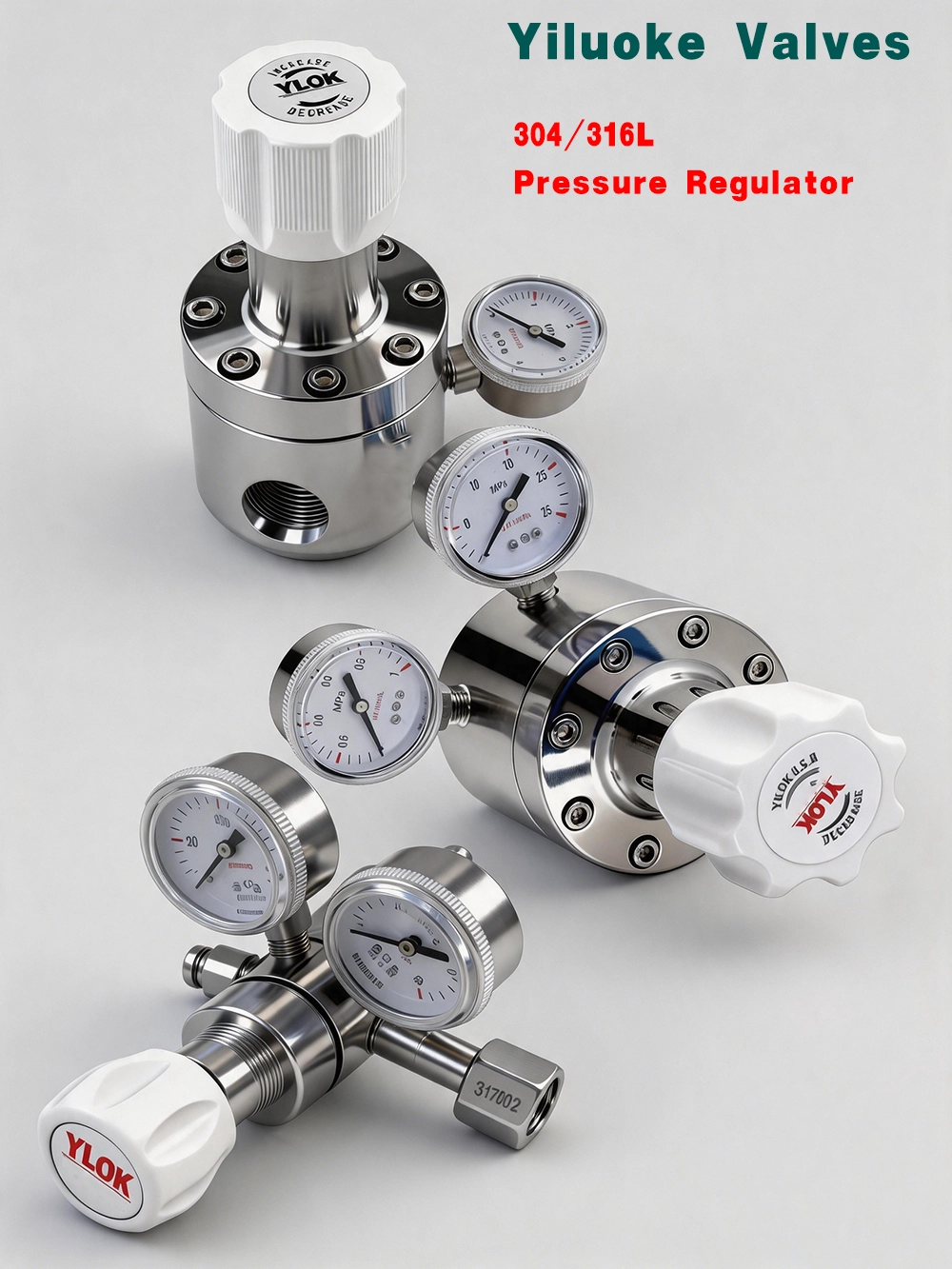

Stainless Steel Pressure Regulators
Stainless Steel Pressure Regulator: Definition, Structural Features & Key Component Materials
1. Definition
Stainless Steel Pressure Regulators are suitable for precision pressure regulation of non-corrosive or corrosive high-pressure gases and standard gas mixtures. They are also applicable to analytical instruments and equipment that have high requirements for gas purity and quality.
2. Structural Features
Parameter Name | Specifications |
|---|---|
Product Name | Stainless Steel Pressure Regulator |
Inlet Port Size | 1/4"~1-1/2"T |
Outlet Port Size | 1/4"NPT~1-1/2"NPT |
Connection Type | NPT (F), NPT (M), ferrule fittings, welded fittings, and other types of fittings are available for selection. |
Inlet Pressure | 10Psi~10000Psi |
Outlet Pressure | 10psi-6000psi |
Operating Temperature | -40℃~+165℃ |
Flow Coefficient (Cv) | 0.06~6.5 |
Leak Test | Bubble Test |
Weight | 1KG~8.5KG |
Valve Body Material | SS316, SS316L |
Structure Type | Diaphragm Type, Piston Type |
Applicable Medium | Gas |
Test Pressure | 1.5 times the maximum outlet pressure |
3. Materials for Key Components
Main Body: 316L
Bonnet: 316L
Diaphragm: 316L
Valve Seat: 316L
