U-type Sanitary Diaphragm Valves - Overview, Technical Parameters & Applications

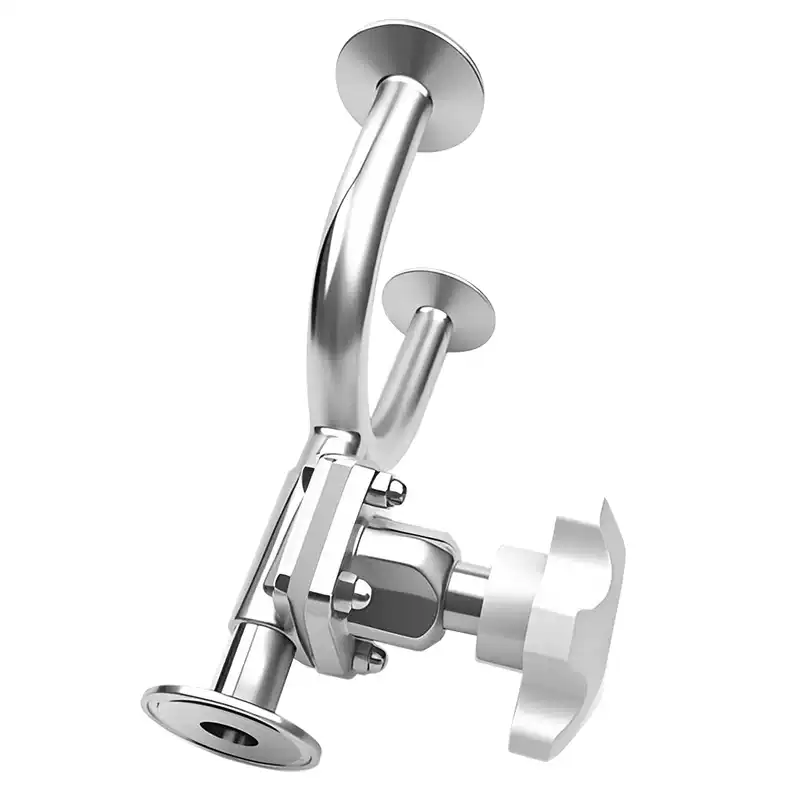

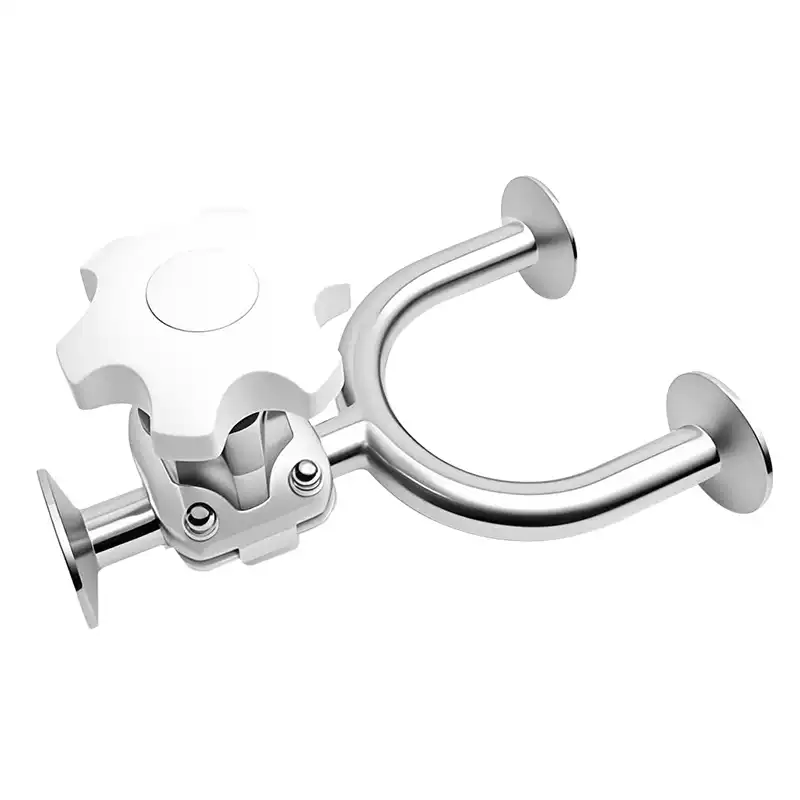

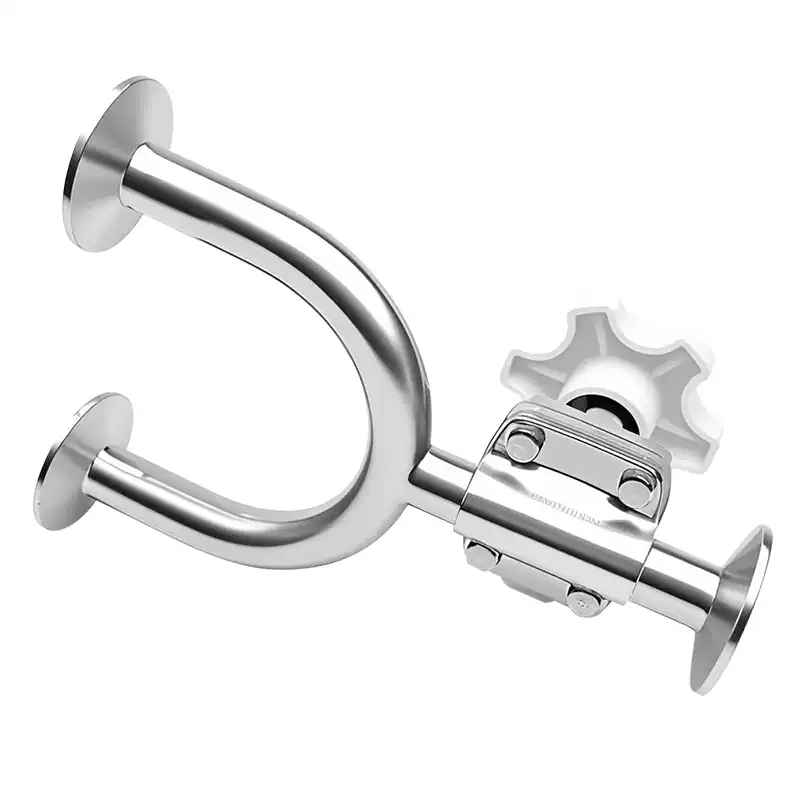

The U-type sanitary diaphragm valve is used for sampling and water consumption points on pipelines in accordance with production processes, complying with GMP requirements. Installed on annular pipelines, the valve ensures no dead corners at the water consumption points. The sealing material adopts imported PTFE as the diaphragm, meeting the cleanliness requirements. The valve is equipped with a limiting device to prevent diaphragm damage caused by excessive force during closing. It is a widely used sanitary diaphragm valve in biopharmaceutical factories at present.

Technical Parameters of U-type Sanitary Diaphragm Valve

• Working Pressure: 0-10bar

• Working Temperature: -40-150℃

• Actuation Mechanism: Manual Control

• Valve Body Design: 3-way valve body design (with straight elbow)

• Valve Body Material: 316L

• Connection Size: Main channel (DN25-DN65), Discharge port (DN15-DN50)

• Connection Mode: Quick-install

• Surface Treatment: External surface Ra≤0.5μm (SF1), Internal surface Ra≤0.375μm (SF4)

Applications of U-type Sanitary Diaphragm Valve

It avoids the retention between the weirs of straight-through diaphragm valves welded on the U-type three-way branch pipes, reduces the number of welds, improves the finish of the material of construction (MOC) contact surface, and features horizontal pipelines with minimal length.

In compliance with the aseptic design specification of SAME BPE 2005: SD-3.11.1, the L/D ratio is ≤2:1. It eliminates the hidden danger of bacterial growth caused by fluid retention areas generated at the discharge port, ensuring absolute safety of the circulation loop.
