Sanitary Electric Actuated Ball Valves - Overview, Features & Technical Parameters

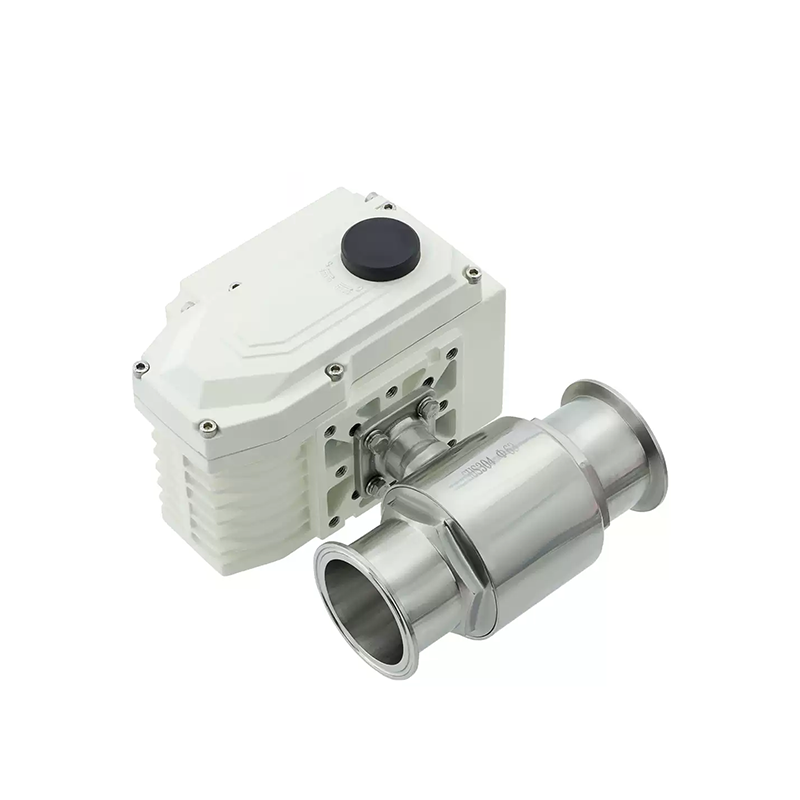

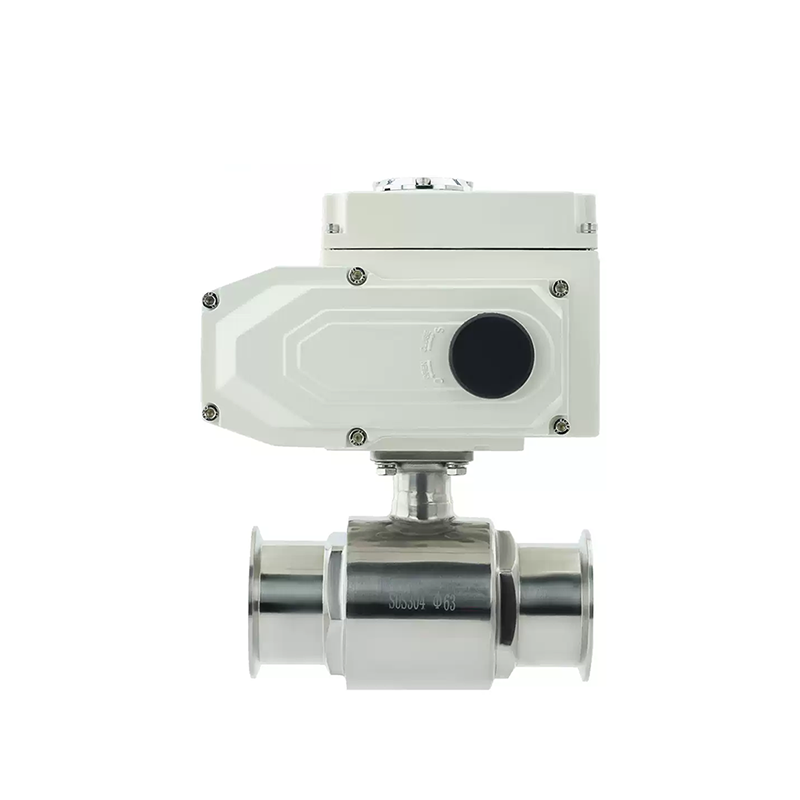

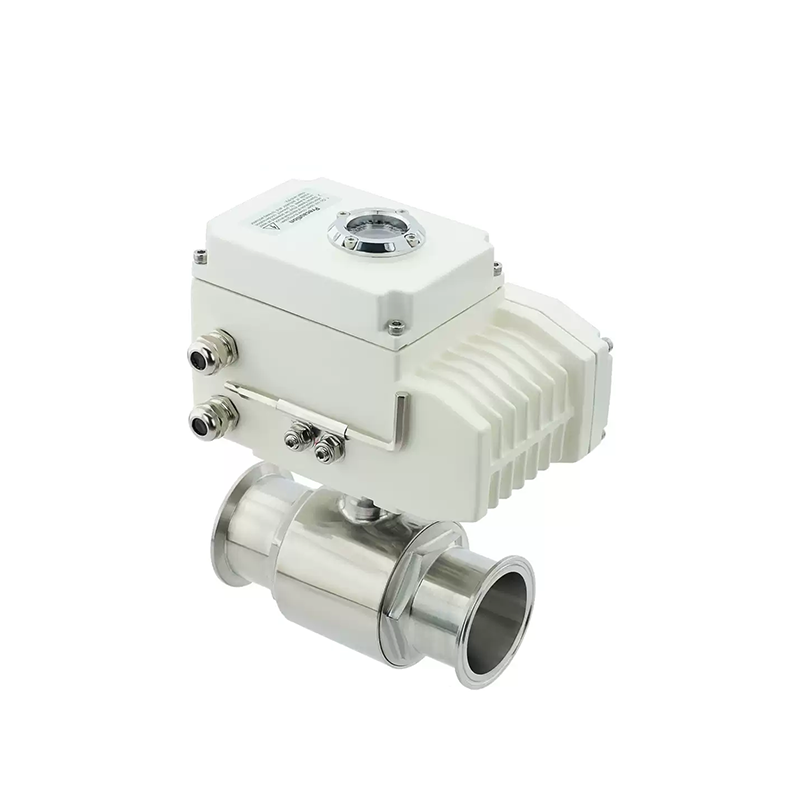

The sanitary electric actuated ball valve is assembled by an electric stroke actuator and a stainless steel sanitary ball valve, with a clamp connection mode. This product has undergone a precise inspection process and strict quality management. The flow channel is subjected to precision polishing and sterilization treatment, and adopts a full-wrap F4 seal, with no dead corners and easy cleaning.

Product Features

1. The valve body of the sanitary electric actuated ball valve is made of high-quality stainless steel. The inner wall of the flow channel is subjected to 0.5um (240Grit) electropolishing, which is as smooth as a mirror and can keep the fluid unimpeded.

2. The full-wrap PTFE used for the sealing surface has no dead corners, meeting the industry's sanitary standards.

3. The sanitary electric actuated clamp ball valve can be applied in fields such as food industry, beverage industry, chemical engineering, pharmaceutical industry, biological engineering and water treatment engineering.

Technical Parameters

Valve Body

• Valve Body Type: Two-way type, Three-way type

• Nominal Diameter: DN15～102mm

• Nominal Pressure: PN1.0MPa

• Connection Type: Quick-install type (clamp type), Welded type, Threaded type

• Applicable Temperature: PTFE≤180℃

• Applicable Media: Beer, wine, biological engineering, food, pharmaceuticals, beverages, dairy products, etc.

• Product Features: Safe and hygienic, good sealing, long service life

Actuator

• Main Technical Parameters: Power Supply Voltage: 220V/50Hz, 380V/50Hz; Input Signal: 4-20mA or 1-5V·DC; Output Signal: 4-20mA·DC

• Protection Level: Equivalent to IP65 (or IP67)

• Explosion-Proof Mark: ExdⅡBT4

• Manual Operation Function: Handle

• Ambient Temperature: -25～+70℃

• Ambient Humidity: ≤95%

Main Performance Indicators

• Nominal Diameter DN (mm): φ15-102mm

• Allowable Pressure Difference (MPa): ≤Nominal Pressure

• Action Range: 0～90°

• Leakage Q: According to GB/T4213-92, less than 0.01% of the rated KV

• Basic Error: ±1%

• Hysteresis: ±1%

• Dead Band: ≤1%

Main Component Materials

• Valve Body: 304/316/316L Stainless Steel

• Valve Shaft: Stainless Steel

• Ball: 304/316/316L Stainless Steel

• Valve Seat: PTFE
