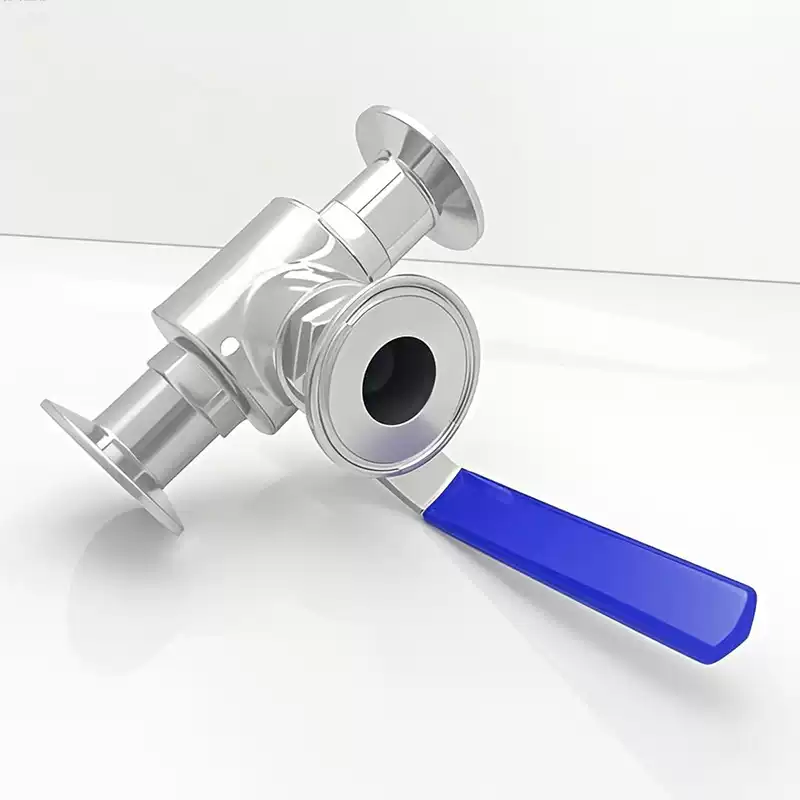

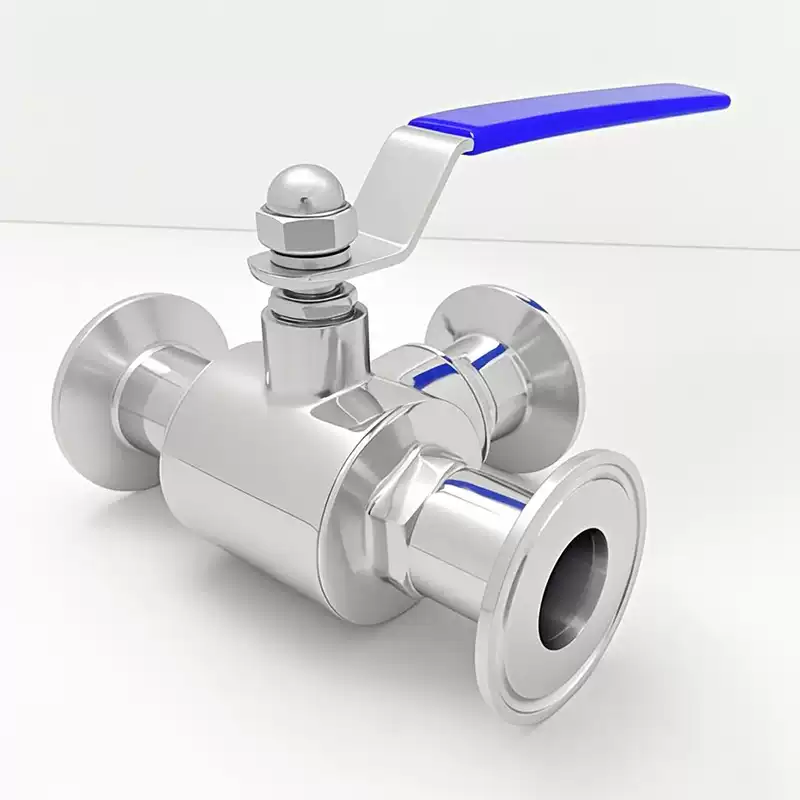

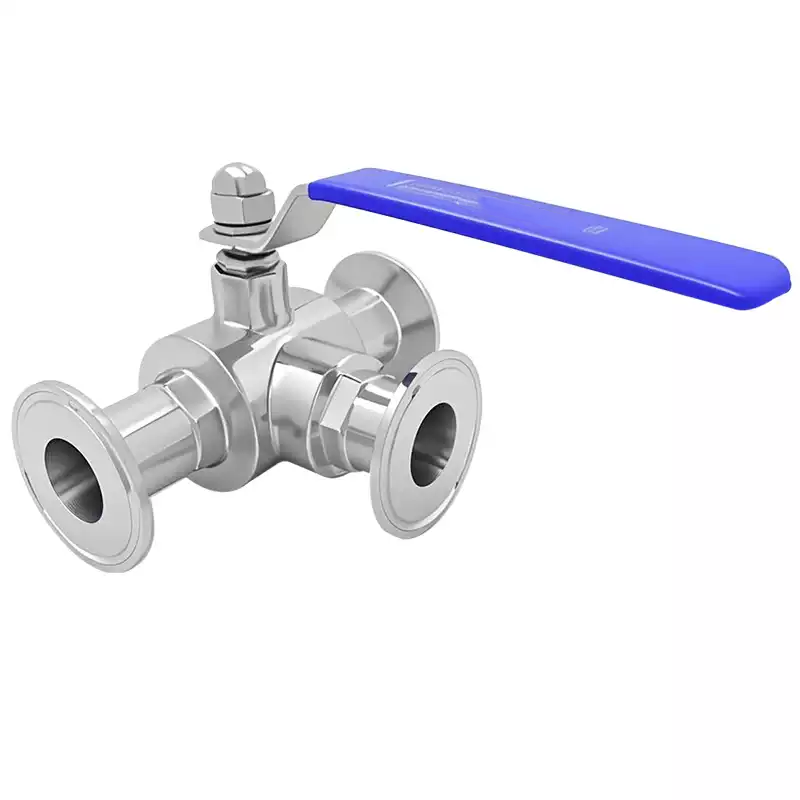

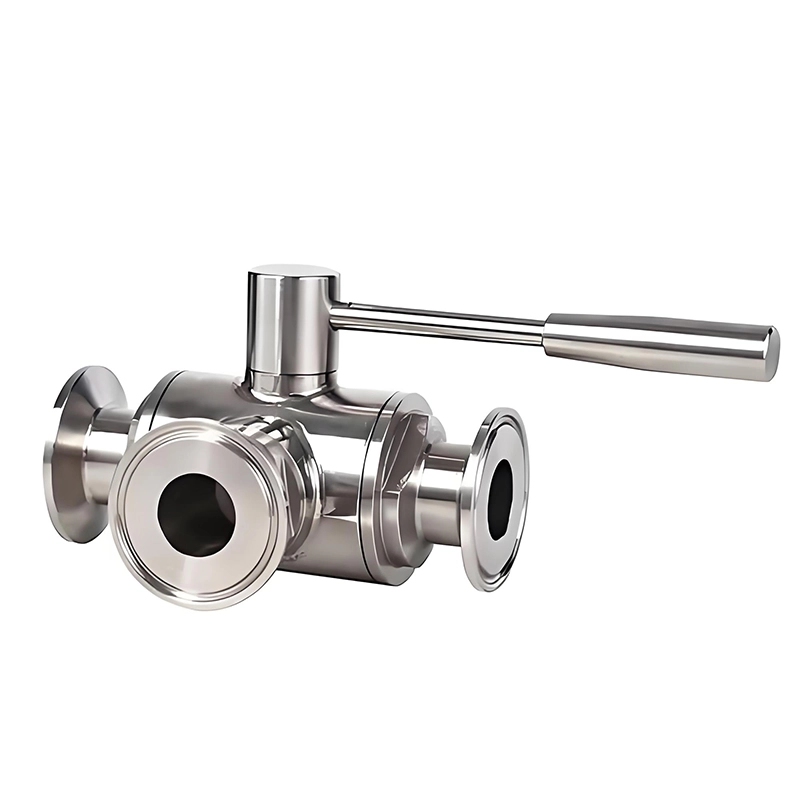

Sanitary 3-way ball valve is a precision diverting and reversing valve specially designed for high cleanliness industries such as food, pharmaceutical and daily chemical industries. With full-wrapped sanitary structure and 3-way flow channel design, it realizes accurate diversion, convergence or flow reversal control of materials. It complies with international sanitary standards including GMP, FDA and 3A, and serves as core equipment for multi-path switching in high-purity material conveying systems.

Structural Features

1. The bore size matches the pipeline to avoid sediment accumulation.

2. The inner wall of flow channel is polished to 240Grit to ensure smooth flow path.

3. Adopt fully wrapped PTFE seal without dead zones for easy cleaning.

4. Equipped with double-layer stem packing and counter-pressure disc spring assembly.

Working Principle

By rotating the handle 90 degrees, the sanitary ball valve drives the machined ball with through cavity to open or close the valve, so as to control medium flow. Sanitary full-wrapped ball valves are available in low platform (manual control) and high platform (pneumatic control). The valve platform complies with ISO-5211 standard, featuring easy disassembly and cleaning without medium residue.

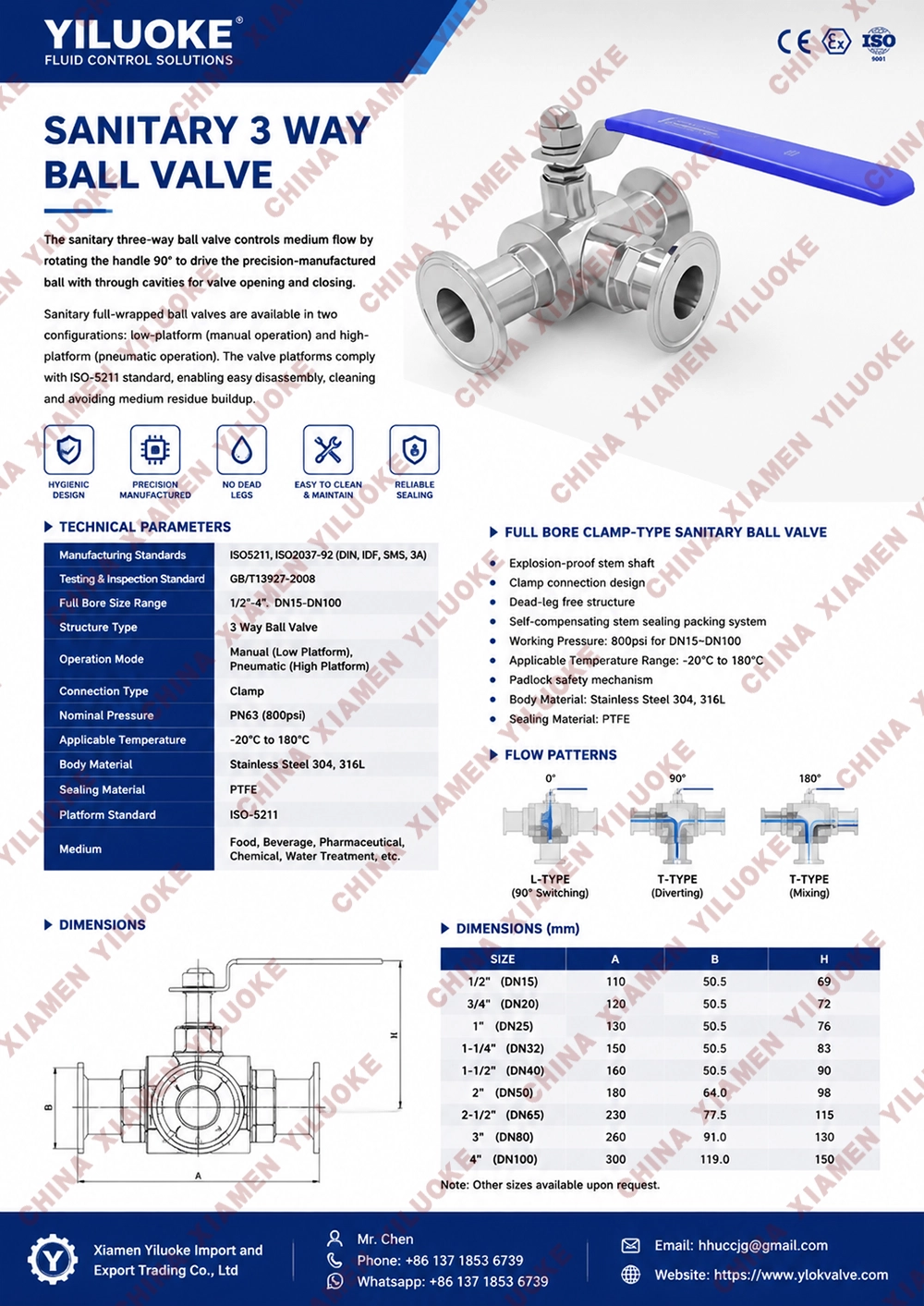

Technical Parameters of Sanitary 3-Way Ball Valve

Selection Guidelines for Sanitary 3-Way Ball Valve

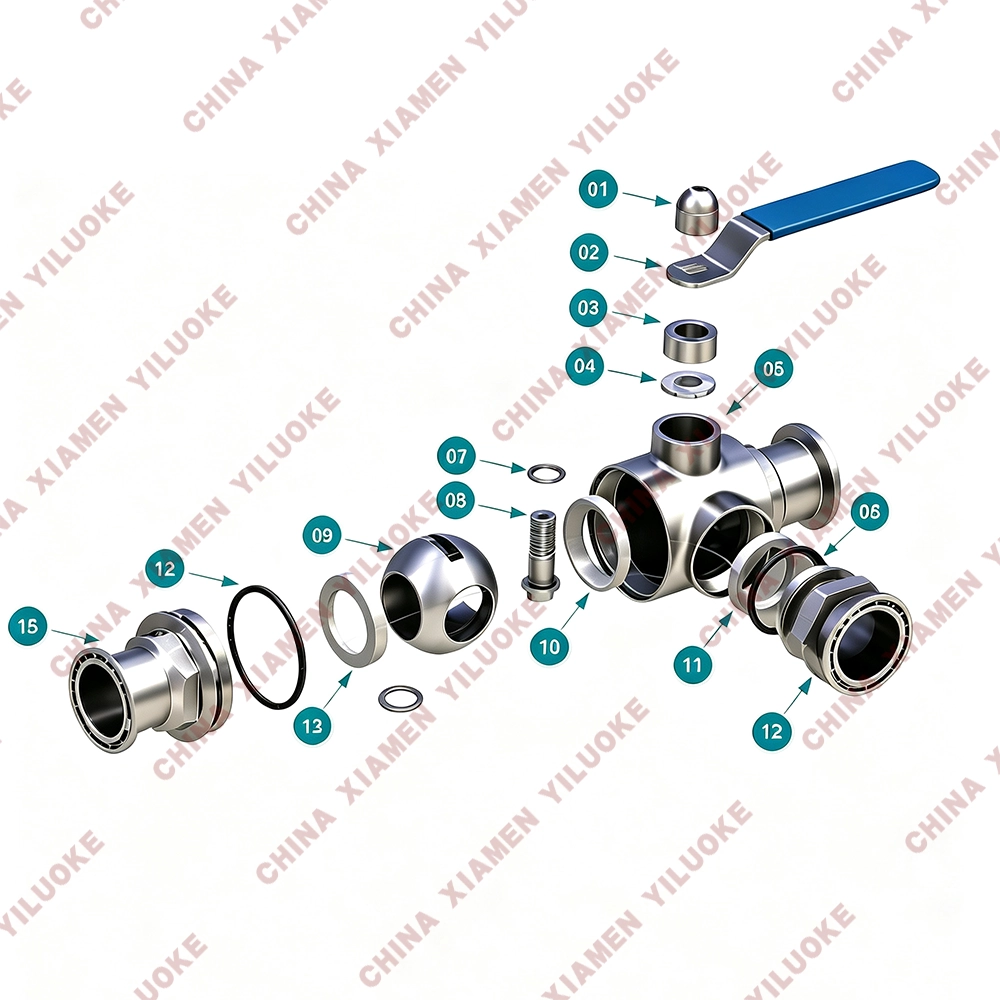

Parts List
