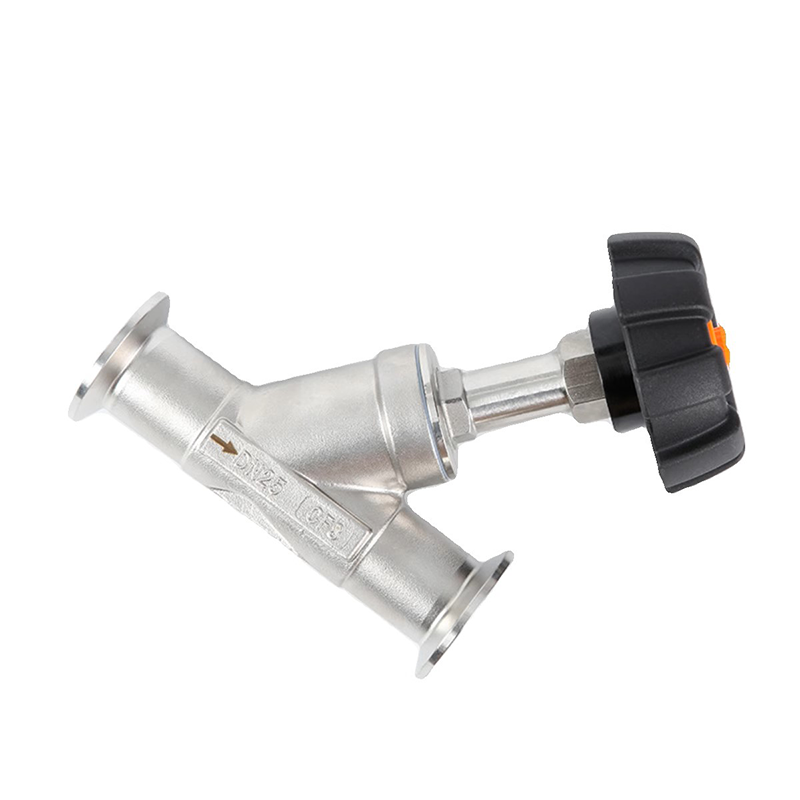

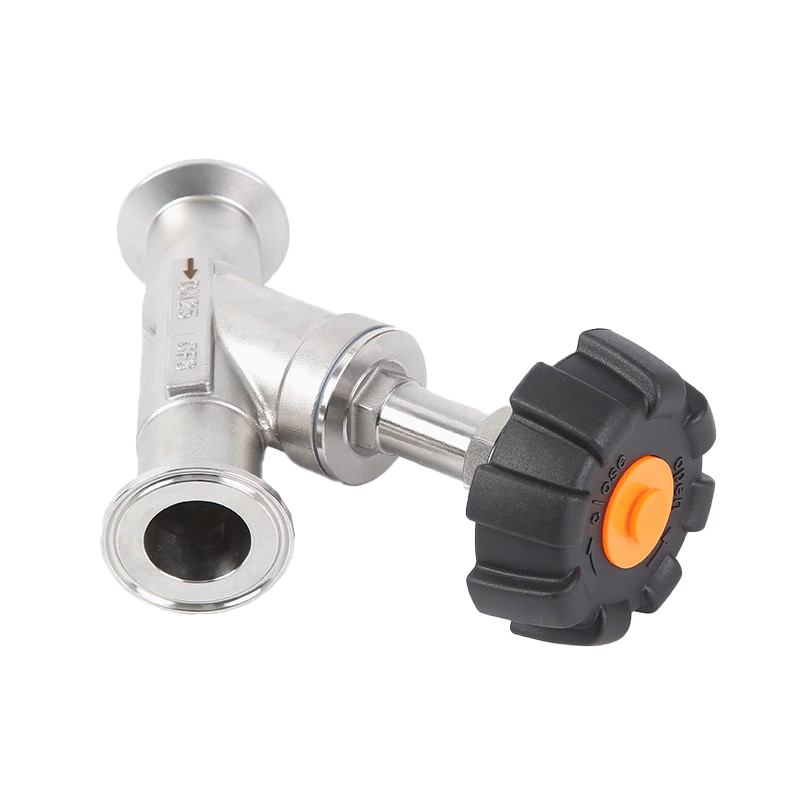

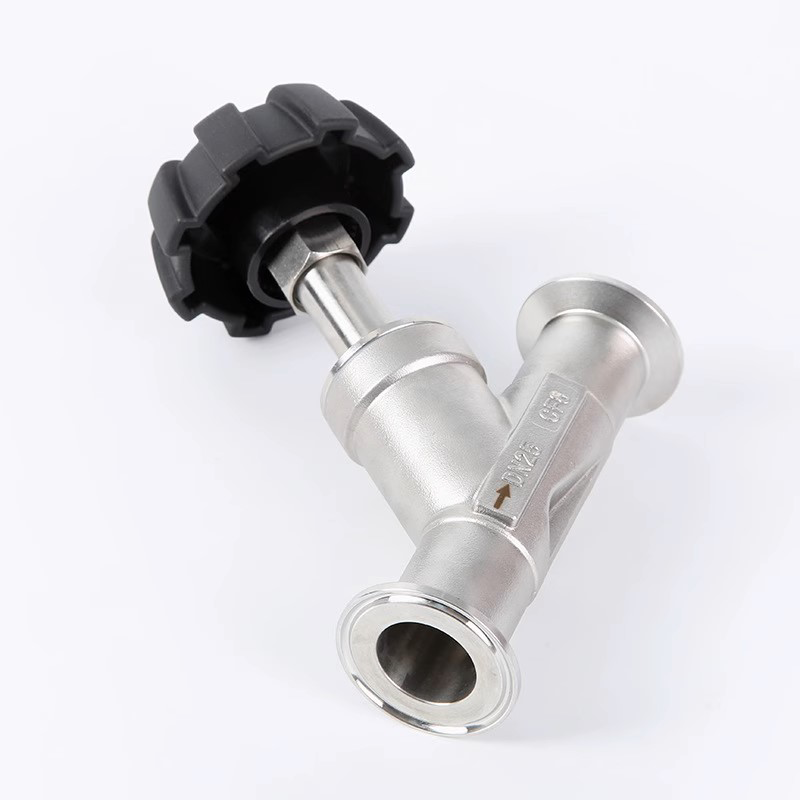

Sanitary Manual Angle Seat Valves - Overview & Application Option Parameters

The sanitary manual angle seat valve is mainly made of 316 stainless steel. It is widely used in industries such as beer, textile printing and dyeing & bleaching, pharmaceutical and medical equipment, food processing, rubber machinery, organic and inorganic chemicals, cleaning and disinfection with high-temperature sterilization, and water treatment. It is suitable for media such as water, liquids, neutral gases, water vapor, slightly corrosive gases and liquids. Compared with solenoid valves and other valves, it has the characteristics of economical investment, safe use, maintenance-free and long service life.

Application Option Parameters of Sanitary Manual Angle Seat Valve

• Control Type: Direct-Acting Type

• Valve Body: Stainless Steel CF8M

• Structure: Angle Seat Valve

• Valve Core Material: Stainless Steel

• Interface: G1/2-G2

• Valve Seat Sealing: PTFE

• Viscosity: 600mm²/s

• Piston Sealing: FKM/NBR

• Medium Temperature: PTFE: -10℃~+180℃

• Installation: Any Position

• Ambient Temperature: -10℃~+60℃

• Control Medium: Air, Neutral Gases, Steam
