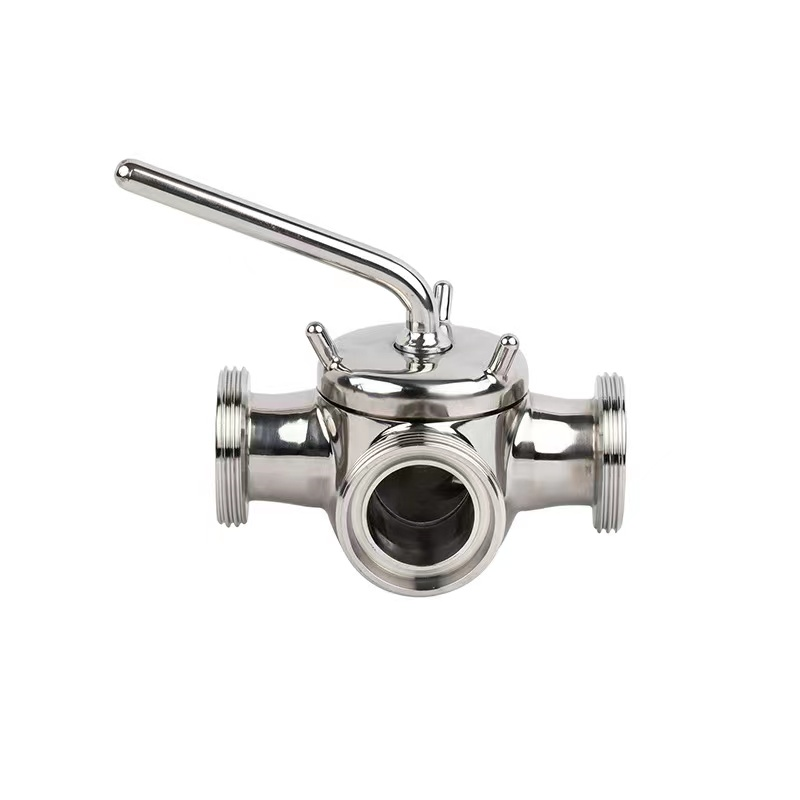

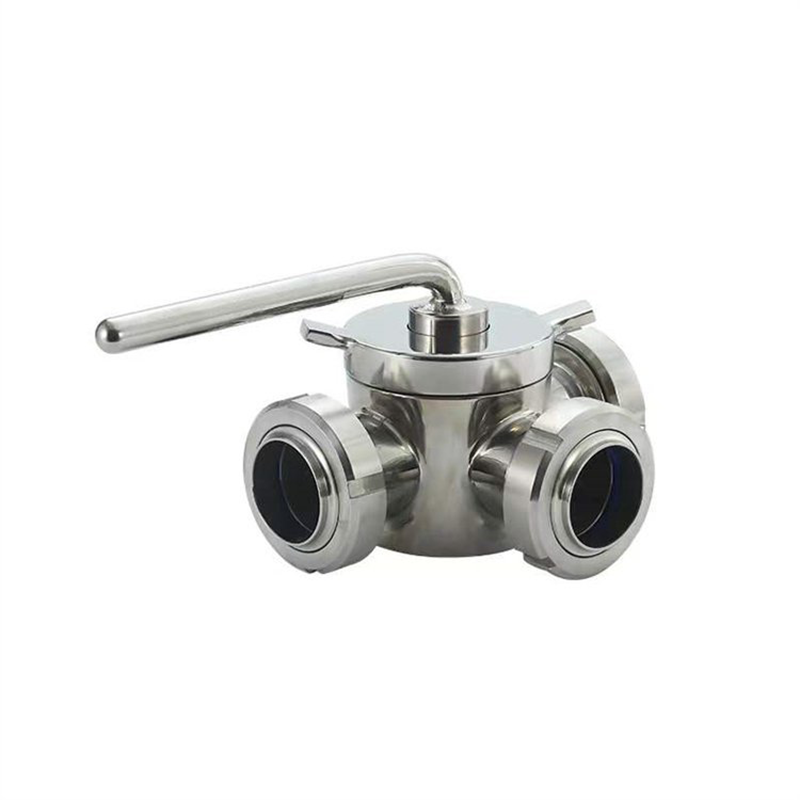

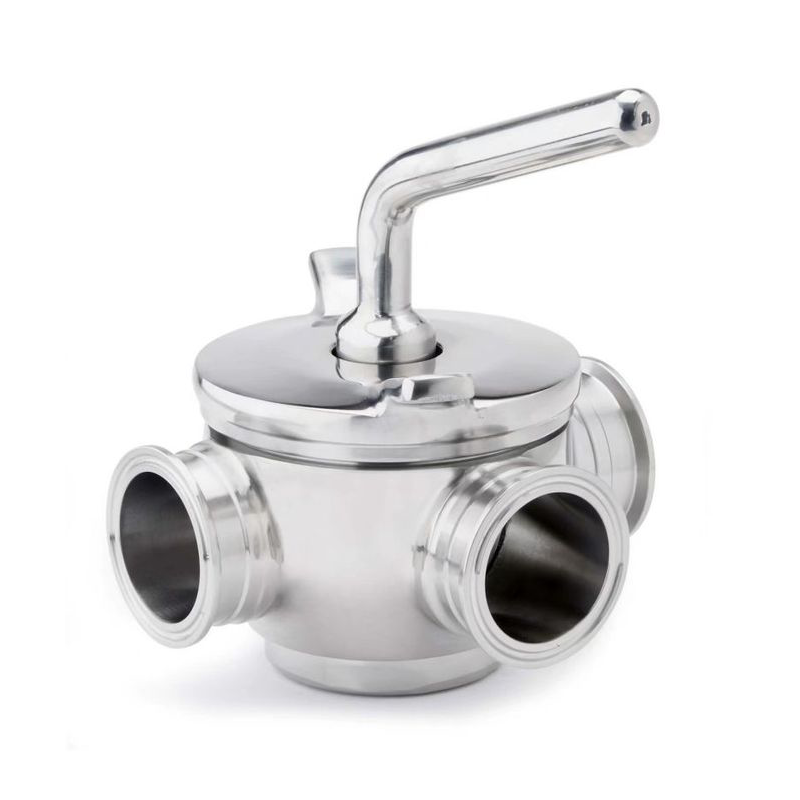

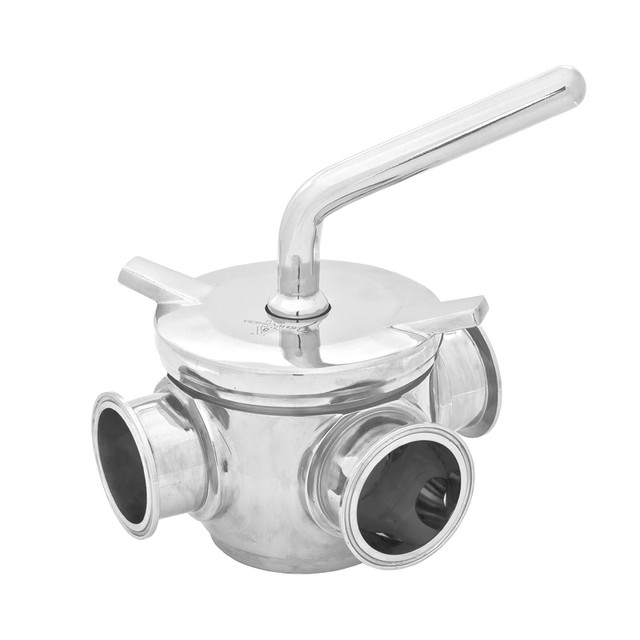

Sanitary Plug Valves - Overview & Application Fields

The sanitary plug valve is a fluid control device specially used in industries such as dairy products, beverages, pharmaceuticals, beer, and chemicals, and its design meets the requirements of hygiene standards. The product types of this valve include 3-Way Plug valves, clamp (quick-install) Plug valves, threaded Plug valves, etc., which are mainly applied to the opening and closing of fluid transportation pipelines and flow direction switching scenarios.

Application Fields

The sanitary plug valve is specially designed for dairy processing, beverage filling, pharmaceutical production lines, beer brewing and chemical fluid systems, meeting the strict requirements of the food and pharmaceutical industries for equipment cleanliness and anti-corrosion performance. Its application scenarios cover material transportation pipelines, aseptic filling systems and CIP cleaning circuits.

• Size Range: DN25~DN65mm (conventional coverage: DN15~DN100)

• Material: SUS304, SUS316L

• Connection Type: Clamp, Welded, Threaded

• Working Pressure: 0.6MPa

• Application Fields: Dairy, beverage, beer, pharmaceutical, food, chemical and other industries, belonging to export-grade sanitary products.

• Product Features: Reasonable structure, easy disassembly and cleaning; Hard alloy coated plug for enhanced durability and longer service life; Mirror polished internal and external surfaces without dead corners, easy to clean and fully compliant with sanitary process requirements.

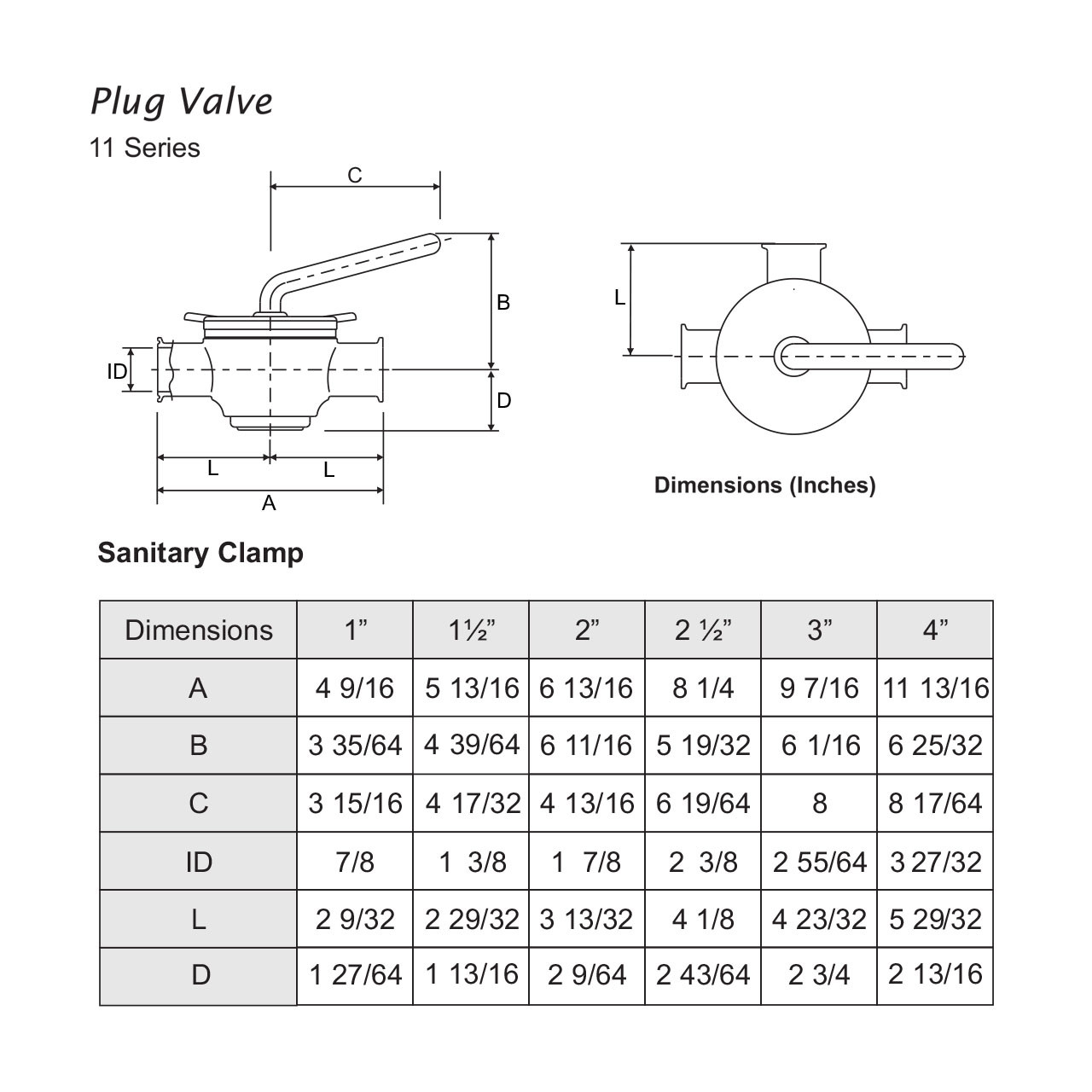

Main Installation Dimensions

Unit: mm
