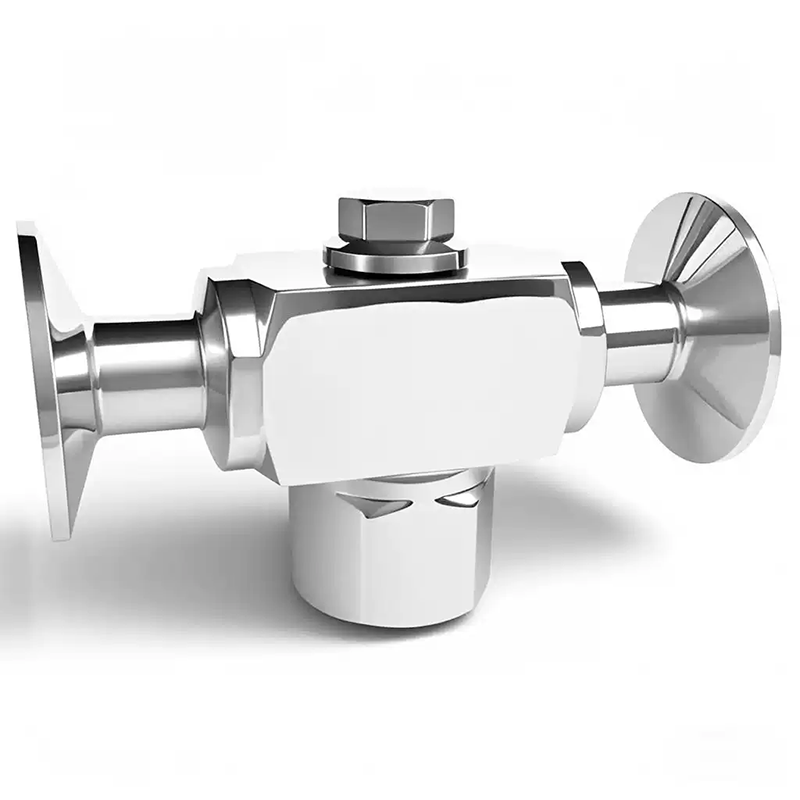

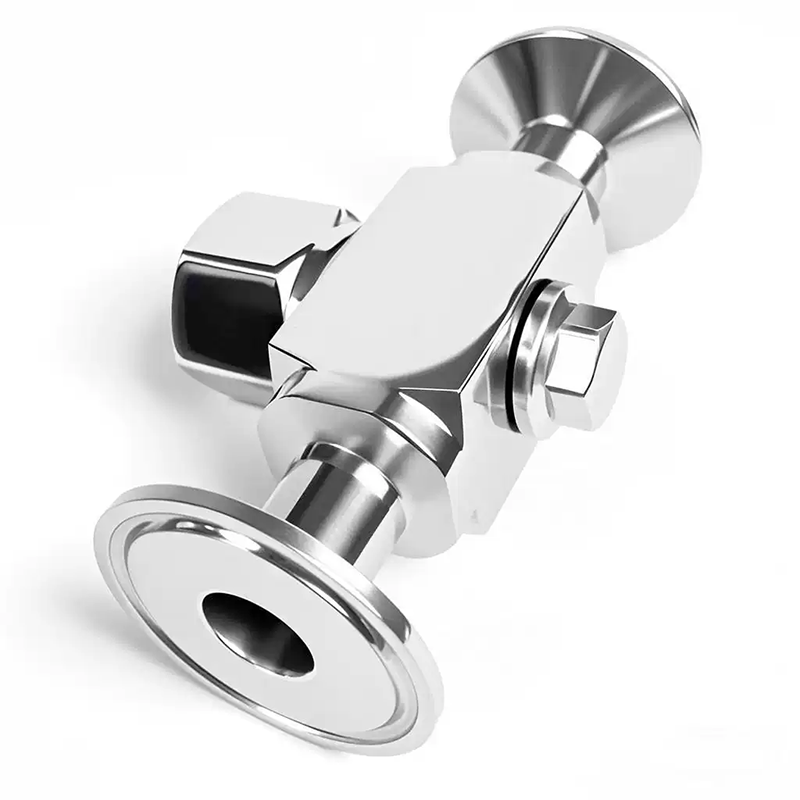

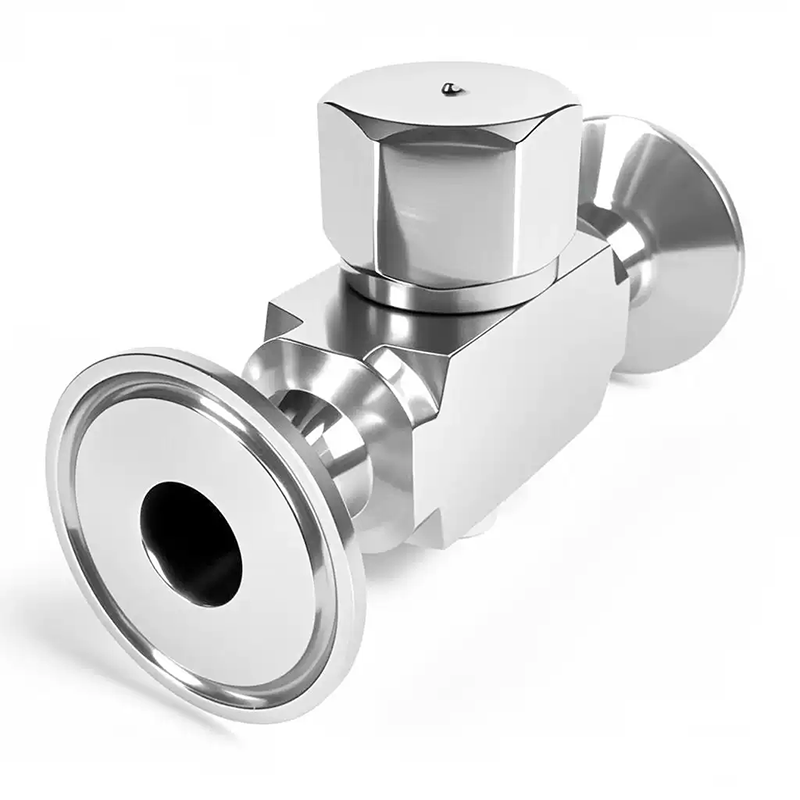

Sanitary Thermodynamic Steam Traps - Overview, Product Features & Technical Parameters

The sanitary thermodynamic steam trap is a type of steam trap that uses the different pressures formed by the different flow rates of steam and condensed water when passing through the opening and closing part to control the action of the opening and closing part.

Product Features

• Robust structure, light weight, small size, narrow operating pressure range, and no adjustment required;

• Equipped with an air discharge device to quickly expel initial air and achieve rapid startup;

• Can withstand superheated steam, has strong anti-freezing ability, and can work normally regardless of installation position.

Technical Parameters

• Specification: 1/2"-3" (DN15-DN80mm)

• Material: Stainless Steel 304, Stainless Steel 316L

• Connection Mode: Clamp (Quick-Install), Welded, Threaded Union, Flanged

• Application: Sanitary clean steam pipelines; the entire interior and exterior of the valve are made of stainless steel; the inner cavity and outer surface are processed with high-precision mirror polishing to meet the requirements of the hygiene industry.
