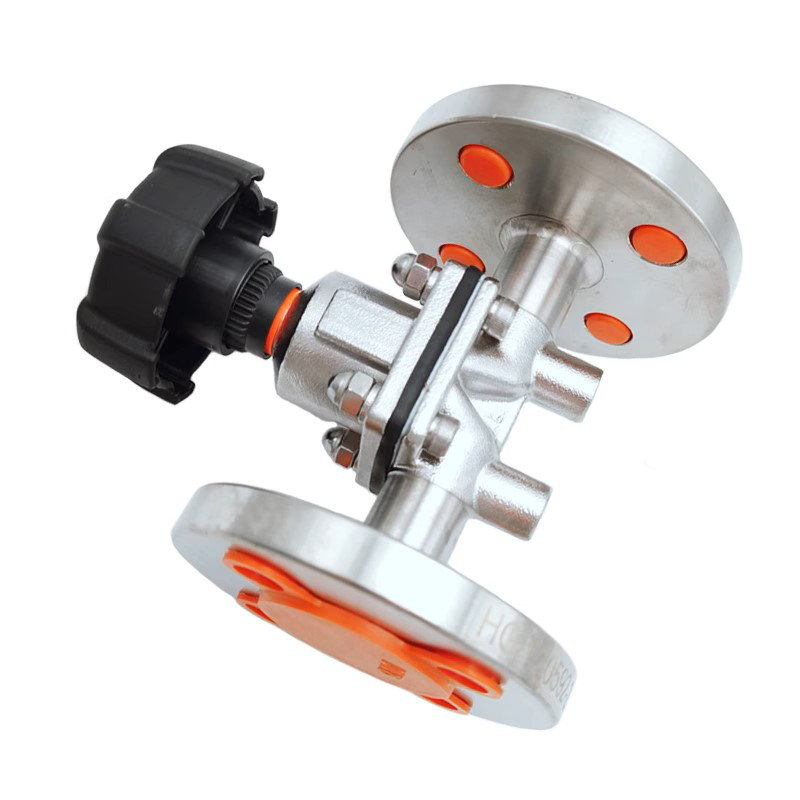

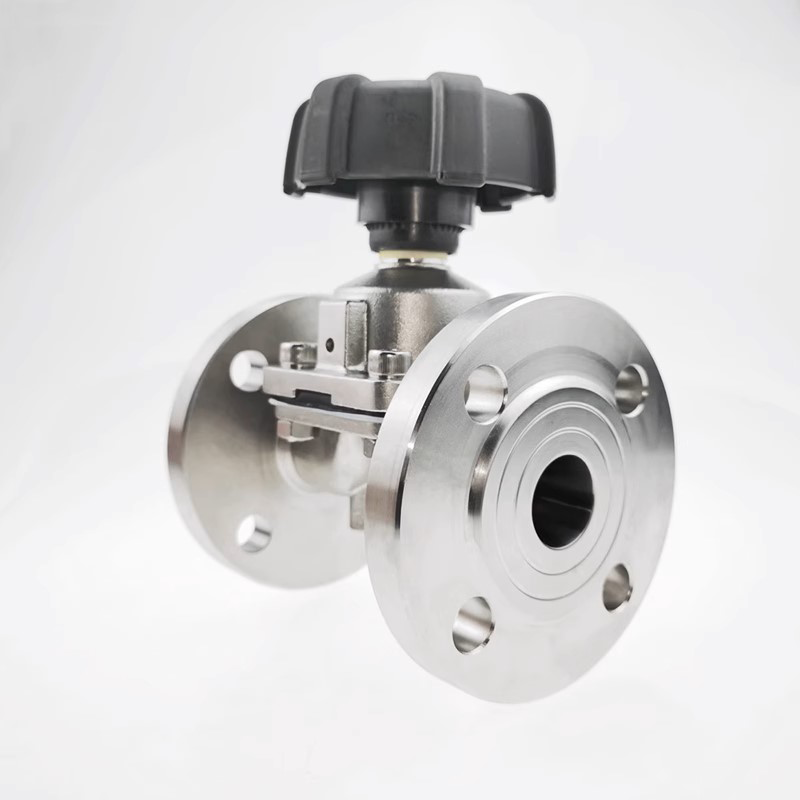

Sanitary Diaphragm Valves with Flanged Ends - Overview & Technical Parameters

Sanitary diaphragm valves with flanged ends are a type of sanitary diaphragm valve adopting flanged connection. They are widely applicable to hygienic food industries such as brewing, dairy products and beverages, as well as sterile pharmaceutical fields, realizing the on/off control task of pipeline fluids. Various standard diaphragm valve series are available for customers, namely DIN standard series, 3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE and other standard series.

Technical Parameters of Sanitary Diaphragm Valves with Flanged Ends

• Maximum Working Pressure: 6 bar (for EPDM or FPM diaphragm); 4 bar (for PTFE diaphragm)

• Maximum Working Temperature: 150℃ (depending on service conditions)

• Diaphragm Material: EPDM\PTFE; EPDM

• Valve Body Material: 316L

• Connection Mode: Flanged

• Specification: DN8-DN125

• Standard: ISO; DIN

• Drive Mode: Manual

• Applicable Media: EPDM - Steam; PTFE - Water, Alcohol, Oil, Fuel, Steam, Neutral Gases or Liquids, Organic Solvents, Acid-Base Solutions, etc.
