Sanitary Electric Actuated 3-Way Ball Valves - Overview, Applications, Features & Technical Parameters

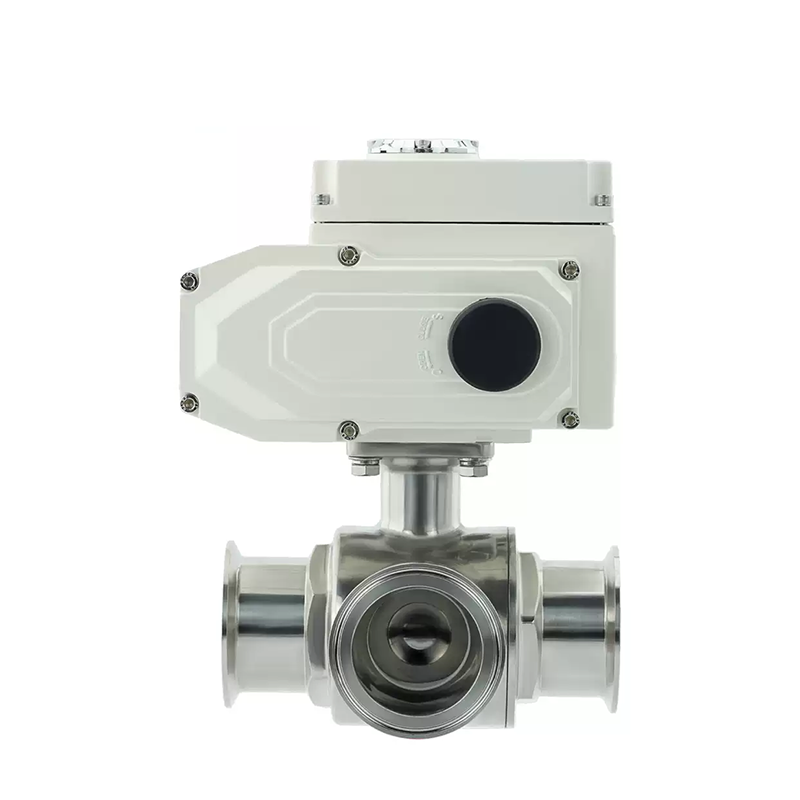

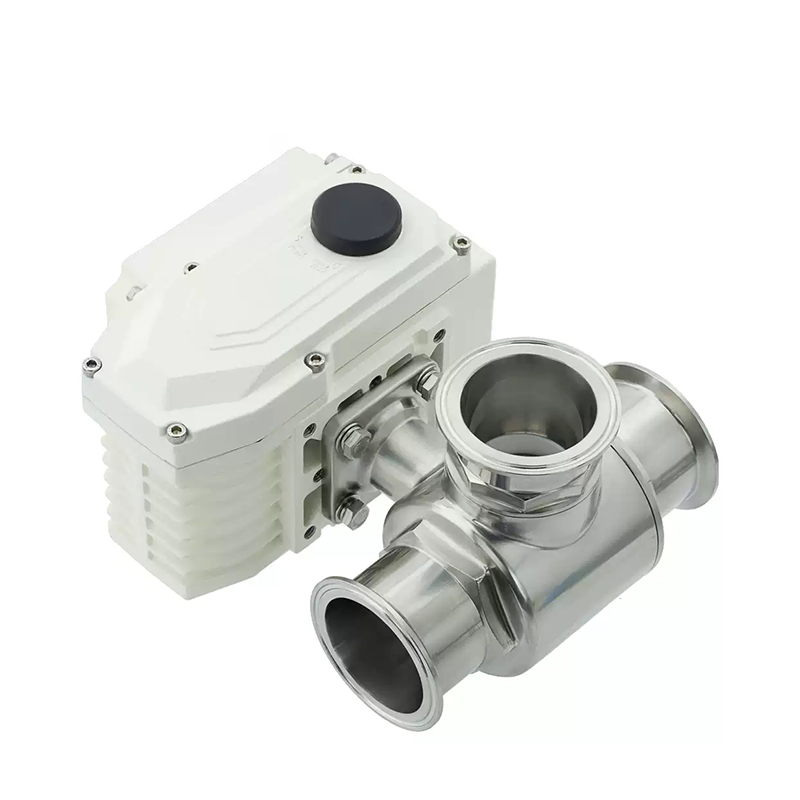

The sanitary electric actuated 3-way ball valve is used to switch the medium flow direction and can connect two mutually perpendicular channels. This product has undergone a precise inspection process and strict quality management, and the flow channel is subjected to precision polishing and sterilization treatment. The valve body is made of high-quality stainless steel, and the inner wall of the flow channel is subjected to 0.5um (240Grit) electropolishing to keep the fluid unimpeded. The full-wrap PTFE used for the sealing surface has no dead corners, ensuring hygiene and easy cleaning. Both ends adopt clamp connections for convenient disassembly, cleaning and maintenance.

Application Fields of Sanitary Electric Actuated 3-Way Ball Valve

It is widely used in pipeline systems of beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biological engineering, water treatment engineering and other fields to switch the medium flow direction, as well as to split or mix the medium.

Product Features of Sanitary Electric Actuated 3-Way Ball Valve

1. The aperture size is consistent with the pipeline, no sediment is generated;

2. The inner wall of the flow channel is polished with 240Grit to ensure unimpeded flow;

3. Adopts full-wrap PTFE seal with no dead corners, easy to clean;

4. One valve for multiple purposes: Any port can be used as an inlet without leakage; the three-way port can be made into either L-type or T-type.

Technical Parameters of Sanitary Electric Actuated 3-Way Ball Valve

• Nominal Diameter: 15～102mm

• Nominal Pressure: PN1.0MPa

• Valve Shaft Material: Stainless Steel

• Valve Body Material: 304/316/316L Stainless Steel

• Ball Material: 304/316/316L Stainless Steel

• Valve Seat Seal: PTFE

• Temperature: PTFE≤180℃

• Structure Type: Quick-install type, Welded type, Threaded type

• Applicable Media: Beer, wine, biological engineering, food, pharmaceuticals, beverages, dairy products, etc.

• Features: Safe and hygienic, good sealing, long service life
