Sanitary Electric Actuated Butterfly Valves - Overview, Applications, Features & Technical Parameters

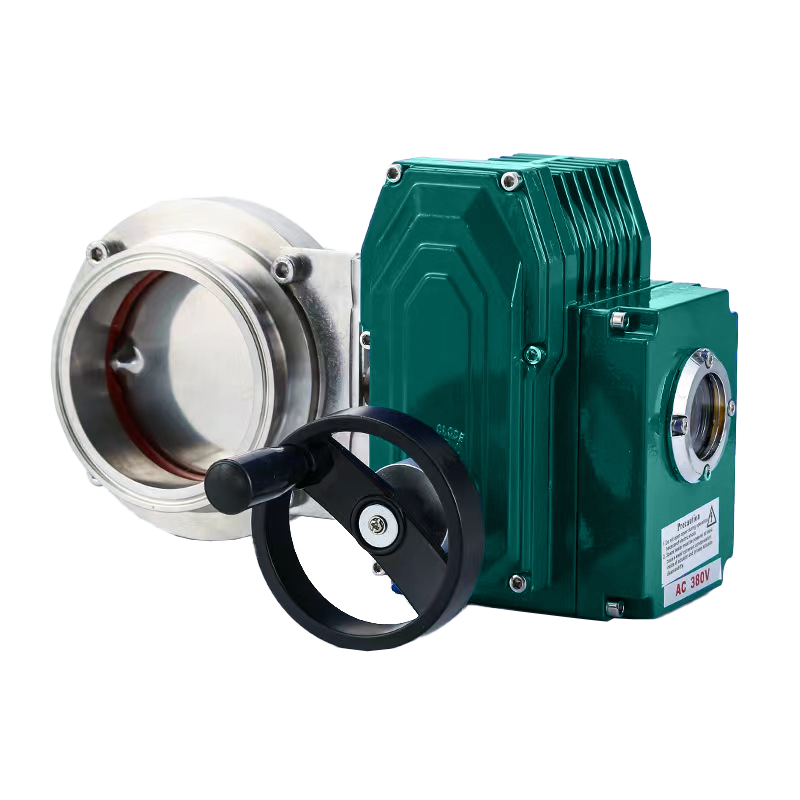

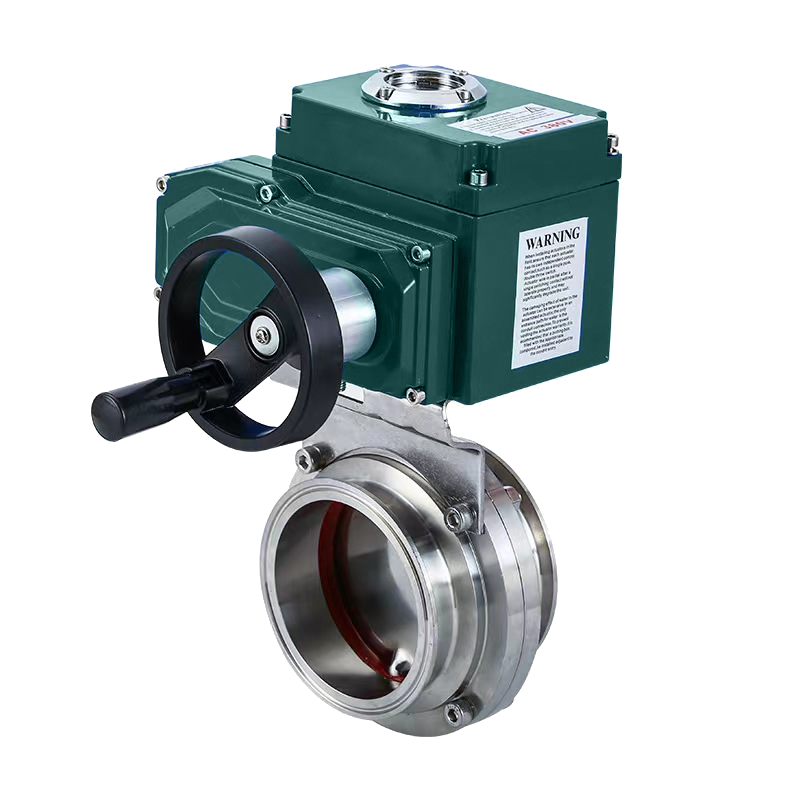

The sanitary electric actuated butterfly valve adopts standard electropolishing technology. The smooth valve body surface can achieve a clean area without medium accumulation, thus not causing potential pollution to the medium. Kewinner sanitary electric actuated butterfly valve adopts a clamp connection design, enabling quick assembly and disassembly of the valve. This makes the opening and maintenance of the sanitary electric actuated butterfly valve convenient and shortens the process downtime.

Applications of Sanitary Electric Actuated Butterfly Valve

This product is applied in process control occasions such as food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, and biochemical industries to realize the on-off control of pipeline fluids.

Features of Sanitary Electric Actuated Butterfly Valve

1. Novel, reasonable and excellent design, light weight, quick opening and closing;

2. Compact structure, convenient assembly and disassembly, small operating torque, easy and labor-saving operation;

3. Can be installed in multiple positions, convenient for maintenance;

4. The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.

Technical Parameters of Sanitary Electric Actuated Butterfly Valve

• Product Name: Electric Actuated Sanitary Butterfly Valve

• Product Model: 090-D4-B8-X5-16-P

• Valve Body Material: Stainless Steel

• Connection Mode: Clamp

• Nominal Diameter: 3/4"~10"

• Drive Mode: Electric Actuated

• Applicable Media: Water, Oil, Gas

• Applicable Temperature: -18℃~150℃

• Nominal Pressure: 1.0MPa

• Sealing Material: Silicone Rubber

• Design Standard: GB/T2238-1989

• Connection Size: GB/T9113-2000; GB/T9115-2000; JB78

• Structure Length: GB/T12221-1989

• Actuator Type: Compact Type, Electronic Type, Explosion-Proof Type

• Control Mode: On-Off Type, Regulation Type

• Power Supply Voltage: 110VAC; 220VAC; 380VAC; 50/60Hz

• Input Signal: 4-20mADC or 1~5VDC

• Output Signal: 4-20mADC

• Protection Level: IP65; IP67; IP68

• Explosion-Proof Level: Exd II BT4; Exd II CT6

• Manufacturing Standard: National Standard GB/Mechanical Department Standard JB/Chemical Industry Department Standard HG/American Standard ANSI/API/Japanese Standard JIS/German Standard DIN/Other Standards Customizable
