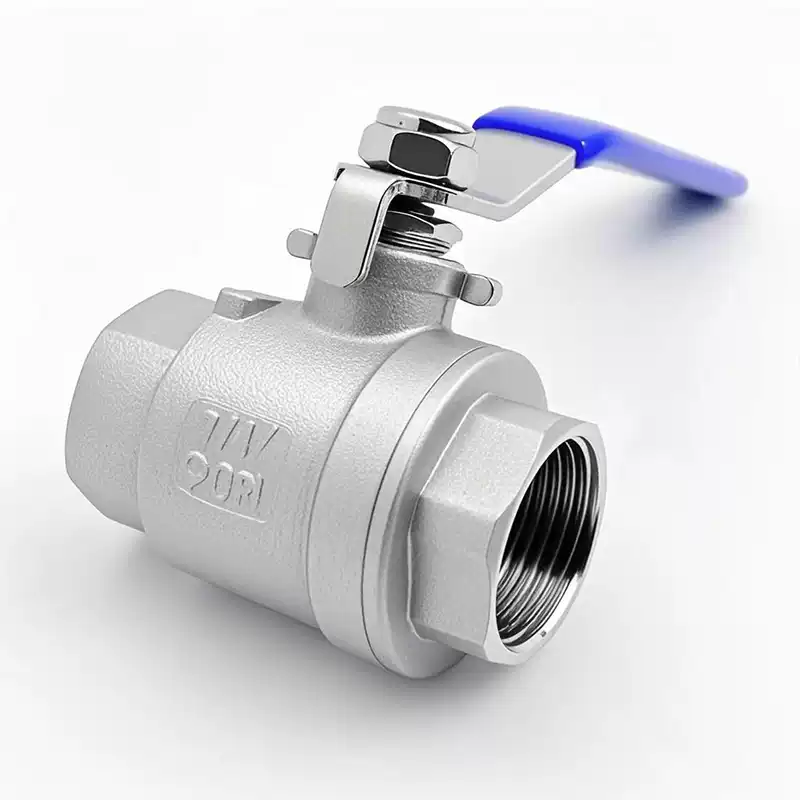

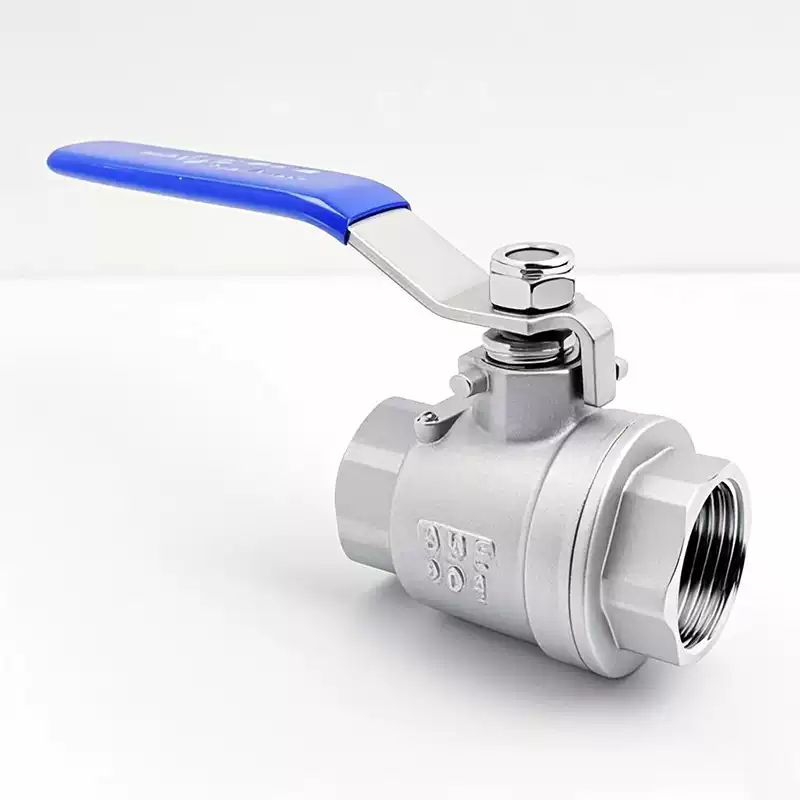

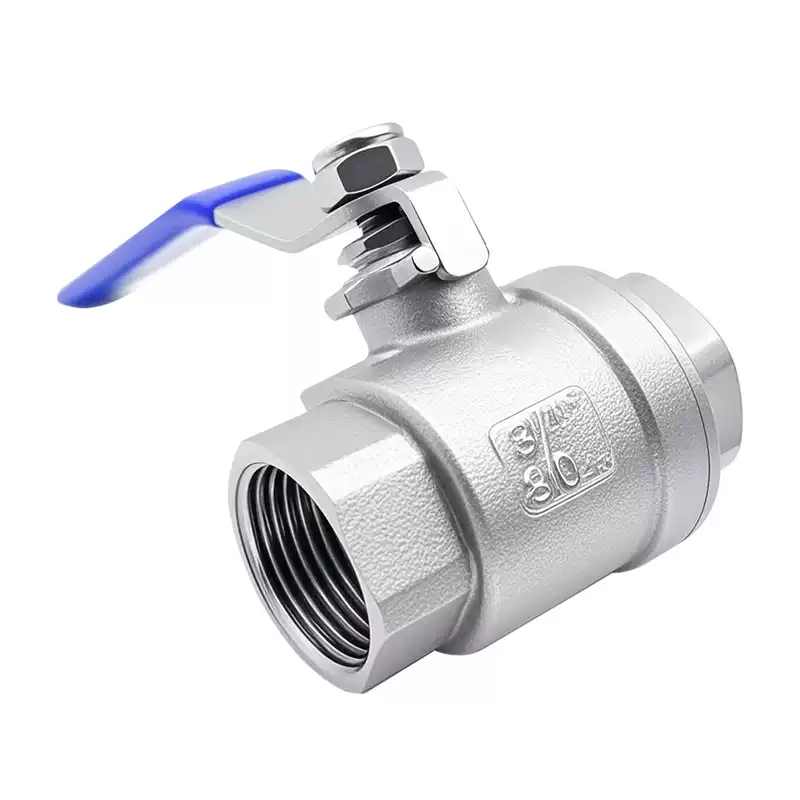

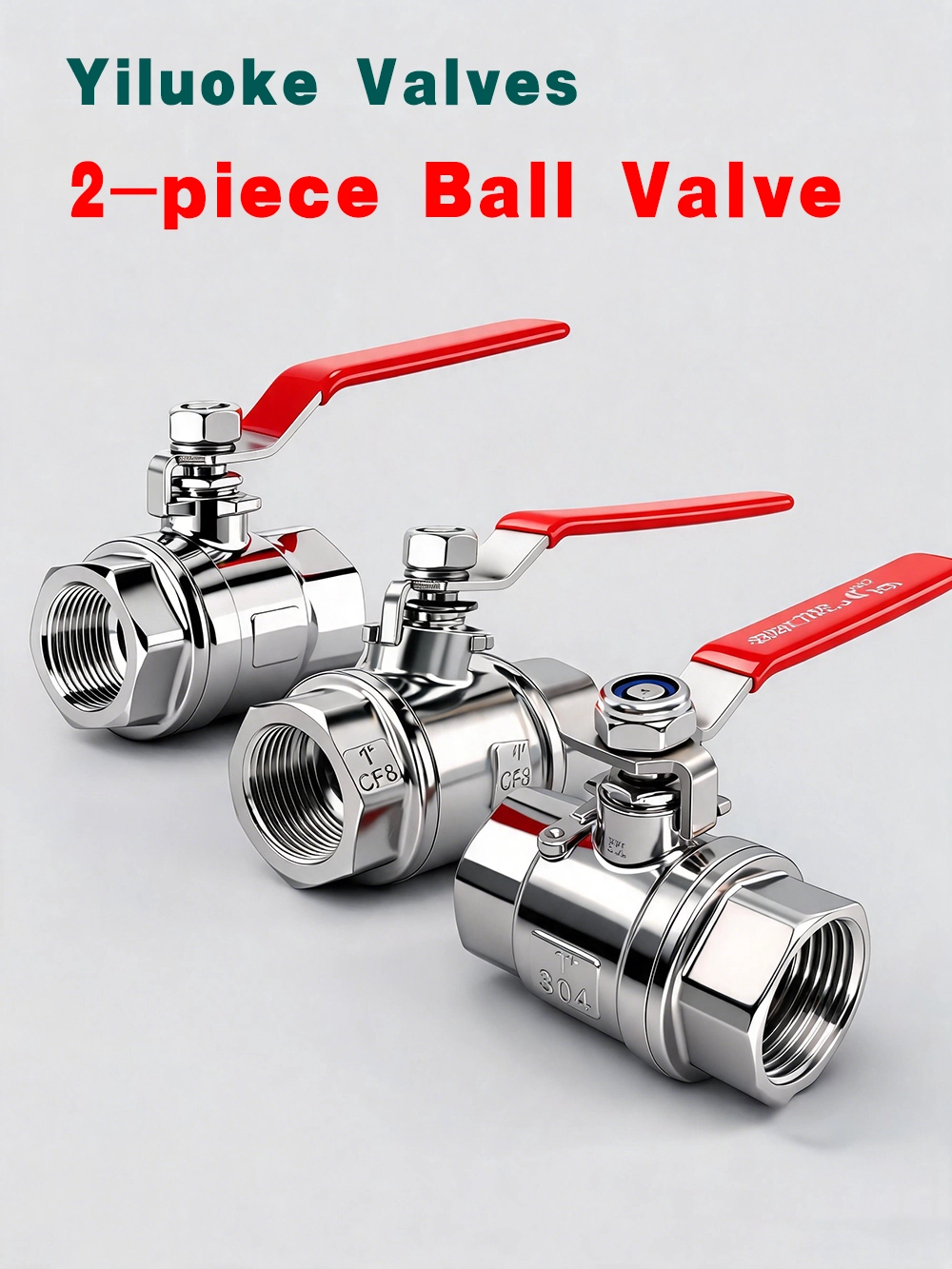

2-Piece Ball Valve
The 2‑piece ball valve is composed of two connected valve body parts (left and right), with the ball core clamped in the middle, balancing structural strength and maintenance convenience. Compared with the 1‑piece ball valve, it supports on‑site replacement of valve seats and sealing components. Compared with the 3‑piece ball valve, it features lower cost and more compact structure. Widely applied in industrial pipeline systems with high requirements for sealing performance and reliability, including petroleum, chemical, power, pharmaceutical and water treatment industries, it serves as an ideal on‑off control valve for medium pressure, normal and high temperature working conditions.

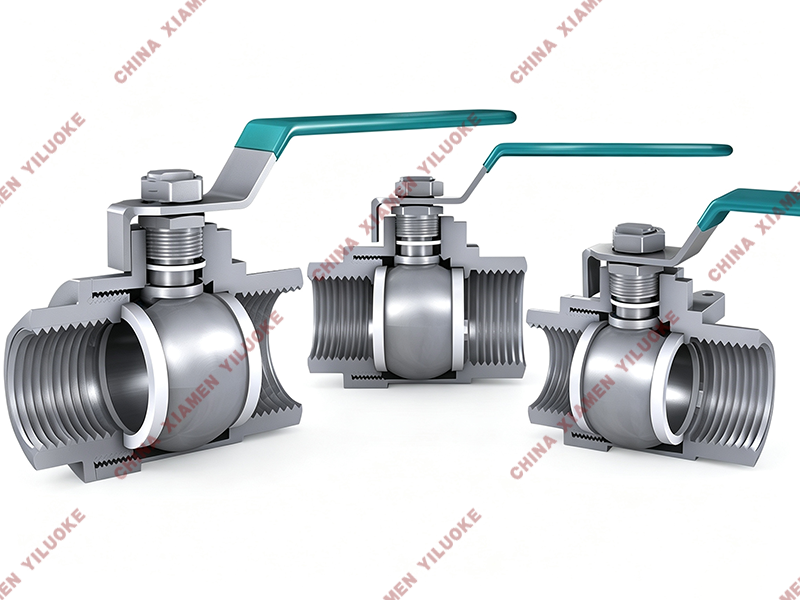

Structural Features
Reliable Bidirectional Sealing: Adopts elastic pre‑tightened seat design, achieving zero leakage up to ANSI Class VI standard.
Higher Applicable Pressure: Standard pressure range covers PN16～PN64 (1.6～6.4MPa), meeting most industrial working conditions.
Flexible Material Selection: Valve body and ball are optional with 304, 316, CF8M and other stainless steel materials, suitable for corrosive media.
Product Characteristics
| Nominal Pressure | Applicable Medium | Temperature Range | Thread Type |
| 1.6‑6.4MPa | Water, Oil, Gas and some corrosive liquids (W.O.G) | -20～232℃～350℃ | G, NPT, BSPT, BSP, DIN259/2999 |
Main Technical Parameters
| Nominal Diameter DN(mm) | 6～100mm | ||
| Nominal Pressure PN(MPa) | 2.5 | 4.0 | 6.4 |
| Strength Test Pressure | 3.8 | 6.0 | 9.6 |
| High‑Sealing Test Pressure | 3.0 | 4.8 | 7.6 |
| Low‑Pressure Air Sealing Test Pressure | 0.6 | 0.6 | 0.6 |
| Applicable Media | Water, steam, oil products, acid and other corrosive fluids | ||
| Applicable Temperature | < 150℃(PTFE), < 300℃(PPL) | ||

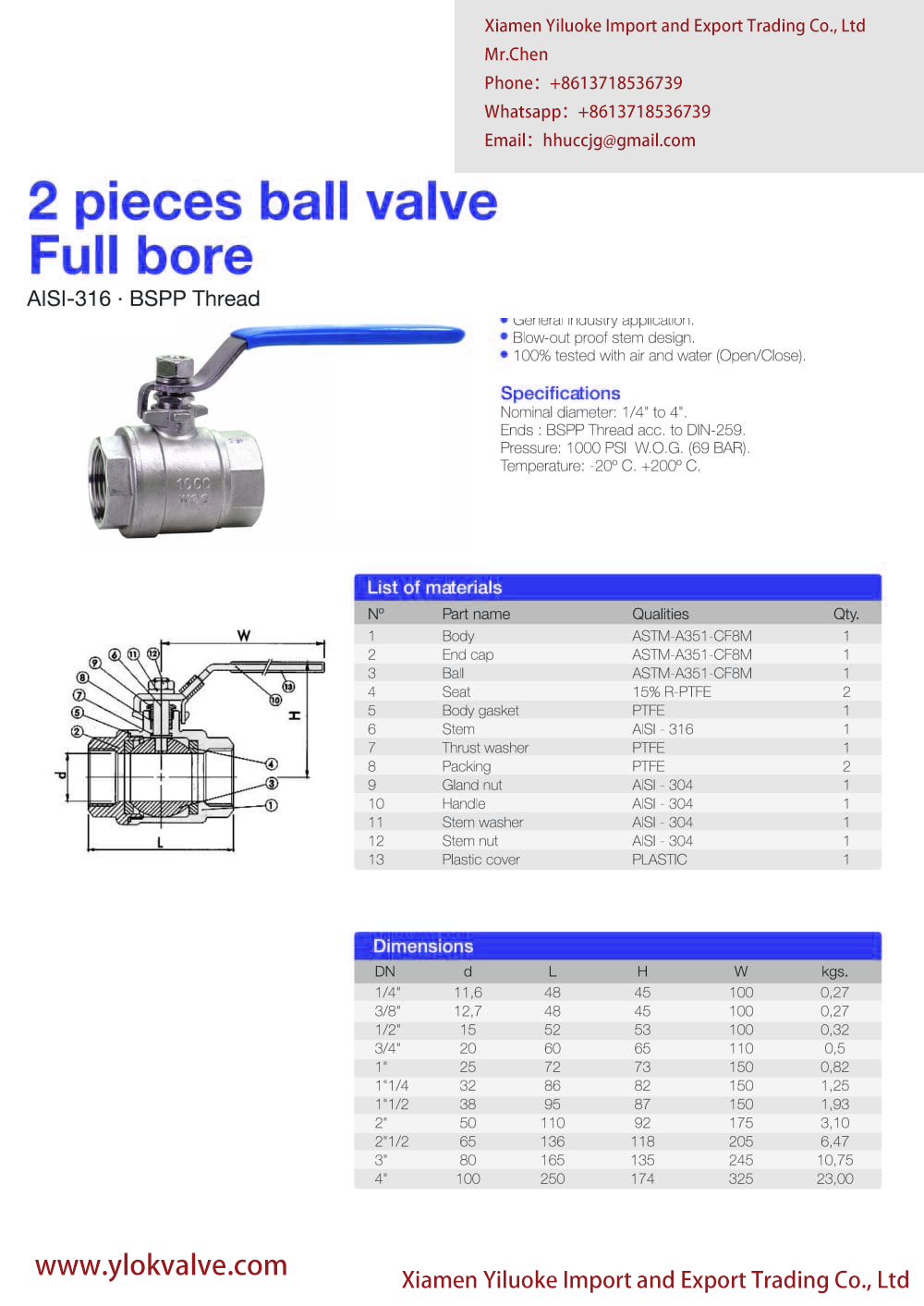

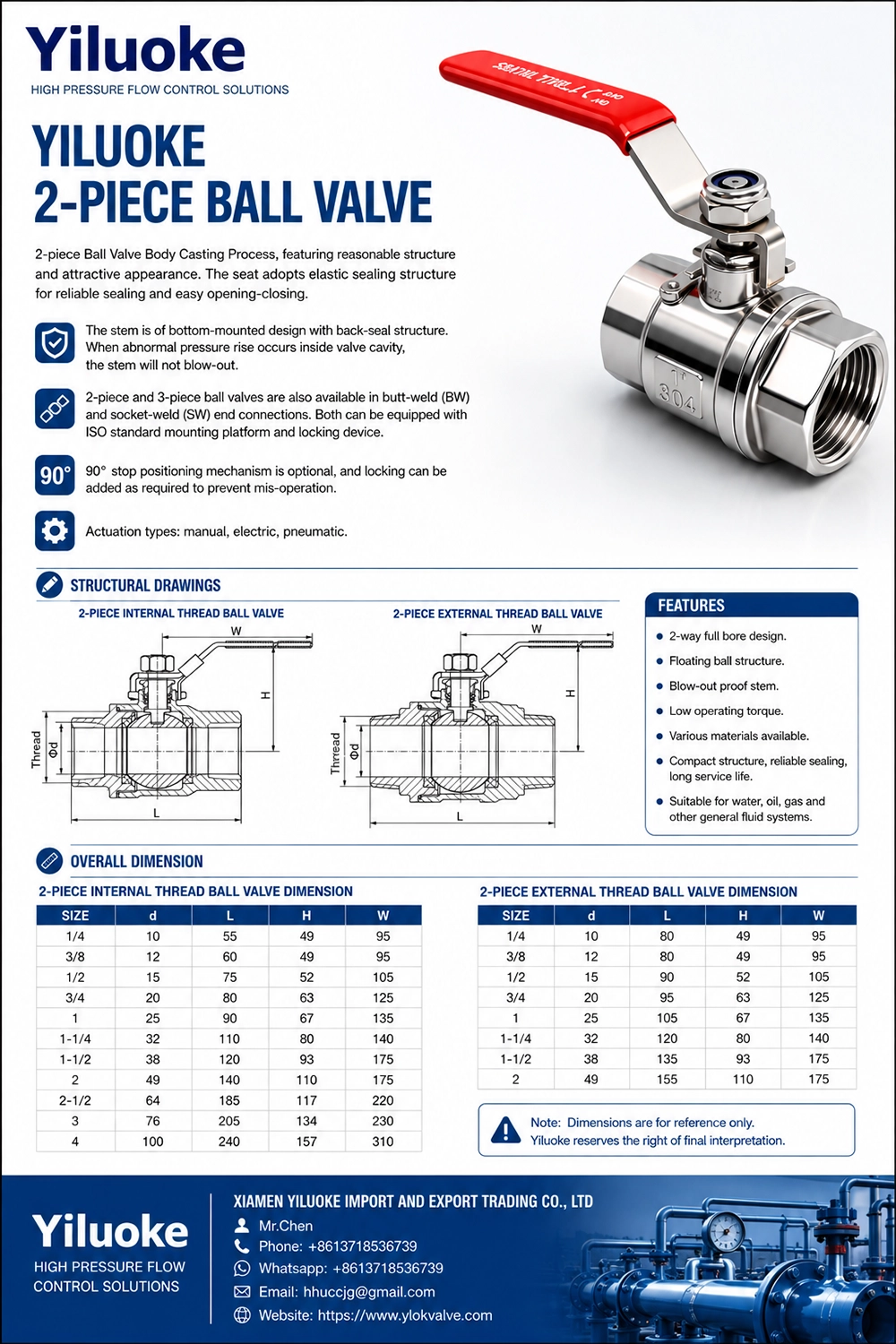

Product Specifications
| Item | Specifications |
| Product Name | 2‑piece Ball Valve |
| Model | Q11F |
| Valve Body Material | Carbon Steel WCB; Stainless Steel CF8/304; Stainless Steel CF8M/316 |
| Connection Type | Internal Thread / Internal & External Thread / Double External Thread |
| Nominal Size | 1/4"~4" |
| Operation Mode | Manual |
| Applicable Media | Water, gas, oil, etc. |
| Operating Temperature | -10℃~130℃ |
| Nominal Pressure | PN16 |
| Design Standard | ANSI B16.34; API608 |
| Wall Thickness Standard | ANSI B16.34; EN12516‑3 |
| Thread Standard | ANSI B1.20.1; BS21; DIN 2999/259; ISO 228‑1; ISO7/1; JIS B0203 |
| Test Standard | API598; EN 12266 |

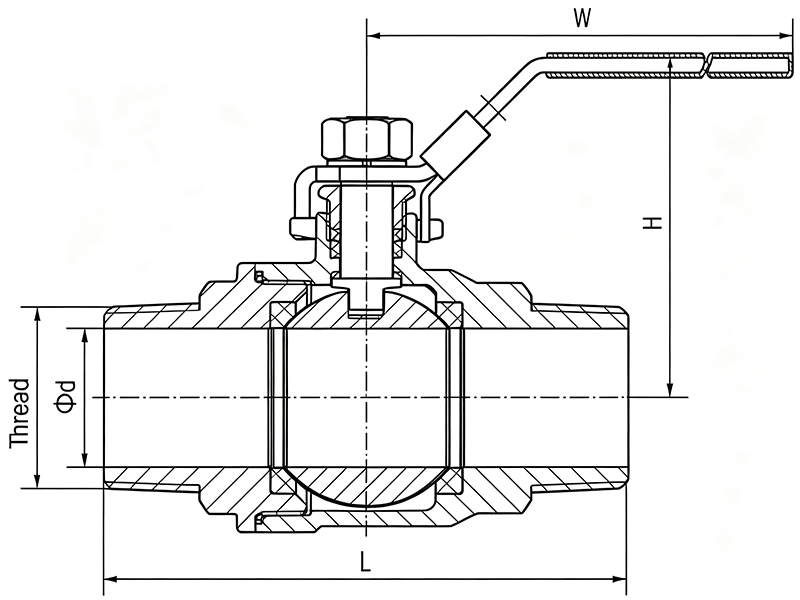

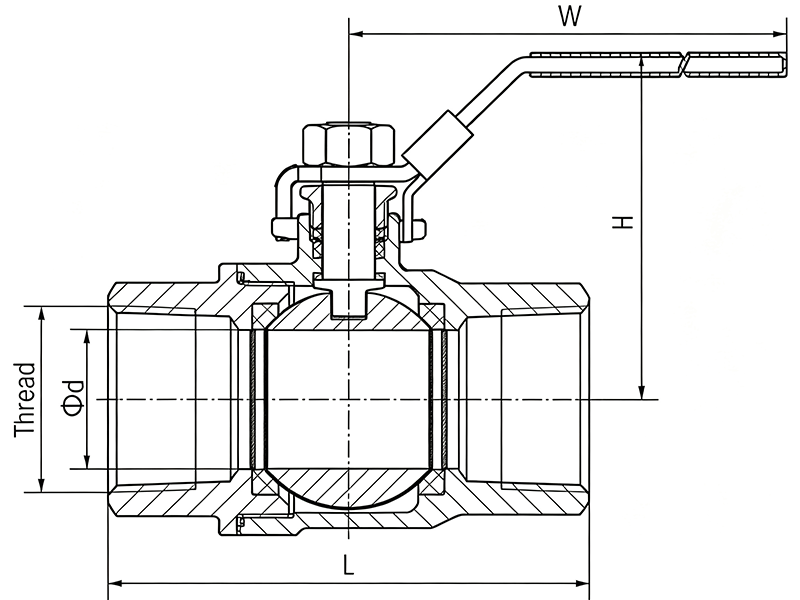

Structural Drawing

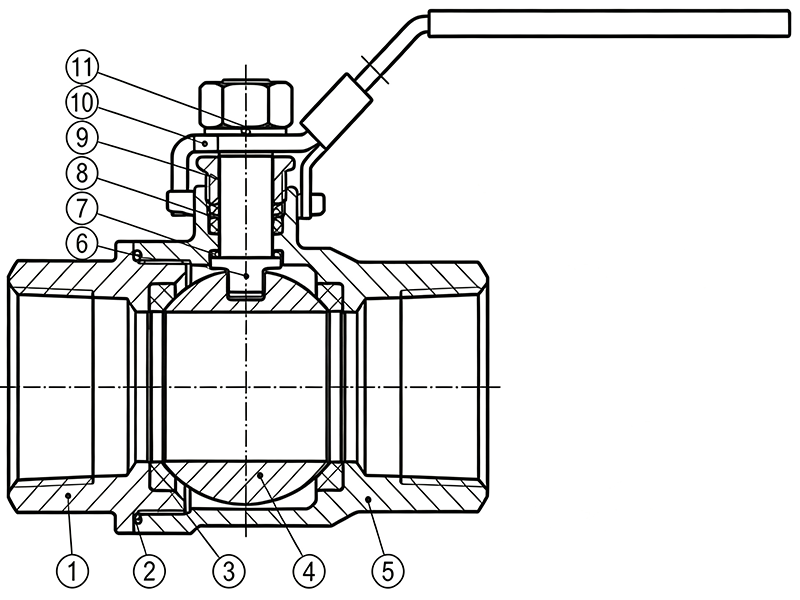

Structural Drawing of 2‑piece Ball Valve
Material of Main Parts
| No. | Part Name | Material 1 | Material 2 | Material 3 |
| 1 | Bonnet | A351 CF8 | A351 CF8M | A216 WCB |
| 2 | Sealing Line | PTFE/RPTFE | PTFE/RPTFE | PTFE/RPTFE |
| 3 | Valve Seat | PTFE/RPTFE/PPL/PEEK | PTFE/RPTFE/PPL/PEEK | PTFE/RPTFE/PPL/PEEK |
| 4 | Ball | 304/316 | 304/316 | 304/316 |
| 5 | Valve Body | A351 CF8 | A351 CF8M | A216 WCB |
| 6 | Valve Stem | 304/316 | 304/316 | 304/316 |
| 7 | Anti‑wear Washer | PTFE/RPTFE | PTFE/RPTFE | PTFE/RPTFE |
| 8 | V‑type Packing | PTFE/RPTFE | PTFE/RPTFE | PTFE/RPTFE |
| 9 | Gland | 304 | 304 | 304 |
| 10 | Handle | 201 | 201 | 201 |
| 11 | Stem Nut | 304 | 304 | 304 |
