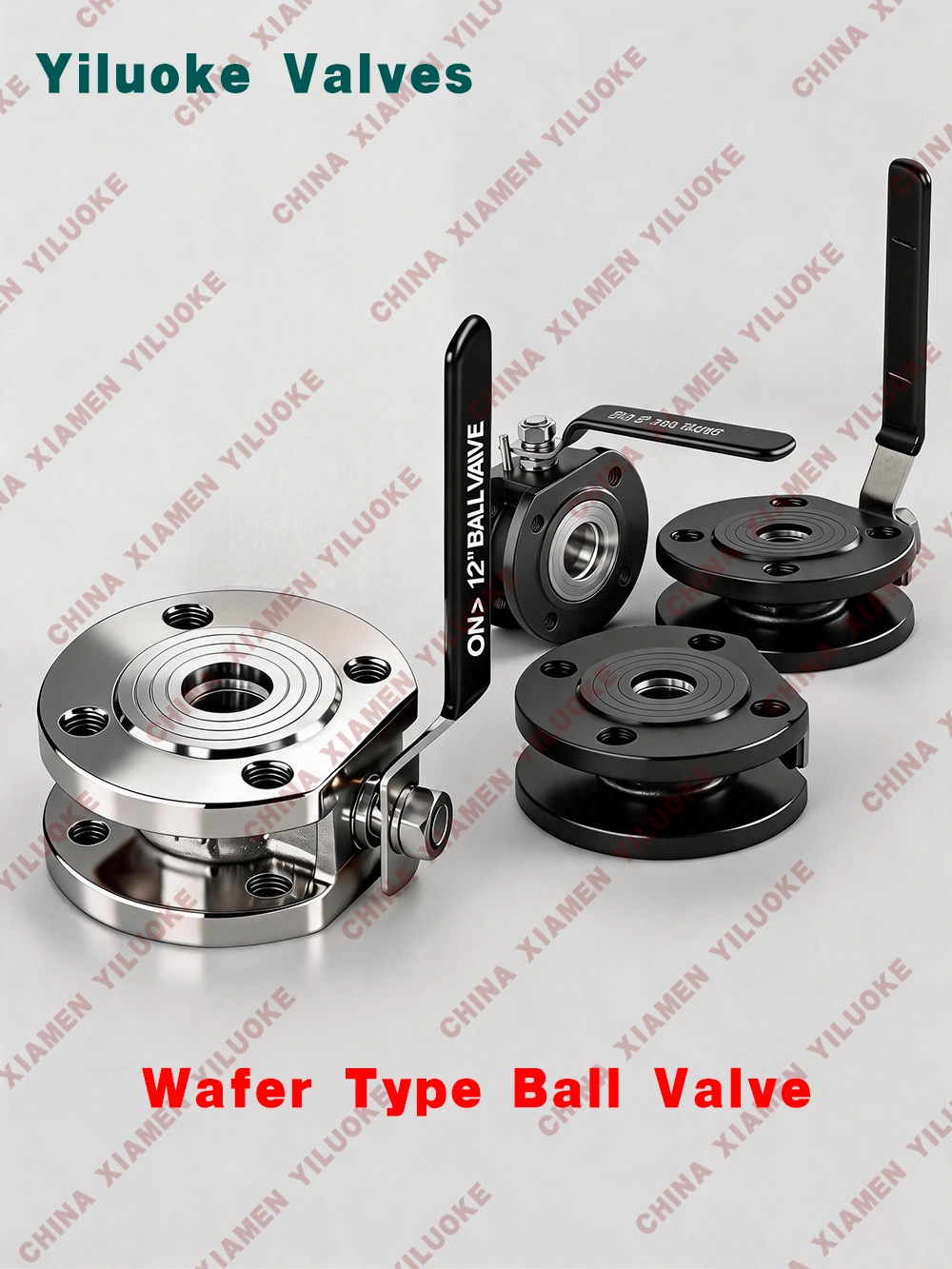

Wafer Type Ball Valve

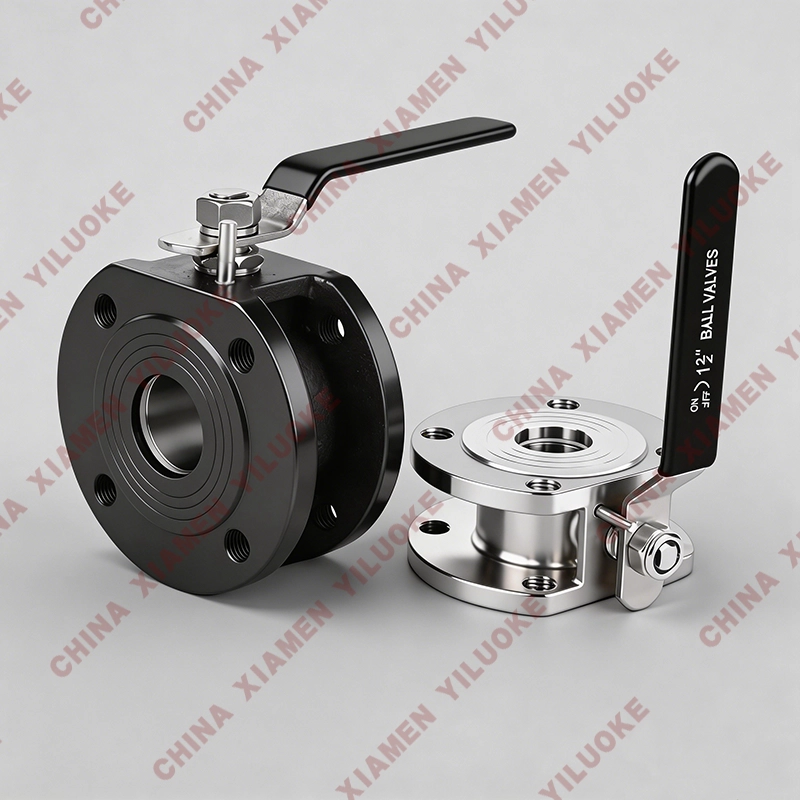

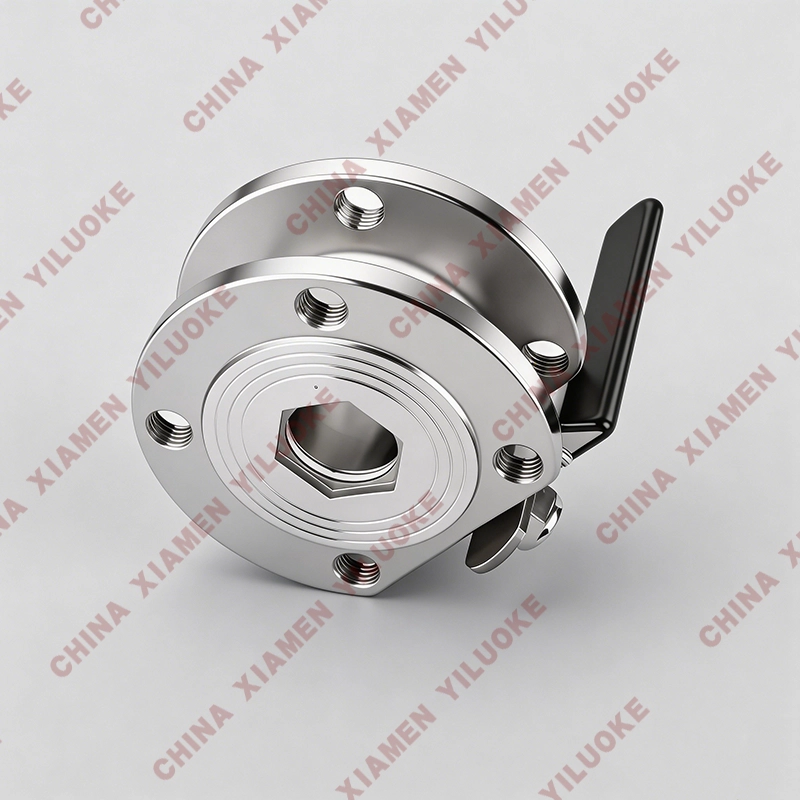

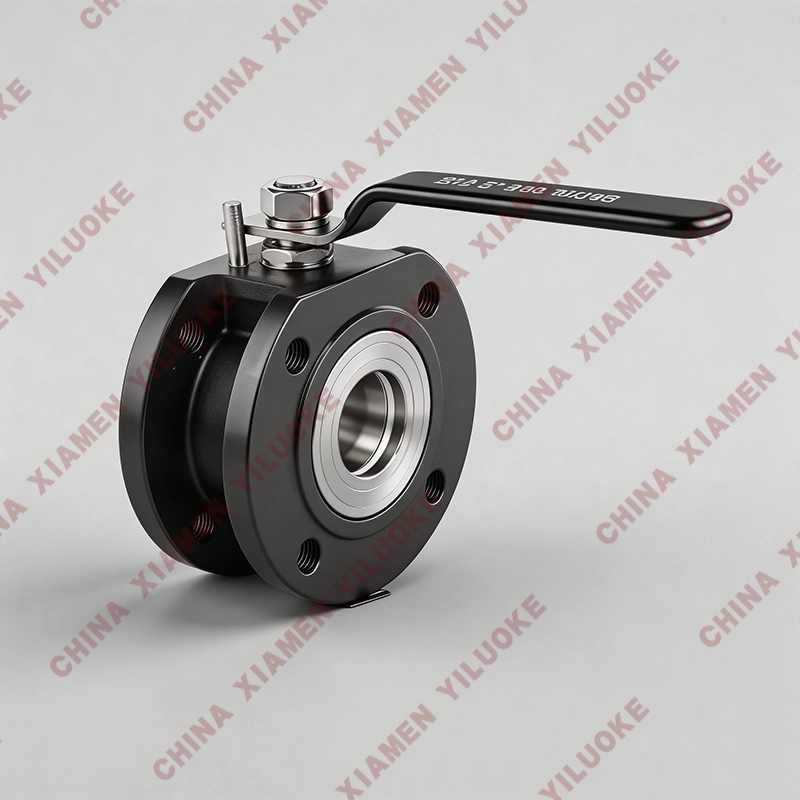

The wafer ball valve is a full‑bore ultra‑thin ball valve designed for steam, water, air and other fluids. It features maintenance‑free construction, triple‑seal anti‑blow‑out stem and heat‑resistant PTFE/graphite seat. Two model options are available: carbon steel YB6E and stainless steel YB6S.
Features
Full‑bore wafer ball valve suitable for steam, water, air and other fluids.
Triple‑seal anti‑blow‑out valve stem.
Seat made of heat‑resistant PTFE/graphite.
Maintenance‑free.
Easy operation.
Fire‑safe design complying with BS6755, API607 and API6FA.
Actuator mounting compatible with ISO 5211 standard.
Main Parts Material
| No | Part Name | Material |
| 1 | Valve Body | SS CF8M/CF8, Carbon Steel WCB |
| 2 | Ball | SS316/304, SS304 |
| 3 | Gasket | PTFE, PTFE |
| 4 | Valve Stem | SS316/304, SS304 |
| 5 | Packing | PTFE, PTFE |
| 6 | Position Lock | SS304, SS304 |
| 7 | Handle | SS304, SS304 |
| 8 | Stem Nut | SS304, SS304 |
| 9 | Packing Gland | SS304, SS304 |
| 10 | Handle Grip | Plastic, Plastic |
| 11 | Seal Cap | SS316/304, SS304 |
| 12 | Washer | PTFE, PTFE |
Design Standards
Design: ASME B16.34, API 608
Wall Thickness: ASME B16.34, EN12516‑3
Flange End: DIN PN10‑PN40, ASME B16.5 CLASS 150/300
Inspection & Test: API 598, EN12266
Technical Parameters
Nominal Diameter: 10mm～1000mm, 1/2"～60"
Nominal Pressure: 1.0MPa～16.0MPa / 150Lb～1500Lb / 10K～160K
Working Temperature: －196℃～700℃
Applicable Standards: GB, DIN, API, ANSI, JIS, BS etc.
Valve Body Material: Carbon steel, stainless steel, alloy steel, ultra‑low carbon stainless steel, titanium alloy, high‑nickel alloy, monel alloy etc.
Operation Mode: Manual, electric, pneumatic etc.
Application Fields
The wafer ball valve is mainly used to control and regulate fluid flow, pressure and temperature in industrial automatic control systems. It controls flow for boilers, air‑conditioning, refrigeration systems, gas and water pipelines. It is widely applied in petroleum, chemical, power generation and water treatment industries for flow and pressure regulation. It also handles various liquids such as gasoline, diesel oil, grease and lubricating oil.
