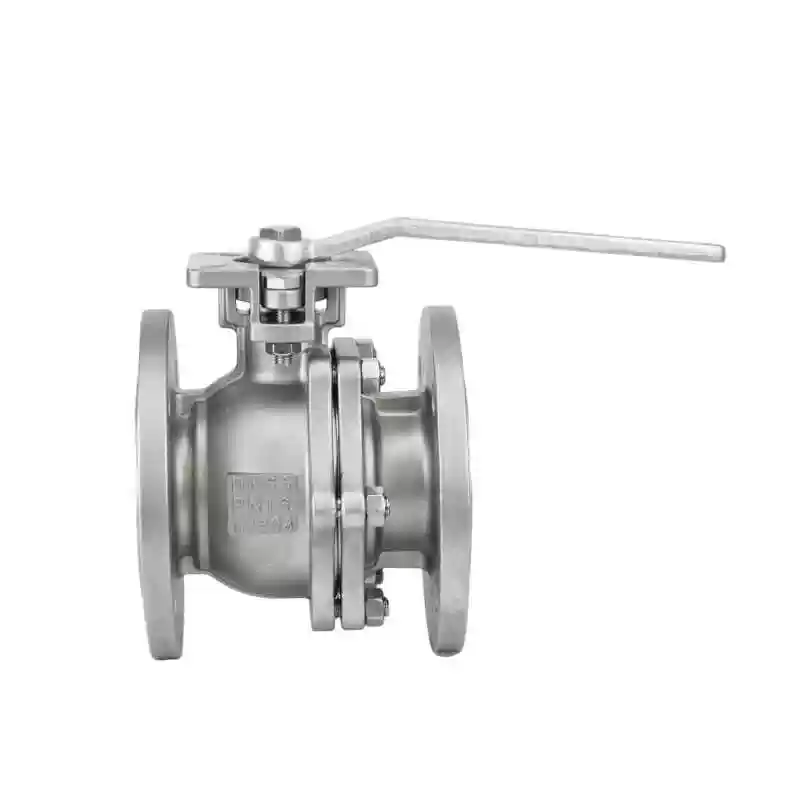

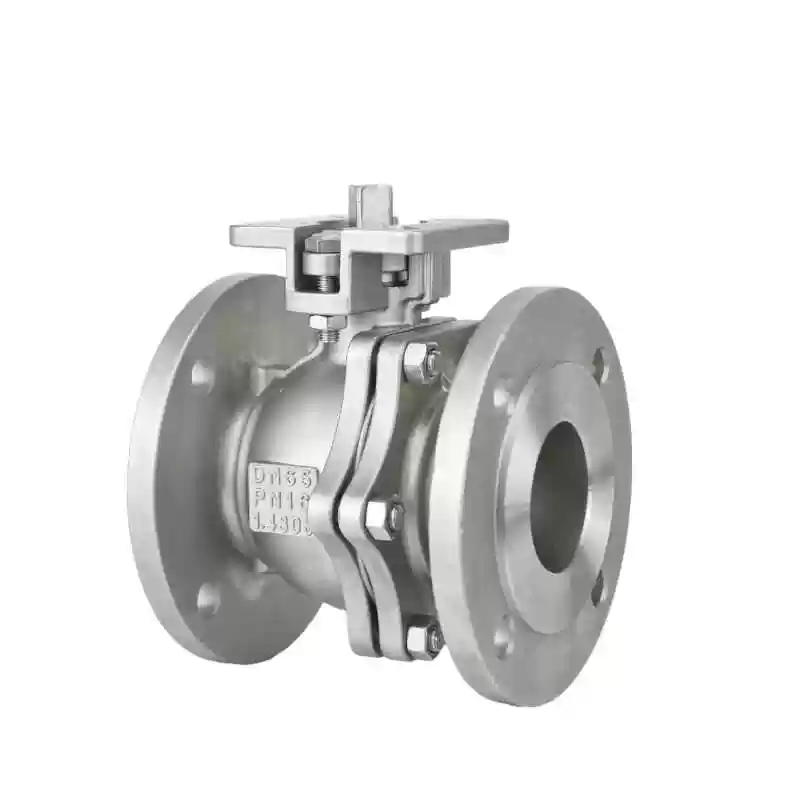

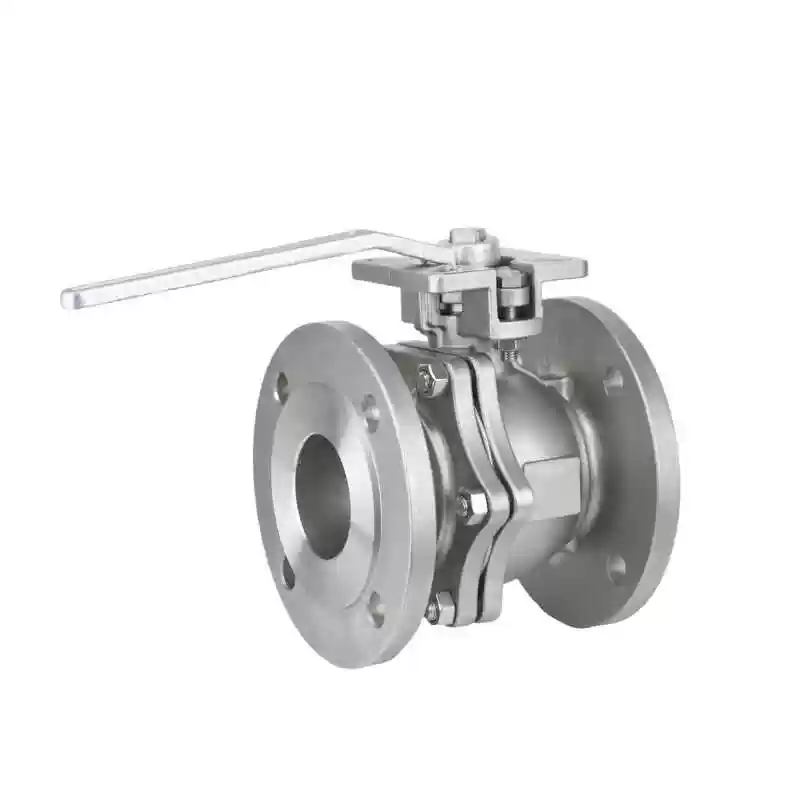

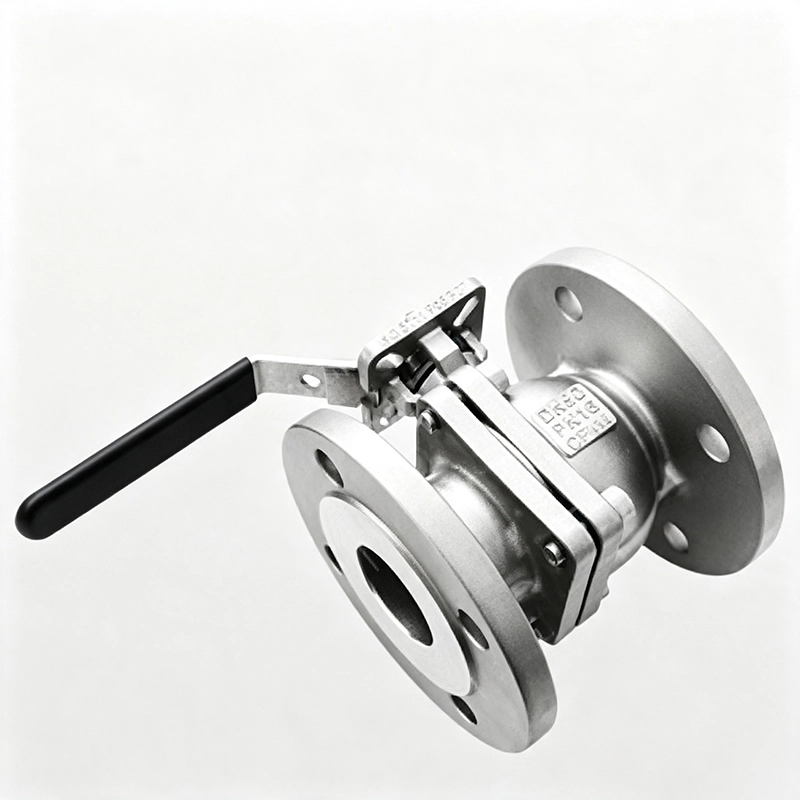

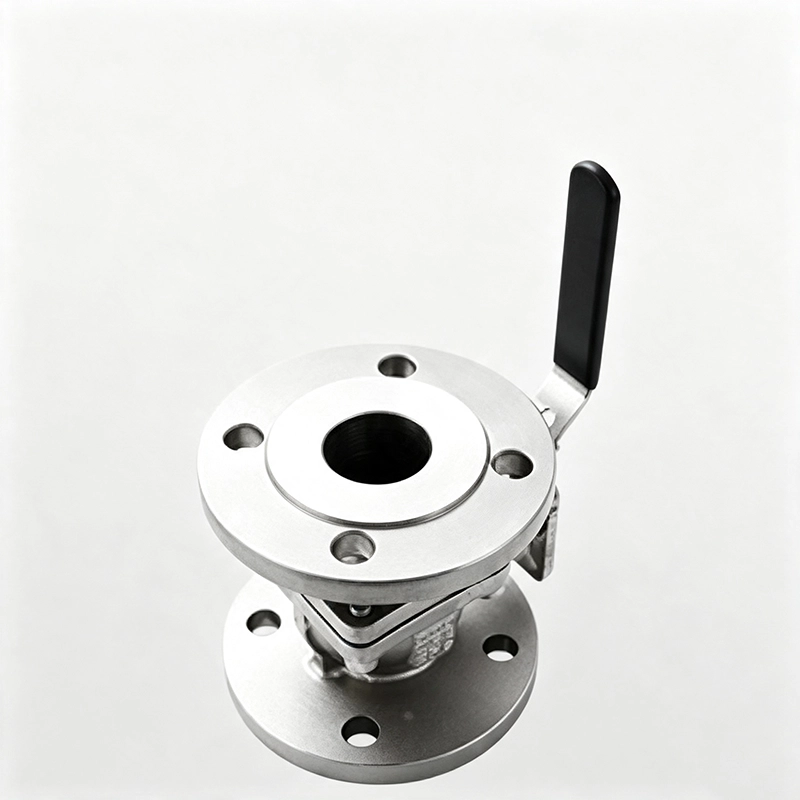

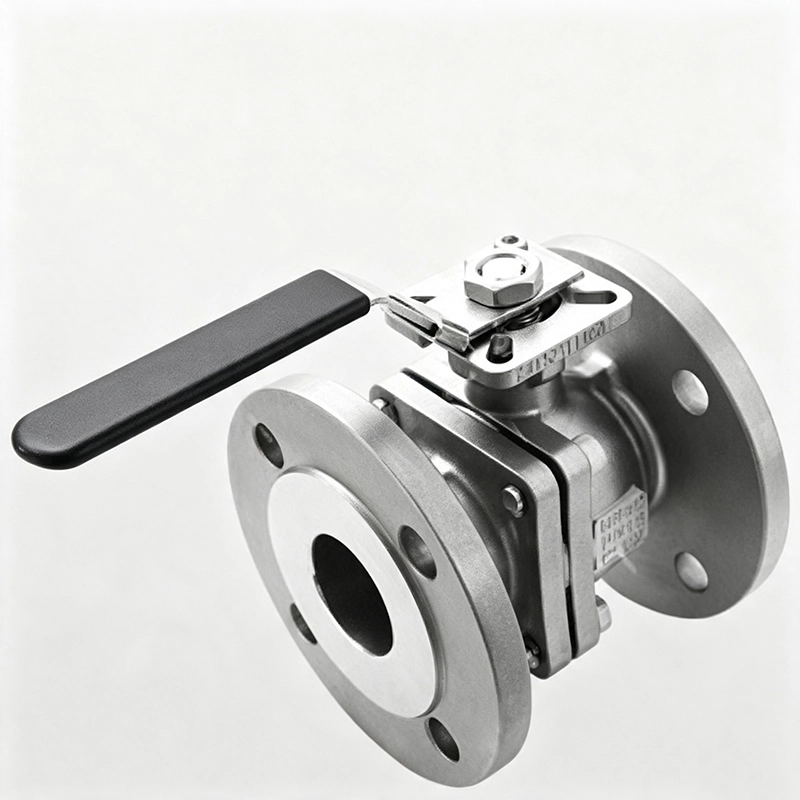

DIN Ball Valve
DIN Ball Valve is a straight‑through floating ball valve. Its valve body can be one‑piece, two‑piece or three‑piece type, and the valve body is fully made of stainless steel or carbon steel. The closing member of flanged ball valve is a perforated ball (or partial ball). The ball rotates together with the stem to realize valve opening and closing. Ball valves are mainly used in pipelines for shut‑off, diversion and changing medium flow direction. The ball of flanged ball valve is floating. Under medium pressure, the ball will produce certain displacement and press tightly against the sealing surface at outlet side to guarantee outlet‑side sealing. Among various valves, ball valve features low flow resistance. When the ball valve is open, ball passage, valve body passage and connecting pipe diameter are aligned at the same size, medium can flow through with almost no pressure loss. Soft‑seal and hard‑seal seat options are available.
Technical Parameters
| Brand | Xiamen Yiluoke | Product Name | DIN Ball Valve |
| Model | Q41F | Valve Body Material | 304 / 316 |
| Connection Type | Flange | Nominal Diameter | DN15~DN200 |
| Operation | Manual | Applicable Media | Water, steam, oil, etc. |
| Applicable Temperature | -29℃~150℃ | Nominal Pressure | PN16 / PN40 |
| Sealing Material | Daikin Japan seal | Design Standard | DIN 3357 | EN 12516‑1 |
| Wall Thickness Standard | ASME B16.34 | EN 12516‑1 | Fire Safe Standard | API 607 / ISO 10497 |
| Face‑to‑Face Standard | DIN 3202 | Flange Standard | DIN EN 1092‑1 |
| Inspection Standard | DIN 3230 EN 12266 | Manufacturing Standard | GB, JB, HG, ANSI, API, JIS, DIN and other customized standards |
| Product Name | DIN Ball Valve | Model | Q41F |
| Operation Mode | Manual, Electric, Pneumatic | Connection Form | Flange |
| Structure Type | Floating, Fixed | Sealing Structure | Soft‑seal, Hard‑seal |
| Pressure Range | 1.6MPa‑6.4MPa | Nominal Diameter | DN15‑300 |
| Common Material | Carbon steel, stainless steel, etc. | Nameplate | Xiamen Yiluoke |
Product Standards
| Design | DIN 3357 EN 12516‑1 |
| Wall Thickness | ASME B16.34 EN 12516‑1 |
| Fire Safe | API 607 ISO 10497 |
| Face to Face | DIN 3202 |
| End Flange | DIN EN 1092‑1 |
| Inspection & Testing | DIN 3230 EN 12266 |
Product Features
Anti‑static Devices For Ball‑Stem‑Body
Blow‑out Proof Stem Design
Pressure Balance Hole in Ball Slot
Built‑in ISO 5211 Bracket Mount For Easy Automation Actuator Installation

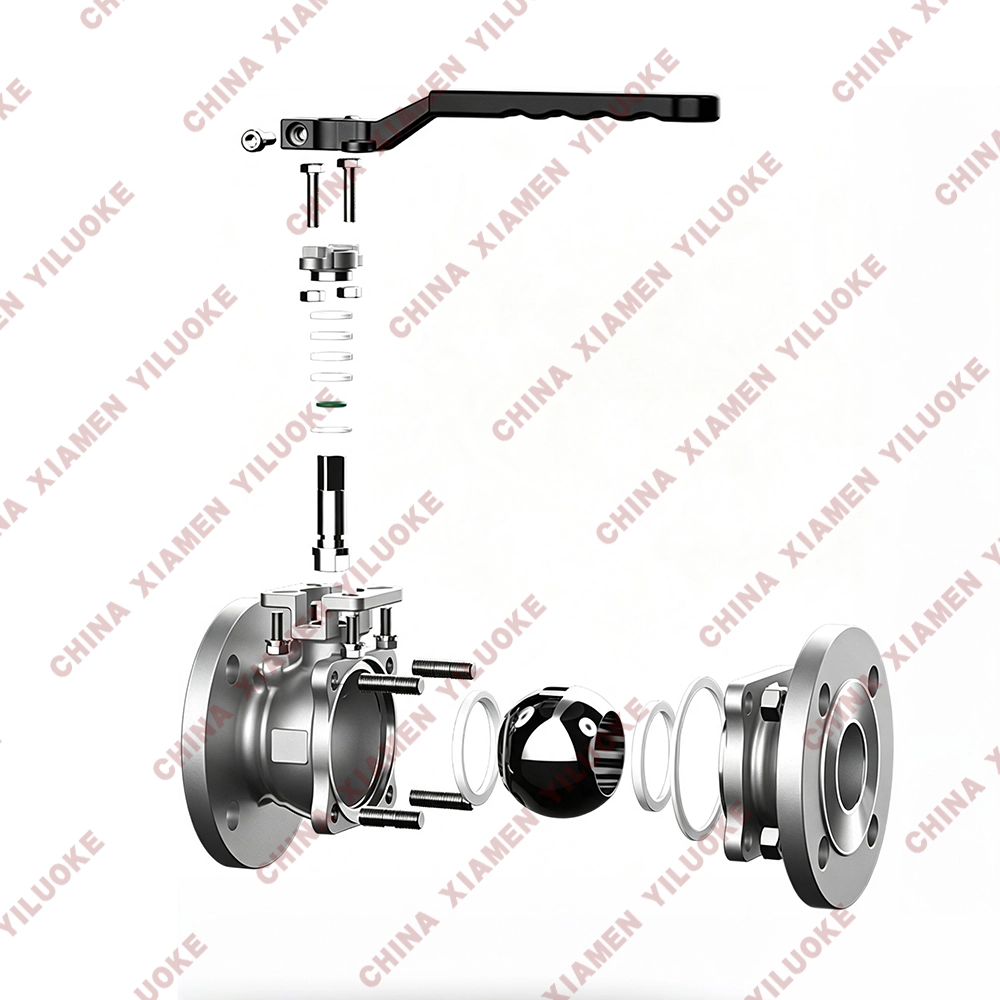

Main Parts Material List
| Part Name | ANSI/JIS/DIN | ANSI/JIS/DIN | ANSI/JIS/DIN |
| Valve Body | A351‑CF8M/SCS14A/1.4408 | A351‑CF8/SCS13A/1.4308 | A216‑WCB/SCPH2/1.0619 |
| Bonnet | A351‑CF8M/SCS14A/1.4408 | A351‑CF8/SCS13A/1.4308 | A216‑WCB/SCPH2/1.0619 |
| Ball | SUS316 | SUS304 | |
| Hex Nut | A194‑8 | ||
| Spring Gasket | SUS304 | ||
| Sealing Ring | PTFE/VITON | ||
| Seat | PTFE/RPTFE/PPL | ||
| Valve Stem | SUS316 | SUS304 | |
| O‑ring | FKM(VITON) | ||
| Thrust Washer | PTFE/RPTFE | ||
| Packing | PTFE/GRAFOIL | ||
| Belleville Spring | SUS304 | ||
| Stem Nut | A194‑8 | ||
| Packing Gland | SUS304 | ||
| Handle | SUS201 | ||
| Position Pin | SUS304 | ||
| Hex Socket Cap Screw | SUS304 | ||
| Hex Nut | A194‑8 | ||
| Stud Bolt | A193‑B8 |

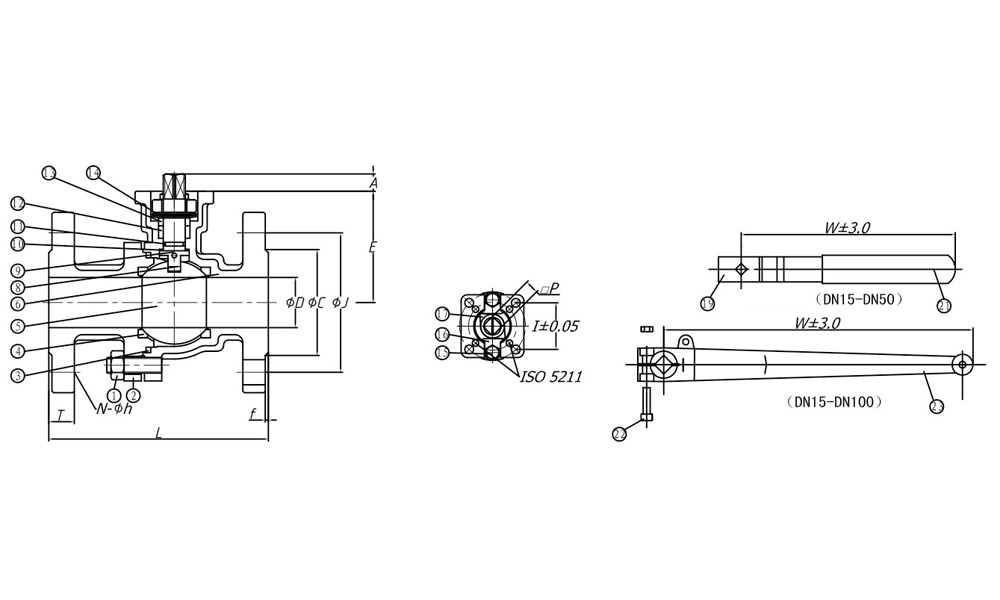

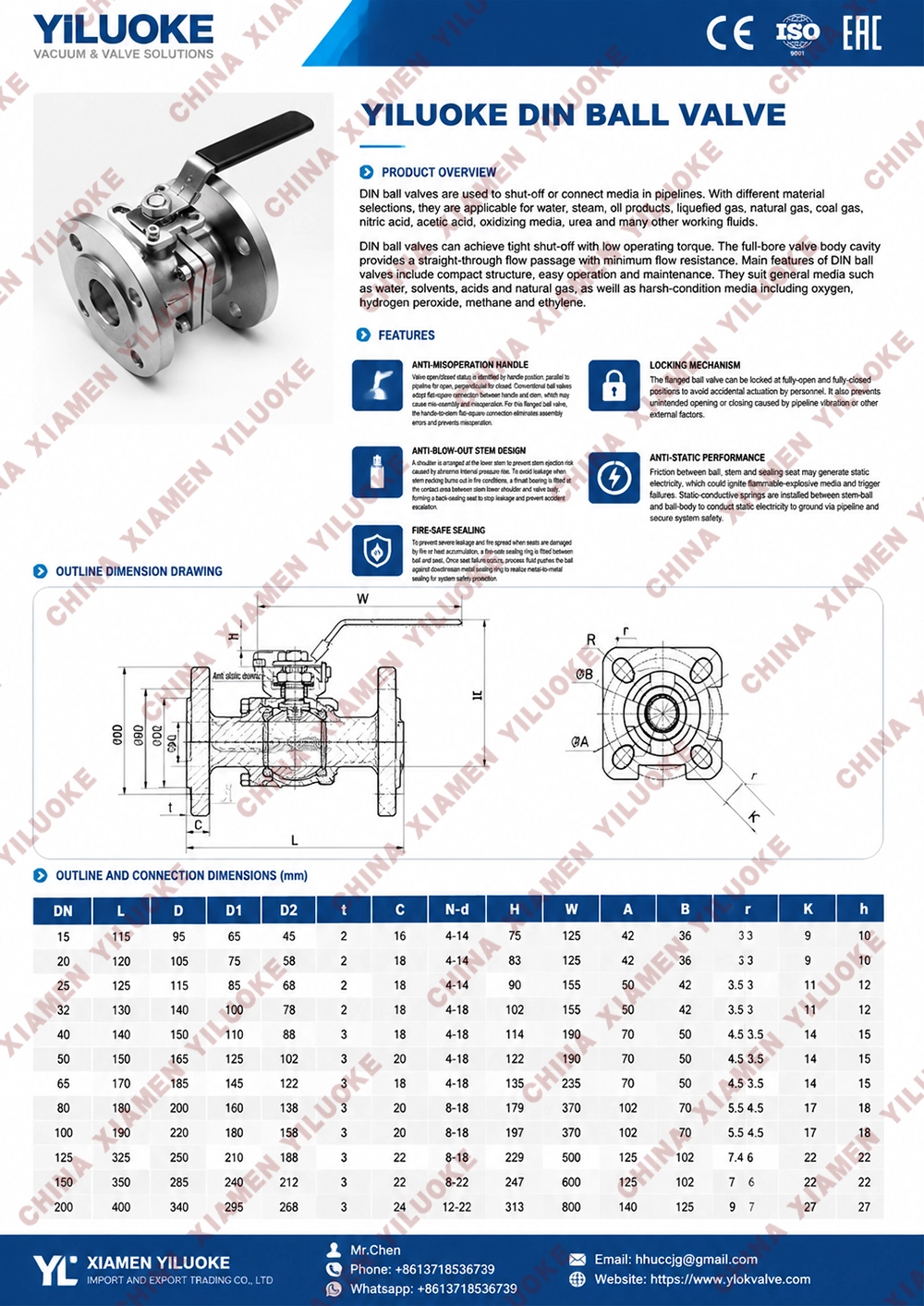

Overall Dimensions
| SIZE | ∅D | L | ∅C | ∅E | ∅J | f | T | N | ∅h | W | ISO5211 | H | A | P |
| 1" | 25 | 216 | 50.8 | 123.8 | 88.9 | 6.4 | 23.8 | 4 | 19.1 | 190 | F04 | 65 | 11 | 11 |
| 1‑1/2" | 40 | 241 | 72.3 | 155.6 | 114.3 | 6.4 | 28.6 | 4 | 22.2 | 190 | F05 | 80 | 13 | 14 |
| 2" | 50 | 292 | 92 | 165.1 | 127 | 6.4 | 31.8 | 8 | 19.1 | 190 | F05 | 86 | 15 | 14 |
| SIZE | ∅D | F4 | L | T | ∅C(PN16) | ∅C(PN40) | ∅E(PN16) | ∅E(PN40) | ∅J(PN16) | ∅J(PN40) | f |
| DN15 1/2" | 15 | 115 | F1 | 45 | 45 | 45 | 95 | 95 | 65 | 65 | 2 |
| 20 3/4" | 20 | 120 | 150 | 58 | 58 | 58 | 105 | 105 | 75 | 75 | 2 |
| 25 1" | 25 | 125 | 160 | 68 | 68 | 68 | 115 | 115 | 85 | 85 | 2 |
| 32 1‑1/4" | 32 | 130 | 180 | 78 | 78 | 78 | 140 | 140 | 100 | 100 | 2 |
| 40 1‑1/2" | 40 | 140 | 200 | 88 | 88 | 88 | 150 | 150 | 110 | 110 | 3 |
| 50 2" | 50 | 150 | 230 | 102 | 102 | 102 | 165 | 165 | 125 | 125 | 3 |
| 65 2‑1/2" | 65 | 170 | 290 | 122 | 122 | 122 | 185 | 185 | 145 | 145 | 3 |
| 80 3" | 80 | 180 | 310 | 138 | 138 | 138 | 200 | 200 | 160 | 160 | 3 |
| 100 4" | 100 | 190 | 350 | 158 | 162 | 162 | 220 | 235 | 180 | 190 | 3 |
| 125 5" | 125 | 325 | 400 | 188 | 188 | 188 | 250 | 270 | 210 | 220 | 3 |
| 150 6" | 150 | 350 | 450 | 212 | 218 | 218 | 285 | 300 | 240 | 250 | 3 |
| 200 8" | 200 | 400 | 550 | 268 | 278 | 285 | 340 | 360 | 295 | 320 | 3 |
| 250 10" | 250 | 450 | 650 | 320 | 335 | 345 | 405 | 425 | 355 | 370 | 3 |
| 300 12" | 300 | 500 | 750 | 378 | 395 | 410 | 460 | 485 | 410 | 430 | 4 |
| SIZE | T(Pn16) | T(Pn25) | T(Pn40) | N(Pn16) | N(Pn25) | N(Pn40) | ∅h(Pn16) | ∅h(Pn25) | ∅h(Pn40) | W (Cast) | ISO5211 | H | A | P |
| DN15 1/2" | 14 | 16 | 16 | 4 | 4 | 4 | 14 | 14 | 14 | 124 | F03/F04 | 46 | 9.3 | 9 |
| 20 3/4" | 14 | 16 | 18 | 4 | 4 | 4 | 14 | 14 | 14 | 124 | F03/F04 | 51 | 9.6 | 9 |
| 25 1" | 16 | 18 | 18 | 4 | 4 | 4 | 14 | 14 | 14 | 187 | F04/F05 | 58 | 12.5 | 11 |
| 32 1‑1/4" | 16 | 18 | 18 | 4 | 4 | 4 | 18 | 18 | 18 | 187 | F04/F05 | 60 | 12.6 | 11 |
| 40 1‑1/2" | 16 | 18 | 18 | 4 | 4 | 4 | 18 | 18 | 18 | 220 | F05/F07 | 80 | 13.1 | 14 |
| 50 2" | 18 | 20 | 20 | 4 | 4 | 4 | 18 | 18 | 18 | 220 | F05/F07 | 86 | 14.8 | 14 |
| 65 2‑1/2" | 18 | 22 | 22 | 4 | 8 | 8 | 18 | 18 | 18 | 350 | F07 | 101 | 29.8 | 17 |
| 80 3" | 20 | 24 | 24 | 8 | 8 | 8 | 18 | 18 | 18 | 350 | F07 | 111 | 29.2 | 17 |
| 100 4" | 20 | 24 | 24 | 8 | 8 | 8 | 18 | 22 | 22 | 350 | F10 | 131 | 31.8 | 17 |
| 125 5" | 22 | 26 | 26 | 8 | 8 | 8 | 18 | 26 | 26 | 600 | F10 | 153 | 27.0 | 22 |
| 150 6" | 22 | 28 | 28 | 8 | 8 | 8 | 22 | 26 | 26 | 600 | F12 | 188 | 27.0 | 27 |
| 200 8" | 24 | 30 | 34 | 12 | 12 | 12 | 22 | 26 | 30 | 600 | F12 | 350 | 27.0 | 27 |
| 250 10" | 26 | 32 | 38 | 12 | 12 | 12 | 26 | 30 | 33 | 400 | F12 | 465 | 46 | 36 |
| 300 12" | 28 | 34 | 42 | 12 | 16 | 16 | 26 | 30 | 33 | 400 | F12 | 587 | 46 | 36 |
