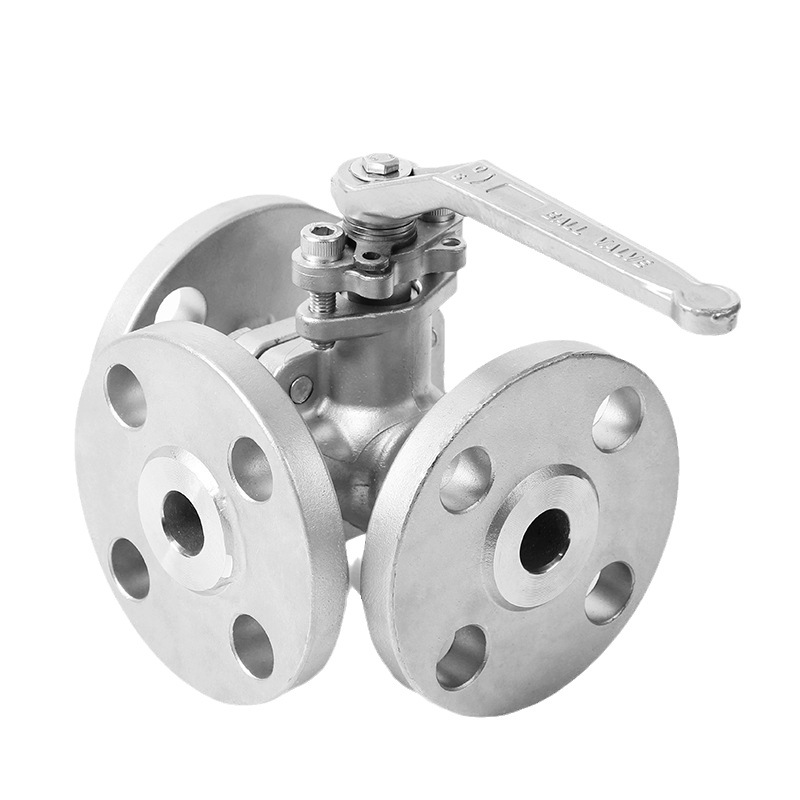

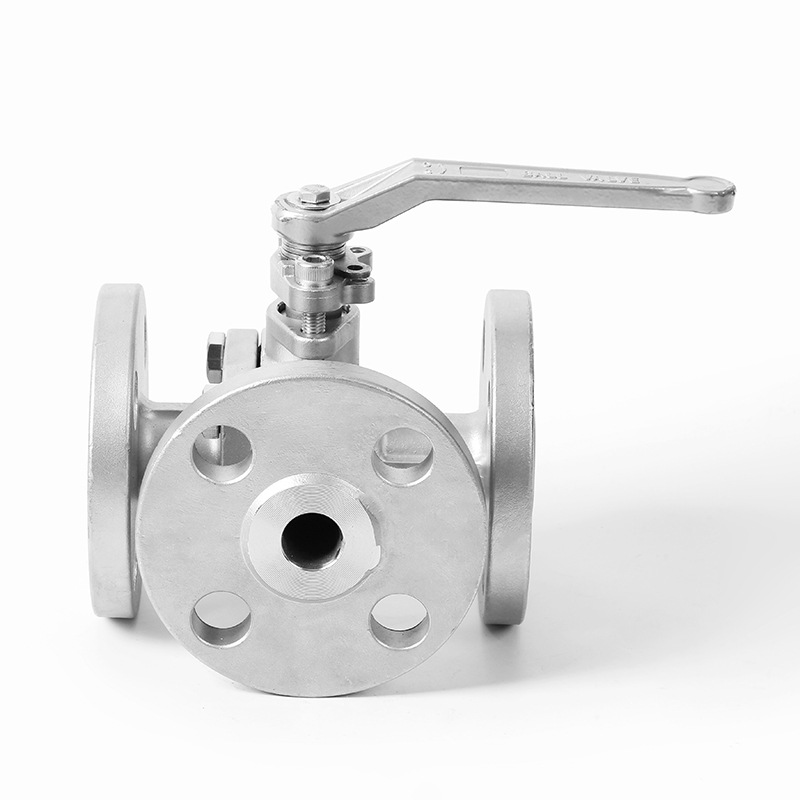

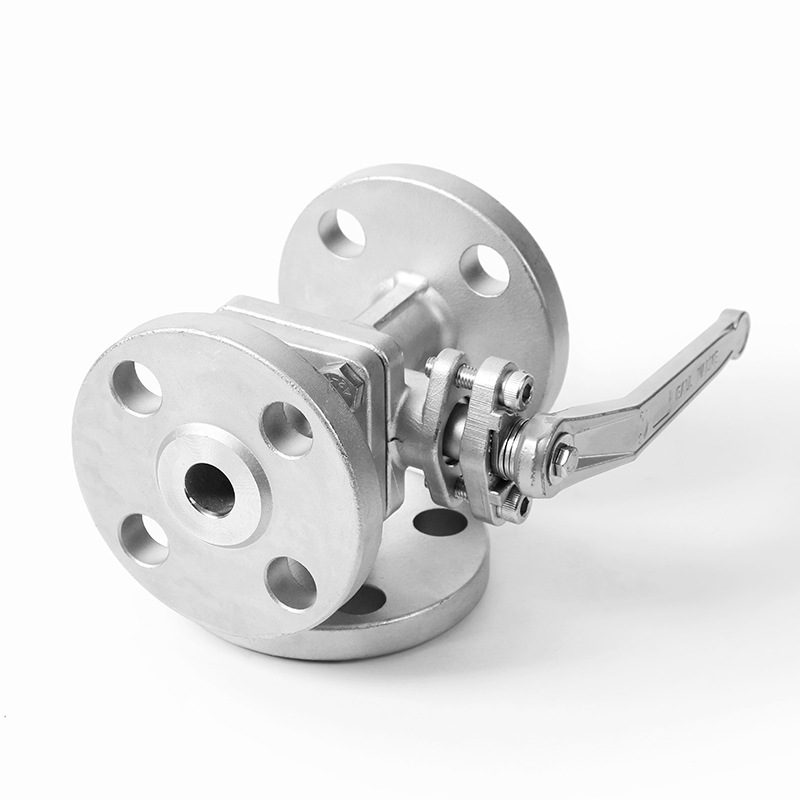

The 3‑way flanged ball valve is divided into L‑port flanged ball valve and T‑port flanged ball valve. The L‑port type is suitable for medium flow direction switching and can connect two mutually perpendicular channels. The T‑port type is applicable for medium diversion, confluence or flow direction switching. Double‑layer stem packing meets leak‑test requirements. Inspection and maintenance can be carried out without removing the whole valve body after system pressure relief.

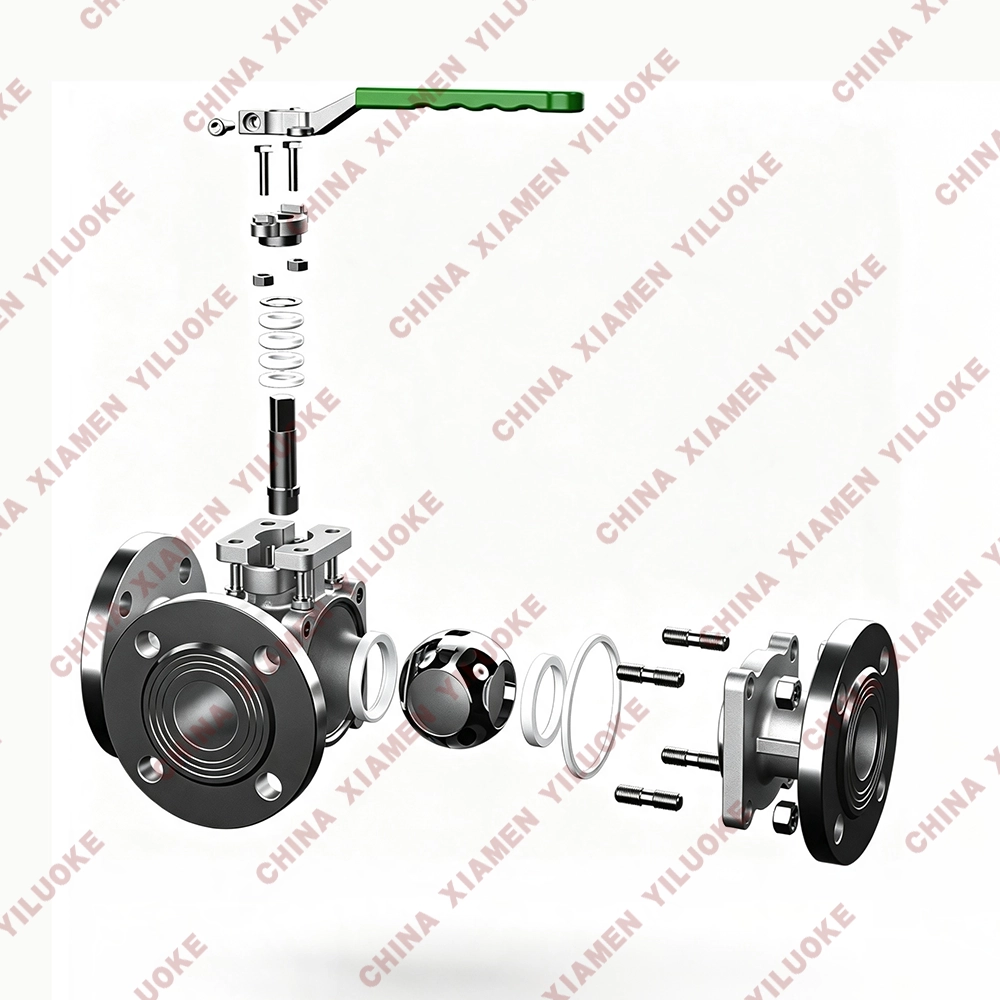

Structural Design

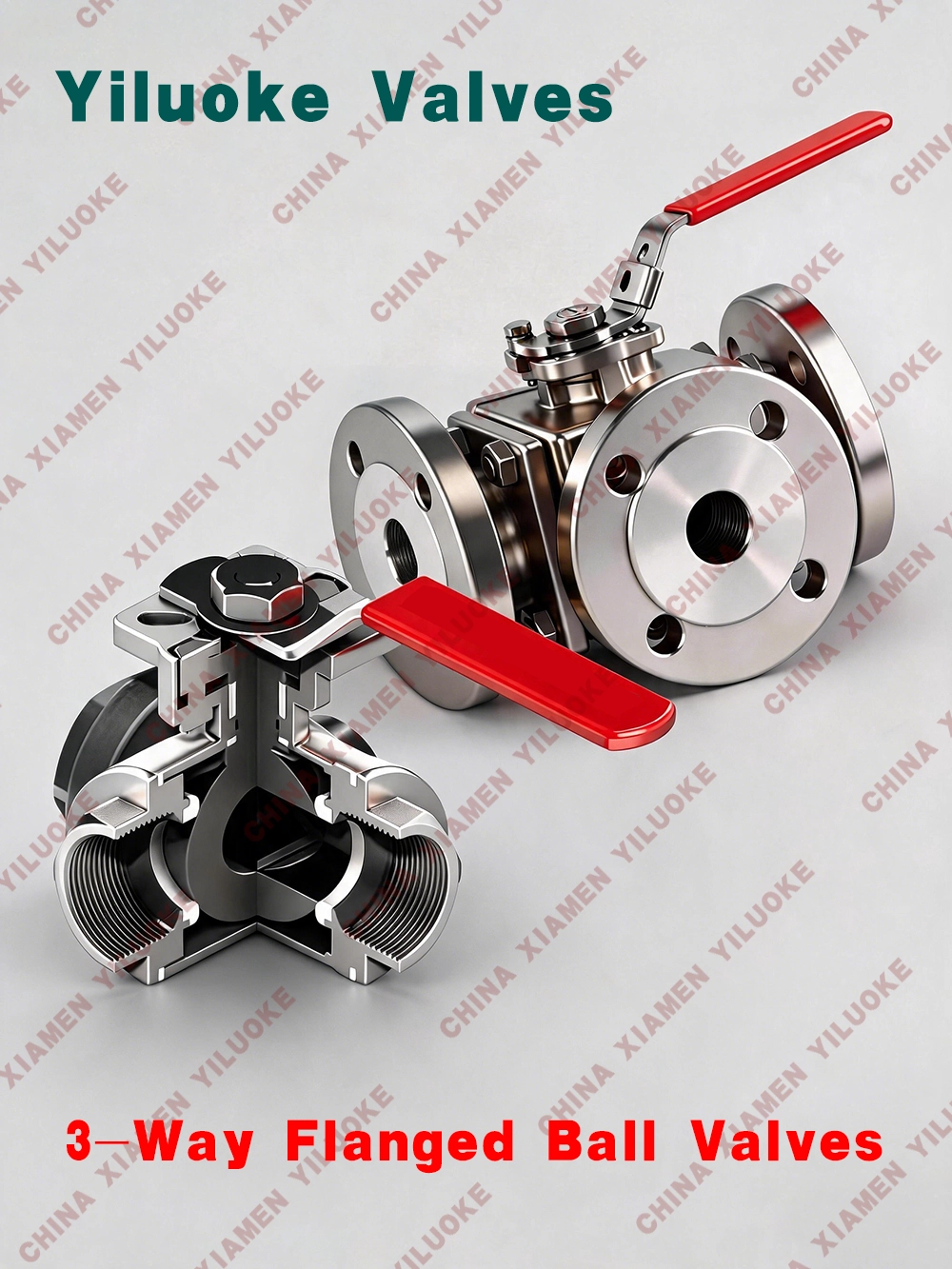

The valve body is cast or forged with compact structure and nice appearance. The spool and stem of O‑type 3‑way ball valve perform rotary motion. The spool keeps tight contact with the seat during rotation and delivers strong shearing capacity.

The seat can be pre‑loaded by cylindrical springs or disc springs, featuring automatic compensation, self‑sealing and automatic cavity pressure relief, suitable for high‑temperature and high‑pressure working conditions.

Optimized ball rotation design ensures smooth ball operation and reduces operating torque.

Soft‑seal and hard‑seal options are available. Sealing surfaces can be hardened to fit multiple working conditions.

Automatic cavity pressure relief design: when trapped medium inside valve body rises in temperature and causes abnormal pressure rise, pressure can be released automatically by seat function without safety valve, improving system safety.

The ball valve can be equipped with anti‑static structure and anti‑blow‑out stem structure.

Any port of 3‑way ball valve can serve as inlet without leakage. It can be manufactured into L‑port or T‑port channel according to working conditions for easier installation.

Inspection and maintenance can be completed without removing the whole valve body after system pressure relief.

The 3‑way flanged ball valve includes L‑port and T‑port types. L‑port is for flow direction switching to connect two mutually perpendicular channels. T‑port is for medium diversion, confluence or flow direction switching.

Two‑seat sealed 3‑way ball valve features compact structure, nice appearance and reliable sealing performance. It realizes pipeline flow switching and connects or closes two mutually perpendicular channels.

Four‑seat sealed 3‑way ball valve has reasonable structure and elegant appearance. It can not only switch medium flow direction, but also connect three channels mutually to flexibly realize medium confluence or diversion in pipelines.

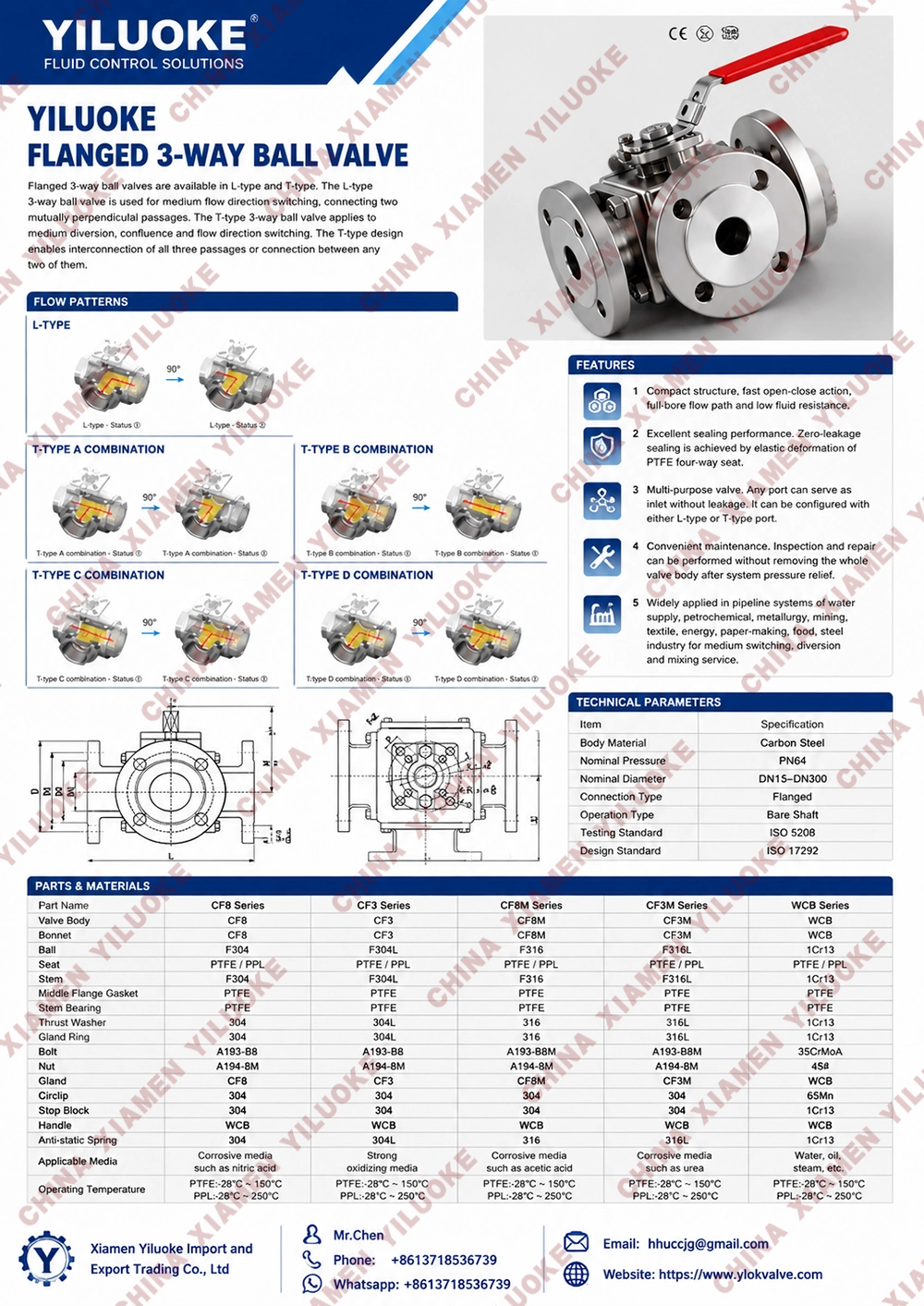

Performance Parameters

Main Parts Material of 3‑Way Flanged Ball Valve

Overall Dimensions
