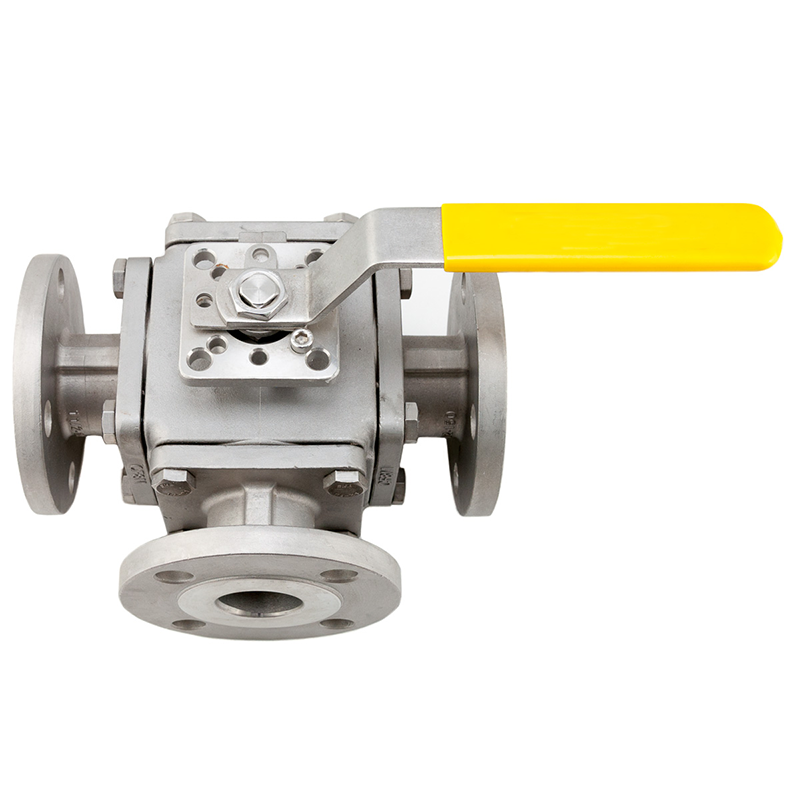

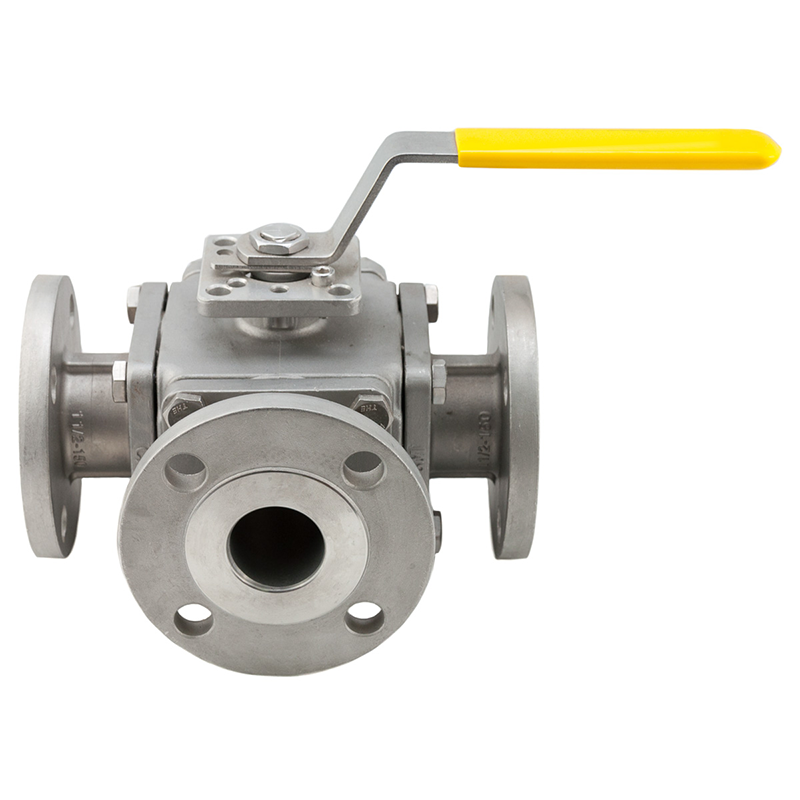

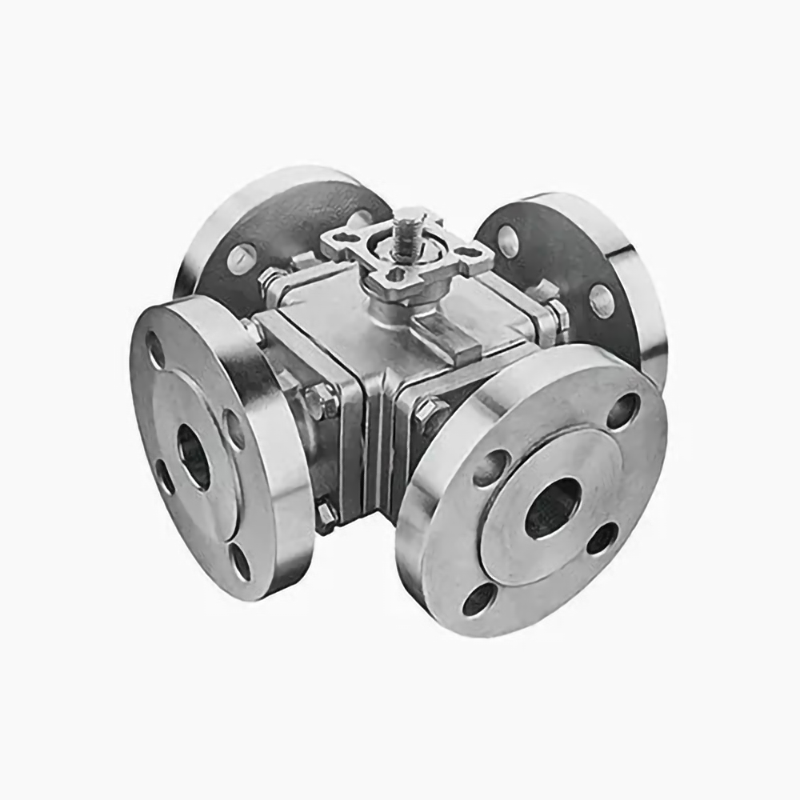

4-Way Flanged Ball Valves: Introduction & Technical Parameters

4-way flanged ball valves adopt flanged connection, enabling easy installation. Composed of LL-type 4-way ball valves, the "LL" type 4-way ball valve only needs to operate a wrench or actuator to rotate the ball 90°, and switch the flow direction of two media at the same time, which is convenient and rapid, achieving the effect of one valve with multiple uses.

Technical Parameters

• Product Name: 4-Way Flanged Ball Valve

• Valve Body Material: WCB/CF8/CF8M/CF3/CF3M

• Connection Method: Flanged

• Nominal Diameter: DN15~DN200

• Drive Method: Manual

• Applicable Media: Water, Steam, Oil, etc.

• Applicable Temperature:         Soft Seal: RPTFE (-29℃~180℃)/PPL (-29℃~250℃)/PEEK (-29℃~280℃)         Hard Seal: -29℃~425℃

• Nominal Pressure: PN16/40, 150LB/300LB

• Ball Valve Flow Direction: L/L

• Design Standards: GB/T12237|GB/T21385|ASME B16.34|API608|API6D

• Flange Standards: ASME B16.15|HG/T 20592-2009|EN 1902-1

• Structure Length Standards: ASME B16.10|GB/T 12221-2005

• Fire Protection Standards: API607|JB/T6899-1993

• Temperature and Pressure Standards: ASME B16.34|GB/T12224-2015

• Testing Standard: API 598

• Manufacturing Standards: National Standard GB/Mechanical Department JB/Chemical Department HG/American Standard ANSI/API/Japanese Standard JIS/German Standard DIN/Other Customized Standards
