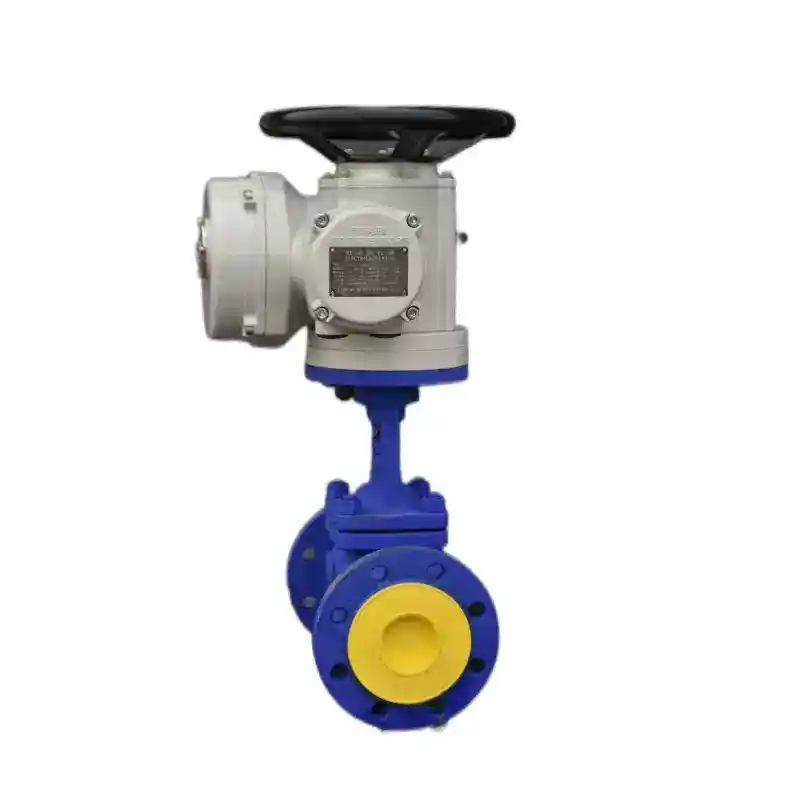

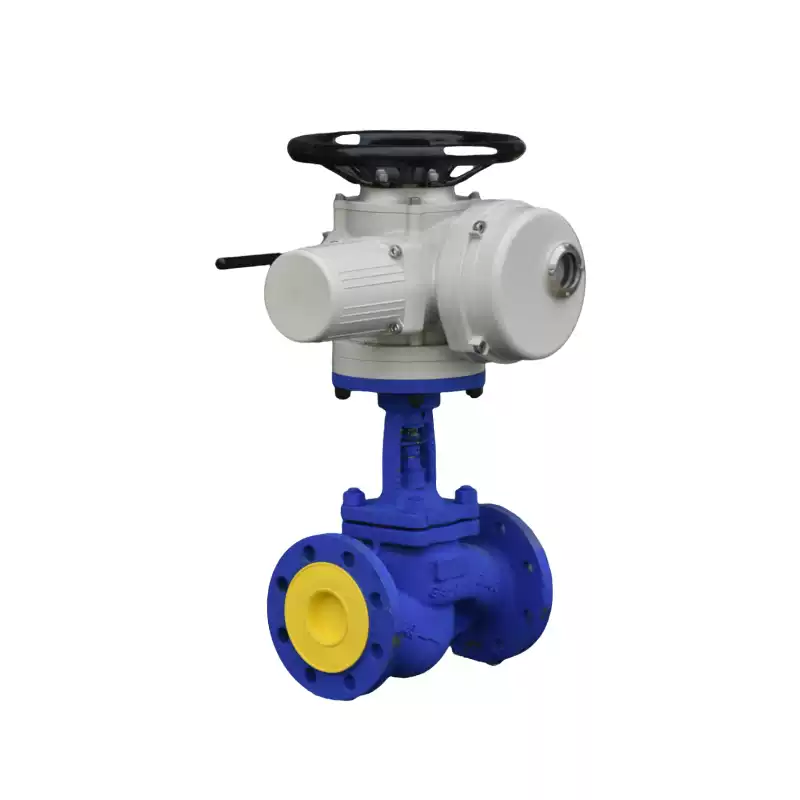

The Electric Bellows Sealed Globe Valve is manufactured by adding an electric connection plate and installing an electric actuator for on-off control on the basis of the manual Bellows Sealed Globe Valve. It can be controlled by selecting ordinary on-off/smart on-off type actuators.

Technical Parameters of Electric Bellows Sealed Globe Valve

• Manufacturing Standard: DIN3356

• Face-to-Face Dimension: DIN3202

• Butt Weld Standard: DIN3239

• Test Standard: DIN3230

• Design Standard: GB/T12235

• Face-to-Face Dimension: GB/T12221

• Flange Connection: GB/T9113, JB/T79

• Testing and Inspection: GB/T13927

• Nominal Diameter: DN15-DN500

• Nominal Pressure: PN10~64

• Operating Temperature: -29℃～425℃

Applications of Electric Bellows Sealed Globe Valve

It is mainly used in various working conditions such as steam, flammable, explosive, heat transfer oil, high-purity, and toxic media in the petroleum, chemical, pharmaceutical, chemical fertilizer, and power industries. The electric device cuts off or connects and regulates the pipeline medium.

Design Features of Electric Bellows Sealed Globe Valve

Manufactured with advanced metal bellows sealing technology and high-performance metal bellows, the Bellows Sealed Globe Valve adopts a bellows sealing design, which completely eliminates the shortcomings of fast aging and easy leakage of valve stem packing seals in ordinary valves. It not only improves energy efficiency in use, enhances the safety of production equipment, reduces maintenance costs and frequent maintenance, but also provides a clean and safe working environment. It is widely used in: petrochemical, chemical fiber and textile, plastic and papermaking, power and steel, printing and dyeing rubber, food and other industries.
