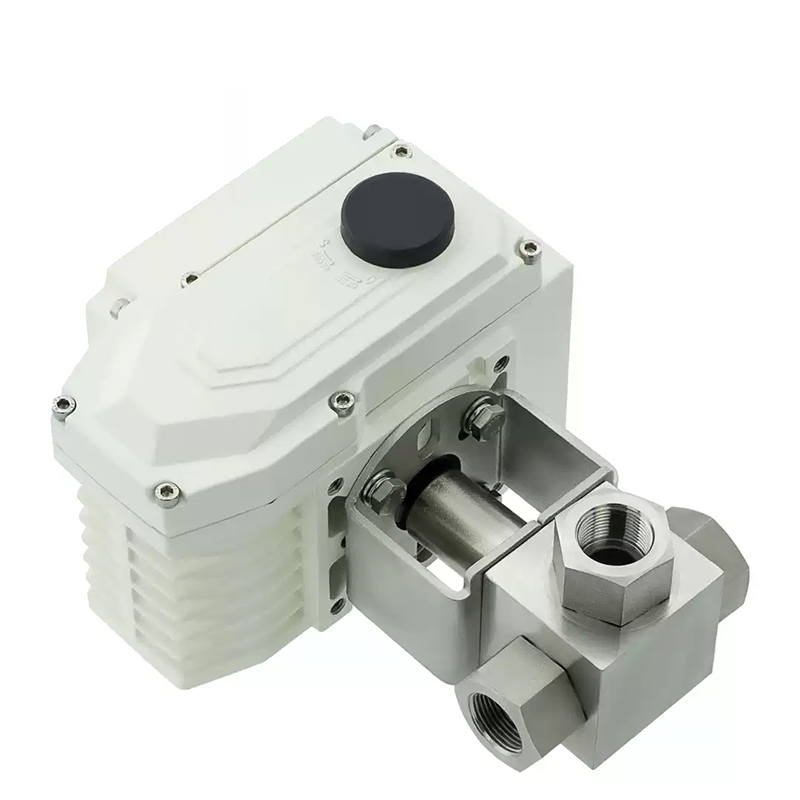

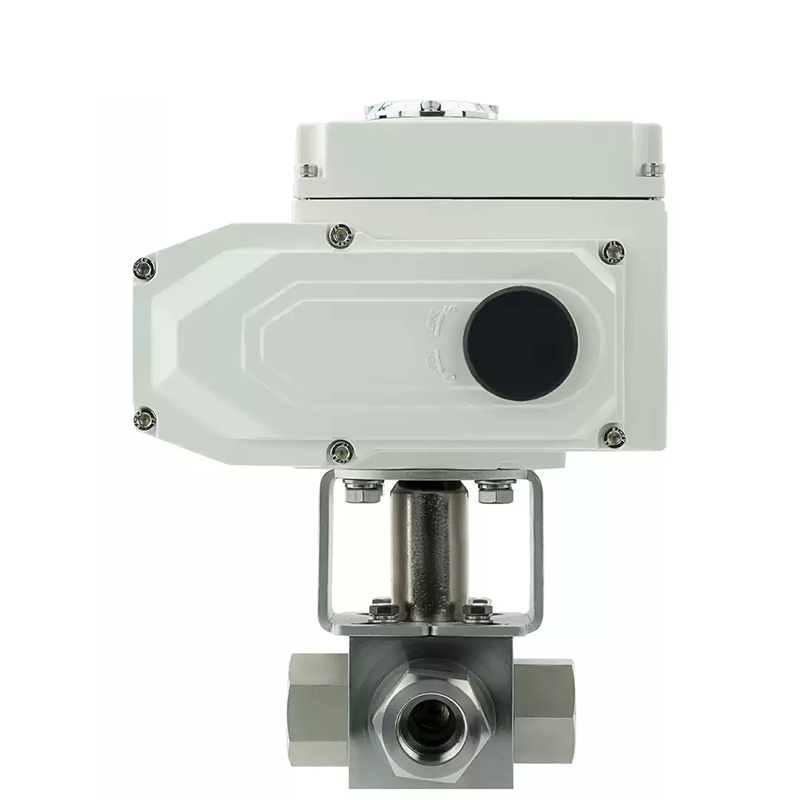

Electric Actuated High-Pressure 3-Way Ball Valves
Electric Actuated High-Pressure 3-Way Ball Valves
Electric Actuated high-pressure 3-way ball valves are composed of quarter-turn series intelligent actuators and 3-way ball valves. As a type of rotary on-off and regulating valve, they can switch the flow direction of media in pipelines, and also connect or shut off two mutually perpendicular channels. The four-seat sealed 3-way ball valves feature an attractive appearance and a compact, reasonable structure.
Electric Actuated high-pressure 3-way ball valves can not only switch the flow direction of media, but also connect the 3 channels with each other. Meanwhile, they can shut off any one channel to connect the other two, flexibly controlling the confluence or diversion of media in pipelines. Hence, they are also called Electric Actuated 3-way directional control ball valves.
Technical Parameters
Parameter | Specifications |
Product Name | Electric Actuated High-Pressure 3-Way Ball Valve |
Valve Body Material | Carbon Steel, Stainless Steel |
Connection Method | Female Threaded |
Nominal Diameter | DN8 ~ DN50 |
Actuation Method | Electric Actuated |
Applicable Medium | Water, Oil, Gas |
Applicable Temperature | -18℃ ~ 150℃ |
Nominal Pressure | 42MPa |
Actuator Type | Compact Type, Electronic Type, Explosion-Proof Type |
Control Mode | On-Off Type, Regulating Type |
Power Supply Voltage | 110VAC; 220VAC; 380VAC; 50/60Hz |
Input Signal | 4-20mADC or 1~5VDC |
Output Signal | 4-20mADC |
Protection Grade | IP65; IP67; IP68 |
Explosion-Proof Grade | Exd Ⅱ BT4; Exd Ⅱ CT6 |
Manufacturing Standard | GB (National Standard)/JB (Mechanical Industry Standard)/HG (Chemical Industry Standard)/ANSI (American National Standard)/API (American Petroleum Institute)/JIS (Japanese Industrial Standard)/DIN (German Industrial Standard)/Customized Standards |
